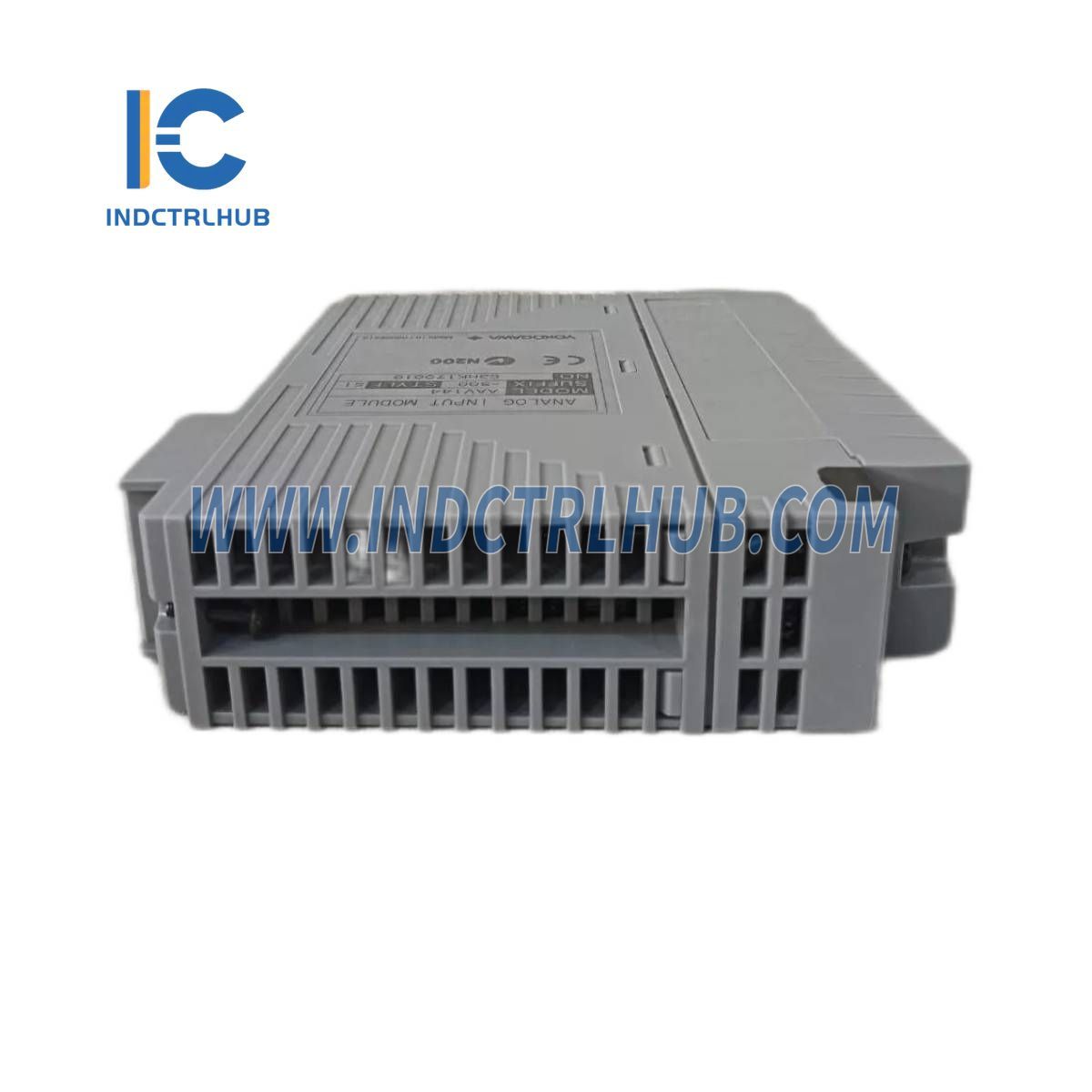

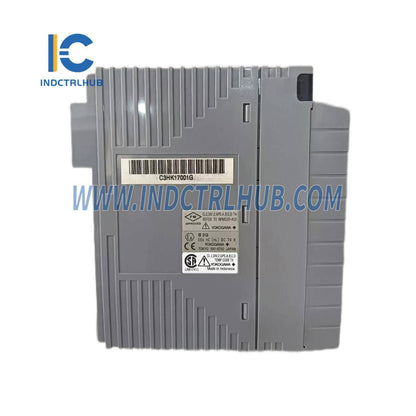

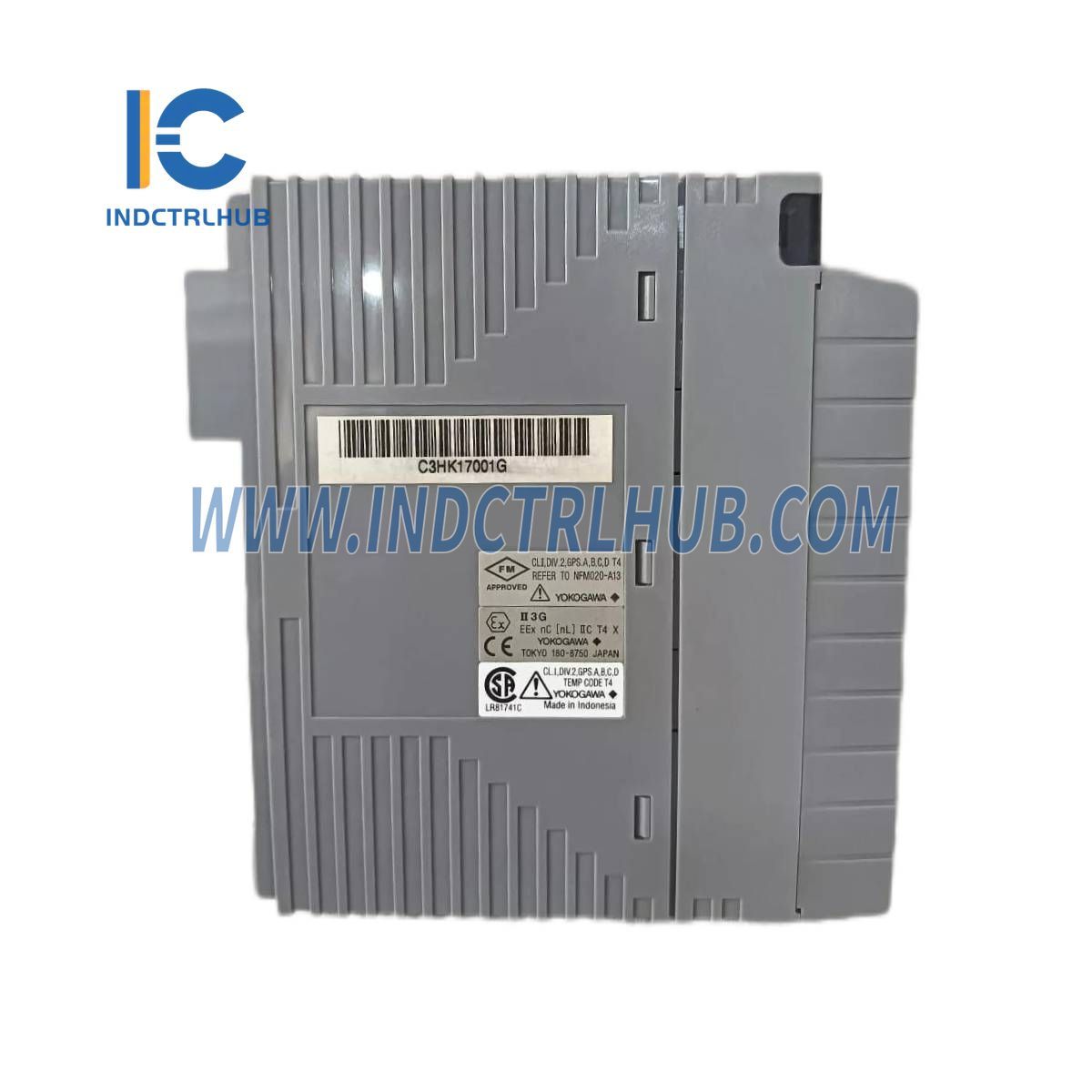

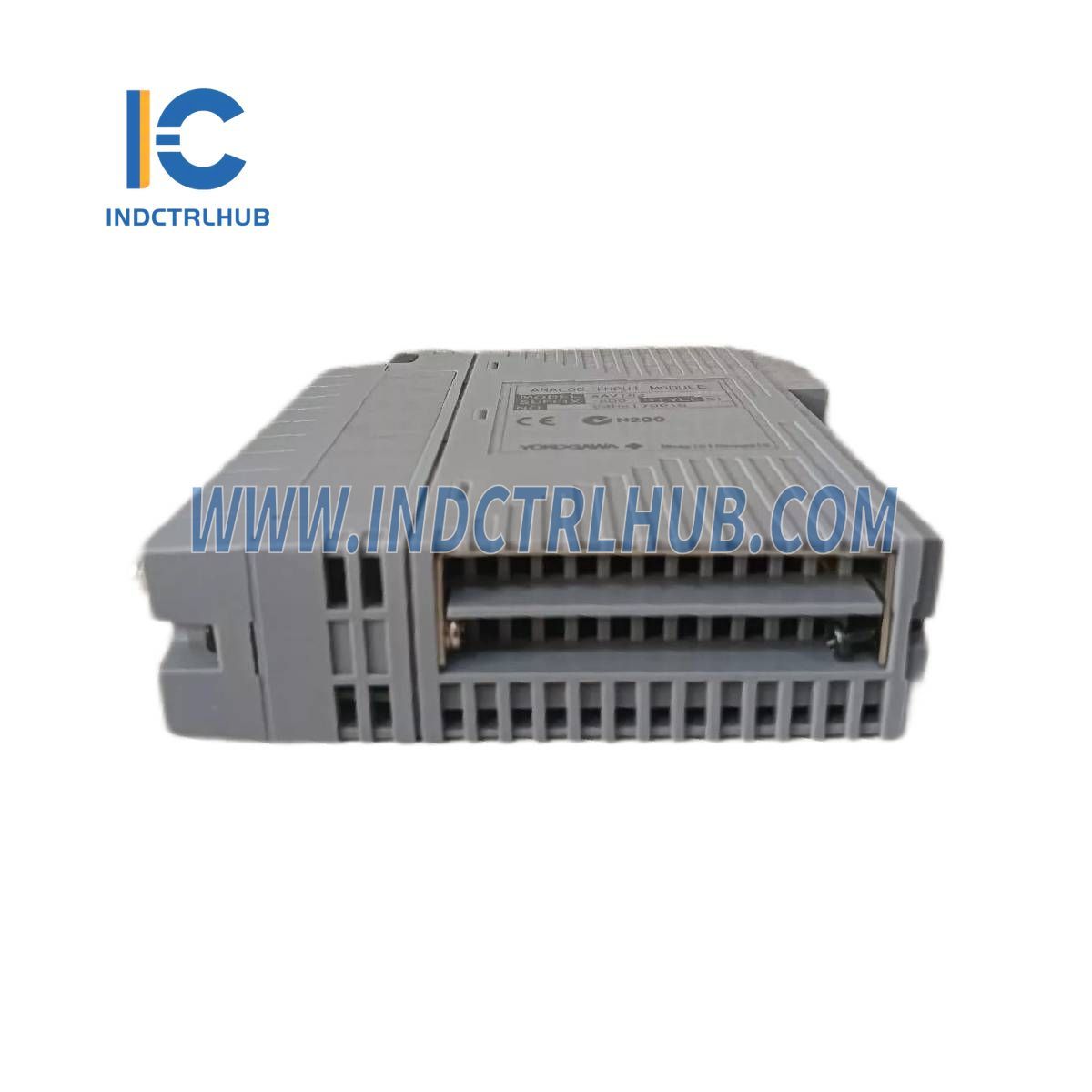

Yokogawa AAV144-S50/A4S10 Analog Input Module

Yokogawa AAV144-S50/A4S10 Analog Input Module

  • Manufacturer: Yokogawa

  • Product No.: AAV144-S50/A4S10

  • Condition:1000 in stock

  • Product Type: Analog Input Module

  • Product Origin: Japan

  • Payment: T/T, Western Union

  • Weight: 200g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Overview

The AAV144-S50/A4S10 module is engineered to meet the stringent requirements of industrial voltage input systems. Featuring 16 isolated channels, this module provides precise voltage input readings from both 1 to 5 V and -10 to 10 V signals. With a high isolation voltage withstand rating, it ensures safety and stability in demanding environments. Its flexibility for dual-redundant configurations allows for a highly reliable and fault-tolerant setup, perfect for critical applications requiring high uptime.

Advantages

  • High Accuracy: Achieves accuracy levels of ±4 mV for 1 to 5 V signals and ±20 mV for -10 to 10 V signals, ensuring reliable measurements.

  • Fast Response: Real-time performance with a 10 ms data update rate.

  • Superior Isolation: Ensures robust operation with 1500 V AC isolation, safeguarding sensitive equipment.

  • Flexible Connectivity: Offers multiple external communication options, including pressure clamp terminals, MIL connectors, and dedicated cables.

  • Dual-Redundant Capabilities: Optimized for dual-redundant configurations, enhancing system resilience.

  • Temperature Compensation: Precise performance with minimal drift, even in fluctuating temperatures.

Key Features & Specifications

Feature Specification
Number of Channels 16 isolated
Input Range 1 to 5 V or -10 to 10 V
Input Resistance 1 MΩ (Power ON), 200 kΩ (Power OFF)
Data Update Rate 10 ms
Temperature Drift ±4 mV/10˚C (1 to 5 V), ±20 mV/10˚C (-10 to 10 V)
Withstanding Voltage 1500 V AC (1 min)
Max Current Consumption 500 mA (5 V DC)
Weight 0.2 kg
External Connections Pressure clamp terminal, MIL connector cable, dedicated cable (KS1)

Model and Ordering Information

Model: AAV144-S50/A4S10

Description: Voltage Input Module (-10 to +10 V, 16 Channels, Isolated)

Suffix Codes

  • -S: Standard model

  • 5: No explosion protection

  • 0: Basic type

Option Codes

  • /A4S10: Pressure Clamp Terminal Block for Analog with surge absorber [Model: ATA4S-10]

View full details

Product Description

Overview

The AAV144-S50/A4S10 module is engineered to meet the stringent requirements of industrial voltage input systems. Featuring 16 isolated channels, this module provides precise voltage input readings from both 1 to 5 V and -10 to 10 V signals. With a high isolation voltage withstand rating, it ensures safety and stability in demanding environments. Its flexibility for dual-redundant configurations allows for a highly reliable and fault-tolerant setup, perfect for critical applications requiring high uptime.

Advantages

  • High Accuracy: Achieves accuracy levels of ±4 mV for 1 to 5 V signals and ±20 mV for -10 to 10 V signals, ensuring reliable measurements.

  • Fast Response: Real-time performance with a 10 ms data update rate.

  • Superior Isolation: Ensures robust operation with 1500 V AC isolation, safeguarding sensitive equipment.

  • Flexible Connectivity: Offers multiple external communication options, including pressure clamp terminals, MIL connectors, and dedicated cables.

  • Dual-Redundant Capabilities: Optimized for dual-redundant configurations, enhancing system resilience.

  • Temperature Compensation: Precise performance with minimal drift, even in fluctuating temperatures.

Key Features & Specifications

Feature Specification
Number of Channels 16 isolated
Input Range 1 to 5 V or -10 to 10 V
Input Resistance 1 MΩ (Power ON), 200 kΩ (Power OFF)
Data Update Rate 10 ms
Temperature Drift ±4 mV/10˚C (1 to 5 V), ±20 mV/10˚C (-10 to 10 V)
Withstanding Voltage 1500 V AC (1 min)
Max Current Consumption 500 mA (5 V DC)
Weight 0.2 kg
External Connections Pressure clamp terminal, MIL connector cable, dedicated cable (KS1)

Model and Ordering Information

Model: AAV144-S50/A4S10

Description: Voltage Input Module (-10 to +10 V, 16 Channels, Isolated)

Suffix Codes

  • -S: Standard model

  • 5: No explosion protection

  • 0: Basic type

Option Codes

  • /A4S10: Pressure Clamp Terminal Block for Analog with surge absorber [Model: ATA4S-10]
