Product Description
Product Overview

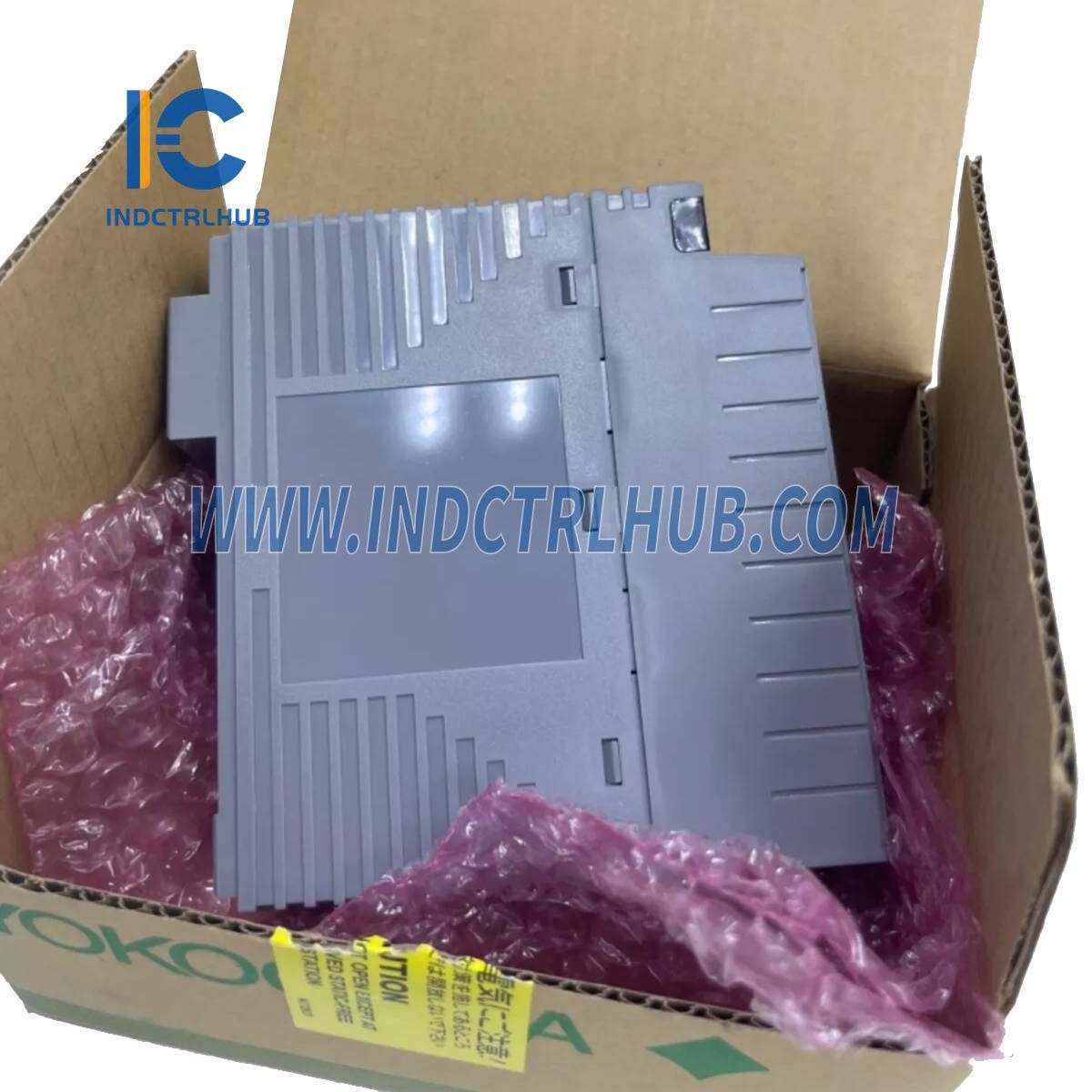

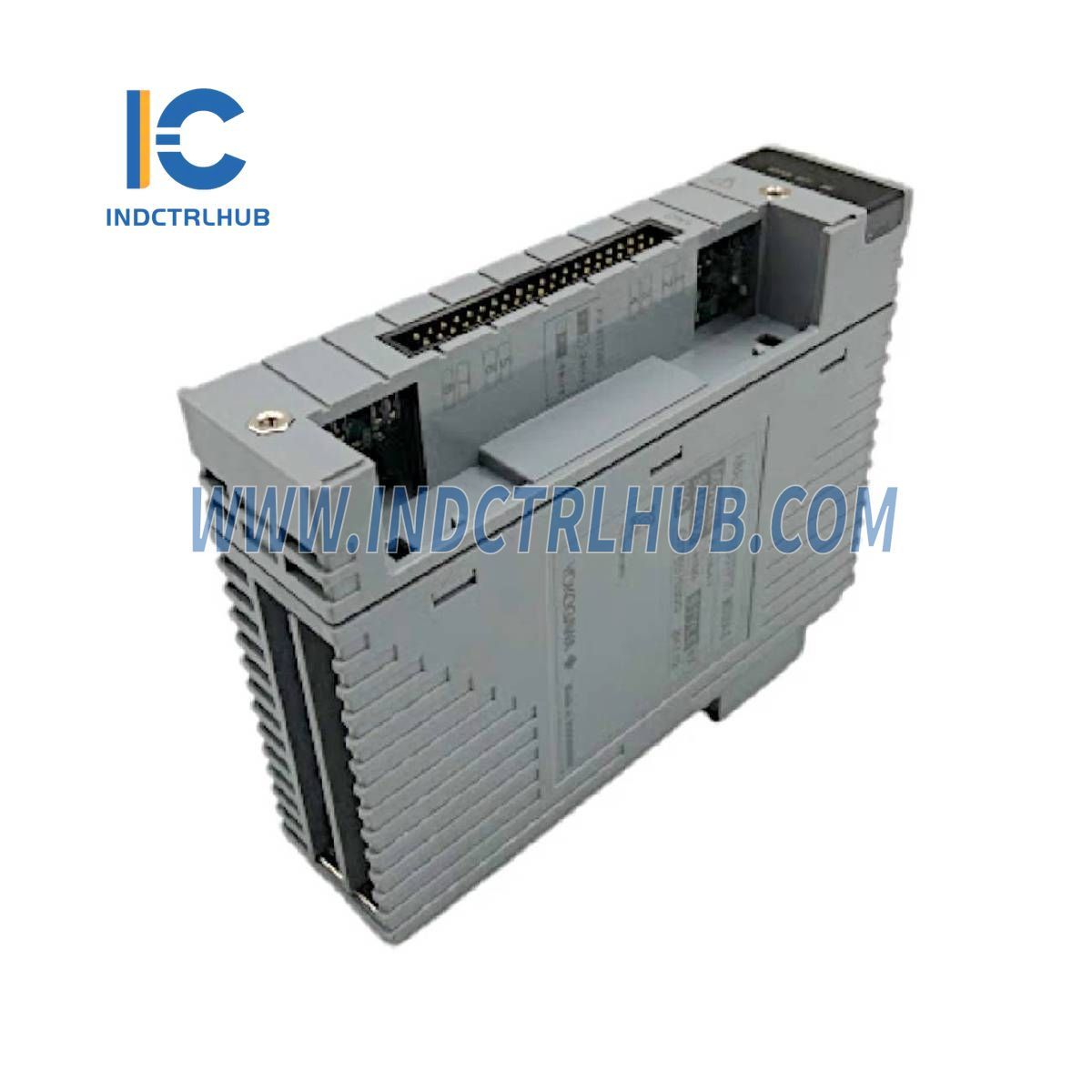

The Yokogawa AAP135-S50/K4A00 is a Pulse Input Module designed to receive contact ON/OFF, voltage pulse, and current pulse signals across 8 isolated channels. It is isolated between the field and the system as well as between each channel and can be used in dual-redundant configuration. The module includes a KS Cable Interface Adapter, enhancing its connectivity for industrial applications.
Technical Specifications
The AAP135-S50/K4A00 Pulse Input Module has the following specifications:
| Item | Specification |
|---|---|

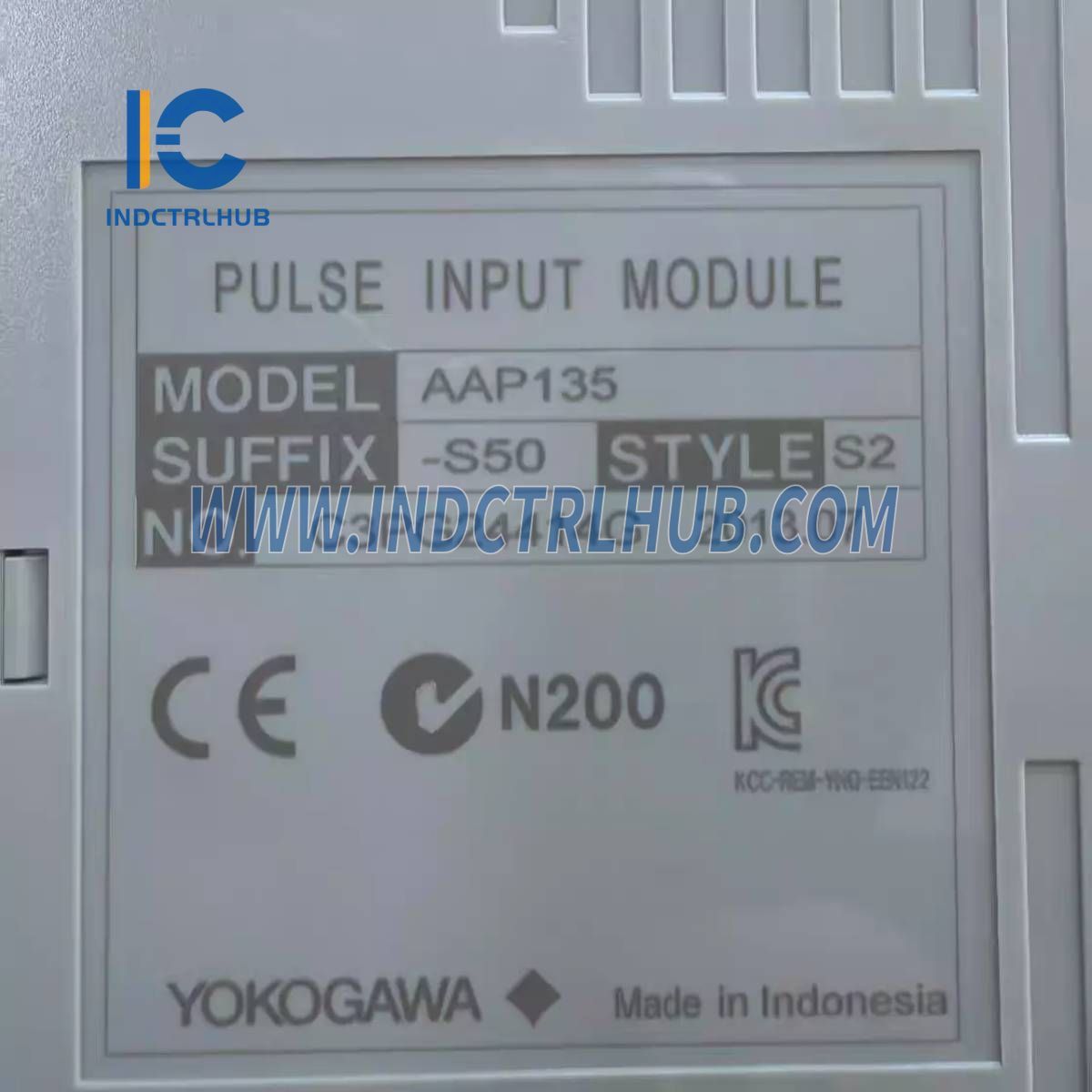

| Model | AAP135 |
| Number of Input Channels | 8, isolated channels |
| Input Signal (*3) | 2-wire type: Contact ON/OFF, voltage pulse, current pulse (possible to supply transmitter power supply) 3-wire type: Power-supply-type voltage pulse |
| Input Frequency | 0 to 10 kHz (*4) |
| Withstanding Voltage | Between input and system: 500 V AC, for 1 minute Between channels: 500 V AC, for 1 minute (*1) |
| Minimum Input Pulse Width | 40 µs |
| Input Signal Level |
Contact Input: Open/close levels of relay contact and transistor contact Open: 100 kΩ or larger, Close: 200 Ω or less Contact Capacity: When supplying 12 V DC: 15 V DC 15 mA or higher When supplying 24 V DC: 30 V DC 30 mA or higher Voltage/Current Pulse Input: (Current input is converted to voltage) VH (high level): 3 to 24 V DC VL (low level): -1 to 8 V DC VH-VL (swing value): 3 V or higher Signal source resistance: 1 kΩ or less |
| Shunt Resistance | Can be selected from none/200/500/1000 Ω (Open when power is OFF and for the standby side in a dual-redundant configuration) |
| Pull-up Resistance | 68 kΩ (12 V DC or 24 V DC) |
| Filter | Filter for eliminating chattering can be set (*2) |
| Data Update Period | 2 ms |
| Transmitter Power Supply | Can select 24 V DC/12 V DC Limiter value: 12 V DC ±10 %: 40 mA, 24 V DC ±10 %: 30 mA |
| Maximum Current Consumption | 300 mA (5 V DC), 400 mA (24 V DC) |
| Weight | 0.3 kg |
| External Connection | Pressure clamp terminal, KS cable, MIL connector cable |
Model and Suffix/Option Codes
The AAP135-S50/K4A00 includes the following configuration details:
| Category | Details |
|---|---|
| Model | AAP135 Pulse Input Module (8-channel, Pulse count, 0 to 10 kHz, Isolated channels) |
| Suffix Codes |
|
| Option Code |
|
