Product Description
Product Overview

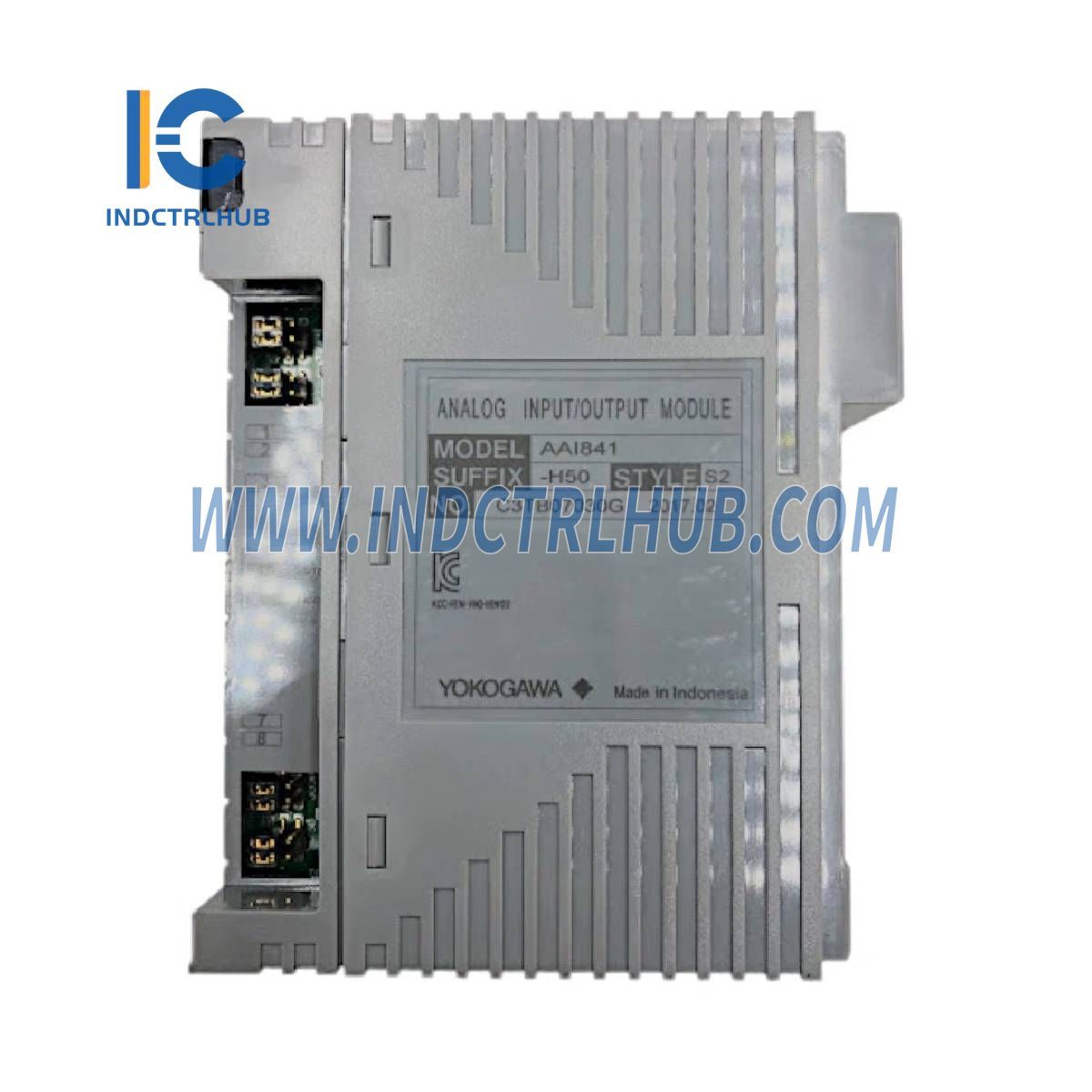

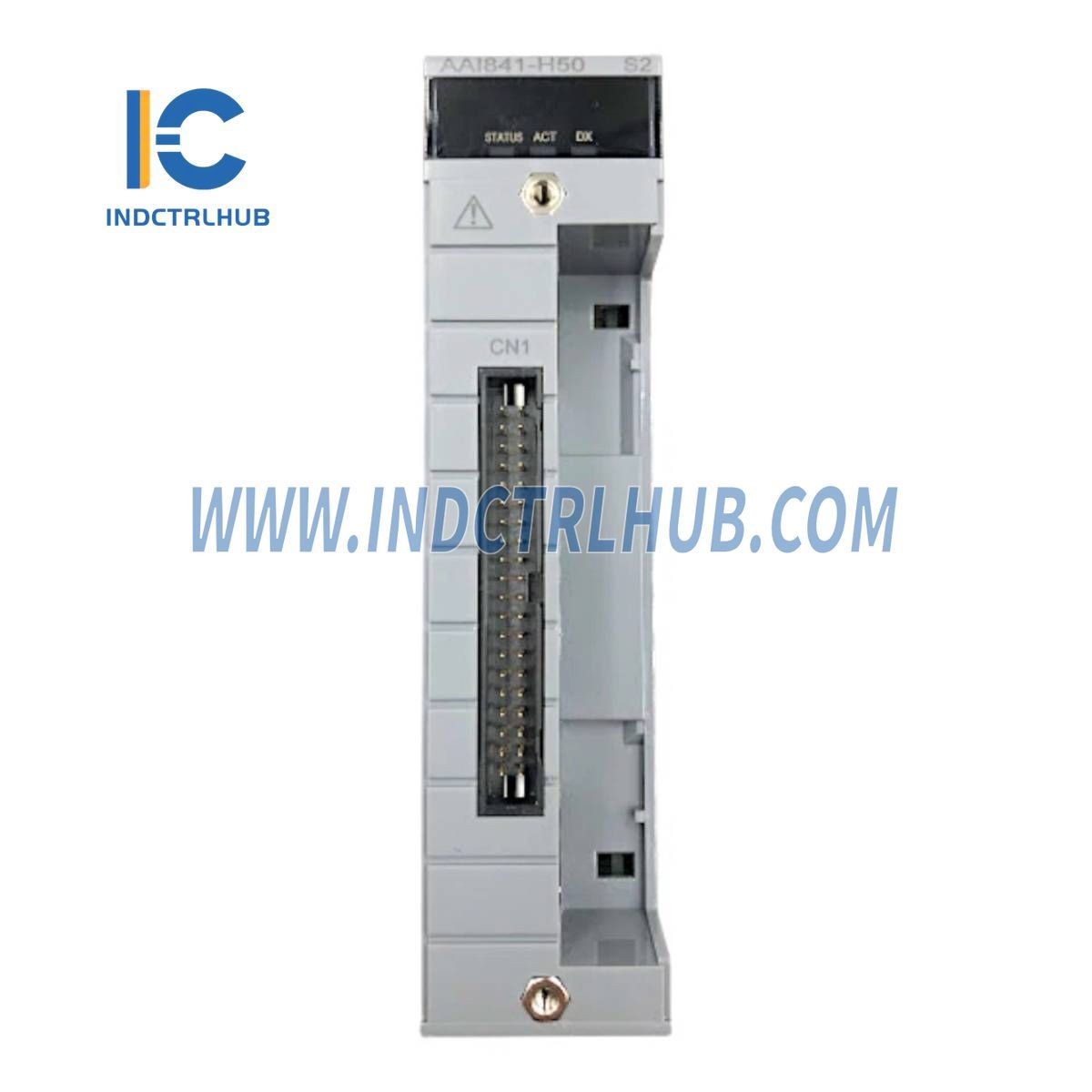

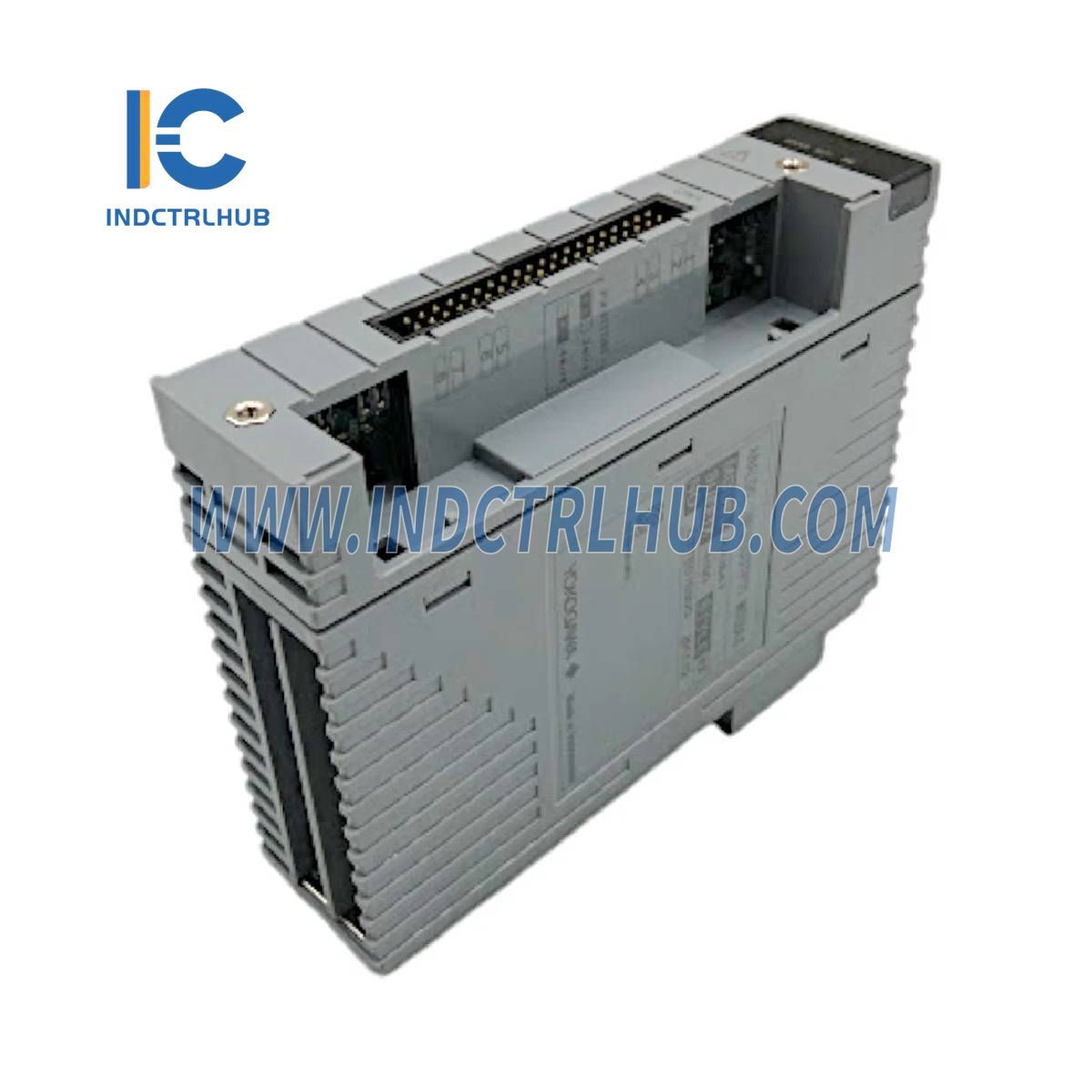

The Yokogawa AAI841-H50/A4S00 Analog I/O Module is a versatile, non-isolated module designed for Yokogawa’s industrial control systems, such as CENTUM VP, to handle 8 analog inputs and 8 analog outputs supporting up to 8 loops. Featuring 4-20 mA signals for both input and output with HART communication, this module supports dual-redundant configurations for enhanced reliability. With an accuracy of ±16 µA (input) and ±48 µA (output), a 10 ms data update period, and a transmitter power supply ranging from 14.8 V to 26.4 V, it is optimized for precise control in process automation. Equipped with a pressure clamp terminal block and weighing 0.3 kg, it includes no explosion protection and operates efficiently in standard industrial environments.
Technical Information
| Parameter | Specifications |
|---|---|
| Manufacturer | Yokogawa |
| Model/Part Number | AAI841-H50/A4S00 |
| Description | Analog I/O Module |
| Model | AAI841 |
| Number of I/O Channels | 8-channel input / 8-channel output, non-isolated |
| I/O Signal | Input: 4 to 20 mA Output: 4 to 20 mA |
| Allowable Input Current | 25 mA |
| Input Resistance | Power ON: 400 Ω (at 20 mA) to 1000 Ω (at 4 mA) Power OFF: 500 kΩ or larger |
| Allowable Load Resistance | 0 to 750 Ω |
| Circuit-Open Detection | Less than 0.65 mA |
| Accuracy | Input: ±16 µA Output: ±48 µA |
| Data Update Period | 10 ms |
| Input Step Response Time | 100 ms |
| Output Step Response Time | 40 ms |
| Transmitter Power Supply | 14.8 V or higher (at 20 mA) 26.4 V or less (at 0 mA) |
| Setting of 2-Wire or 4-Wire Transmitter | For each channel by setting pin |
| Temperature Drift | ±0.1 %/10°C |
| Maximum Current Consumption | 310 mA (5 V DC) 500 mA (24 V DC) |
| Weight | 0.3 kg (0.66 lb) |
| External Connection | Pressure clamp terminal, KS cable, MIL connector cable |
| HART Communication | Available |
Specific Configuration
- Model/Part Number: AAI841-H50/A4S00
- Configuration Details:
- Suffix Codes: -H (With digital communication, HART protocol), 5 (With no explosion protection), 0 (Basic type)
- Option Code: /A4S00 (With Pressure Clamp Terminal Block for Analog [Model: ATA4S-00])
