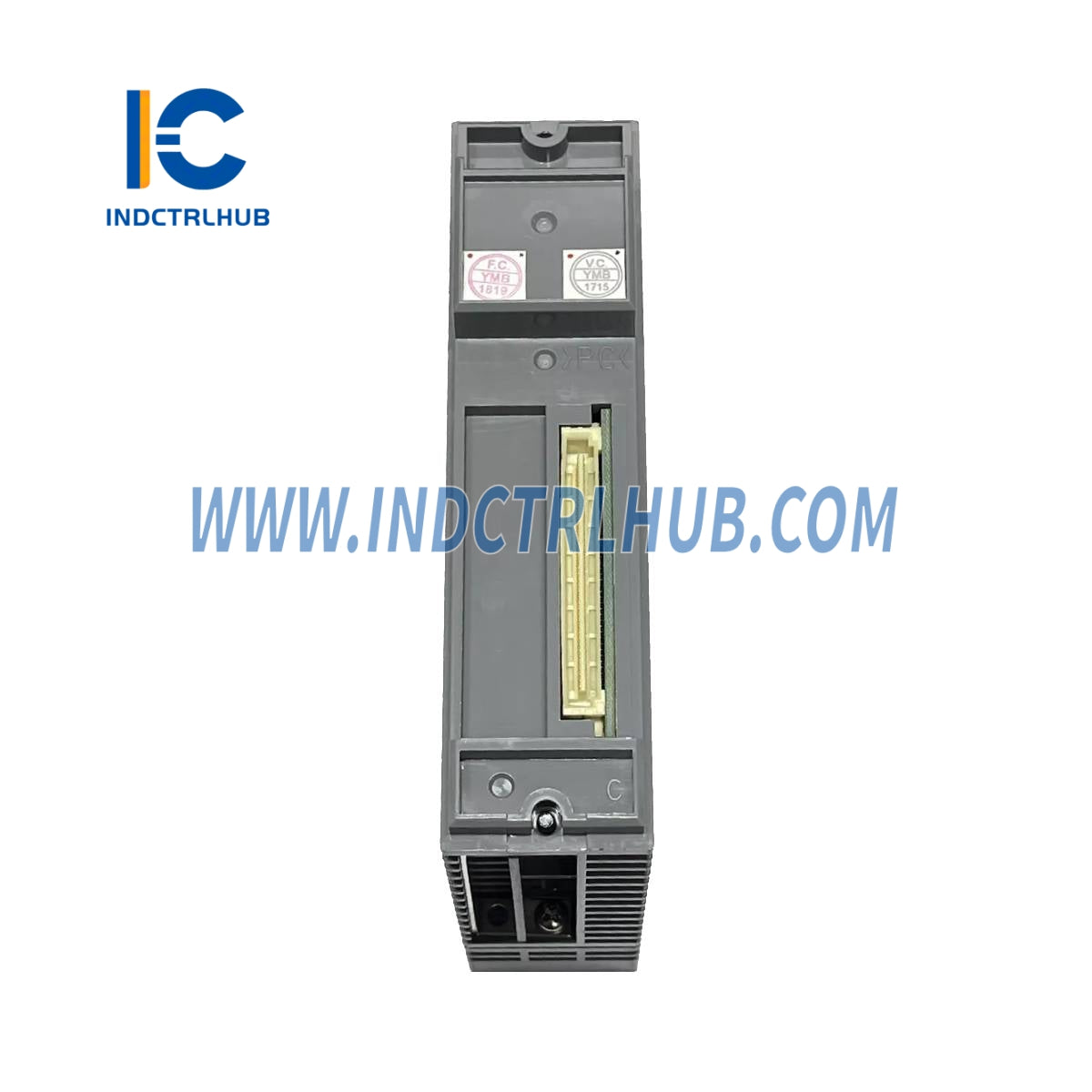

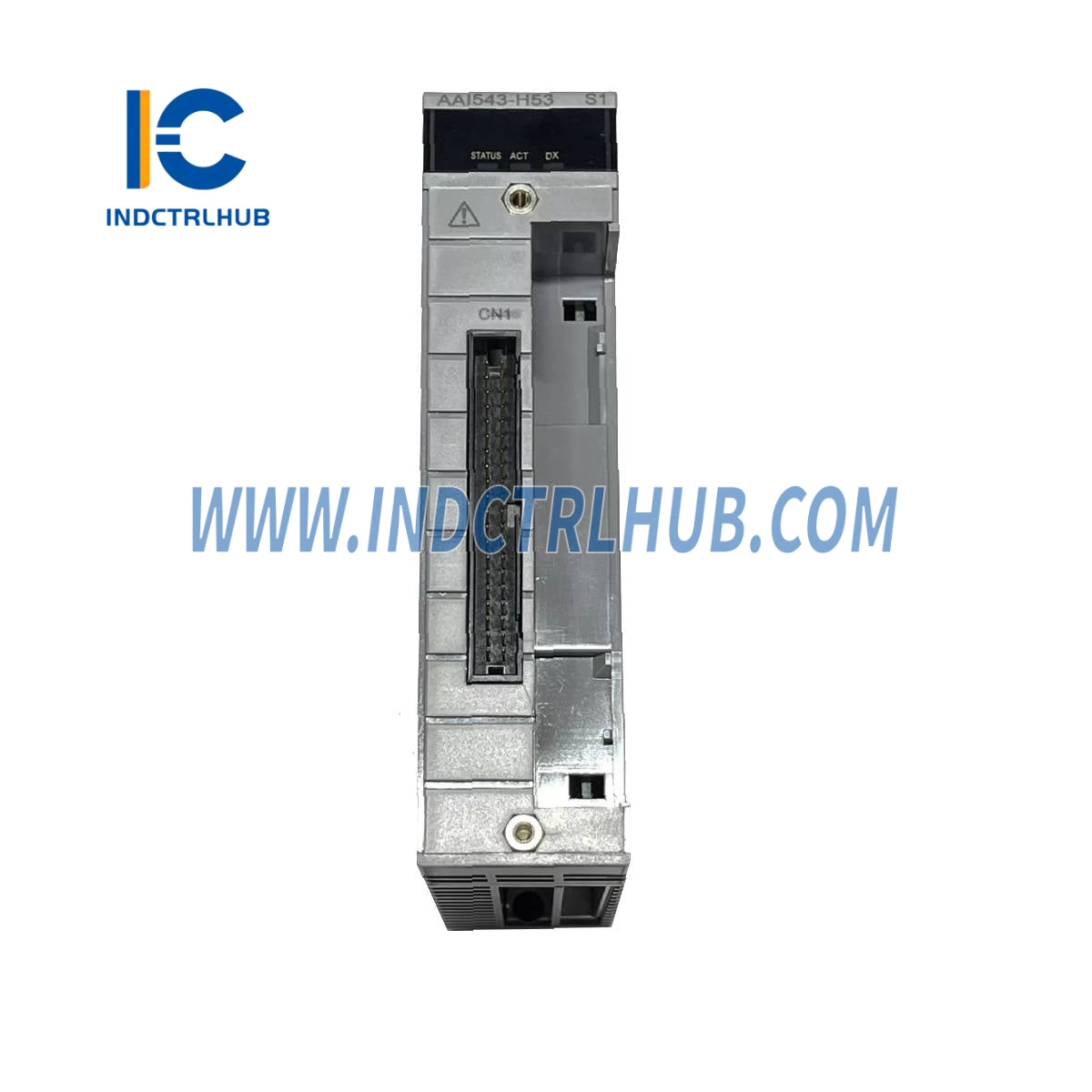

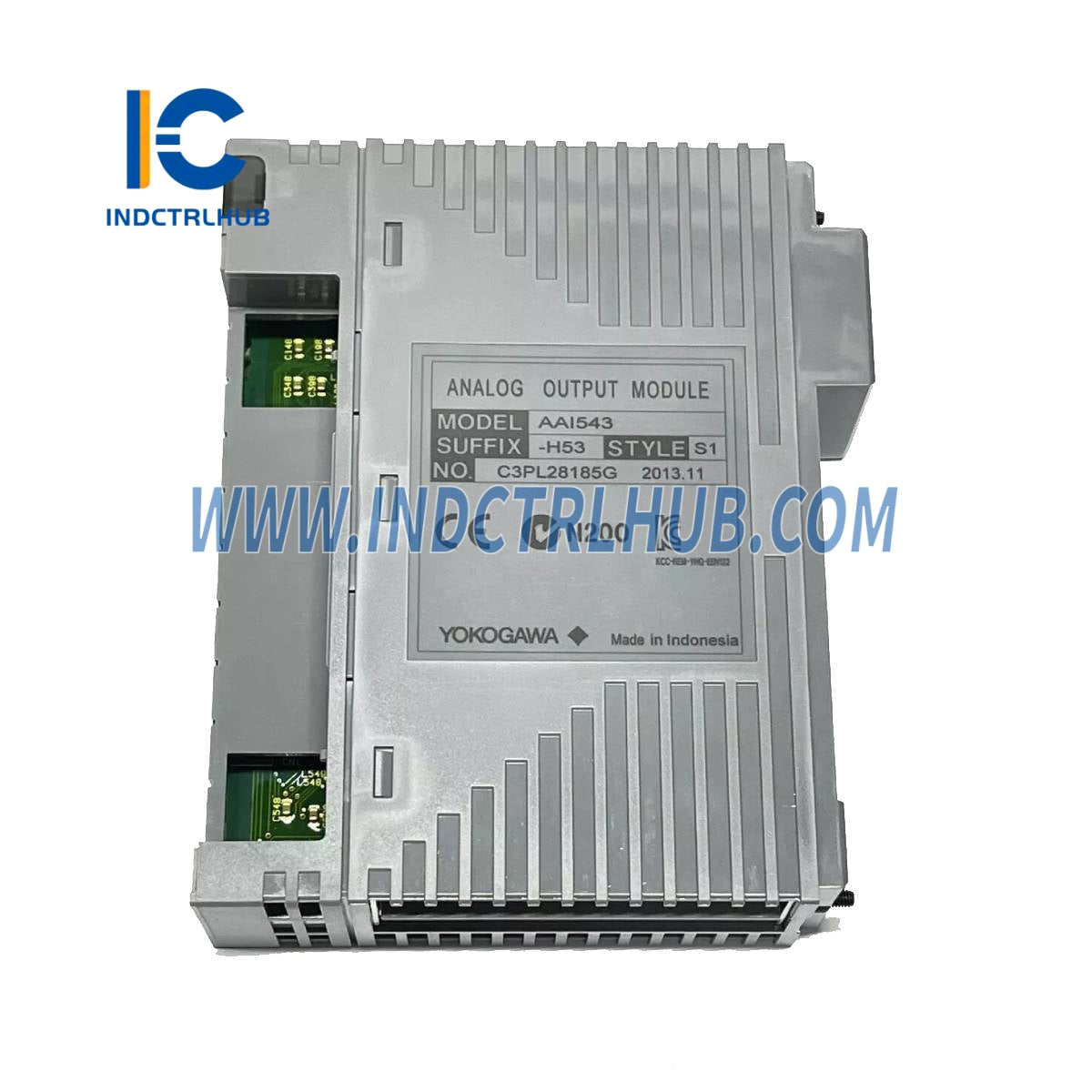

Product Description
🔹 General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
AAI543-H53 |
|
Description |
Analog Output Module (4–20 mA, 16-channel, Isolated, HART, G3, -20 to 70 °C) |
🔹 Specifications
|
Item |
Description |
|---|---|
|
Number of Output Channels |
16 channels, isolated |
|
Output Signal |
4 to 20 mA |
|
Redundancy Support |
Standard switch-over response in redundant configuration |
|
Withstanding Voltage |
1500 V AC between output and system (1 minute) |
|
Allowable Load Resistance |
0 to 750 Ω |
|
Circuit-open Detection |
Less than 0.65 mA |
|
Accuracy |
±48 µA |
|
Data Update Period |
10 ms |
|
Ambient Temperature Drift |
±16 µA / 10°C |
|
Max Current Consumption |
230 mA @ 5 V DC, 540 mA @ 24 V DC |
|
Weight |
Approx. 0.4 kg |
|
External Communication |
Pressure clamp terminal, MIL connector cable, or KS1 dedicated cable |
|
HART Communication |
Supported (suffix H) |
🔹 Ordering Breakdown: AAI543-H53
|
Code Breakdown |
Meaning |
|---|---|
|
-H |
With digital communication (HART protocol) |
|
5 |
Standard switch-over response in redundant configuration |
|
3 |
ISA Standard G3 option and extended temperature (-20 to 70 °C) |
✅ This model is ideal for harsh industrial environments requiring extended temperature operation and conformal coating (G3).
🔹 Optional Configurations (Terminal Blocks & Accessories)
|
Option Code |
Description |
|---|---|
|
/K4A00 |
KS Cable Interface Adapter for AEA4D Terminal Board [ATK4A-00] |
|
/A4S00 |
Pressure Clamp Terminal Block [ATA4S-00] |
|
/A4S10 |
Pressure Clamp Terminal Block with surge absorber [ATA4S-10] |
|
/A4D00 |
Dual Pressure Clamp Terminal Block [ATA4D-00] |
|
/A4D10 |
Dual Pressure Clamp Terminal Block with surge absorber [ATA4D-10] |
|
/CCC01 |
Connector Cover for MIL Cable [ACCC01] |
