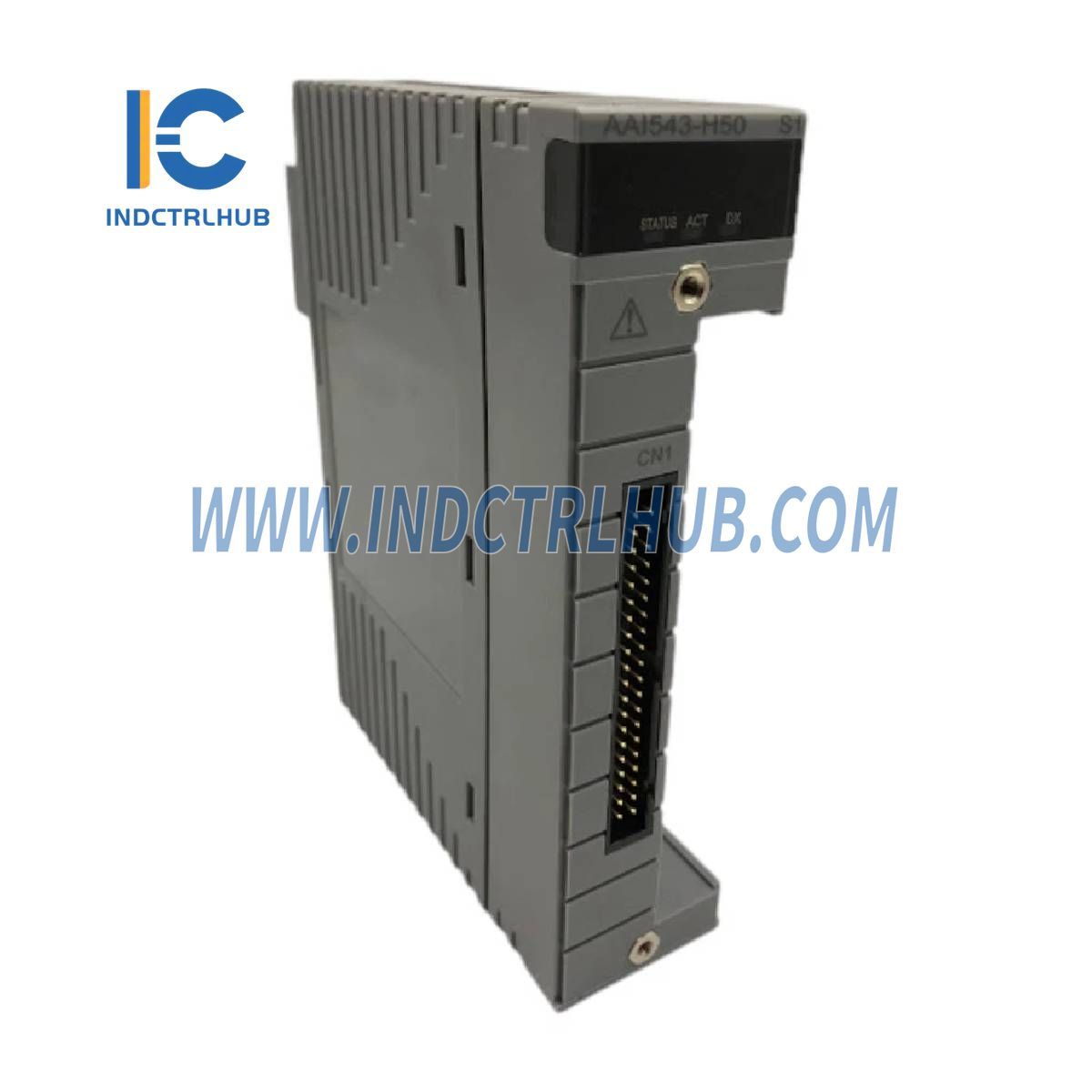

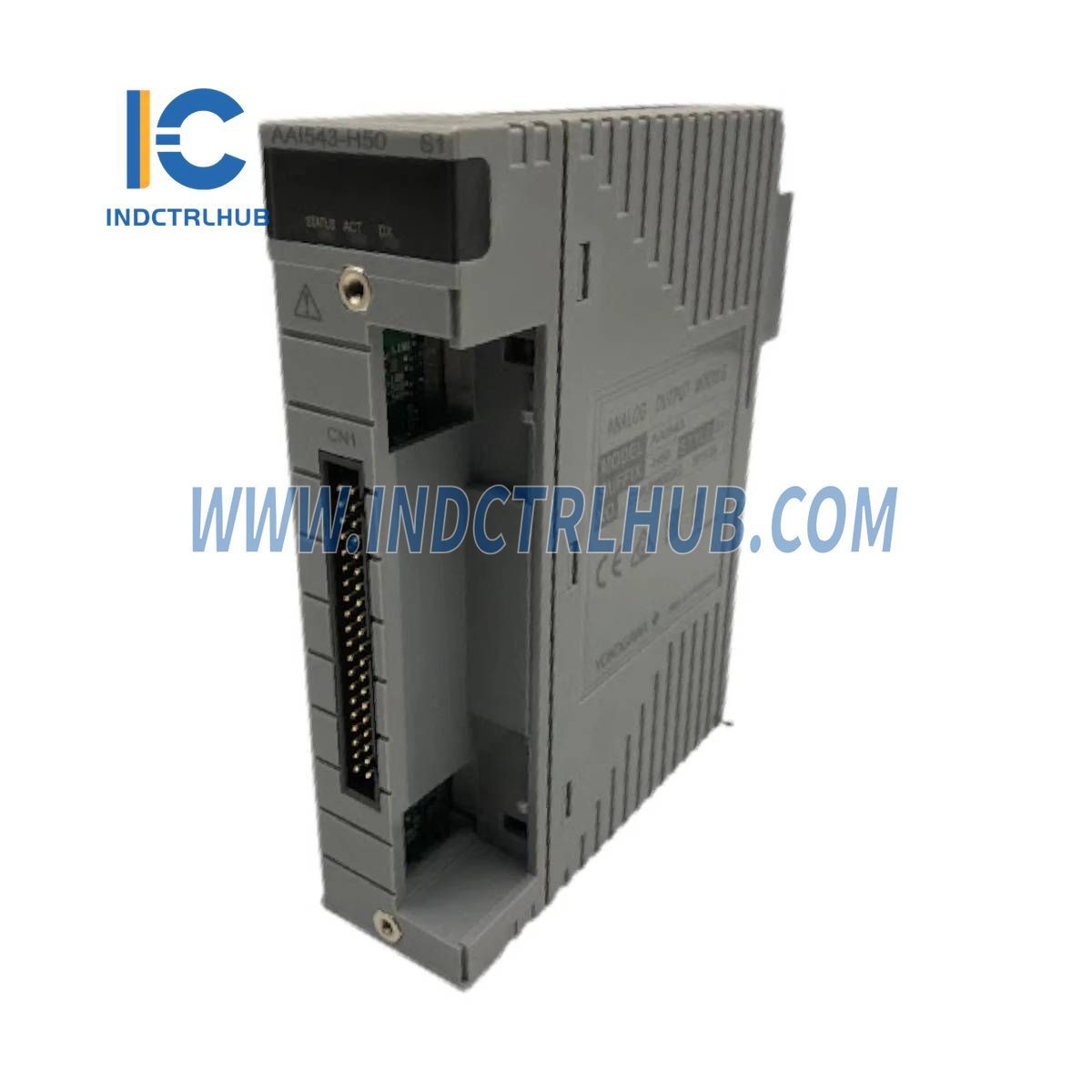

Yokogawa AAI543-H50/A4S-00 Analog Output Module

Yokogawa AAI543-H50/A4S-00 Analog Output Module

  • Manufacturer: Yokogawa

  • Product No.: AAI543-H50/A4S-00

  • Condition:1000 in stock

  • Product Type: Analog Output Module

  • Product Origin: Japan

  • Payment: T/T, Western Union

  • Weight: 400g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Information: Yokogawa Analog Output Module (AAI543-H50/A4S-00)

Manufacturer Yokogawa
Model/Part Number AAI543-H50/A4S-00
Description Analog Output Module

Specifications

Specification Details
Number of Output Channels 16 channels (isolated)
Output Signal 4 to 20 mA
Withstanding Voltage 1500 V AC for 1 minute (between output and system)
Allowable Load Resistance 0 to 750 Ω
Circuit-Open Detection Less than 0.65 mA
Accuracy ±48 µA
Data Update Period 10 ms
Drift Due to Ambient Temperature ±16 µA/10 °C
Maximum Current Consumption 230 mA (5 V DC), 540 mA (24 V DC)
Weight 0.4 kg
External Communication Pressure clamp terminal, MIL connector cable, dedicated cable (KS1)
HART Communication Available

Model and Suffix Codes

Suffix Code Description
-S Standard type
-H With HART communication
5 Standard switch-over response in redundant configuration, no explosion protection
6 Fast switch-over response in redundant configuration, no explosion protection
E Standard switch-over response in redundant configuration, with explosion protection
F Fast switch-over response in redundant configuration, with explosion protection
0 Basic type
1 With ISA Standard G3 option
3 With ISA Standard G3 option and temperature (-20 to 70 °C) option

Option Codes

Option Code Description
/K4A00 With KS Cable Interface Adapter (for connecting AEA4D Terminal Board)
/A4S00 With Pressure Clamp Terminal Block [Model: ATA4S-00]
/A4S10 With Pressure Clamp Terminal Block (surge absorber) [Model: ATA4S-10]
/A4D00 With Dual Pressure Clamp Terminal Block [Model: ATA4D-00]
/A4D10 With Dual Pressure Clamp Terminal Block (surge absorber) [Model: ATA4D-10]
/CCC01 With Connector Cover for MIL Cable [Model: ACCC01]
View full details

Product Description

Product Information: Yokogawa Analog Output Module (AAI543-H50/A4S-00)

Manufacturer Yokogawa
Model/Part Number AAI543-H50/A4S-00
Description Analog Output Module

Specifications

Specification Details
Number of Output Channels 16 channels (isolated)
Output Signal 4 to 20 mA
Withstanding Voltage 1500 V AC for 1 minute (between output and system)
Allowable Load Resistance 0 to 750 Ω
Circuit-Open Detection Less than 0.65 mA
Accuracy ±48 µA
Data Update Period 10 ms
Drift Due to Ambient Temperature ±16 µA/10 °C
Maximum Current Consumption 230 mA (5 V DC), 540 mA (24 V DC)
Weight 0.4 kg
External Communication Pressure clamp terminal, MIL connector cable, dedicated cable (KS1)
HART Communication Available

Model and Suffix Codes

Suffix Code Description
-S Standard type
-H With HART communication
5 Standard switch-over response in redundant configuration, no explosion protection
6 Fast switch-over response in redundant configuration, no explosion protection
E Standard switch-over response in redundant configuration, with explosion protection
F Fast switch-over response in redundant configuration, with explosion protection
0 Basic type
1 With ISA Standard G3 option
3 With ISA Standard G3 option and temperature (-20 to 70 °C) option

Option Codes

Option Code Description
/K4A00 With KS Cable Interface Adapter (for connecting AEA4D Terminal Board)
/A4S00 With Pressure Clamp Terminal Block [Model: ATA4S-00]
/A4S10 With Pressure Clamp Terminal Block (surge absorber) [Model: ATA4S-10]
/A4D00 With Dual Pressure Clamp Terminal Block [Model: ATA4D-00]
/A4D10 With Dual Pressure Clamp Terminal Block (surge absorber) [Model: ATA4D-10]
/CCC01 With Connector Cover for MIL Cable [Model: ACCC01]

Download PDF file here:

Click to Download PDF
