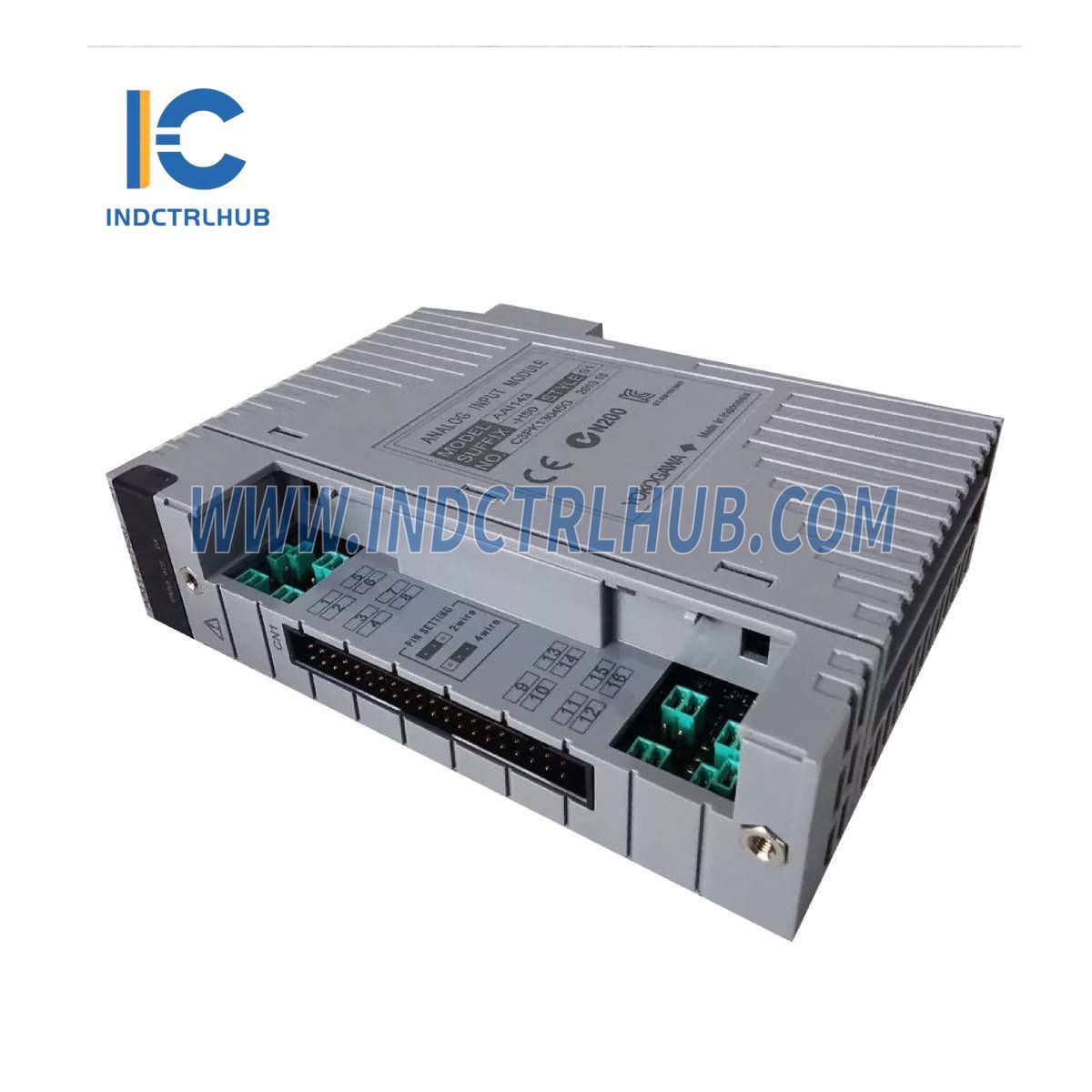

Yokogawa AAI143-H50/K4A00 Analog Input Module

Yokogawa AAI143-H50/K4A00 Analog Input Module

  • Manufacturer: Yokogawa

  • Product No.: AAI143-H50/K4A00

  • Condition:1000 in stock

  • Product Type: Analog Input Module

  • Product Origin: Japan

  • Payment: T/T, Western Union

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details: AAI143-H50/K4A00 - Analog Input Module

  • Manufacturer: Yokogawa
  • Model/Part Number: AAI143-H50/K4A00
  • Description: Analog Input Module

Current Input Modules (Isolated)

This module provides 16 inputs for 4 to 20 mA signals and can be used in a dual-redundant configuration.

Specifications

Item Specification
Model AAI143 (*1)
Number of Input Channels 16, isolated
Input Signal 4 to 20 mA
Allowable Input Current 24 mA
Withstanding Voltage Between input and system: 1500 V AC for 1 minute (*4)
Input Resistance Power ON: 270 Ω (20 mA) to 350 Ω (4 mA) (*2)
Power OFF: 500 kΩ or larger
Accuracy ±16 µA
Data Update Period 10 ms
Transmitter Power Supply 19.0 V or higher (at 20 mA), 25.5 V or less (at 0 mA) (*5)
Setting for 2-wire or 4-wire Transmitter For each channel by setting pin
Drift Due to Ambient Temperature Change ±16 µA/10 ˚C
Maximum Current Consumption 230 mA (5 V DC), 540 mA (24 V DC)
Weight 0.3 kg
External Communication Pressure clamp terminal, MIL connector cable, dedicated cable (KS1)
HART Communication Available (*3)

Suffix Codes for Model Variations

Suffix Code Description
-S Standard type
-H With digital communication (HART protocol)
5 No explosion protection
E With explosion protection
0 Basic type
3 With ISA Standard G3 option and temperature (-20 to 70°C) option

Option Codes for Add-ons

Option Code Description
/K4A00 With KS Cable Interface Adapter (For connecting AEA4D Terminal Board) [Model: ATK4A-00]
/A4S00 With Pressure Clamp Terminal Block [Model: ATA4S-00]
/A4S10 With Pressure Clamp Terminal Block (surge absorber) [Model: ATA4S-10]
/A4D00 With Dual Pressure Clamp Terminal Block [Model: ATA4D-00]
/A4D10 With Dual Pressure Clamp Terminal Block (surge absorber) [Model: ATA4D-10]
/CCC01 With Connector Cover for MIL Cable [Model: ACCC01]
View full details

Product Description

Product Details: AAI143-H50/K4A00 - Analog Input Module

  • Manufacturer: Yokogawa
  • Model/Part Number: AAI143-H50/K4A00
  • Description: Analog Input Module

Current Input Modules (Isolated)

This module provides 16 inputs for 4 to 20 mA signals and can be used in a dual-redundant configuration.

Specifications

Item Specification
Model AAI143 (*1)
Number of Input Channels 16, isolated
Input Signal 4 to 20 mA
Allowable Input Current 24 mA
Withstanding Voltage Between input and system: 1500 V AC for 1 minute (*4)
Input Resistance Power ON: 270 Ω (20 mA) to 350 Ω (4 mA) (*2)
Power OFF: 500 kΩ or larger
Accuracy ±16 µA
Data Update Period 10 ms
Transmitter Power Supply 19.0 V or higher (at 20 mA), 25.5 V or less (at 0 mA) (*5)
Setting for 2-wire or 4-wire Transmitter For each channel by setting pin
Drift Due to Ambient Temperature Change ±16 µA/10 ˚C
Maximum Current Consumption 230 mA (5 V DC), 540 mA (24 V DC)
Weight 0.3 kg
External Communication Pressure clamp terminal, MIL connector cable, dedicated cable (KS1)
HART Communication Available (*3)

Suffix Codes for Model Variations

Suffix Code Description
-S Standard type
-H With digital communication (HART protocol)
5 No explosion protection
E With explosion protection
0 Basic type
3 With ISA Standard G3 option and temperature (-20 to 70°C) option

Option Codes for Add-ons

Option Code Description
/K4A00 With KS Cable Interface Adapter (For connecting AEA4D Terminal Board) [Model: ATK4A-00]
/A4S00 With Pressure Clamp Terminal Block [Model: ATA4S-00]
/A4S10 With Pressure Clamp Terminal Block (surge absorber) [Model: ATA4S-10]
/A4D00 With Dual Pressure Clamp Terminal Block [Model: ATA4D-00]
/A4D10 With Dual Pressure Clamp Terminal Block (surge absorber) [Model: ATA4D-10]
/CCC01 With Connector Cover for MIL Cable [Model: ACCC01]

Download PDF file here:

Click to Download PDF
