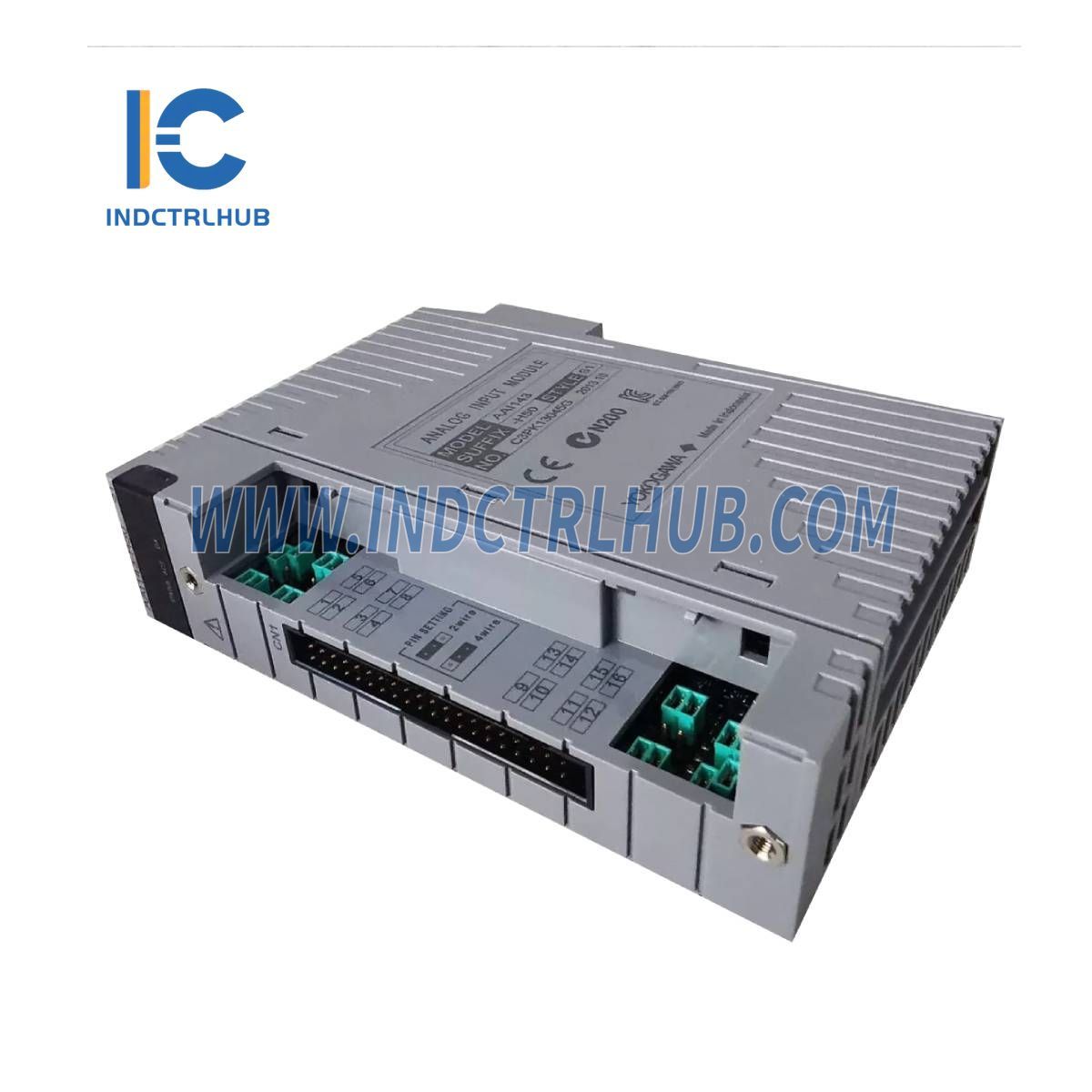

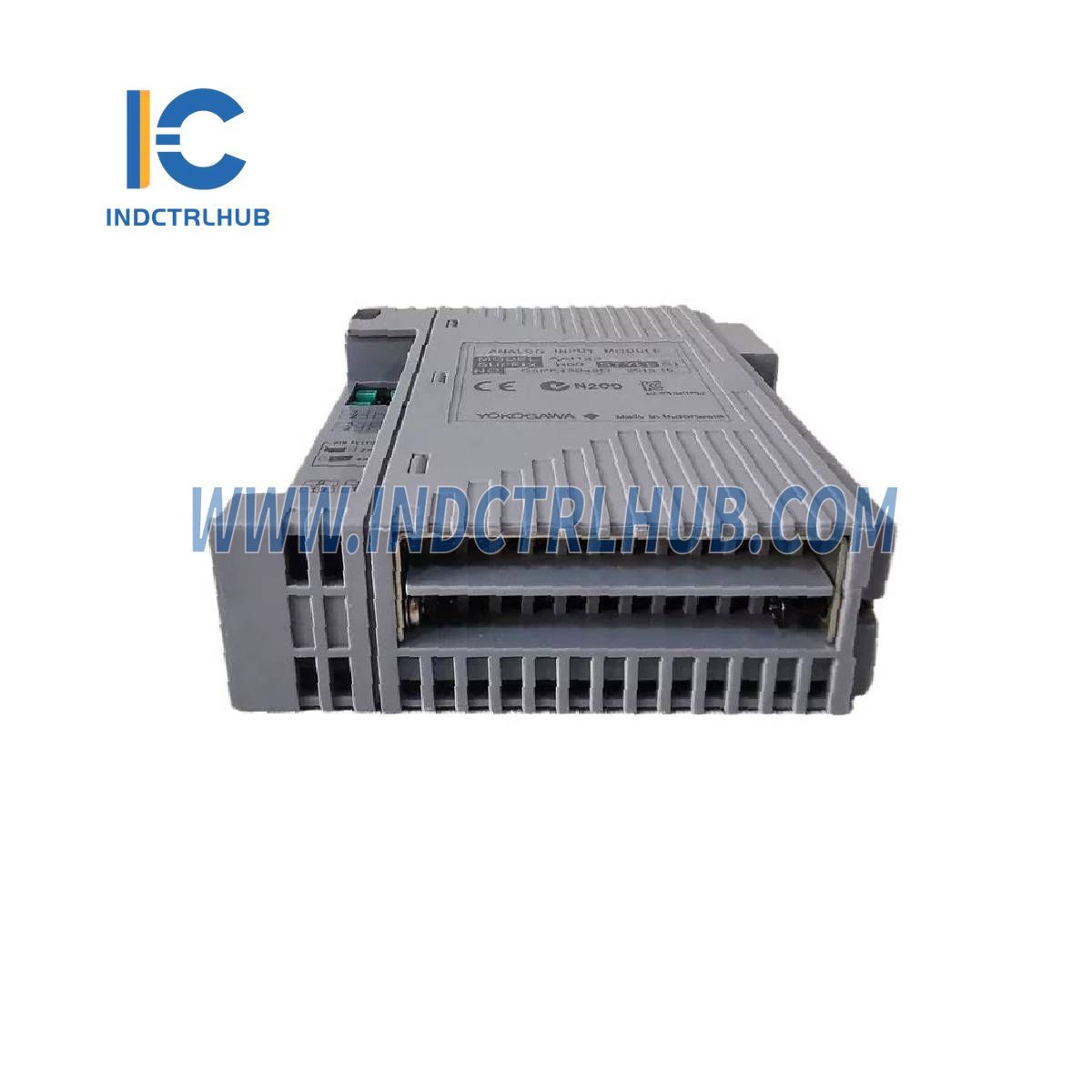

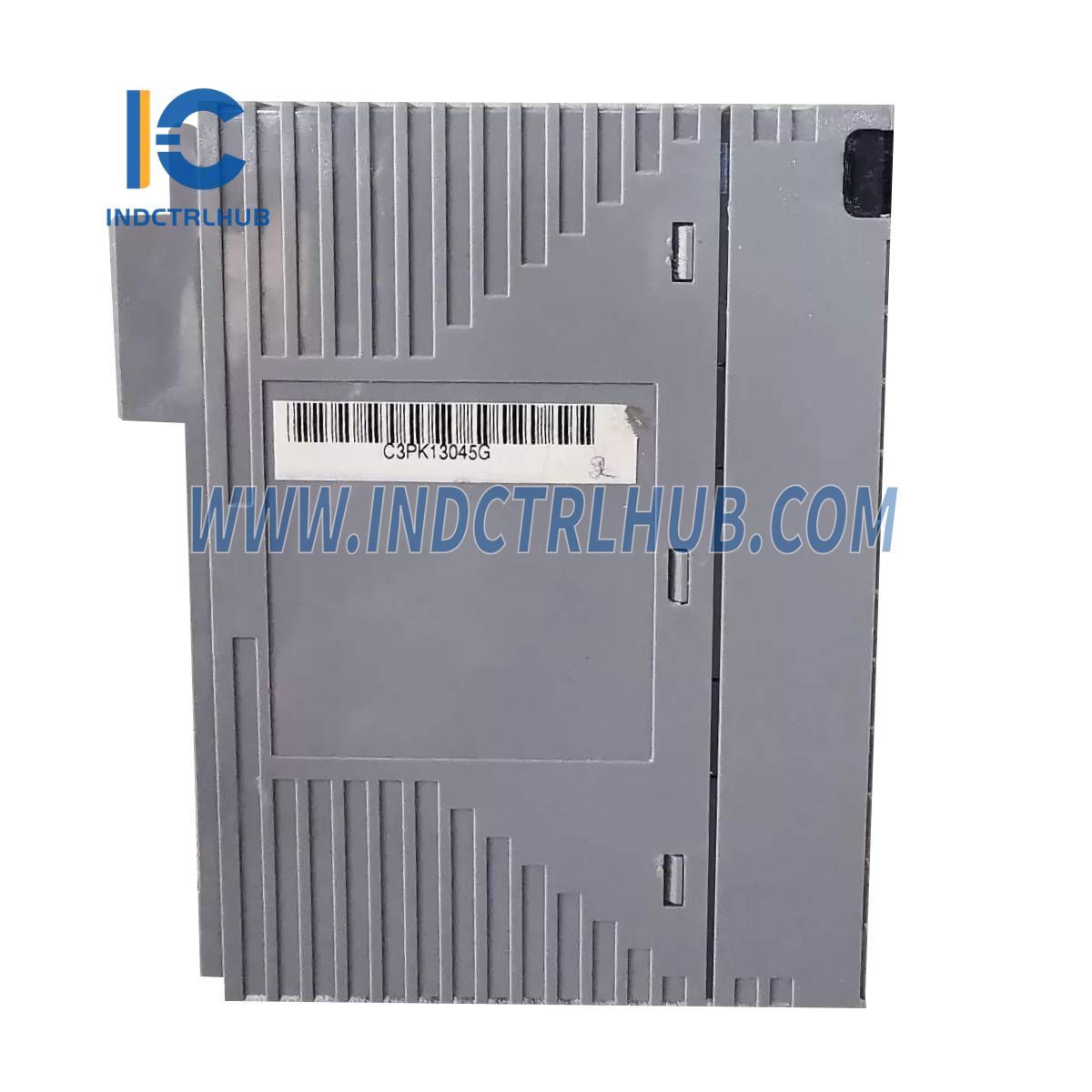

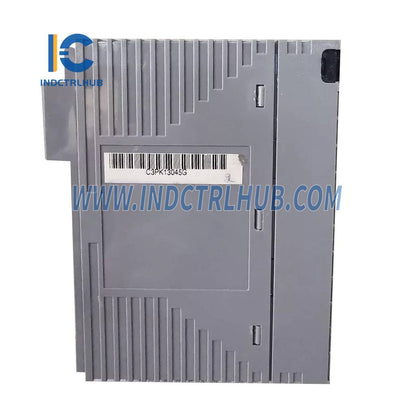

Yokogawa AAI143-H50/A4S10 Analog Input Module

Yokogawa AAI143-H50/A4S10 Analog Input Module

  • Manufacturer: Yokogawa

  • Product No.: AAI143-H50/A4S10

  • Condition:1000 in stock

  • Product Type: Analog Input Module

  • Product Origin: Japan

  • Payment: T/T, Western Union

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Information: Yokogawa Analog Input Module (AAI143-H50/A4S10)

Manufacturer Yokogawa
Model/Part Number AAI143-H50/A4S10
Description Analog Input Module (16-channel, 4-20 mA, Isolated)

Specifications

Specification Details
Model AAI143
Number of Input Channels 16, Isolated
Input Signal 4 to 20 mA
Allowable Input Current Up to 24 mA
Withstanding Voltage 1500 V AC between input and system (for 1 minute)
Input Resistance (Power ON) 270 Ω (at 20 mA) to 350 Ω (at 4 mA)
Input Resistance (Power OFF) 500 kΩ or higher
Accuracy ±16 µA
Data Update Period 10 ms
Transmitter Power Supply 19.0 V minimum (at 20 mA), 25.5 V maximum (at 0 mA)
Setting for 2-Wire/4-Wire Configurable per channel via setting pin
Drift Due to Ambient Temperature ±16 µA/10 °C
Maximum Current Consumption 230 mA (5 V DC), 540 mA (24 V DC)
Weight 0.3 kg
External Communication Pressure clamp terminal, MIL connector cable, dedicated cable (KS1)
HART Communication Available

Model and Suffix Codes

Description Suffix Codes
Model AAI143 Analog Input Module (16-channel, 4-20 mA, Isolated)
Suffix Code -S Standard Type
Suffix Code -H With Digital Communication (HART protocol)
Suffix Code -5 No Explosion Protection
Suffix Code -E With Explosion Protection
Suffix Code -0 Basic Type
Suffix Code -3 With ISA Standard G3 Option (-20 to 70 °C)

Option Codes

Option Code Description
/K4A00 KS Cable Interface Adapter (for AEA4D Terminal Board)
/A4S00 Pressure Clamp Terminal Block (ATA4S-00)
/A4S10 Pressure Clamp Terminal Block (surge absorber) (ATA4S-10)
/A4D00 Dual Pressure Clamp Terminal Block (ATA4D-00)
/A4D10 Dual Pressure Clamp Terminal Block (surge absorber) (ATA4D-10)
/CCC01 Connector Cover for MIL Cable (ACCC01)
View full details

Product Description

Product Information: Yokogawa Analog Input Module (AAI143-H50/A4S10)

Manufacturer Yokogawa
Model/Part Number AAI143-H50/A4S10
Description Analog Input Module (16-channel, 4-20 mA, Isolated)

Specifications

Specification Details
Model AAI143
Number of Input Channels 16, Isolated
Input Signal 4 to 20 mA
Allowable Input Current Up to 24 mA
Withstanding Voltage 1500 V AC between input and system (for 1 minute)
Input Resistance (Power ON) 270 Ω (at 20 mA) to 350 Ω (at 4 mA)
Input Resistance (Power OFF) 500 kΩ or higher
Accuracy ±16 µA
Data Update Period 10 ms
Transmitter Power Supply 19.0 V minimum (at 20 mA), 25.5 V maximum (at 0 mA)
Setting for 2-Wire/4-Wire Configurable per channel via setting pin
Drift Due to Ambient Temperature ±16 µA/10 °C
Maximum Current Consumption 230 mA (5 V DC), 540 mA (24 V DC)
Weight 0.3 kg
External Communication Pressure clamp terminal, MIL connector cable, dedicated cable (KS1)
HART Communication Available

Model and Suffix Codes

Description Suffix Codes
Model AAI143 Analog Input Module (16-channel, 4-20 mA, Isolated)
Suffix Code -S Standard Type
Suffix Code -H With Digital Communication (HART protocol)
Suffix Code -5 No Explosion Protection
Suffix Code -E With Explosion Protection
Suffix Code -0 Basic Type
Suffix Code -3 With ISA Standard G3 Option (-20 to 70 °C)

Option Codes

Option Code Description
/K4A00 KS Cable Interface Adapter (for AEA4D Terminal Board)
/A4S00 Pressure Clamp Terminal Block (ATA4S-00)
/A4S10 Pressure Clamp Terminal Block (surge absorber) (ATA4S-10)
/A4D00 Dual Pressure Clamp Terminal Block (ATA4D-00)
/A4D10 Dual Pressure Clamp Terminal Block (surge absorber) (ATA4D-10)
/CCC01 Connector Cover for MIL Cable (ACCC01)
