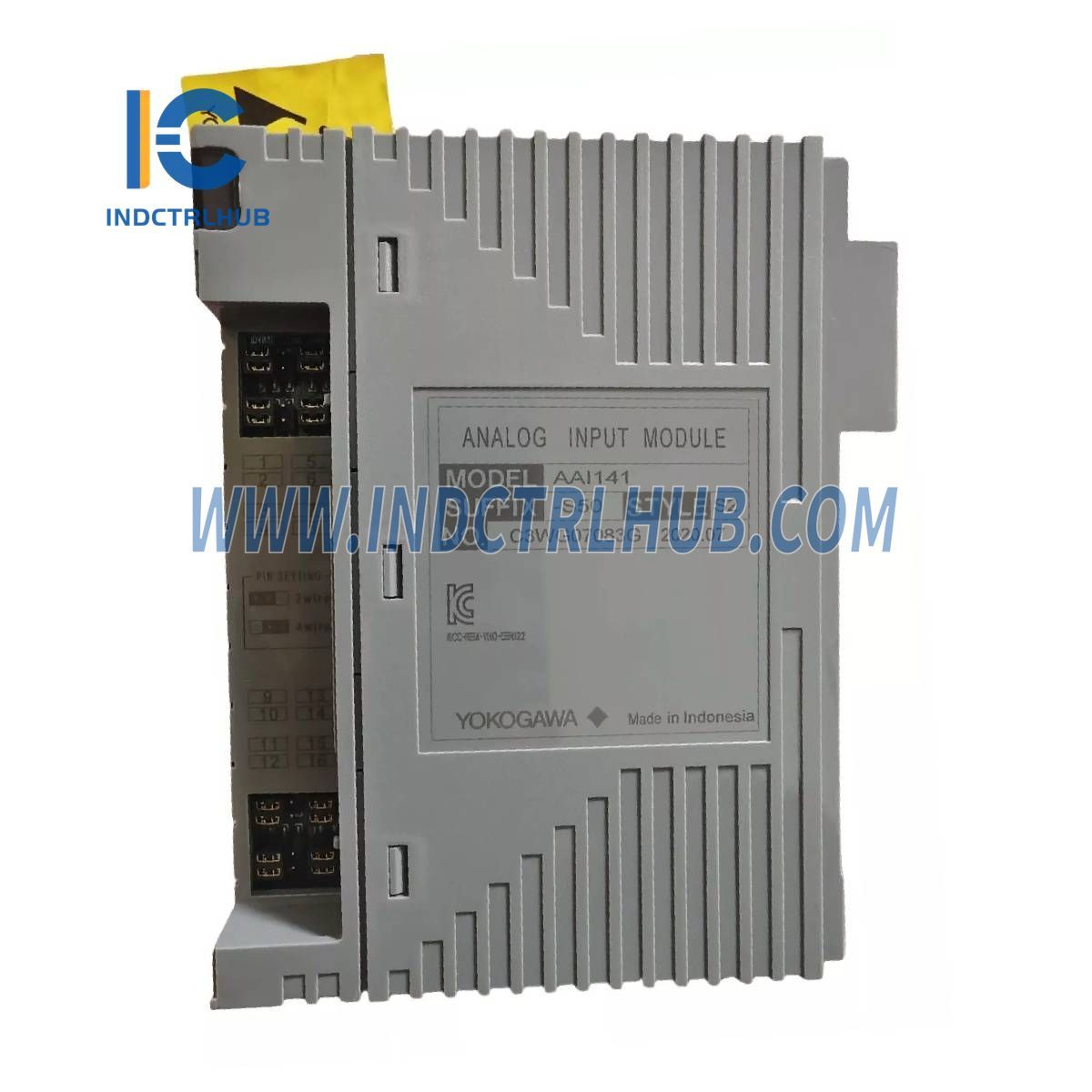

Yokogawa AAI141-S50/A4S00 Analog Input Module

Yokogawa AAI141-S50/A4S00 Analog Input Module

  • Manufacturer: Yokogawa

  • Product No.: AAI141-S50/A4S00

  • Condition:1000 in stock

  • Product Type: Analog Input Module

  • Product Origin: Japan

  • Payment: T/T, Western Union

  • Weight: 200g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Overview

The Yokogawa AAI141-S50/A4S00 is an Analog Input Module designed to handle 16 non-isolated inputs, primarily for 4 to 20 mA DC signals from 2-wire or 4-wire transmitters. It supports dual-redundant configuration and includes a pressure clamp terminal block, making it a reliable choice for industrial control systems.

Technical Specifications

The AAI141-S50/A4S00 Analog Input Module has the following specifications (specific to AAI141 unless otherwise noted):

Item Specification
Model AAI141
Number of Input Channels 16, non-isolated
Input Signal 4 to 20 mA DC
Allowable Input Current 27 mA
Withstanding Voltage
Input Resistance (Power ON) 400 Ω (at 20 mA) to 1000 Ω (at 4 mA) (*2)
Input Resistance (Power OFF) 500 kΩ or larger
Accuracy ±16 µA
Data Update Period 10 ms
Step Response Time 100 ms
Transmitter Power Supply 14.8 V or higher (at 20 mA) (*3), 26.4 V or less (at 0 mA) (output current limit: 27 mA)
Setting of 2-wire or 4-wire Transmitter For each channel by setting pin
Drift Due to Ambient Temperature Change ±16 µA/10 °C
Maximum Current Consumption 310 mA (5 V DC), 450 mA (24 V DC)
Weight 0.2 kg
External Connection Pressure clamp terminal, KS cable, MIL connector cable
HART Communication (*7) Available

Model and Suffix/Option Codes

The AAI141-S50/A4S00 includes the following configuration details:

Category Details
Model AAI141 Analog Input Module (4 to 20 mA, 16-channel, Non-Isolated)
Suffix Codes
  • -S: Standard type
  • 5: With no explosion protection
  • 0: Basic type
Option Code
  • /A4S00: With Pressure Clamp Terminal Block for Analog [Model: ATA4S-00]



View full details

Product Description

Product Overview

The Yokogawa AAI141-S50/A4S00 is an Analog Input Module designed to handle 16 non-isolated inputs, primarily for 4 to 20 mA DC signals from 2-wire or 4-wire transmitters. It supports dual-redundant configuration and includes a pressure clamp terminal block, making it a reliable choice for industrial control systems.

Technical Specifications

The AAI141-S50/A4S00 Analog Input Module has the following specifications (specific to AAI141 unless otherwise noted):

Item Specification
Model AAI141
Number of Input Channels 16, non-isolated
Input Signal 4 to 20 mA DC
Allowable Input Current 27 mA
Withstanding Voltage
Input Resistance (Power ON) 400 Ω (at 20 mA) to 1000 Ω (at 4 mA) (*2)
Input Resistance (Power OFF) 500 kΩ or larger
Accuracy ±16 µA
Data Update Period 10 ms
Step Response Time 100 ms
Transmitter Power Supply 14.8 V or higher (at 20 mA) (*3), 26.4 V or less (at 0 mA) (output current limit: 27 mA)
Setting of 2-wire or 4-wire Transmitter For each channel by setting pin
Drift Due to Ambient Temperature Change ±16 µA/10 °C
Maximum Current Consumption 310 mA (5 V DC), 450 mA (24 V DC)
Weight 0.2 kg
External Connection Pressure clamp terminal, KS cable, MIL connector cable
HART Communication (*7) Available

Model and Suffix/Option Codes

The AAI141-S50/A4S00 includes the following configuration details:

Category Details
Model AAI141 Analog Input Module (4 to 20 mA, 16-channel, Non-Isolated)
Suffix Codes
  • -S: Standard type
  • 5: With no explosion protection
  • 0: Basic type
Option Code
  • /A4S00: With Pressure Clamp Terminal Block for Analog [Model: ATA4S-00]



Download PDF file here:

Click to Download PDF
