Product Description
Product Overview

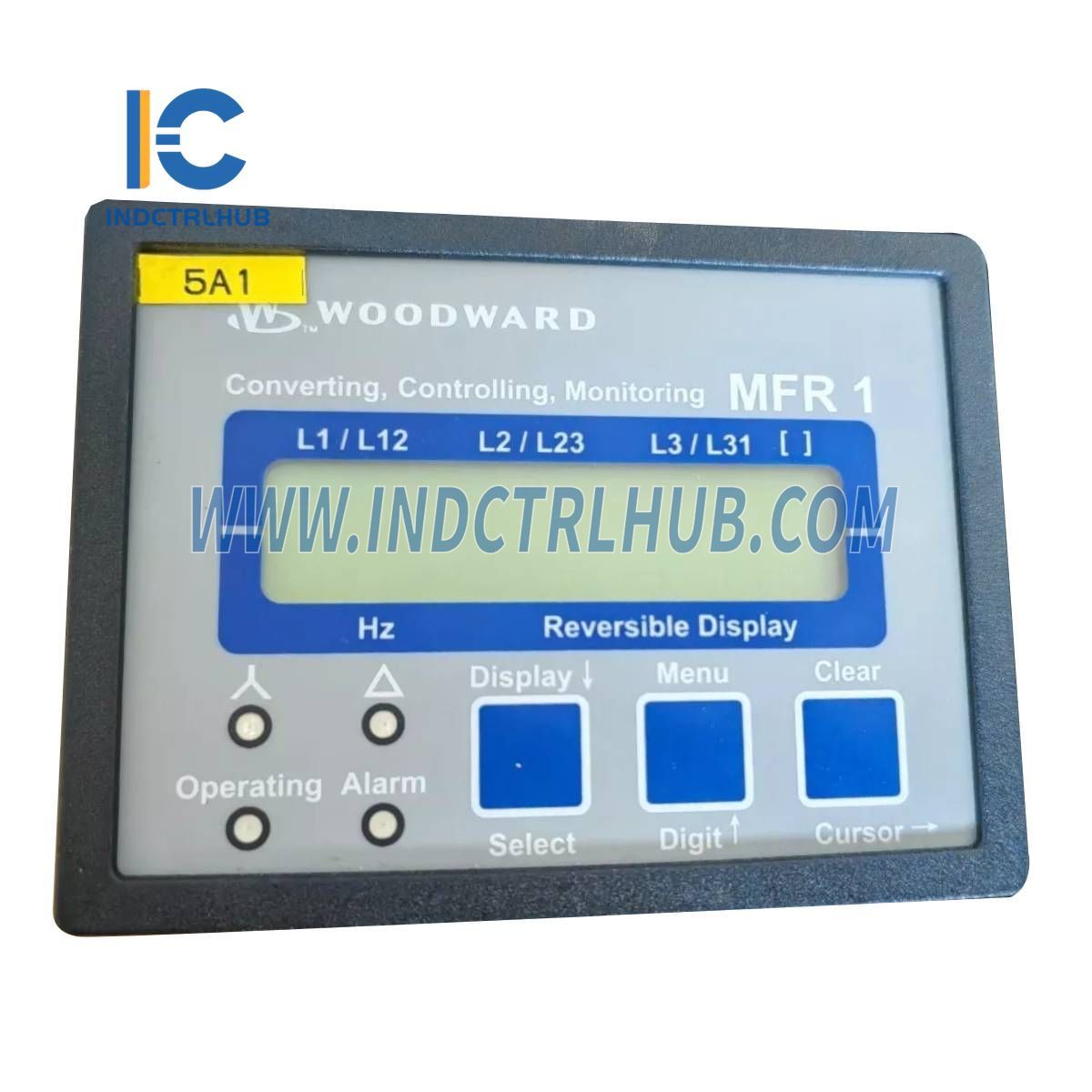

The Woodward LR20025 is a Multifunction Relay (MFR13) designed for use in industrial control systems, particularly for generator set protection and monitoring. This relay is part of Woodward’s Multifunction Relay series, offering configurable protection and control functions for engine and generator applications. It is typically employed in power generation, oil & gas, and industrial settings to ensure equipment safety by monitoring parameters like voltage, frequency, and current, and triggering appropriate responses such as alarms or shutdowns.
Technical Specifications
The LR20025 has the following specifications based on standard characteristics for this model:
| Item | Specification |
|---|---|

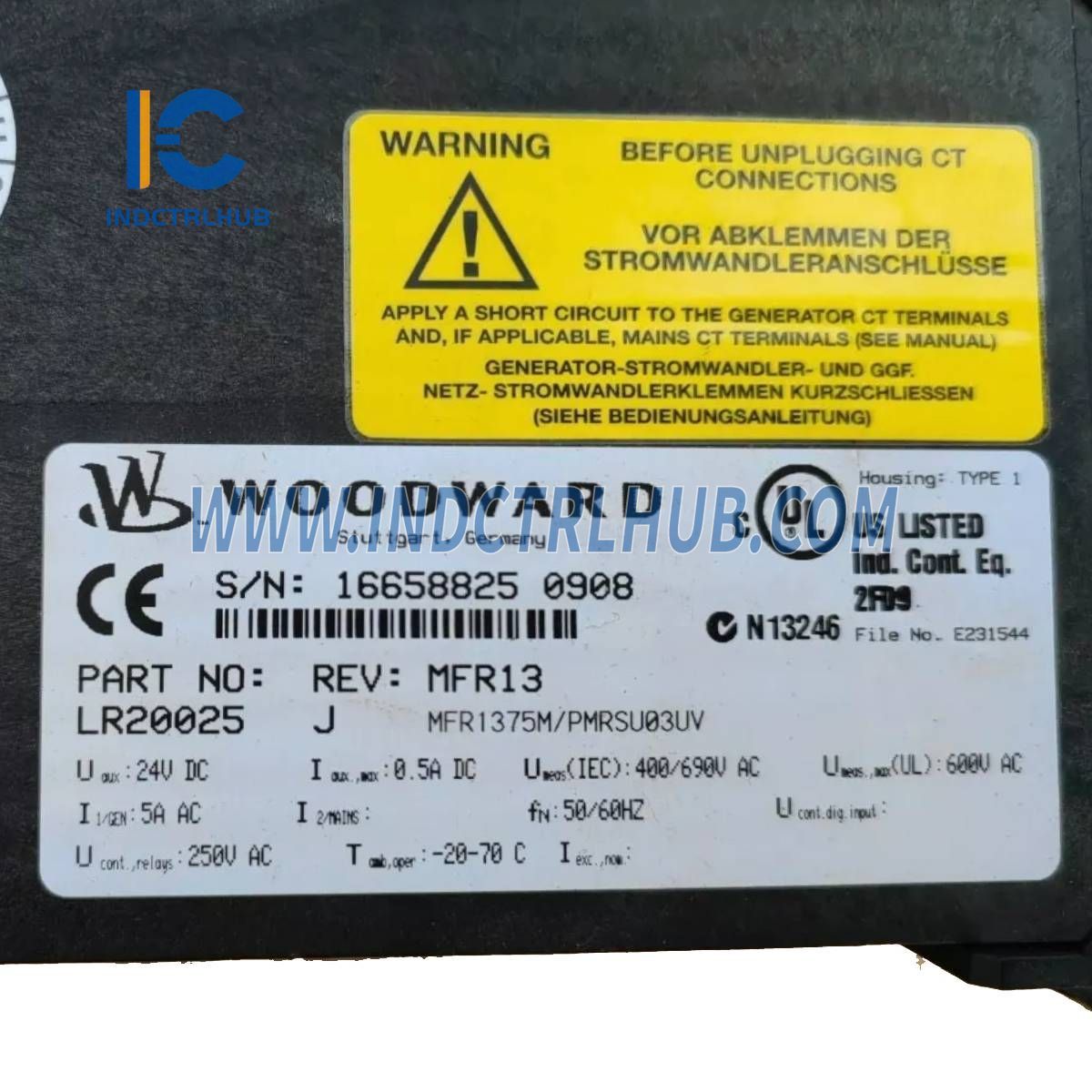

| Model/Part Number | LR20025 |
| Manufacturer | Woodward |
| Description | Multifunction Relay (MFR13) |
| Series | MFR13 |
| Input Voltage | 24 VDC (typical range: 18-32 VDC) |
| Monitoring Parameters | Voltage, frequency, current |
| Output | Relay contacts (dry, configurable) |
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) |
| Weight | 0.5 kg (1.1 lbs) |
Additional Details
The LR20025 includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Protects and controls generator sets by monitoring key parameters |
| Mounting | DIN rail or panel mounting |
| Compatibility | Woodward genset controllers, engine management systems |
| Features | Configurable thresholds, multiple relay outputs, fault detection |
| Certifications | Meets industrial standards (e.g., CE) |
| Part Type | New, surplus, or refurbished |
