Product Description
Triconex EM 2292 I/O Extender Module Kit
- Manufacturer: Triconex
- Model/Part Number: EM 2292
- Description: I/O Extender Module Kit
Overview
- The Triconex EM 2292 I/O Extender Module Kit extends the I/O bus in Triconex safety instrumented systems (SIS) for Main Processor (MP) baseplates. It connects main and expansion chassis, enabling communication between I/O modules and main processors. The kit supports critical applications, such as emergency shutdown, fire and gas detection, and process control, ensuring reliable operation with a Triple Modular Redundancy (TMR) architecture.
Technical Specifications
| Specification | Details |
|---|---|
| Model | EM 2292 |
| Series | Triconex Other Modules |
| Type | I/O Extender Module Kit |
| Description | Extends I/O bus for MP baseplate connectivity |
| Weight | 0.5 kg (total kit) |

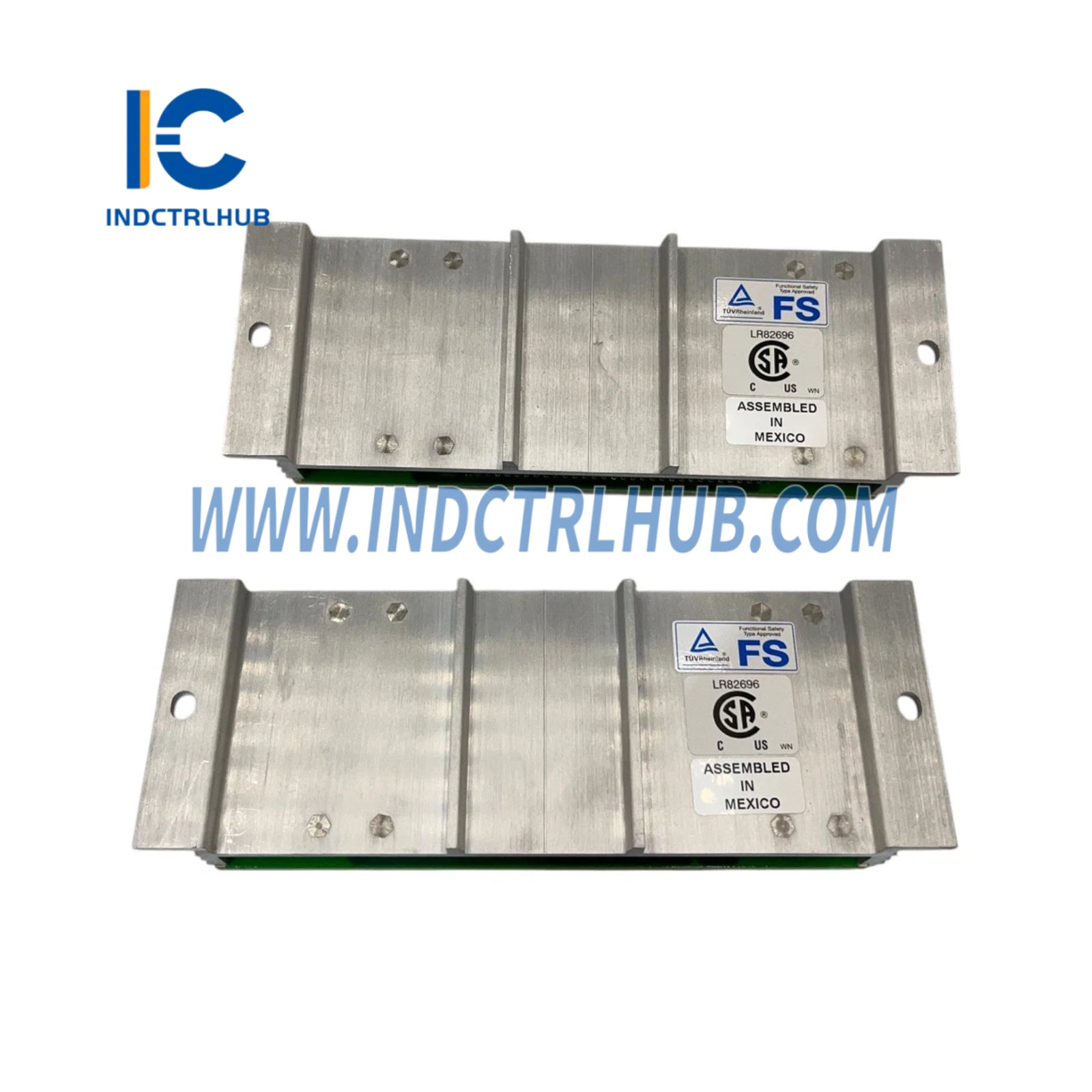

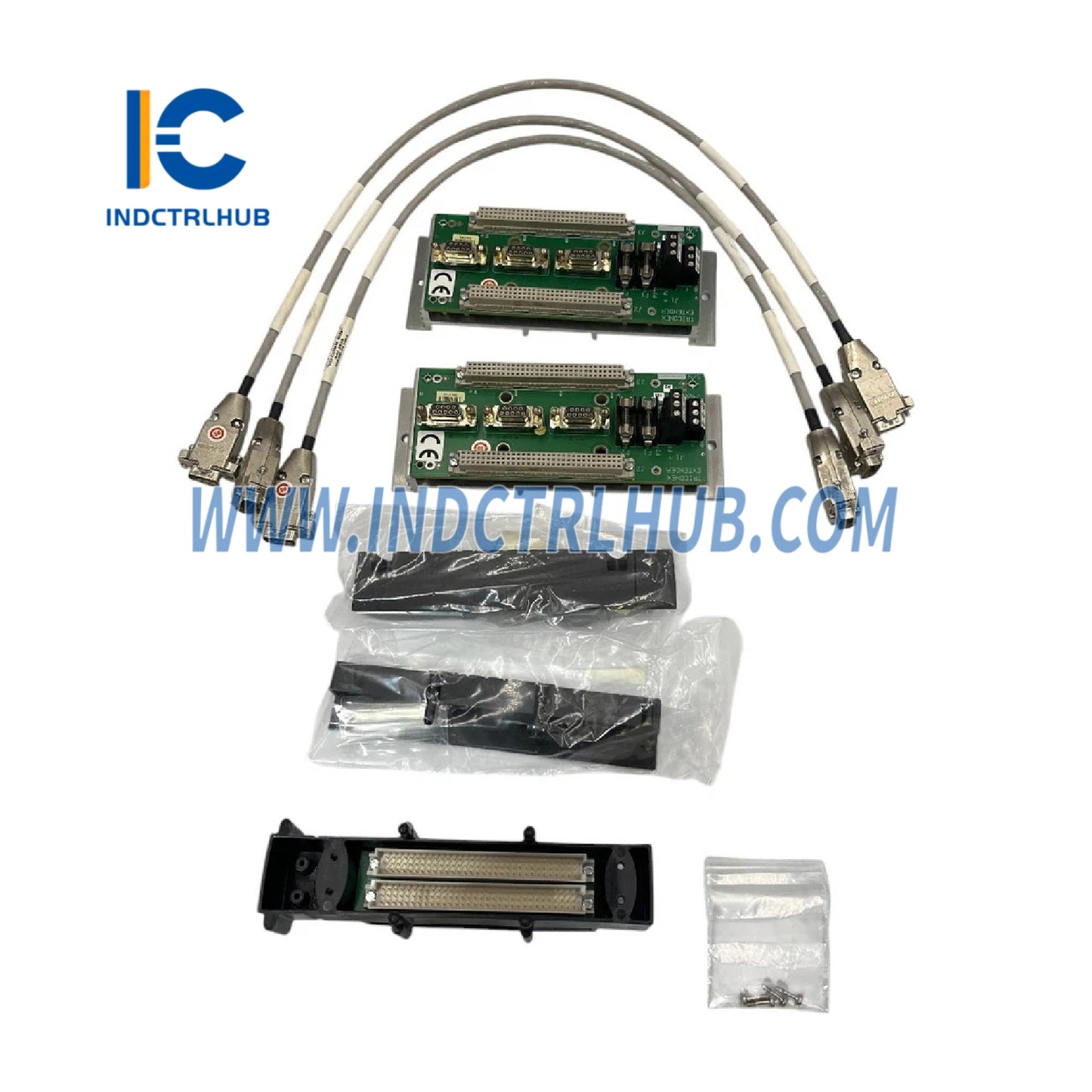

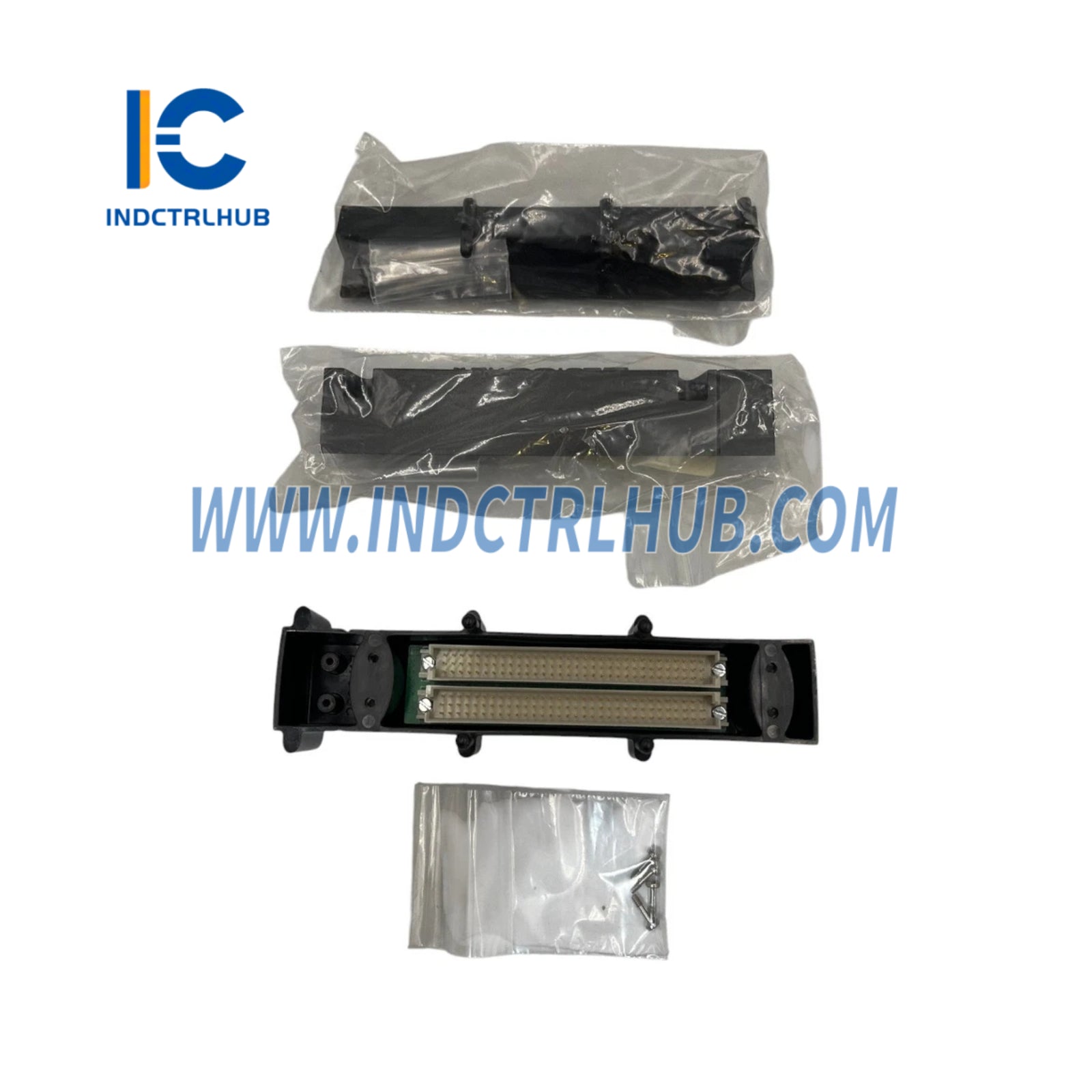

| Kit Contents | Two I/O Extender Modules, Three 2-foot I/O Bus Cables, Three DB-9-pin I/O Bus Terminators (one per channel), One MP Interconnect Assembly |
| Cable Type | Triplicated RS-485 |
| Cable Length | 2 feet (0.61 meters) per cable |
| Connectors | DB-9-pin |
| Communication Rate | 375 kilobits per second |
| Operating Temperature | -20°C to +60°C |
| Diagnostic Indicators | PASS, FAULT, ACTIVE, TX, RX |
Additional Information
- Functionality: The EM 2292 kit supports fault-tolerant communication between chassis, ensuring uninterrupted operation in safety-critical systems. It connects to MP baseplates, facilitating data transfer across triplicated channels.
- Environmental Durability: The kit components use robust materials to ensure reliable operation in harsh industrial environments.
- Integration: The kit integrates seamlessly with Triconex SIS, supporting flexible system configurations for safety-critical applications.
