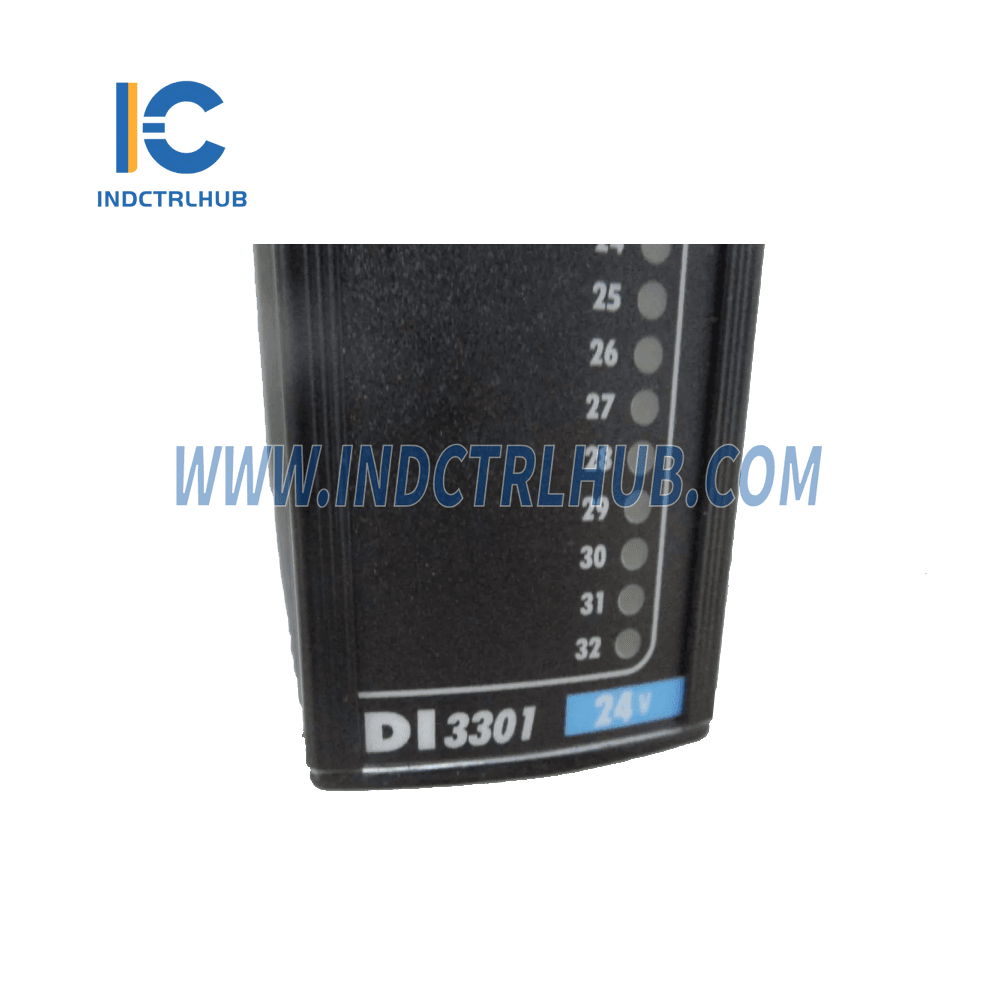

Triconex DI3301 Digital Input Module

Triconex DI3301 Digital Input Module

  • Manufacturer: TRICONEX

  • Product No.: DI3301

  • Condition:1000 in stock

  • Product Type: Digital Input Module

  • Product Origin: United States

  • Payment: T/T, Western Union

  • Weight: 2260g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Information: Triconex Digital Input Module DI3301

Manufacturer:

  • Triconex

Model/Part Number:

  • DI3301 (Digital Input Module)

Description:

The DI3301 Digital Input Module features three isolated channels that independently process field data. Each channel places the processed data into an array and transmits this array to the associated Main Processor (MP) upon request. The MPs then vote on the data before passing it to the application.

This module includes complete diagnostics for each channel, continuously verifying the system's ability to detect state transitions. If a fault is detected on any channel, the Fault indicator turns on, activating a system alarm. However, the Fault indicator identifies a fault in the channel, not the entire module. The DI module guarantees proper operation in the presence of a single fault and may continue operating properly even with multiple faults.

The DI3301 module supports a hot-spare module and is mechanically keyed to prevent improper installation in a configured baseplate. It can be used with the following baseplates:

  • Model 2301: Used in typical applications.
  • DI External Termination Baseplate: Used with Solid State Relay Input External Termination Panel in high-voltage applications, or Model 9573-610 DI Hazardous Location External Termination Panel.

Digital Input Module Specifications:

Feature Specification
Points 32, commoned
Nominal Input Voltage 24 VDC
Operational Voltage Range 15–30 VDC
Absolute Maximum Input Voltage 33 VDC–0.6 VDC
Absolute Maximum Reverse Input Voltage 0.6 VDC
Input Delay <10 ms, On to Off or Off to On
Input Impedance TC = 6.4 ms, -3dB @ 25Hz
Input Power 0.2 W/point at 24 VDC, 0.5 W/point at 33 VDC
Input Threshold 0–5 VDC = Off region, 6–14 VDC = Transition region, 15–30 VDC = On region
Diagnostic (Loss of View) Force-to-Value Diagnostic (FVD), <2 ms/test
Maximum Input Toggle Rate <20 sec
FVD Off State Glitch Duration <2 ms
Magnitude 36% test voltage
Output Impedance 100 k
ADC Scan Time <1 ms for all 32 points
Functional Earth to Protective Earth Isolation 500 VDC, minimum
Functional Earth to Functional Earth (Logic Ground) Isolation 800 VDC, minimum

Key Features:

  • Hot-Spare Module: Supports a backup module for fault tolerance.
  • Isolated Channels: Provides three isolated sets of electronics to independently process data from field devices.
  • Complete Diagnostics: Continuously monitors each channel and alerts with a Fault Indicator when a fault occurs.
  • High Fault Tolerance: Operates correctly even with a single fault and can continue functioning with multiple faults.
  • Mechanical Keying: Ensures correct installation by preventing improper module placement.
  • Wide Operational Voltage Range: Supports a range of 15–30 VDC for flexible usage.
View full details

Product Description

Product Information: Triconex Digital Input Module DI3301

Manufacturer:

  • Triconex

Model/Part Number:

  • DI3301 (Digital Input Module)

Description:

The DI3301 Digital Input Module features three isolated channels that independently process field data. Each channel places the processed data into an array and transmits this array to the associated Main Processor (MP) upon request. The MPs then vote on the data before passing it to the application.

This module includes complete diagnostics for each channel, continuously verifying the system's ability to detect state transitions. If a fault is detected on any channel, the Fault indicator turns on, activating a system alarm. However, the Fault indicator identifies a fault in the channel, not the entire module. The DI module guarantees proper operation in the presence of a single fault and may continue operating properly even with multiple faults.

The DI3301 module supports a hot-spare module and is mechanically keyed to prevent improper installation in a configured baseplate. It can be used with the following baseplates:

  • Model 2301: Used in typical applications.
  • DI External Termination Baseplate: Used with Solid State Relay Input External Termination Panel in high-voltage applications, or Model 9573-610 DI Hazardous Location External Termination Panel.

Digital Input Module Specifications:

Feature Specification
Points 32, commoned
Nominal Input Voltage 24 VDC
Operational Voltage Range 15–30 VDC
Absolute Maximum Input Voltage 33 VDC–0.6 VDC
Absolute Maximum Reverse Input Voltage 0.6 VDC
Input Delay <10 ms, On to Off or Off to On
Input Impedance TC = 6.4 ms, -3dB @ 25Hz
Input Power 0.2 W/point at 24 VDC, 0.5 W/point at 33 VDC
Input Threshold 0–5 VDC = Off region, 6–14 VDC = Transition region, 15–30 VDC = On region
Diagnostic (Loss of View) Force-to-Value Diagnostic (FVD), <2 ms/test
Maximum Input Toggle Rate <20 sec
FVD Off State Glitch Duration <2 ms
Magnitude 36% test voltage
Output Impedance 100 k
ADC Scan Time <1 ms for all 32 points
Functional Earth to Protective Earth Isolation 500 VDC, minimum
Functional Earth to Functional Earth (Logic Ground) Isolation 800 VDC, minimum

Key Features:

  • Hot-Spare Module: Supports a backup module for fault tolerance.
  • Isolated Channels: Provides three isolated sets of electronics to independently process data from field devices.
  • Complete Diagnostics: Continuously monitors each channel and alerts with a Fault Indicator when a fault occurs.
  • High Fault Tolerance: Operates correctly even with a single fault and can continue functioning with multiple faults.
  • Mechanical Keying: Ensures correct installation by preventing improper module placement.
  • Wide Operational Voltage Range: Supports a range of 15–30 VDC for flexible usage.

Download PDF file here:

Click to Download PDF
