Product Description
Product Overview
|
Category |
Details |
|---|---|
|
Manufacturer |
Triconex (Schneider Electric) |
|
Model/Part Number |
9753-110 |
|
Description |

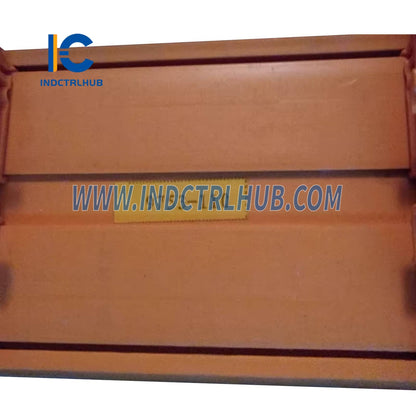

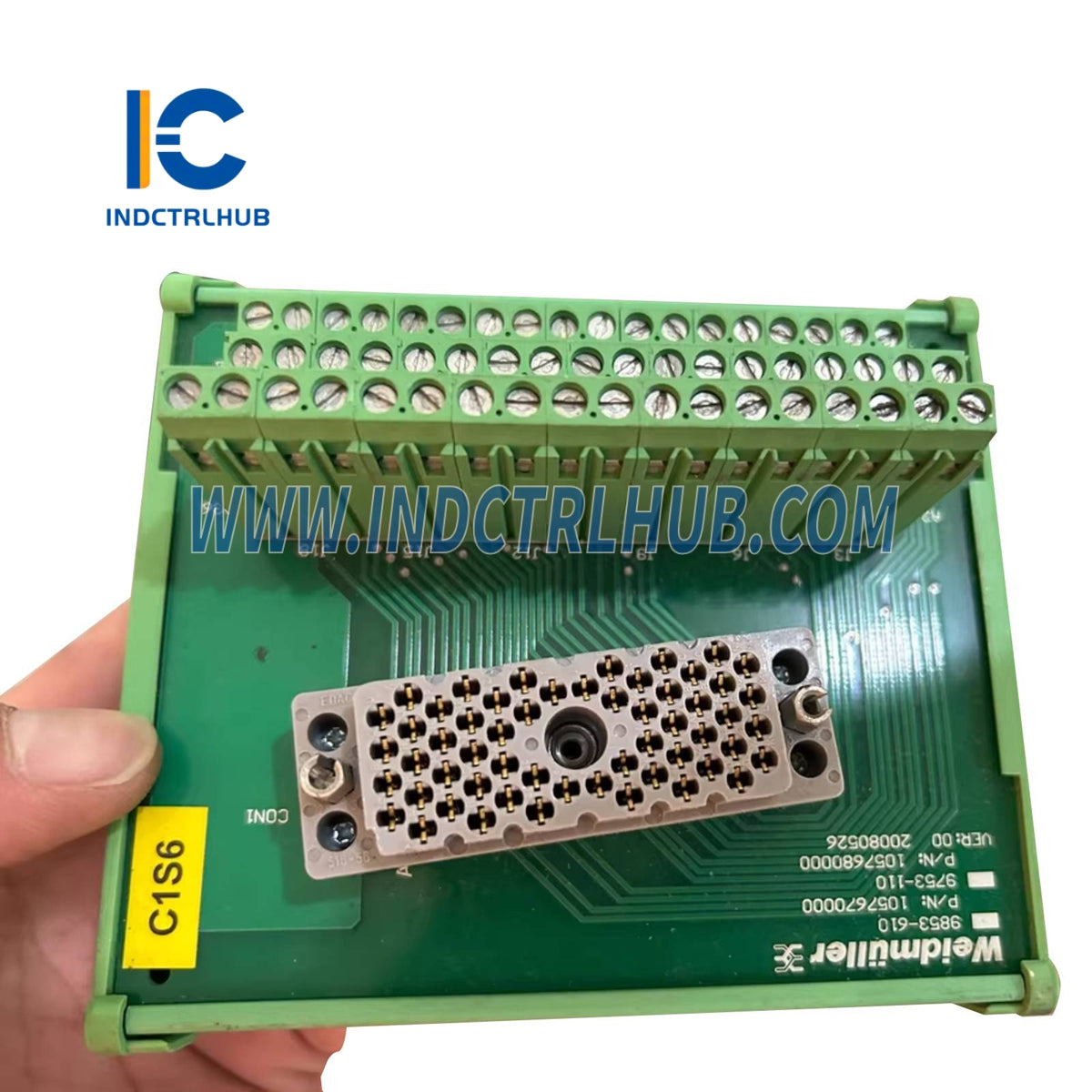

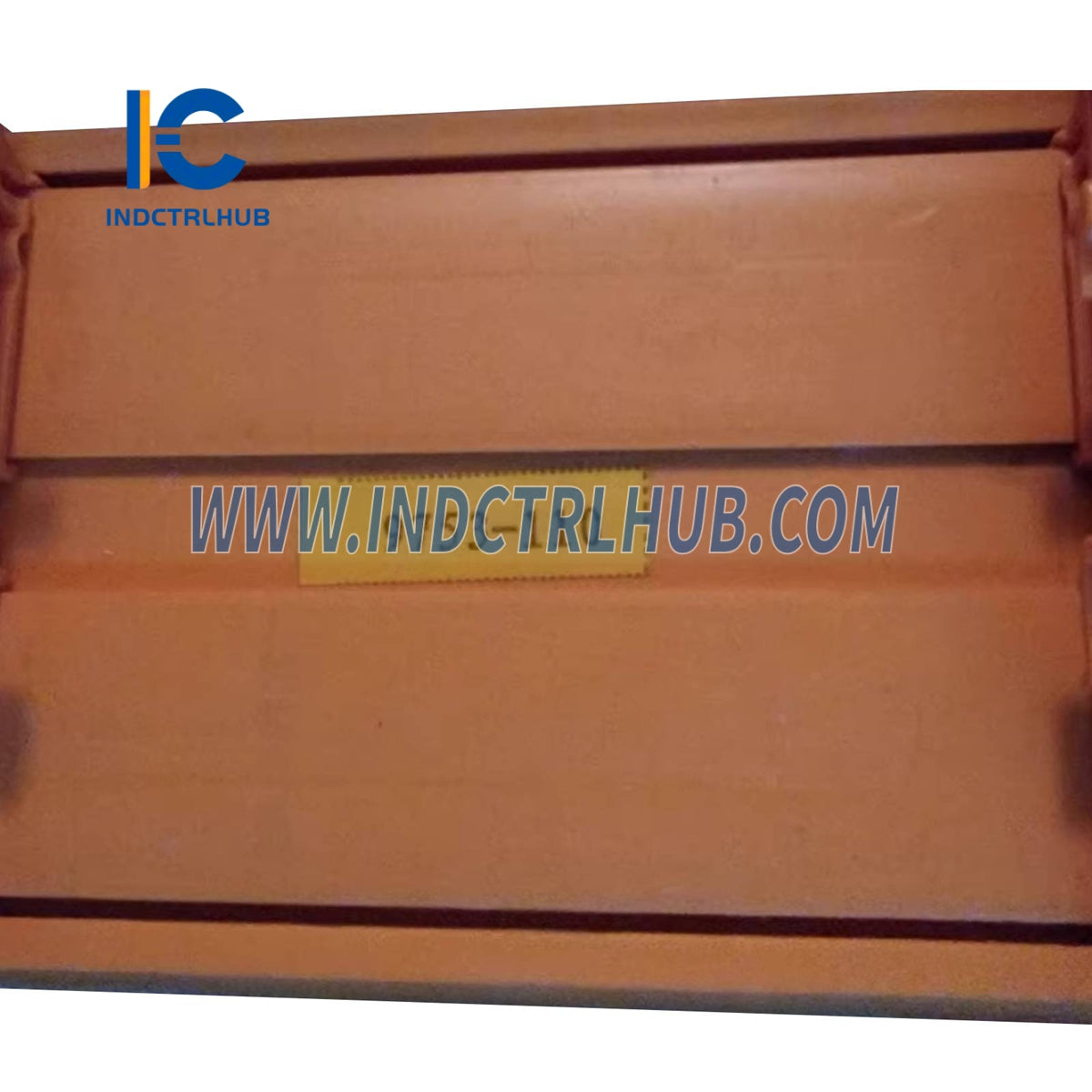

Termination Panel compatible with Pulse Input (PI) and Pulse Totalizer Input (PTI) modules. Supports 8 or 16 channels depending on the application. |
Key Features
-
Supports both PI and PTI modules
-
Dual input types: Differential signal terminals (IN+ / IN–)
-
Use two panels for 32-point PTI modules
-
Simplified field wiring for pulse signal acquisition
-
Durable design for industrial applications
Technical Specifications
|
Specification |
Details |
|---|---|
|
Panel Type |
Basic |
|
Channels Supported |
8 points (when used with PI modules) 16 points (when used with PTI modules) |
|
Compatible Modules |
3510, 3511 (PI modules) 3515 (PTI module) |
Compatible Modules
|
Module Part Number |
Points per Module |
Module Description |
|---|---|---|
|
3510 |
8 |
20 Hz to 20 kHz pulse input, non-commoned, AC-coupled, 50 ms typical input update rate |
|
3511 |
8 |
20 Hz to 20 kHz pulse input, non-commoned, AC-coupled, 25 ms typical input update rate |
|
3515 |
32 |
0 to 1 kHz pulse totalizer input, non-commoned |
