Product Description
Product Overview
|
Category |
Details |
|---|---|
|
Manufacturer |
Triconex (Schneider Electric) |
|
Model/Part Number |
9662-610 |
|
Description |

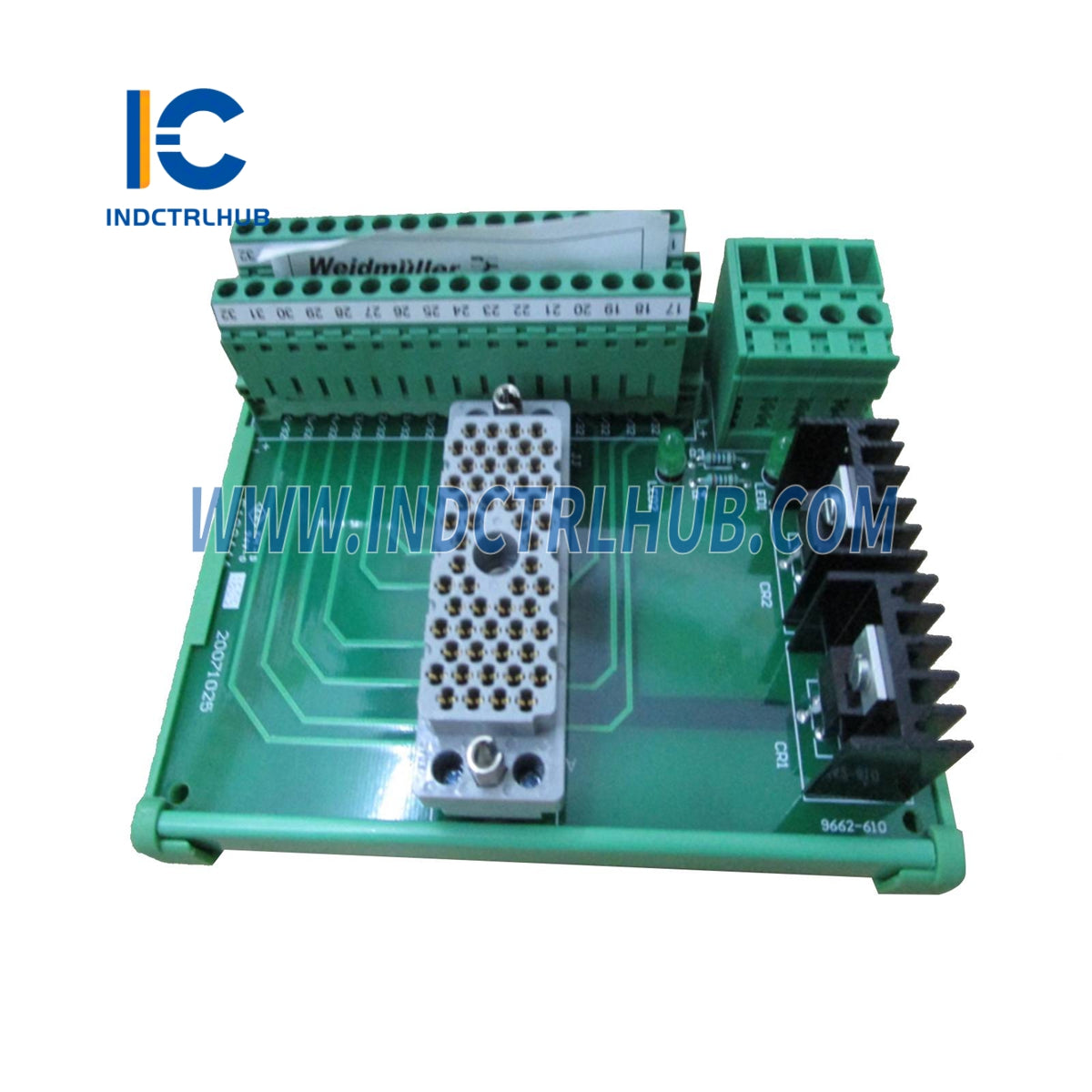

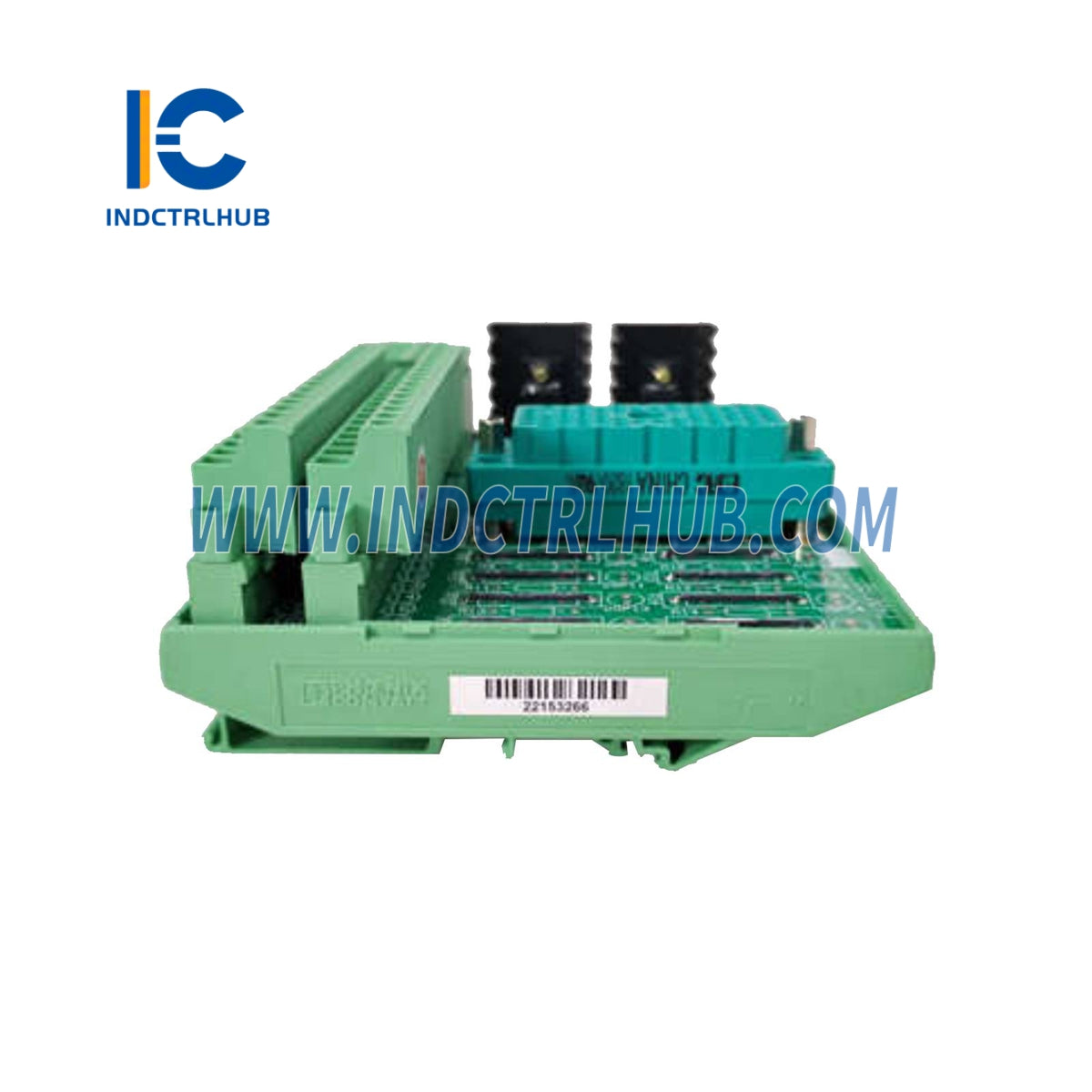

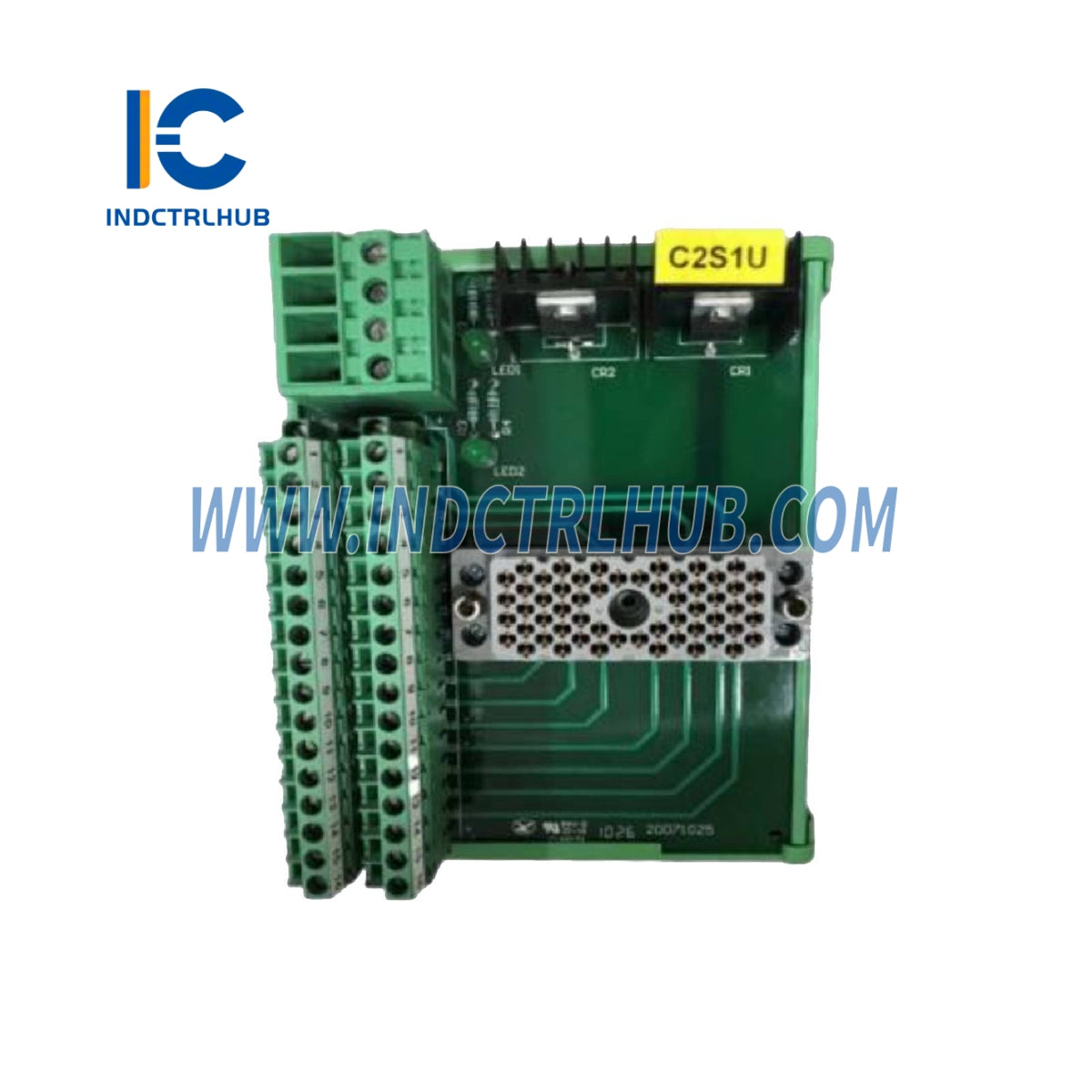

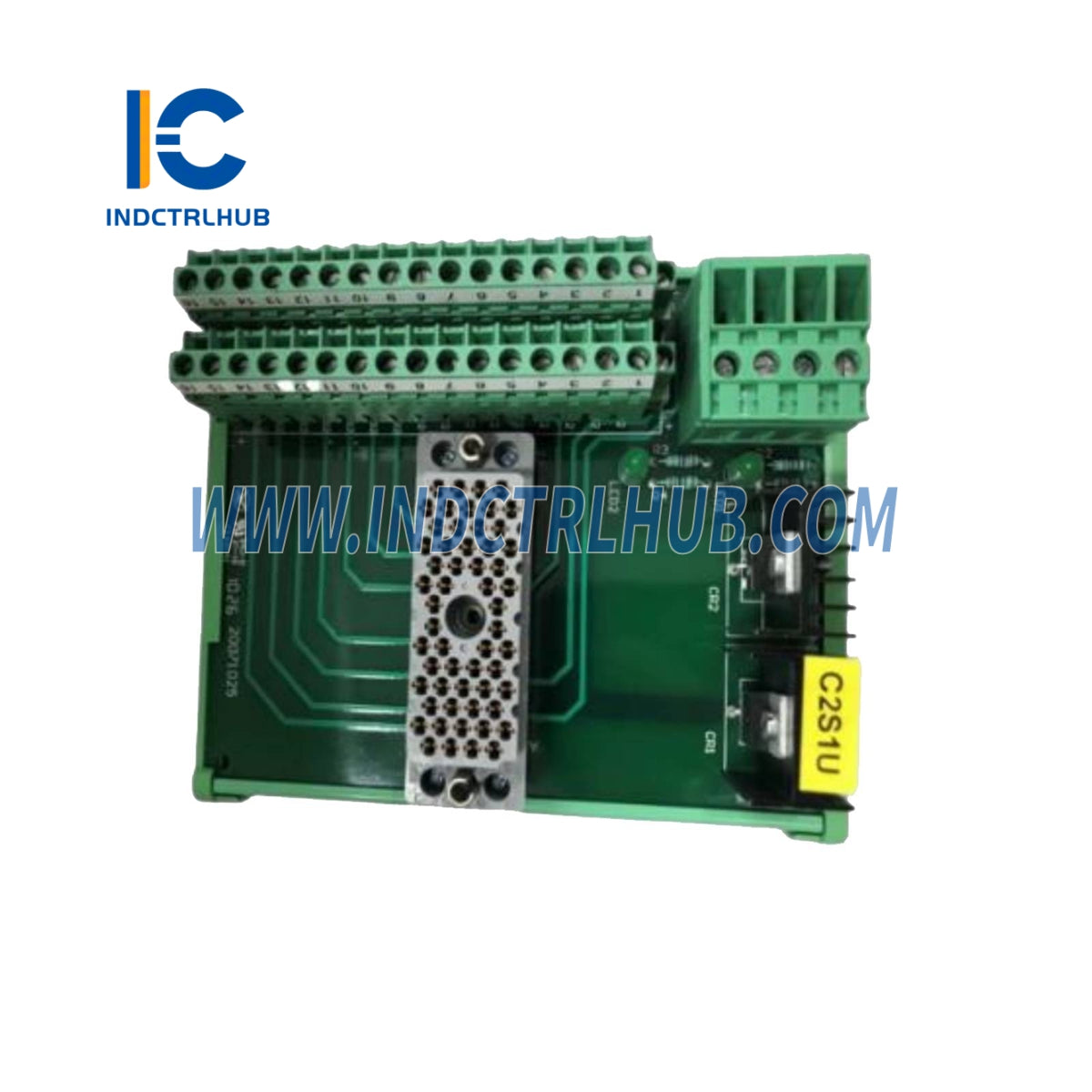

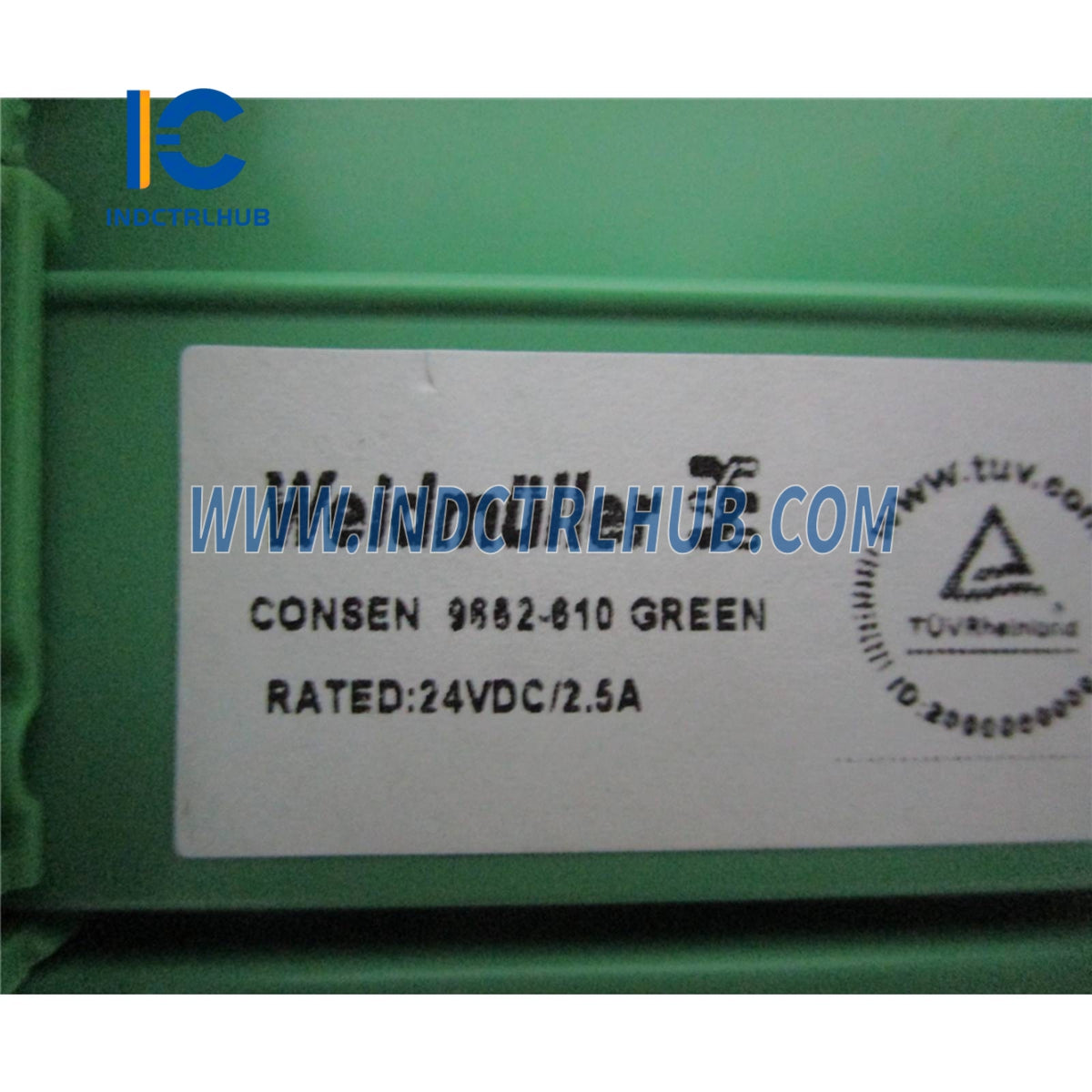

24 VDC digital output termination panel with 16 load points and commoned power terminals. Designed for self-protected, opto-isolated TMR output modules. |
Key Features
-
16 load terminals with shared (commoned) PWR+ and PWR–
-
Designed specifically for 24 VDC digital output modules
-
Supports TMR and dual output modules
-
Compatible with supervised and non-supervised digital outputs
-
Includes two label sets (1–16 and 17–32)
-
For 32-point modules, two panels are required
-
Must be used only with self-protected modules
Technical Specifications
|
Specification |
Details |
|---|---|
|
Panel Type |
Commoned |
|
Number of Points |
16 |
|
Maximum Total Current |
16 amps (when used with Model 3625, limited to 10 amps per panel) |
Compatible Modules
|
Module Part Number |
Points per Module |
Module Description |
|---|---|---|
|
3624 |
16 |
24 VDC, commoned, supervised, opto-isolated, self-protected, TMR |
|
3625 |
32 |
24 VDC, commoned, supervised/non-supervised, opto-isolated, self-protected, TMR |
|
3664 |
32 |
24 VDC, commoned, opto-isolated, self-protected, dual |
|
3674 |
32 |
24 VDC, commoned, opto-isolated, self-protected, dual |
