Product Description
šĀ

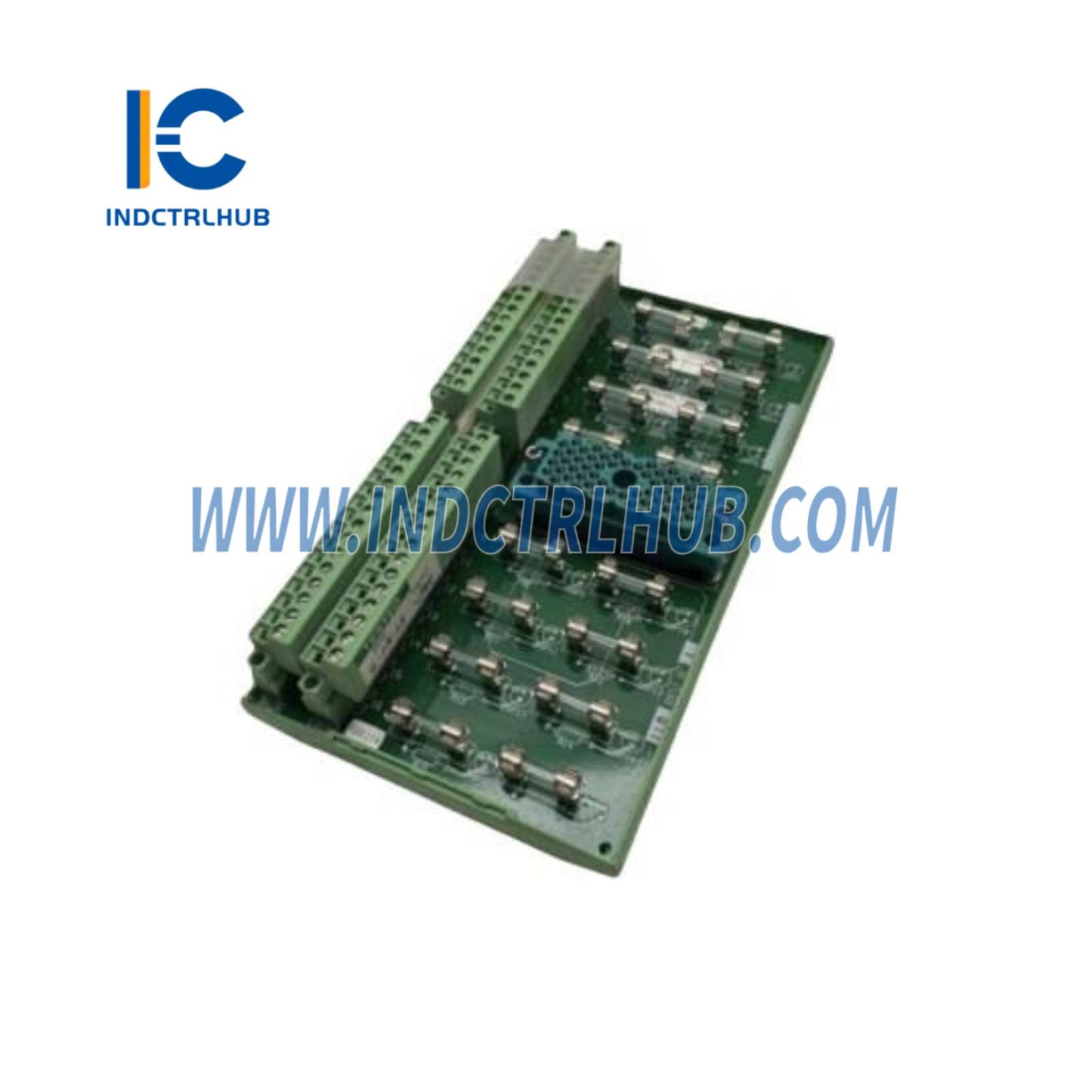

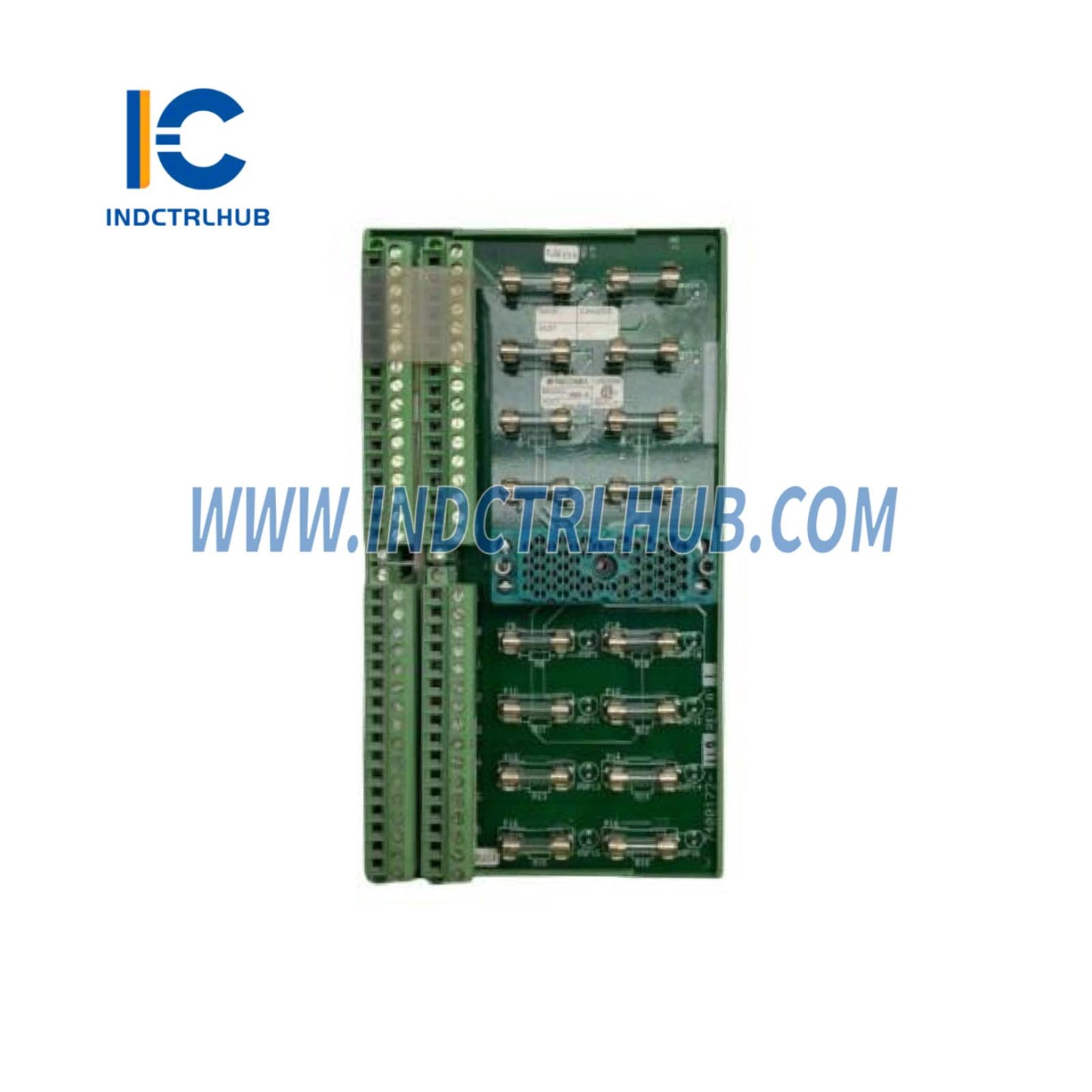

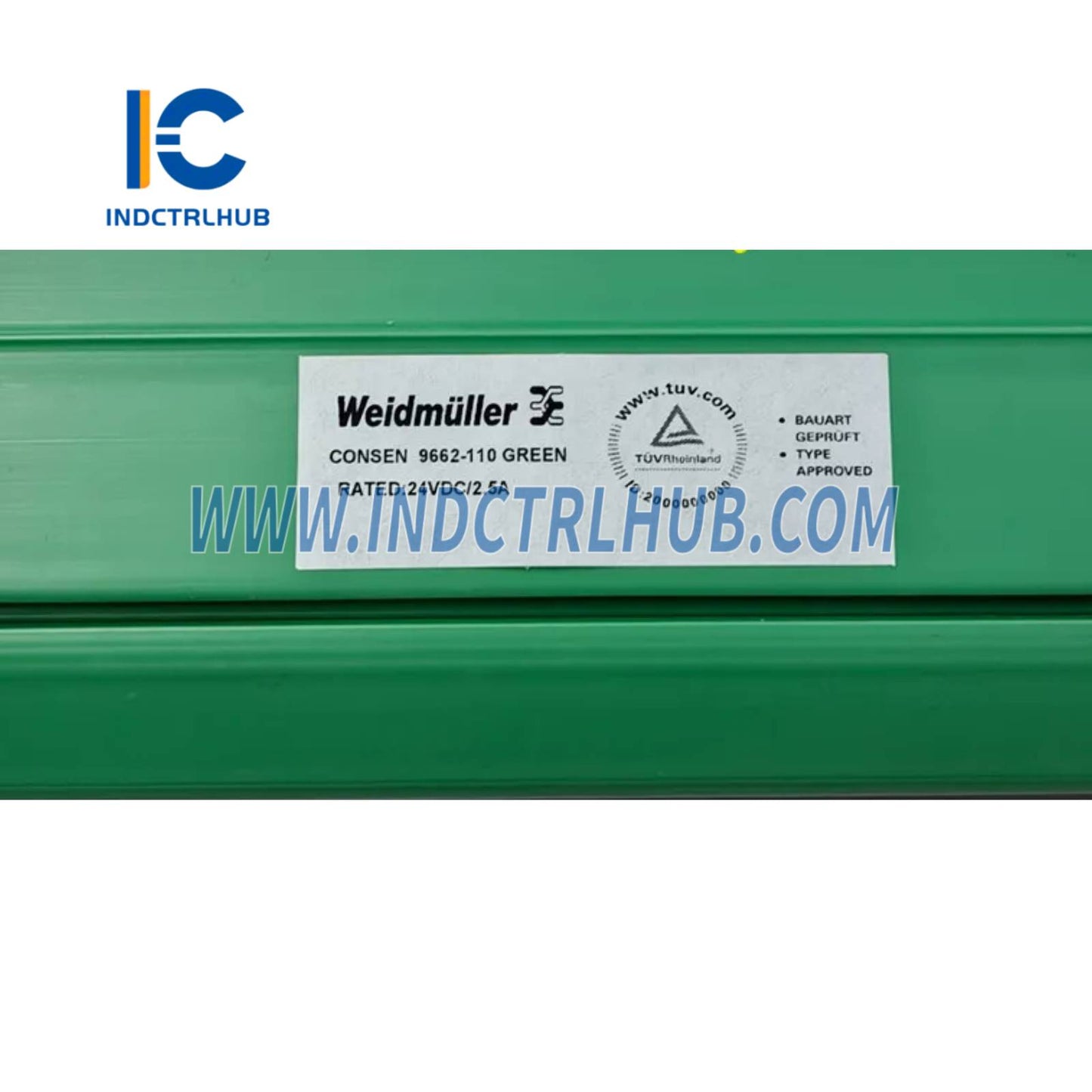

Product Overview
|
Field |
Details |
|---|---|
|
Manufacturer |
Triconex |
|
Model/Part Number |
9662-110 |
|
Model Type |
Digital Output Termination Panel (Non-Commoned) |
|
Application |
For 24 VDC digital output modules, 16 points |
Ā
Ā
āļø
Technical Specifications ā 9662-110
|
Feature |
Description |
|---|---|
|
Panel Type |
Non-commoned |
|
Output Points |
16 |
|
Terminals per Point |
- 1 Ć LOAD+ and 1 Ć LOADāĀ Ā Ā - 1 Ć PWR+ and 1 Ć PWRā |
|
Fuse Protection |
16 Ć fuses (one per output point) |
|
Fuse Indicators |
Yes, blown-fuse LED indicators |
Ā
Ā
š

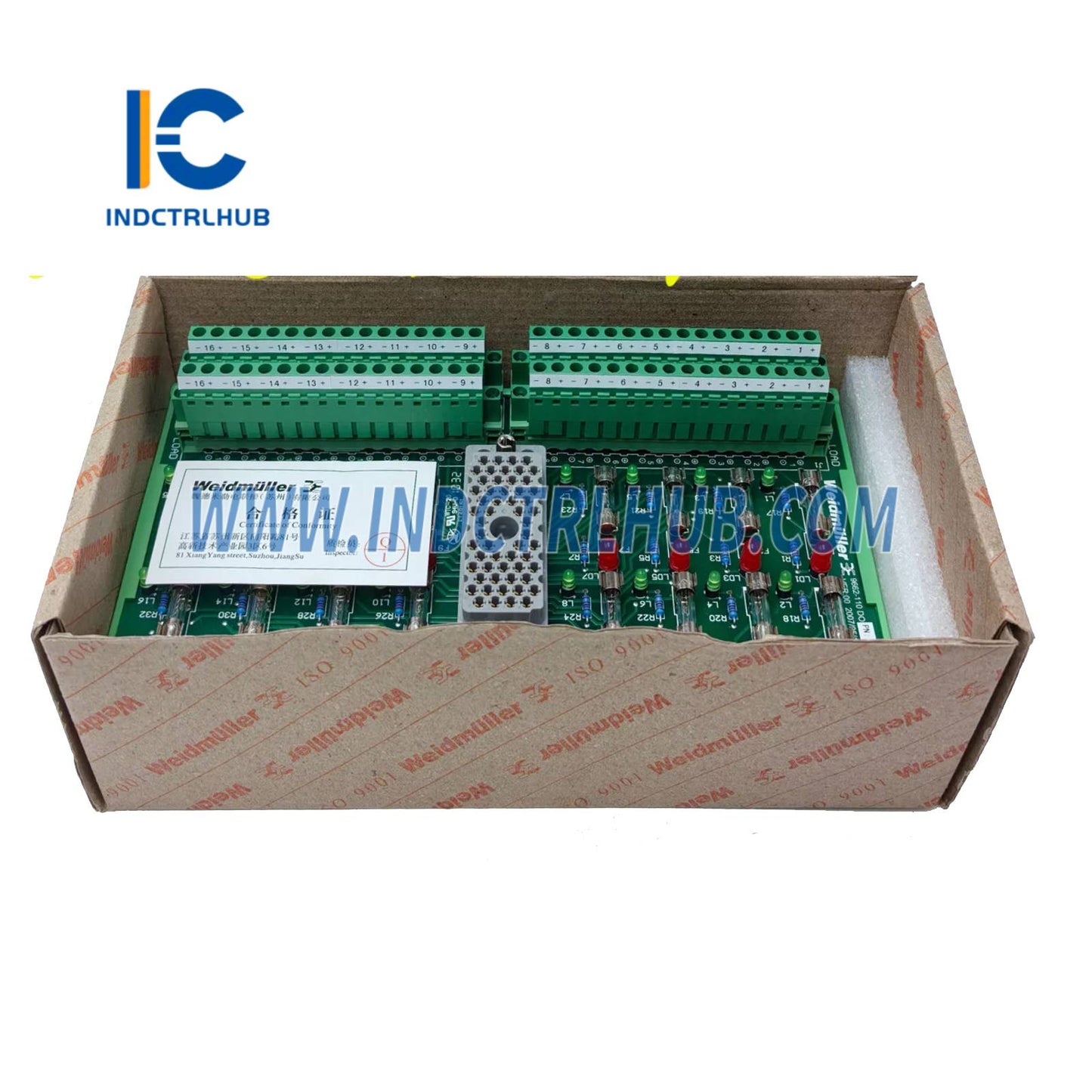

Field Wiring & Layout
Each point has:
Ā
-
IndependentĀ LOAD+ / LOADāĀ terminals
-
IndependentĀ PWR+ / PWRāĀ supply lines
-

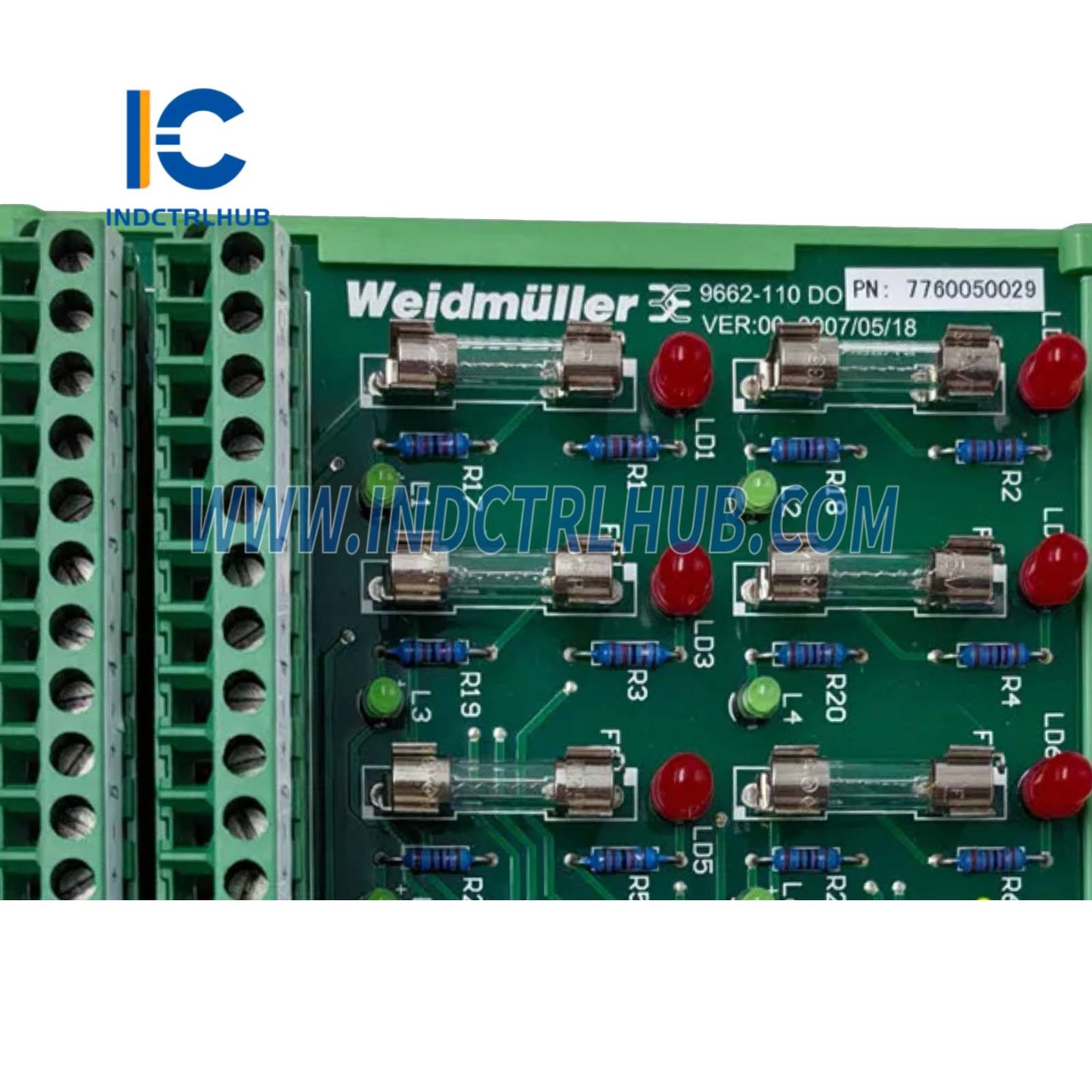

AĀ blown-fuse LED indicator
š§Ā Note:Ā ProvidesĀ non-commonedĀ connectionsāideal for applications where independent isolation is required between channels.
Ā
Ā
ā
Compatible Digital Output Modules
|
Module Part Number |
Points |
Description |
Fuse |
|---|---|---|---|
|
3604E |
16 |
24 VDC, non-commoned, opto-isolated, TMR |
2.5A, fast-acting |
