Product Description

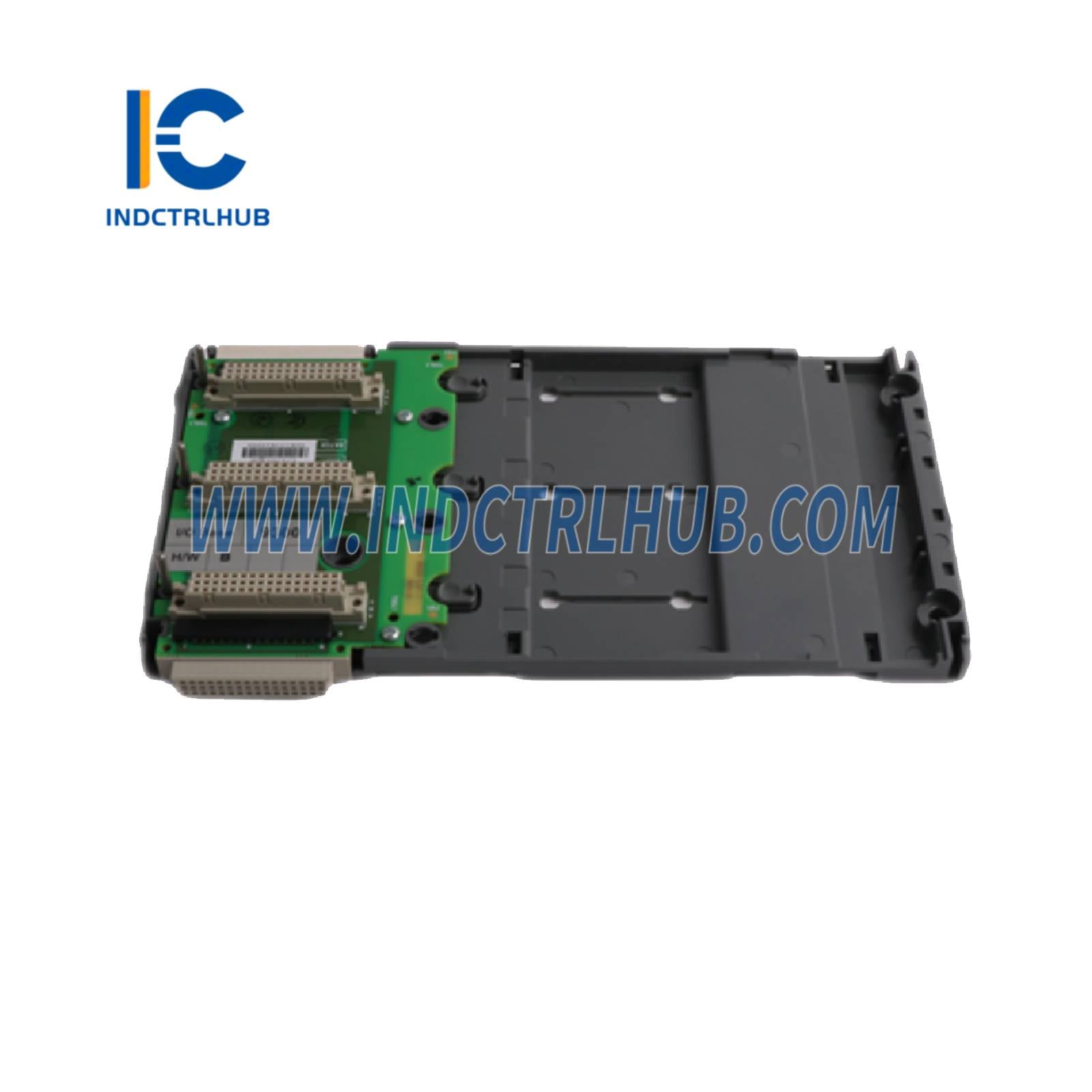

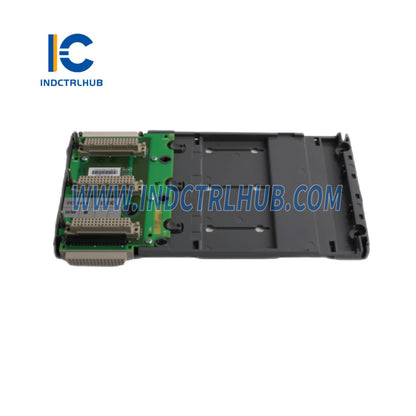

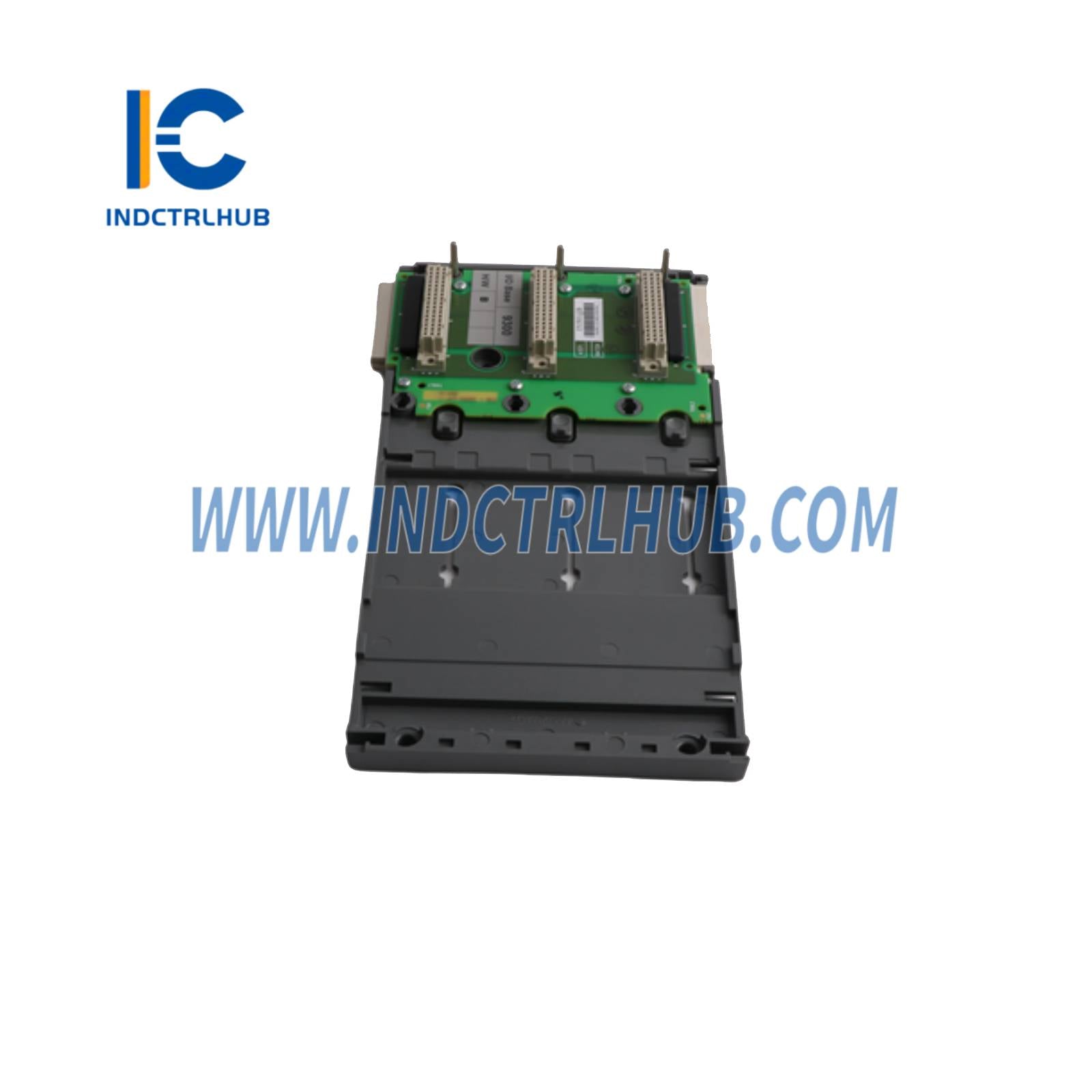

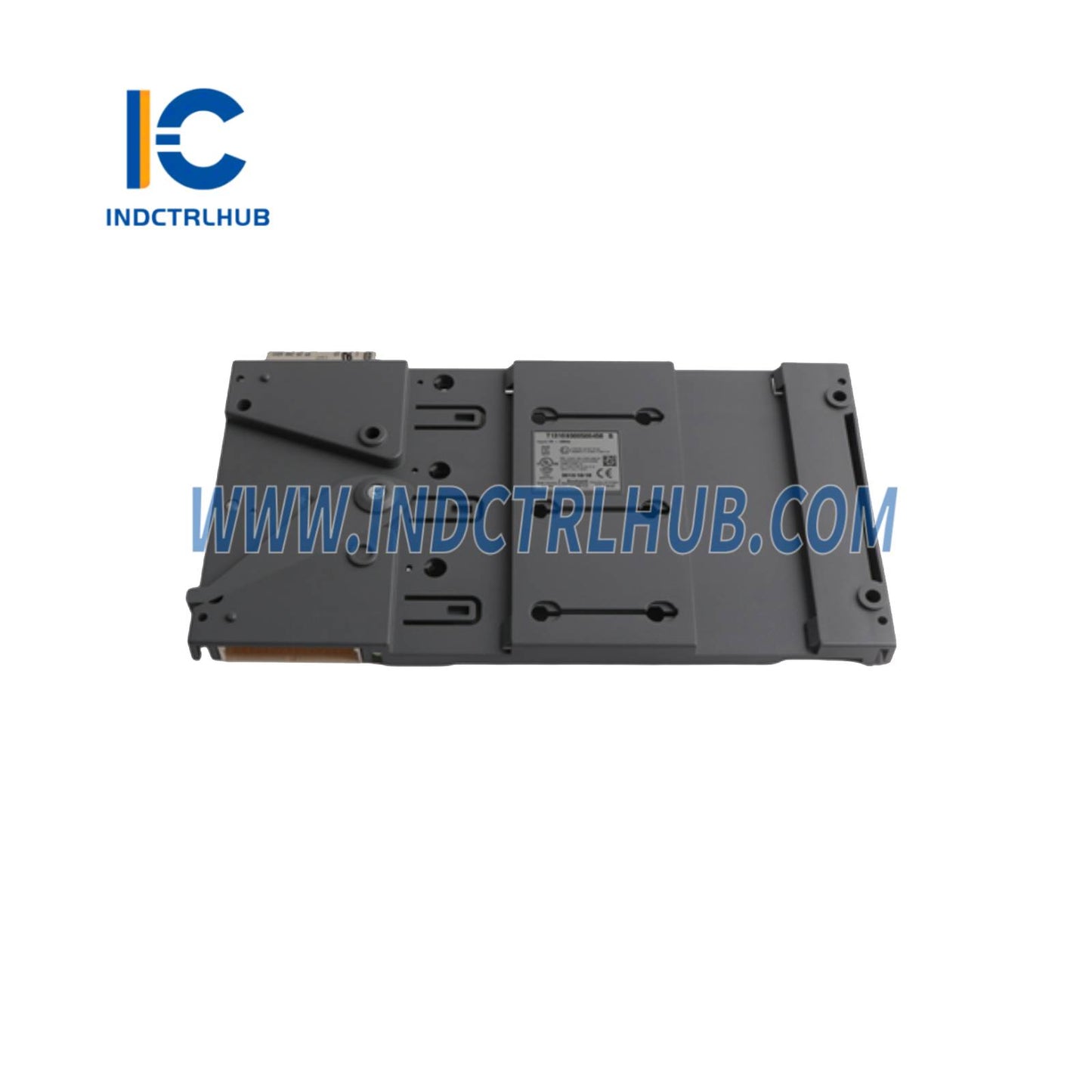

Triconex 9300 Safety Instrumented System
Product Overview
- The Triconex 9300, also known as Tricon, is a Safety Instrumented System (SIS) designed by Triconex, a brand under Schneider Electric’s EcoStruxure platform. It is engineered for safety-critical applications in industries such as oil and gas, petrochemical, chemical, power generation, and pharmaceuticals. The system leverages Triple Modular Redundant (TMR) technology to ensure high reliability, fault tolerance, and continuous operation, achieving Safety Integrity Level 3 (SIL3) certification for critical control tasks like emergency shutdown (ESD), burner management systems (BMS), and turbomachinery control (TMC).
Technical Specifications
- The 9300 has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|
| Model/Part Number | 9300 |
| Manufacturer | Triconex (Schneider Electric) |
| Description | Safety Instrumented System (SIS) |
| Series | EcoStruxure Tricon Safety System |
| Architecture | Triple Modular Redundant (TMR) |
| Safety Integrity Level | SIL3 (TÜV Rheinland certified, IEC 61508:2010) |
| Communication Nodes | Up to 254 peer-to-peer nodes |
| Communication Protocols | Modbus, Ethernet, OPC, HART (via IP-based network) |
| Cybersecurity | Achilles Level 1 certification |
| Power Supply | Redundant, 24 VDC or 120/230 VAC |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Humidity | 5% to 95% non-condensing |
| Weight | Approx. 20-25 kg |
