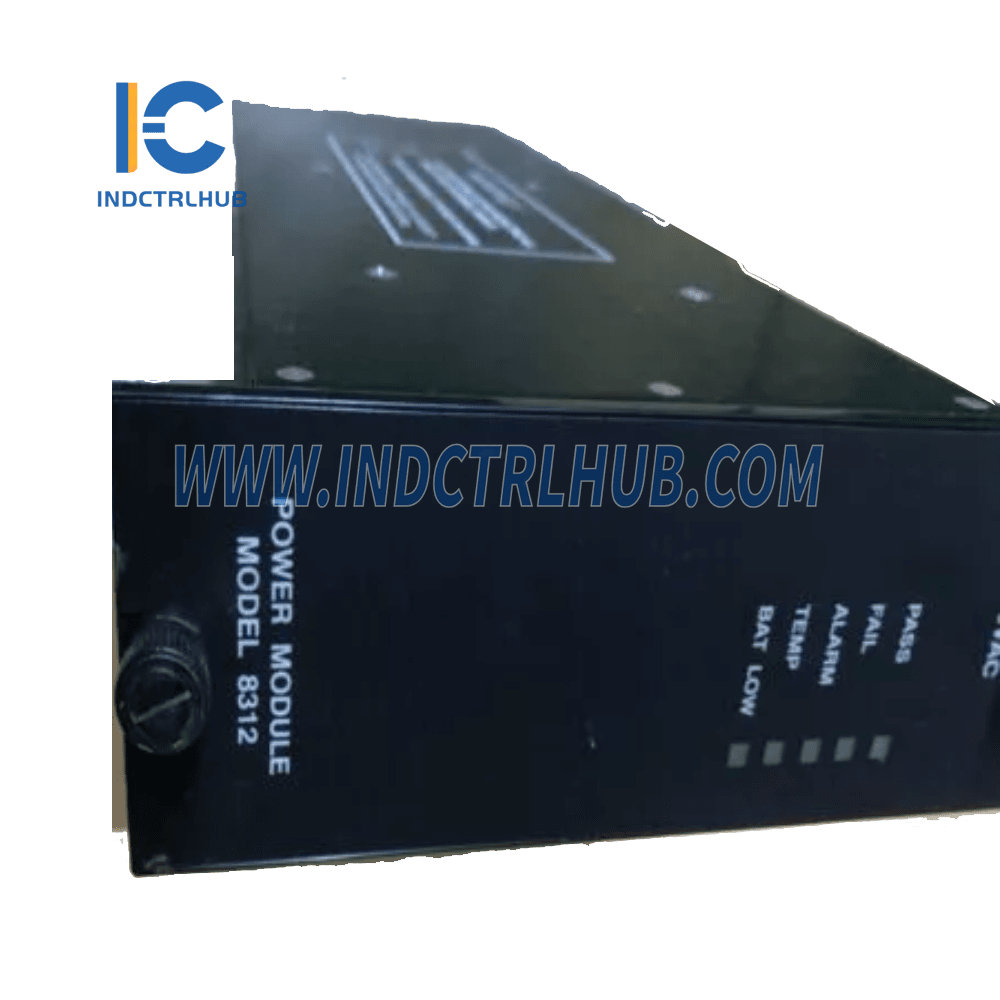

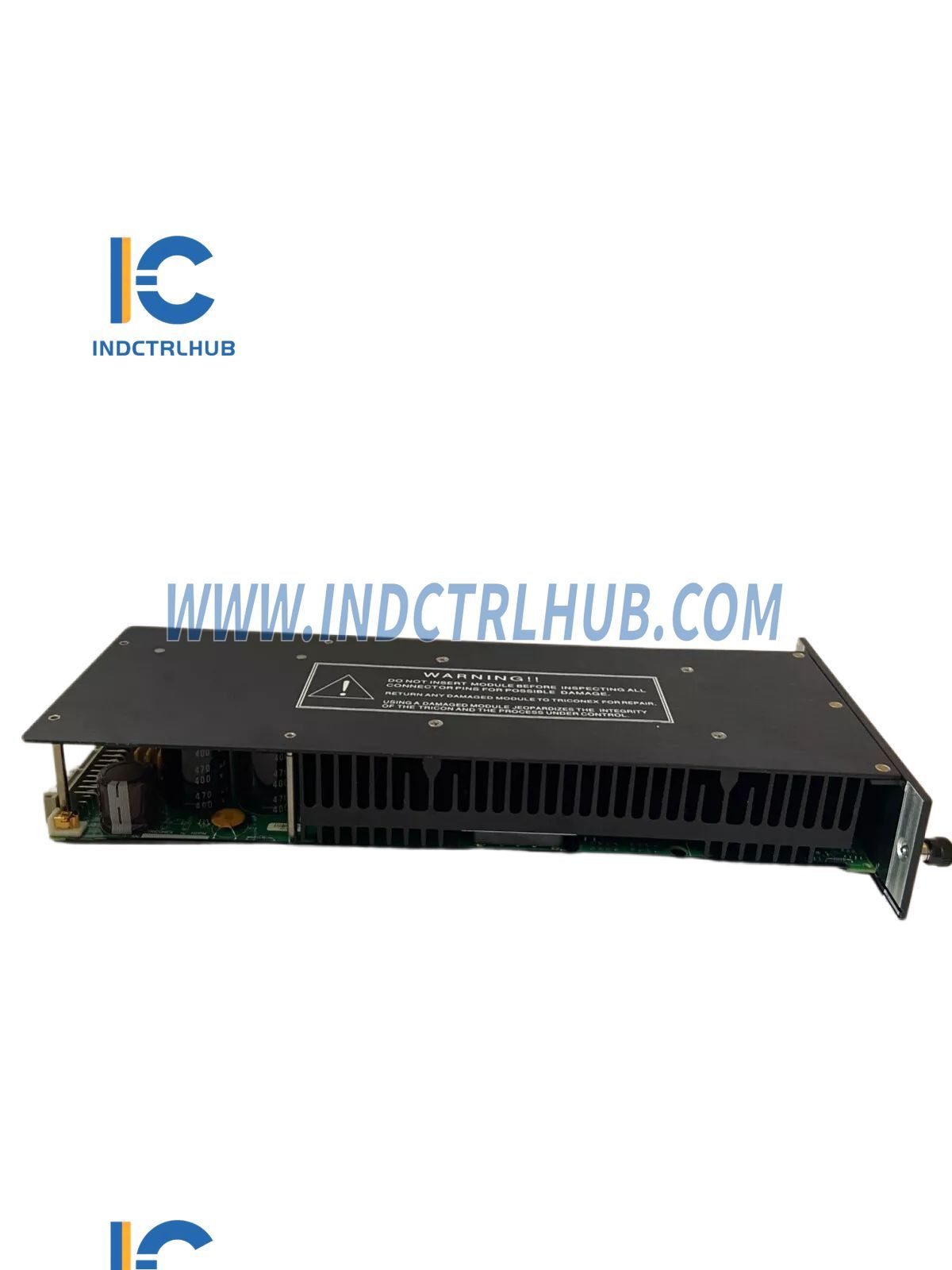

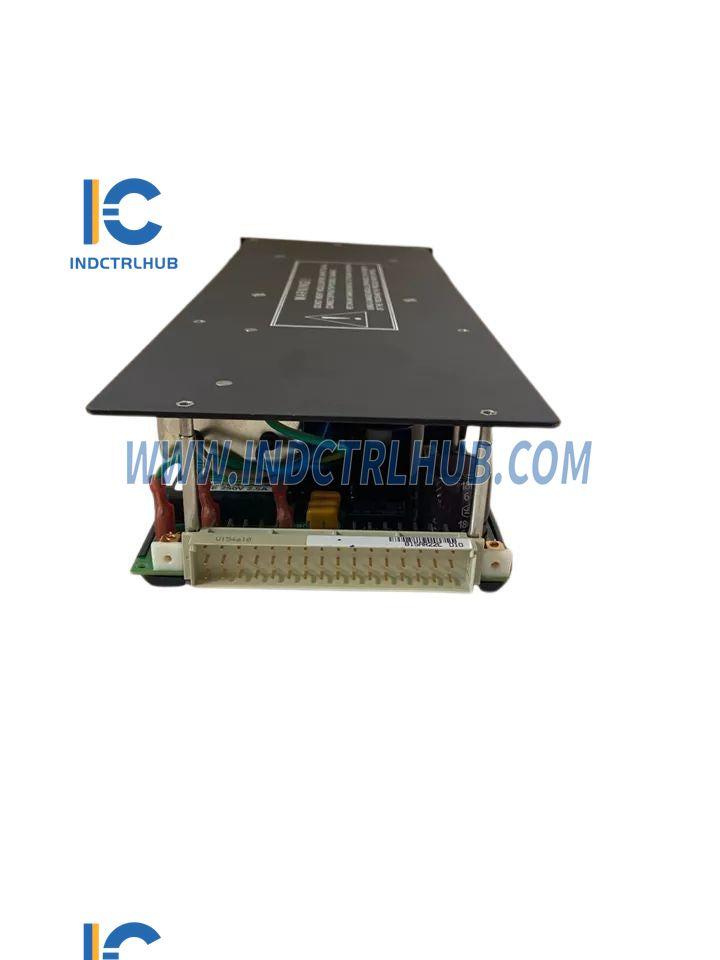

Triconex 8312 Power Module

Triconex 8312 Power Module

  • Manufacturer: Triconex

  • Product No.: 8312

  • Condition:1000 in stock

  • Product Type: Power Module

  • Product Origin: United States

  • Payment: T/T, Western Union

  • Weight: 3300g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Information: Triconex Power Module 8312

Manufacturer:

  • Triconex

Model/Part Number:

  • 8312 (Power Module)

Description:

The 8312 Power Module is designed for use in Tricon systems, with each chassis equipped with two power modules. Each module is capable of running the Tricon system at full load and rated temperature, and they can be replaced online without affecting system operations. The power modules are responsible for converting line power to DC power appropriate for all Tricon modules.

Power module alarms are triggered under the following conditions:

  • A module is missing from the system
  • Hardware configuration conflicts with the control program's logical configuration
  • A module failure occurs
  • Main processor detects a system fault
  • Primary power to the power module fails
  • Low battery or over-temperature warnings

Power Module Specifications:

Specification Details
Isolation >1000 VAC or 1500 VDC (Input to Output)
Input Terminations Protected by safety cover, accepts three 12-gauge wires (3.310mm²): neutral, hot, and earth (chassis ground)
Over-Temperature Sensor Temperature warning monitor, trips when internal temp. > 181°F (83°C) (typically at ambient temp. 140°F/60°C)
Alarm Contacts Normally open, normally closed, and common; each contact supports 120 VAC @ 1 amp, accepts 12-gauge wire
Input Power Required 240 watts minimum per power module
Output Power 175 watts at 140°F (60°C)
Output Voltage 6.5 VDC, ±1% under all operating conditions
Output Current 27 amps maximum at 140°F (60°C) ambient

Power Module Comparison:

Feature 8310 8311 8312
Chassis Type Main/Expansion/RXM Main/Expansion/RXM Main/Expansion/RXM
Nominal Voltage 120 VAC/VDC 24 VDC 230 VAC
Input VAC 85-140 VAC @ 47-63 Hz n/a 185-285 VAC
Input VDC 95-180 VDC 22-31 VDC n/a
Fuse Rating and Type 5 amps, time-delay 15 amps, time-delay 2.5 amps, time-delay
Output Hold Time 20 ms minimum 2.8 ms minimum 20 ms minimum
Diagnostic Indicators PASS, FAULT, ALARM, TEMP, BAT LOW PASS, FAULT, ALARM, TEMP, BAT LOW PASS, FAULT, ALARM, TEMP, BAT LOW
Approximate Weight 7.2 lbs (3.3 kg) 7.2 lbs (3.3 kg) 7.2 lbs (3.3 kg)
View full details

Product Description

Product Information: Triconex Power Module 8312

Manufacturer:

  • Triconex

Model/Part Number:

  • 8312 (Power Module)

Description:

The 8312 Power Module is designed for use in Tricon systems, with each chassis equipped with two power modules. Each module is capable of running the Tricon system at full load and rated temperature, and they can be replaced online without affecting system operations. The power modules are responsible for converting line power to DC power appropriate for all Tricon modules.

Power module alarms are triggered under the following conditions:

  • A module is missing from the system
  • Hardware configuration conflicts with the control program's logical configuration
  • A module failure occurs
  • Main processor detects a system fault
  • Primary power to the power module fails
  • Low battery or over-temperature warnings

Power Module Specifications:

Specification Details
Isolation >1000 VAC or 1500 VDC (Input to Output)
Input Terminations Protected by safety cover, accepts three 12-gauge wires (3.310mm²): neutral, hot, and earth (chassis ground)
Over-Temperature Sensor Temperature warning monitor, trips when internal temp. > 181°F (83°C) (typically at ambient temp. 140°F/60°C)
Alarm Contacts Normally open, normally closed, and common; each contact supports 120 VAC @ 1 amp, accepts 12-gauge wire
Input Power Required 240 watts minimum per power module
Output Power 175 watts at 140°F (60°C)
Output Voltage 6.5 VDC, ±1% under all operating conditions
Output Current 27 amps maximum at 140°F (60°C) ambient

Power Module Comparison:

Feature 8310 8311 8312
Chassis Type Main/Expansion/RXM Main/Expansion/RXM Main/Expansion/RXM
Nominal Voltage 120 VAC/VDC 24 VDC 230 VAC
Input VAC 85-140 VAC @ 47-63 Hz n/a 185-285 VAC
Input VDC 95-180 VDC 22-31 VDC n/a
Fuse Rating and Type 5 amps, time-delay 15 amps, time-delay 2.5 amps, time-delay
Output Hold Time 20 ms minimum 2.8 ms minimum 20 ms minimum
Diagnostic Indicators PASS, FAULT, ALARM, TEMP, BAT LOW PASS, FAULT, ALARM, TEMP, BAT LOW PASS, FAULT, ALARM, TEMP, BAT LOW
Approximate Weight 7.2 lbs (3.3 kg) 7.2 lbs (3.3 kg) 7.2 lbs (3.3 kg)

Download PDF file here:

Click to Download PDF
