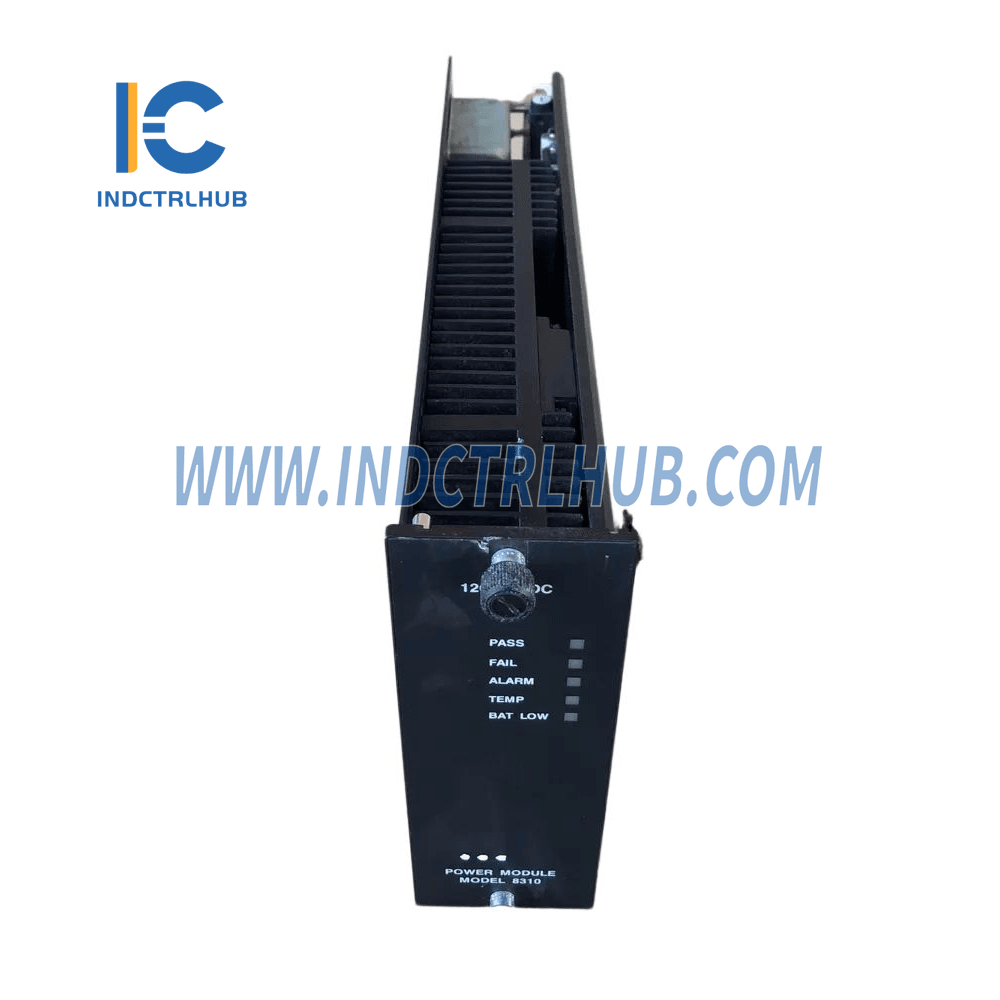

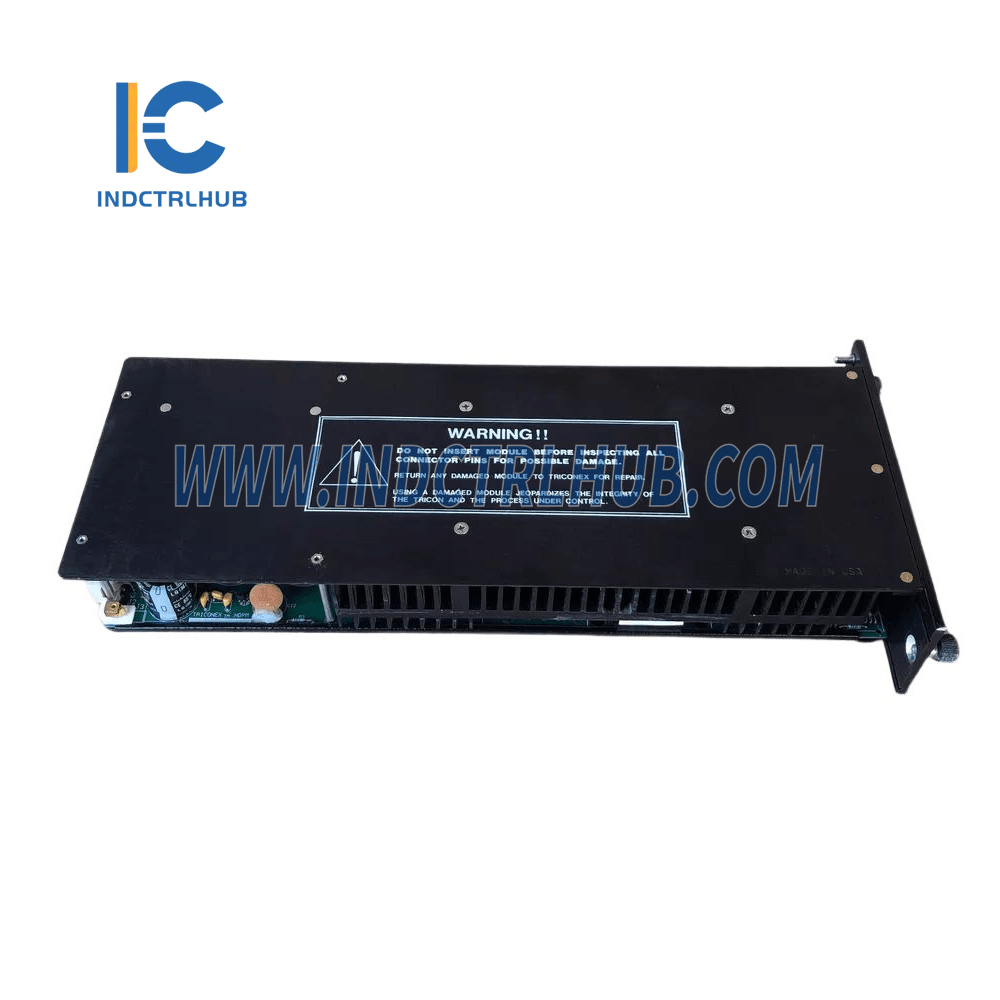

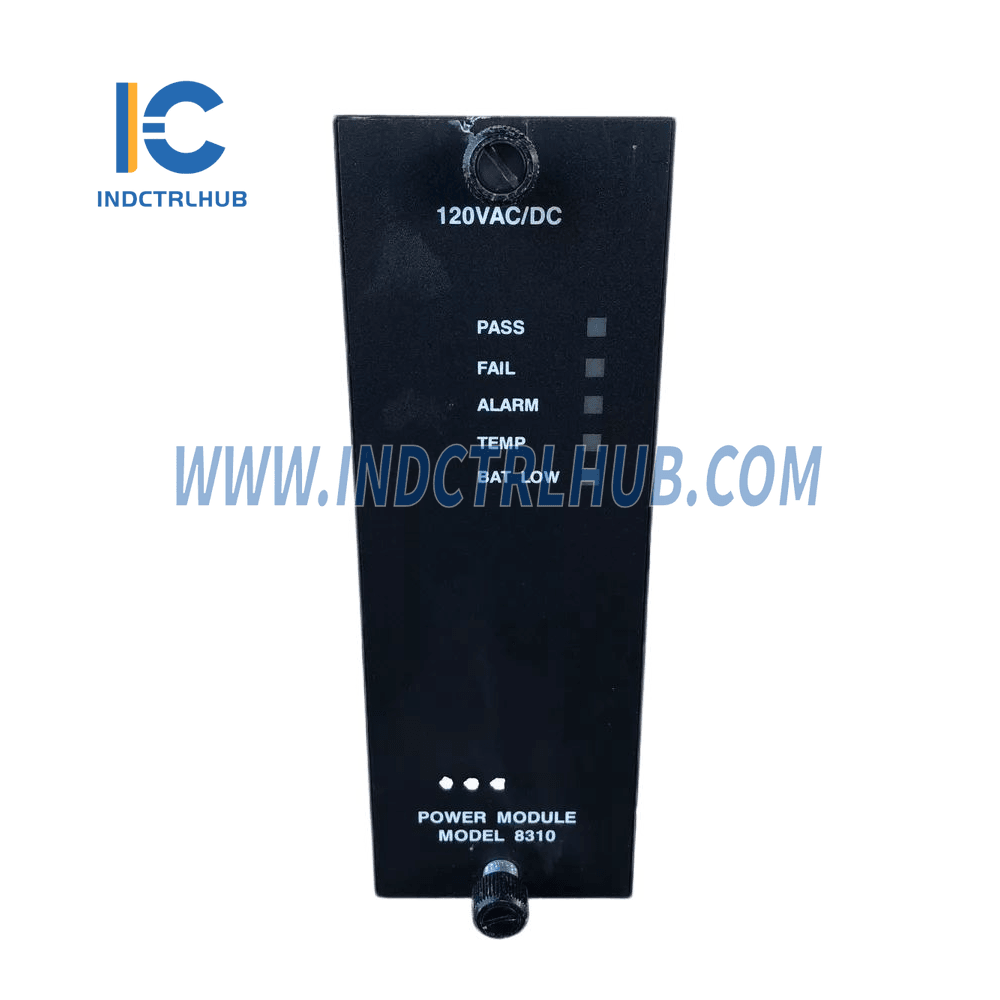

Triconex 8310 Power Module

Triconex 8310 Power Module

  • Manufacturer: Triconex

  • Product No.: 8310

  • Condition:1000 in stock

  • Product Type: Power Module

  • Product Origin: United States

  • Payment: T/T, Western Union

  • Weight: 3300g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Triconex 8310 Power Module Overview

Manufacturer: Triconex
Model/Part Number: 8310
Description: Power Module

The Triconex 8310 Power Module is a critical component in the Tricon safety system, ensuring reliable power conversion and distribution for all Tricon modules. This power module is designed to provide robust performance, capable of operating at full load and rated temperature with a high level of redundancy. Located on the left side of the chassis, the 8310 power module plays an essential role in converting line power to the appropriate DC power for the entire system.

Key Features of Triconex 8310 Power Module

  • Redundant Configuration: Each Tricon chassis is equipped with two power modules, ensuring that one power module is always capable of running the system at full load, even if the other is being serviced or replaced.
  • Online Replaceable: The power modules can be replaced online, without disrupting the system’s operation, ensuring maximum uptime and reliability.
  • Temperature Monitoring: Equipped with an over-temperature sensor that monitors internal temperature and triggers an alarm if the temperature exceeds 181°F (83°C).
  • Integrated Alarm System: Power module alarm contacts detect and alert operators to various system issues, including module failure, configuration conflicts, and power issues.
  • Safety Features: The power module includes safety features such as protective covers for input terminations and alarm contacts to prevent electrical hazards.

Power Module Specifications

Specification Details
Isolation >1000 VAC or 1500 VDC, Input to Output
Input Terminations Protected by safety cover, accepts 12-gauge wires
Over-Temperature Sensor Triggers at 181°F (83°C), typically at 140°F (60°C) ambient
Alarm Contacts Normally open, normally closed, and common; supports 120 VAC @ 1 amp
Input Power Required 240 watts minimum per power module
Output Power 175 watts at 140°F (60°C)
Output Voltage 6.5 VDC, ±1% under all operating conditions
Output Current 27 amps maximum at 140°F (60°C) ambient

Model and Suffix Codes

Model 8310 8311 8312
Chassis Type Main/Expansion/RXM Main/Expansion/RXM Main/Expansion/RXM
Nominal Voltage 120 VAC/VDC 24 VDC 230 VAC
Input VAC 85-140 V @ 47-63 Hz N/A 185-285 V @ 47-63 Hz
Input VDC 95-180 V 22-31 V N/A
Fuse Rating 5 amps, time-delay 15 amps, time-delay 2.5 amps, time-delay
Output Hold Time 20 ms minimum 2.8 ms minimum 20 ms minimum
Diagnostic Indicators PASS, FAULT, ALARM, TEMP, BAT LOW PASS, FAULT, ALARM, TEMP, BAT LOW PASS, FAULT, ALARM, TEMP, BAT LOW

Approximate Weight

  • Power Module: 7.2 lbs. (3.3 kg)

Alarm and Fault Management

The Triconex 8310 Power Module is equipped with a comprehensive alarm and fault management system that provides real-time diagnostics to ensure continuous operation and safety of the system. The system will trigger alarms in cases such as:

  • A missing module in the system
  • Hardware configuration conflicts with the control program’s logical configuration
  • Module failure
  • Main processor detecting a system fault
  • Primary power failure to the power module
  • Low Battery or Over Temperature warnings
