Product Description
Product Overview
|
Category |
Details |
|---|---|
|
Manufacturer |
Triconex (Schneider Electric) |
|
Model/Part Number |

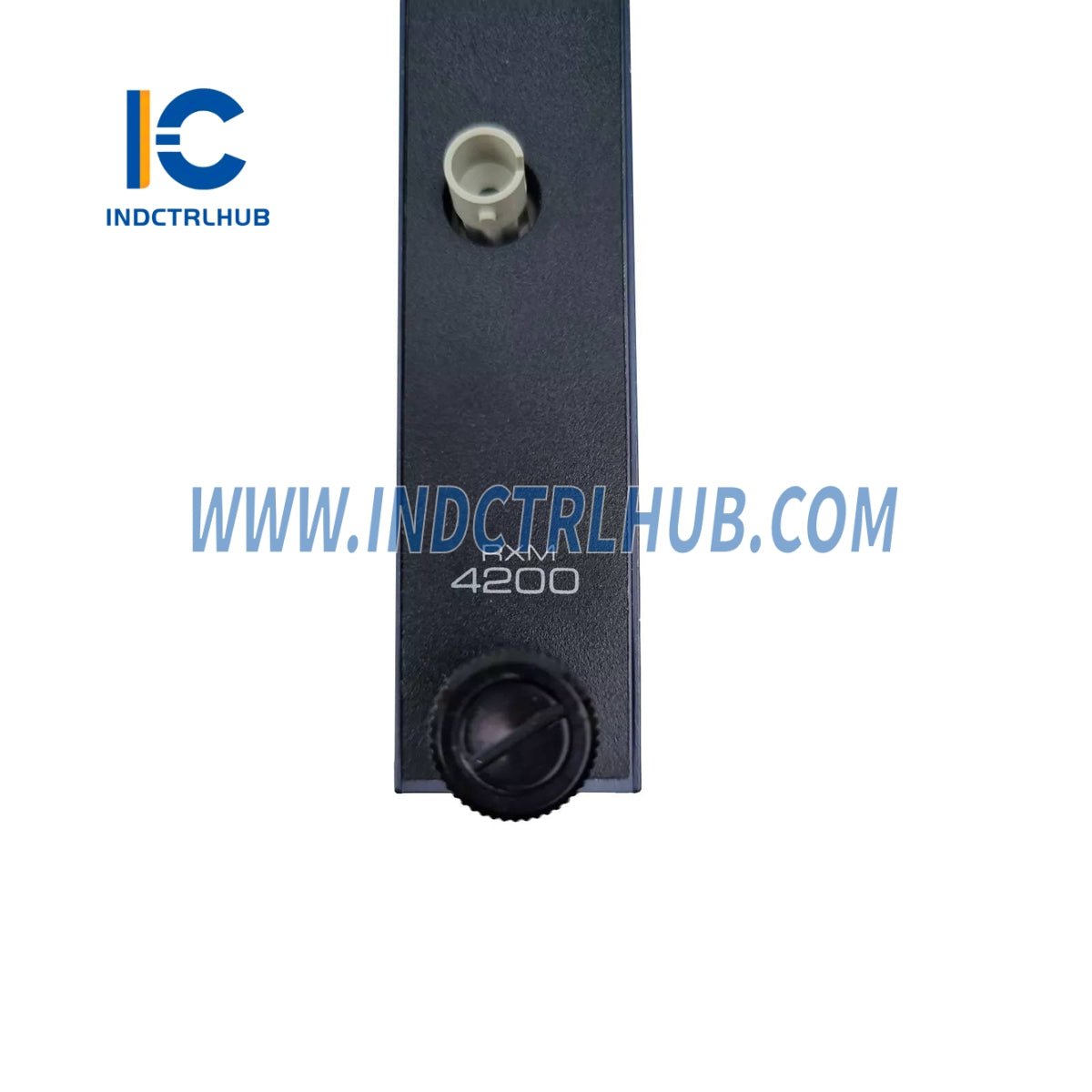

4200 |
|
Description |
Remote Extender Module (RXM) used to extend the Tricon I/O bus over long distances while maintaining isolation and fault tolerance. |

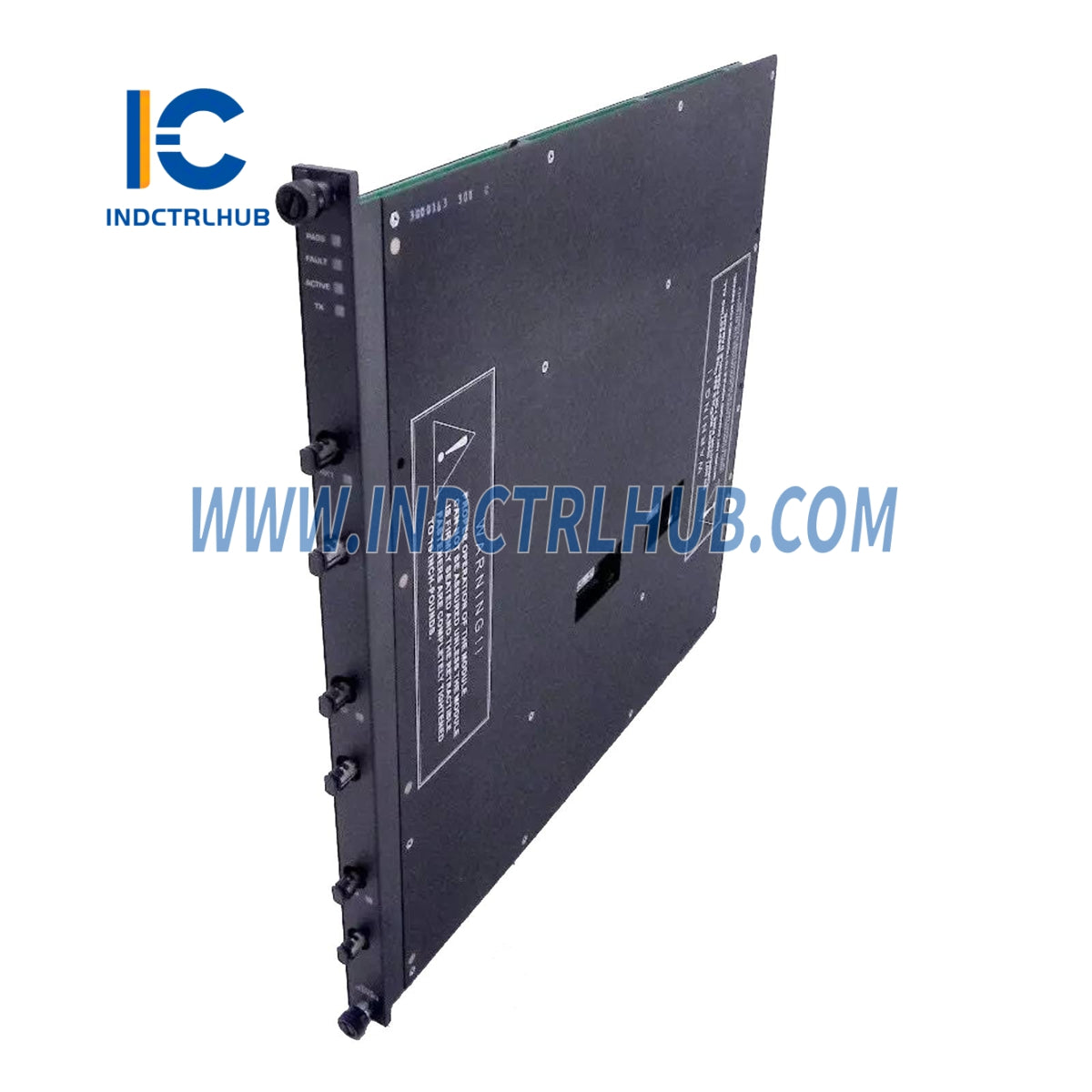

Key Features
-
Supports long-distance I/O module placement
-
Enables Tricon I/O bus extension to remote chassis
-
Provides ground loop isolation
-
Redundant (TMR) configuration with 3 identical modules
-
Supports up to 3 remote locations per primary RXM set
-
Fiber optic communication with ST connectors
-
Multi-mode and single-mode cable variants
-
Full diagnostics for communication integrity and system health

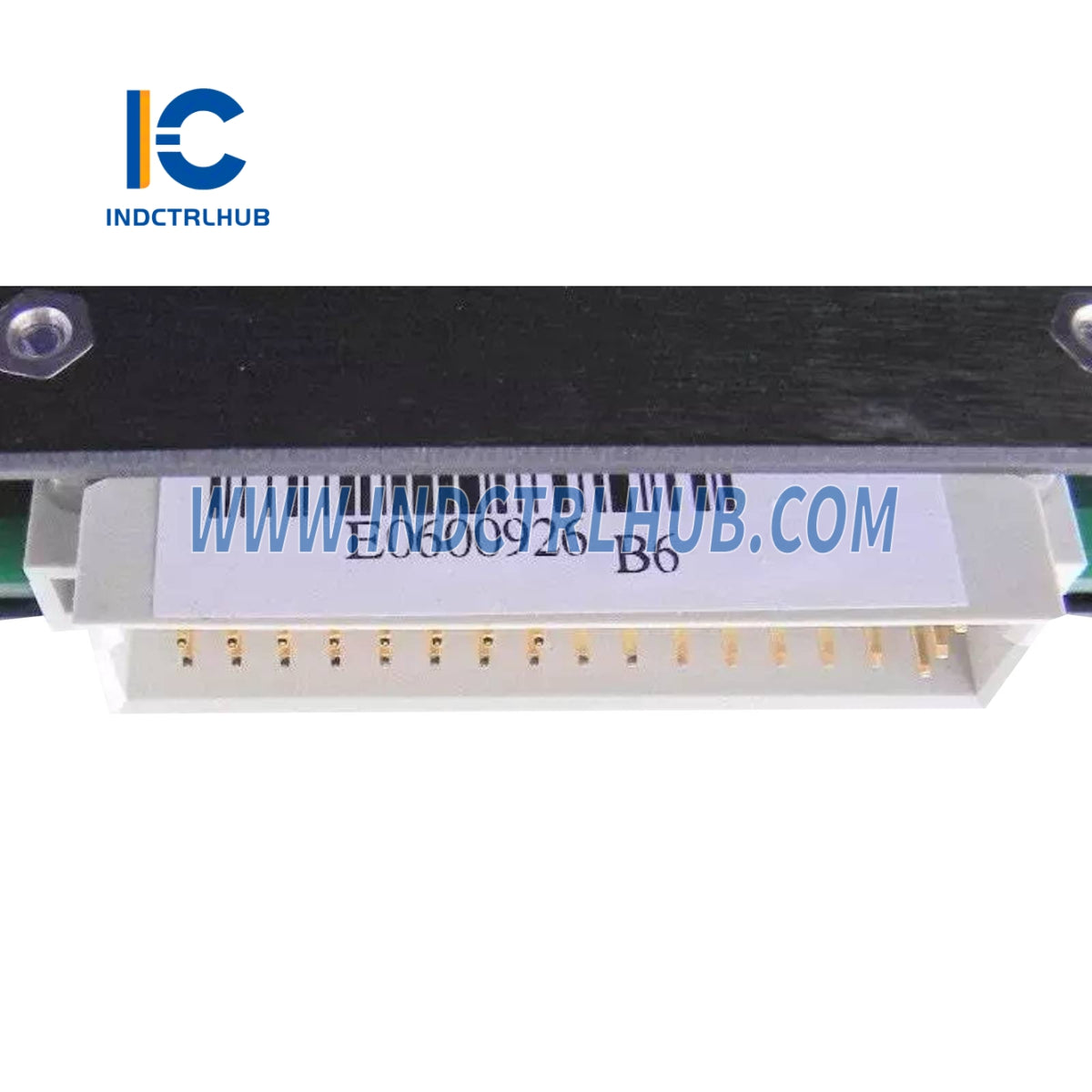

Technical Specifications
|
Specification |
4200-3 / 4201-3 |
4210-3 / 4211-3 |
|---|---|---|
|
RXM Chassis Location |
4200-3: Primary4201-3: Remote |
4210-3: Primary4211-3: Remote |
|
Cable Type |
Multi-mode fiber optic |
Single-mode fiber optic |
|
Cable Length Limit |
1.2 miles (2 kilometers) |
7.5 miles (12 kilometers) |
|
Connectors |
6 per remote site |
6 per remote site |
|
Remote Sites Supported |
Up to 3 |
Up to 3 |
|
Modem Ports |
Fiber Optic with ST connectors |
Fiber Optic with ST connectors |
|

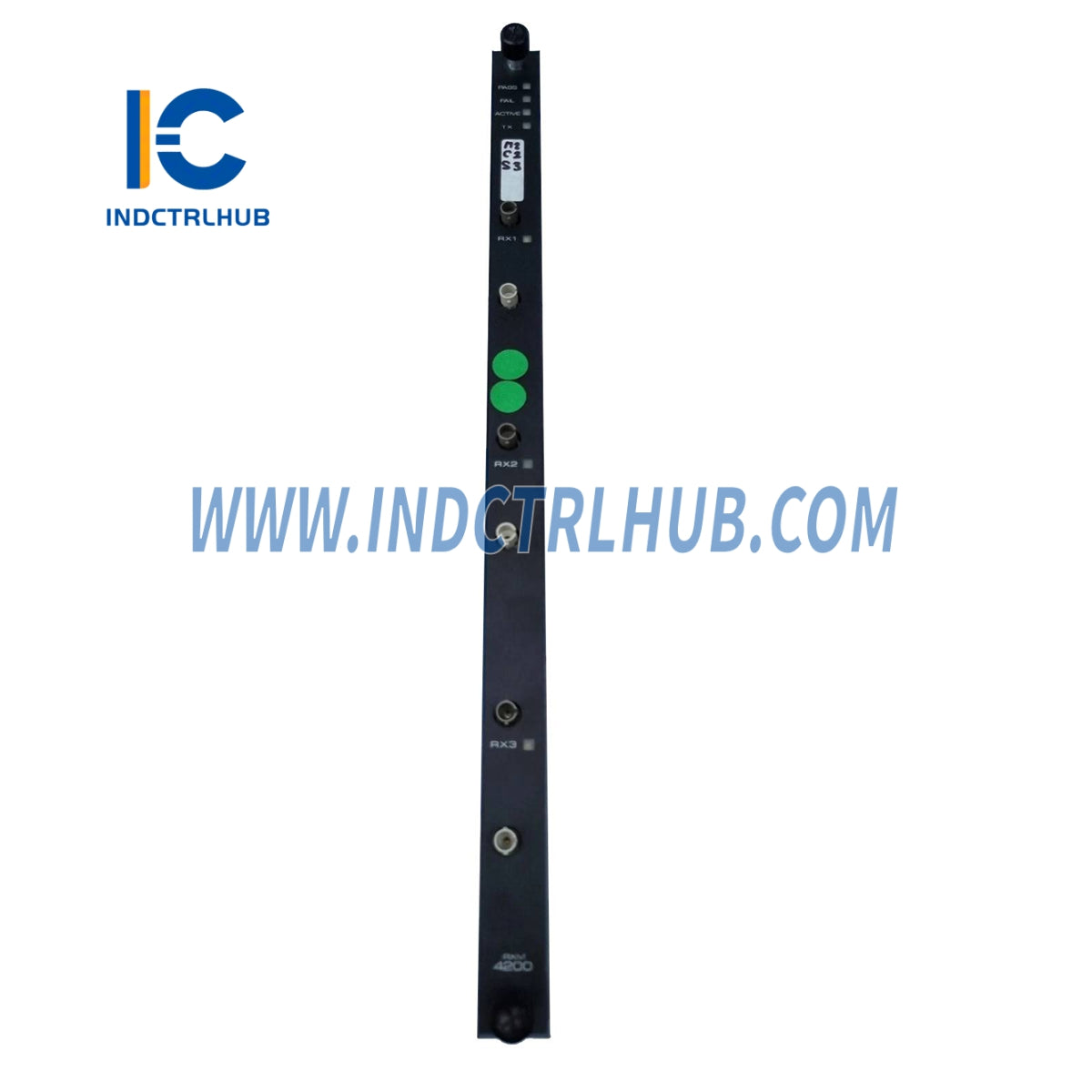

Diagnostic Indicators |
PASS, FAIL, ACTIVE, TX, RX1, RX2, RX3 |
PASS, FAIL, ACTIVE, TX, RX1, RX2, RX3 |
