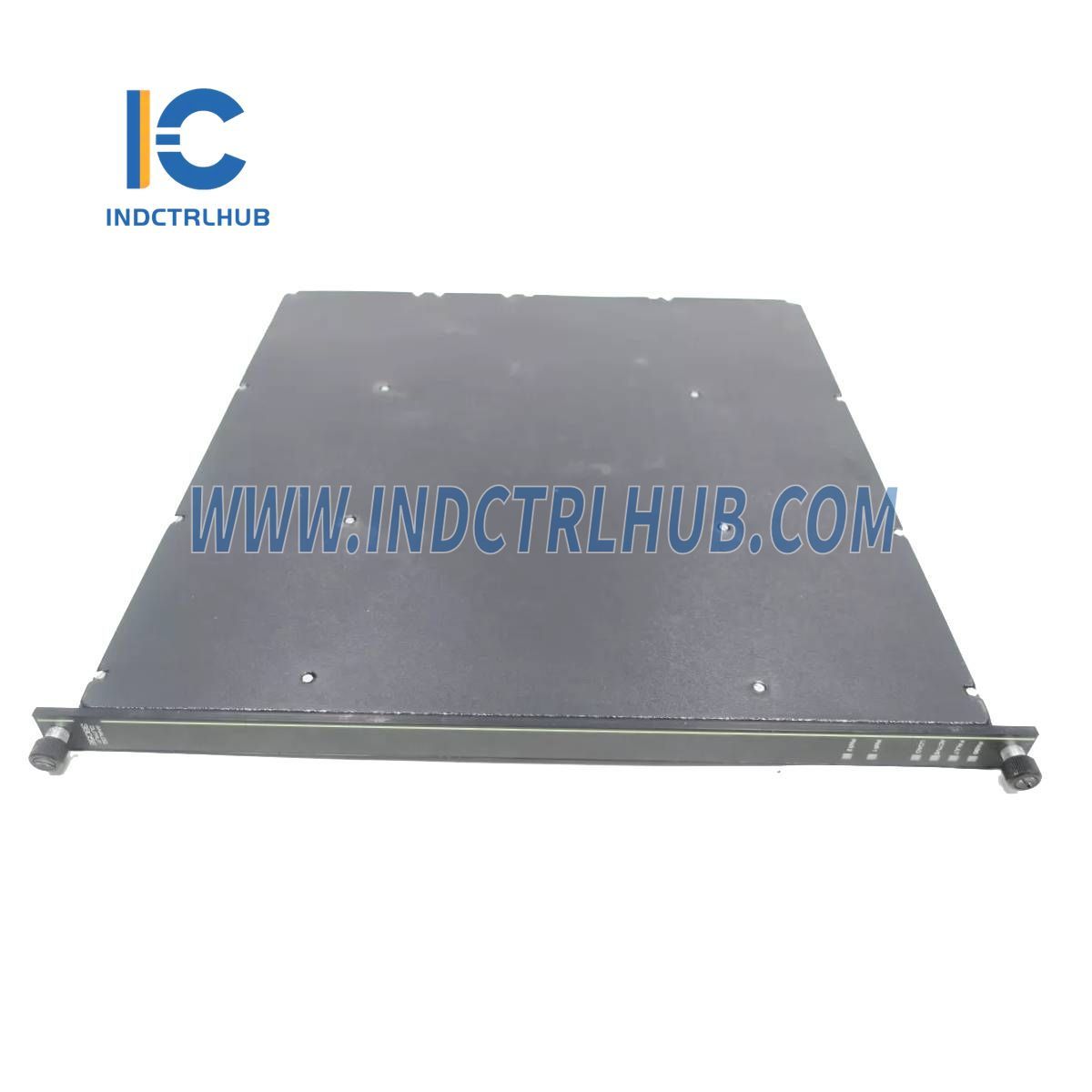

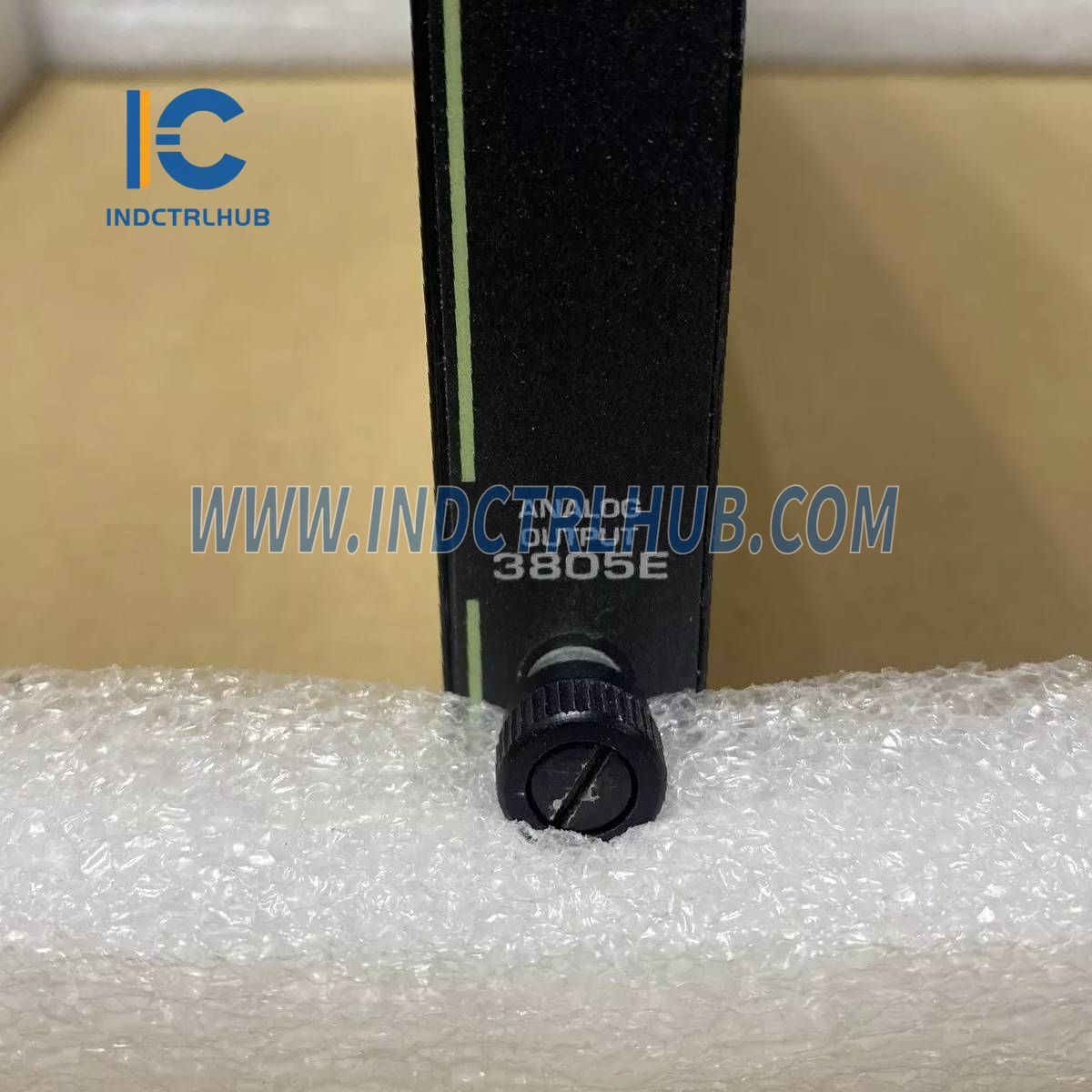

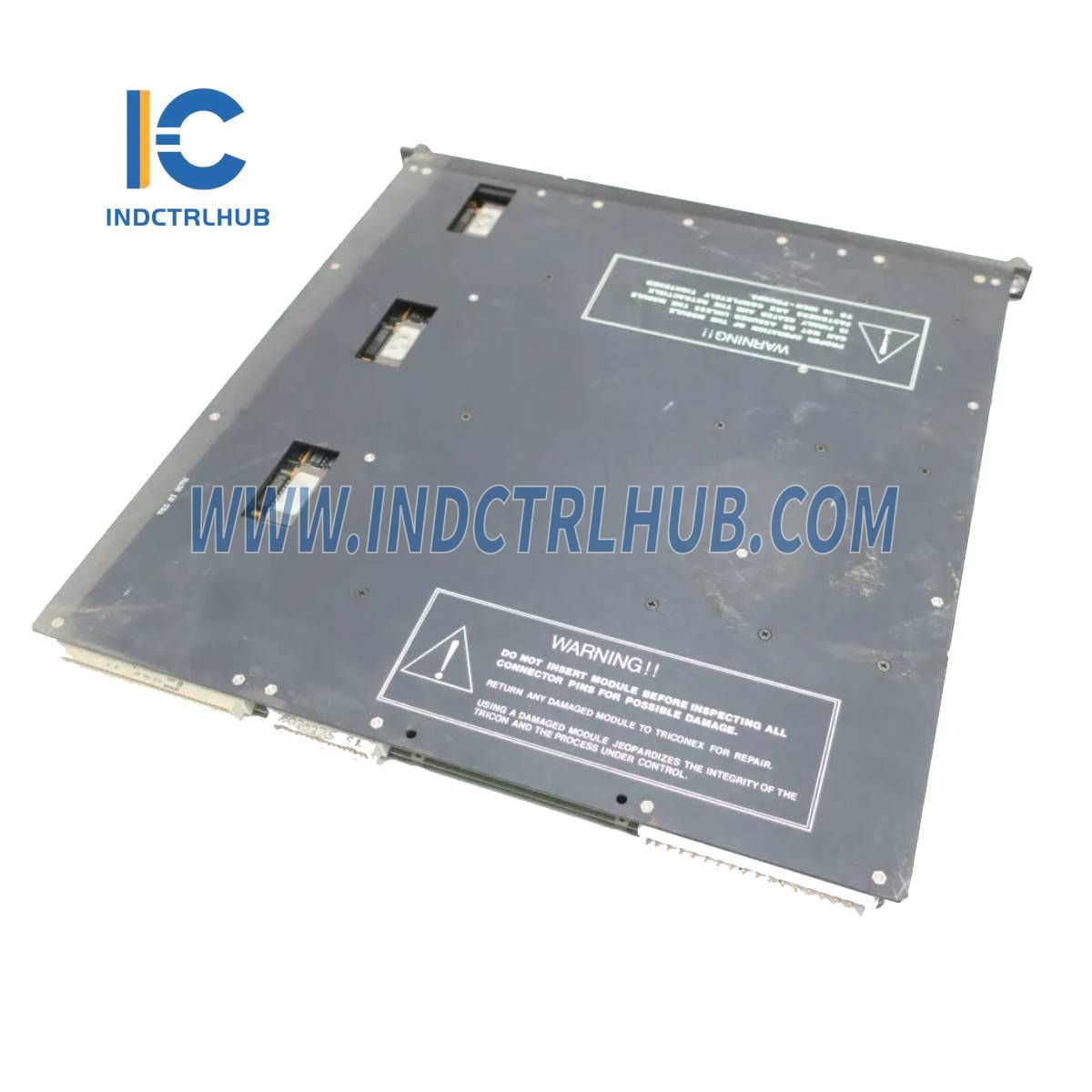

Triconex 3805E Analog Output Module

Triconex 3805E Analog Output Module

  • Manufacturer: Triconex

  • Product No.: 3805E

  • Condition:1000 in stock

  • Product Type: Analog Output Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 800g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Overview

The Triconex 3805E is an Analog Output Module designed for use within the Tricon safety instrumented system (SIS) by Triconex, a brand under Schneider Electric (formerly Invensys). This module provides 8 analog output channels to deliver 4-20 mA signals to field devices such as valves, actuators, and other process control equipment. It supports the Triple Modular Redundant (TMR) architecture, ensuring fault-tolerant operation with self-diagnostic capabilities for safety-critical applications in industries like oil & gas, petrochemical, and power generation.

Technical Specifications

The 3805E has the following specifications based on standard characteristics for this model:

Item Specification
Model/Part Number 3805E
Manufacturer Triconex (Schneider Electric)
Description Analog Output Module, 4-20 mA, 8 Points
Series Tricon SIS
Output Channels 8 analog outputs
Output Current 4-20 mA (with +6% overrange)
Resolution 12 bits
Accuracy <0.25% of full scale range (0-21.2 mA) at 0°C to 60°C
Power Supply 24 VDC (via Tricon chassis backplane)
Operating Temperature 0°C to 60°C (32°F to 140°F)
Weight 0.8 kg

Additional Details

The 3805E includes the following additional information based on its standard use and documentation:

Category Details
Function Delivers 8 analog output signals with TMR voting
Mounting Installs in Tricon chassis (e.g., Model 8110 or 8111)
Compatibility Tricon Main Processors (e.g., 3008, 3009), external termination panels
Features TMR fault tolerance, loopback diagnostics, hot-swappable
Certifications Meets IEC 61508 SIL 3, UL, and CE standards
Part Type New, surplus, or refurbished
