Product Description

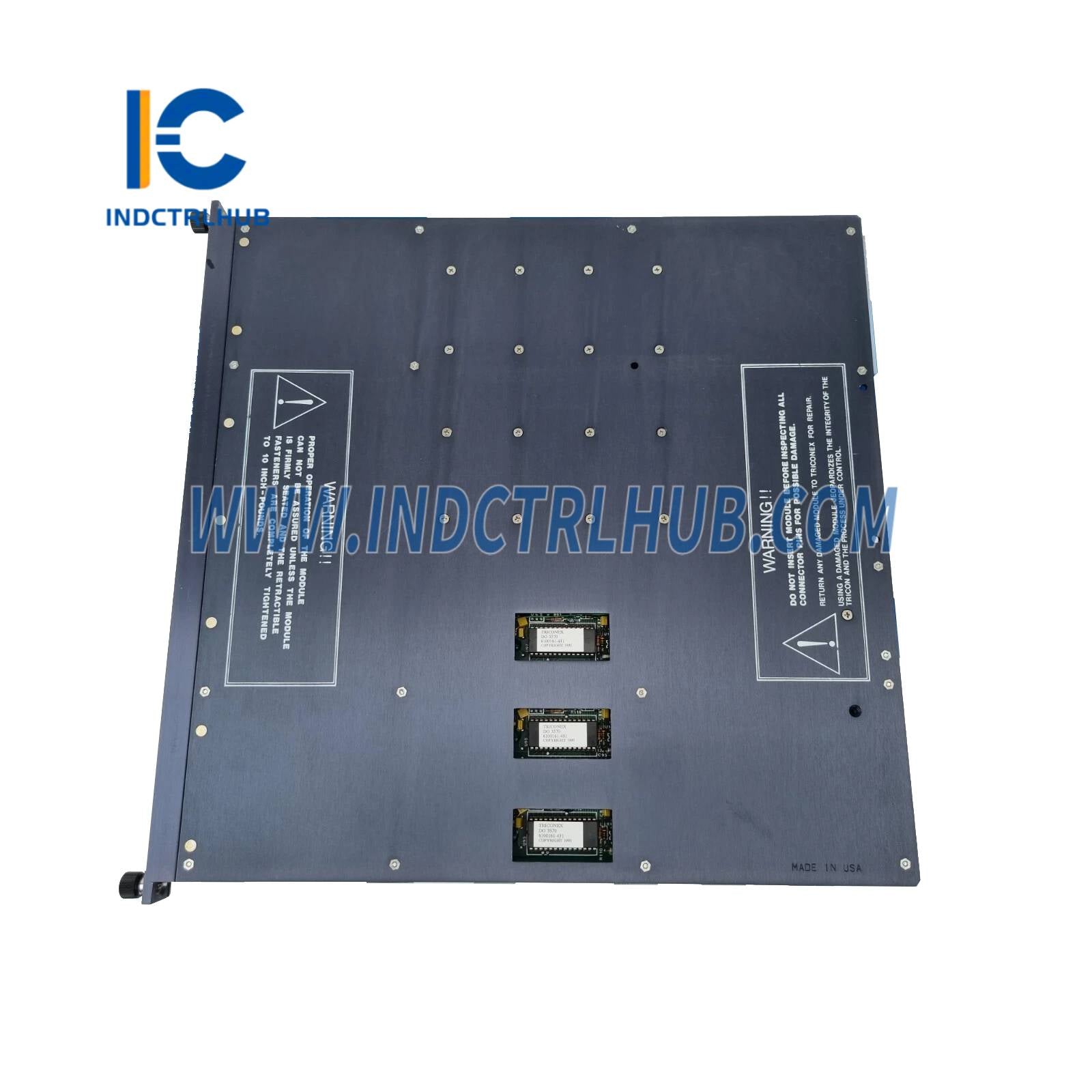

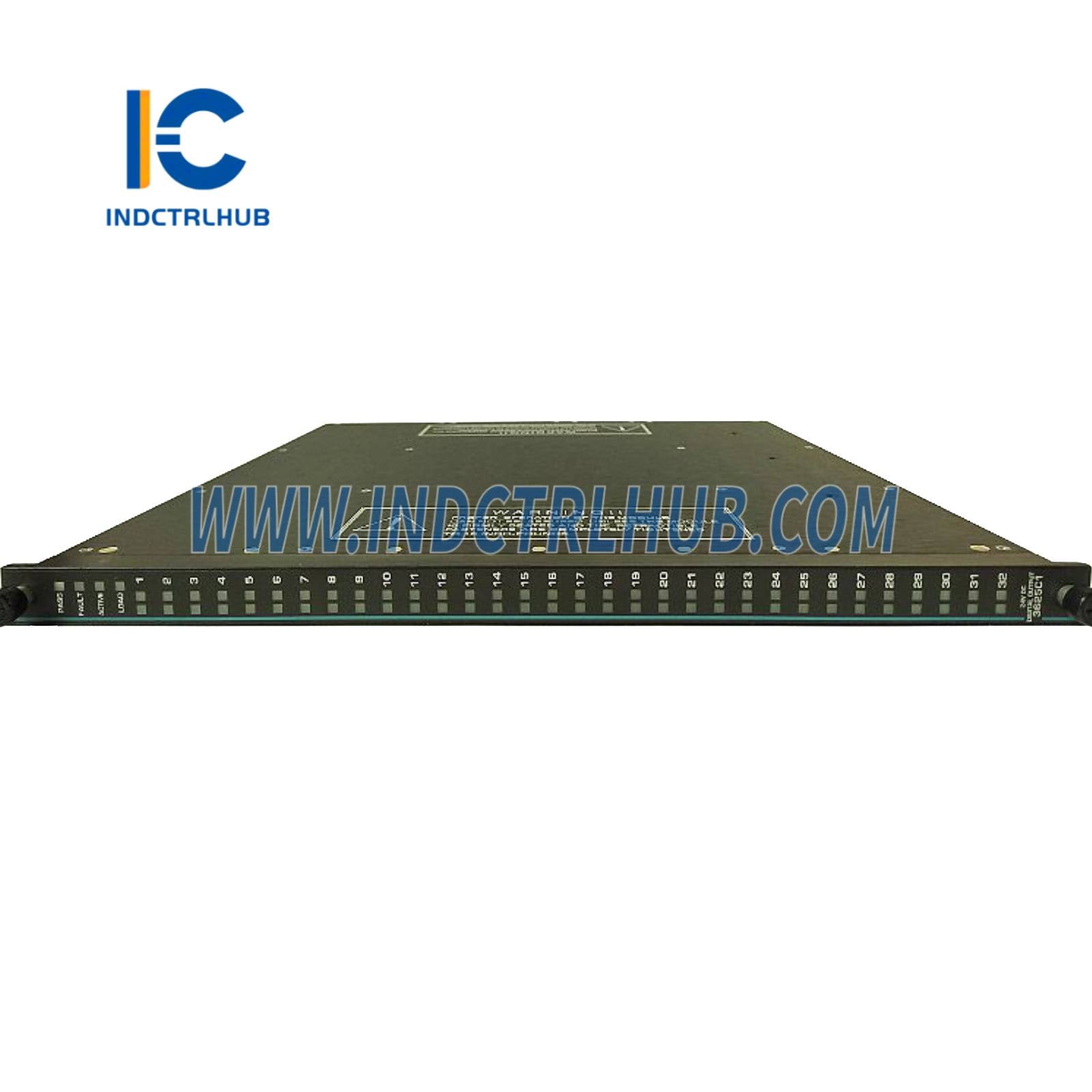

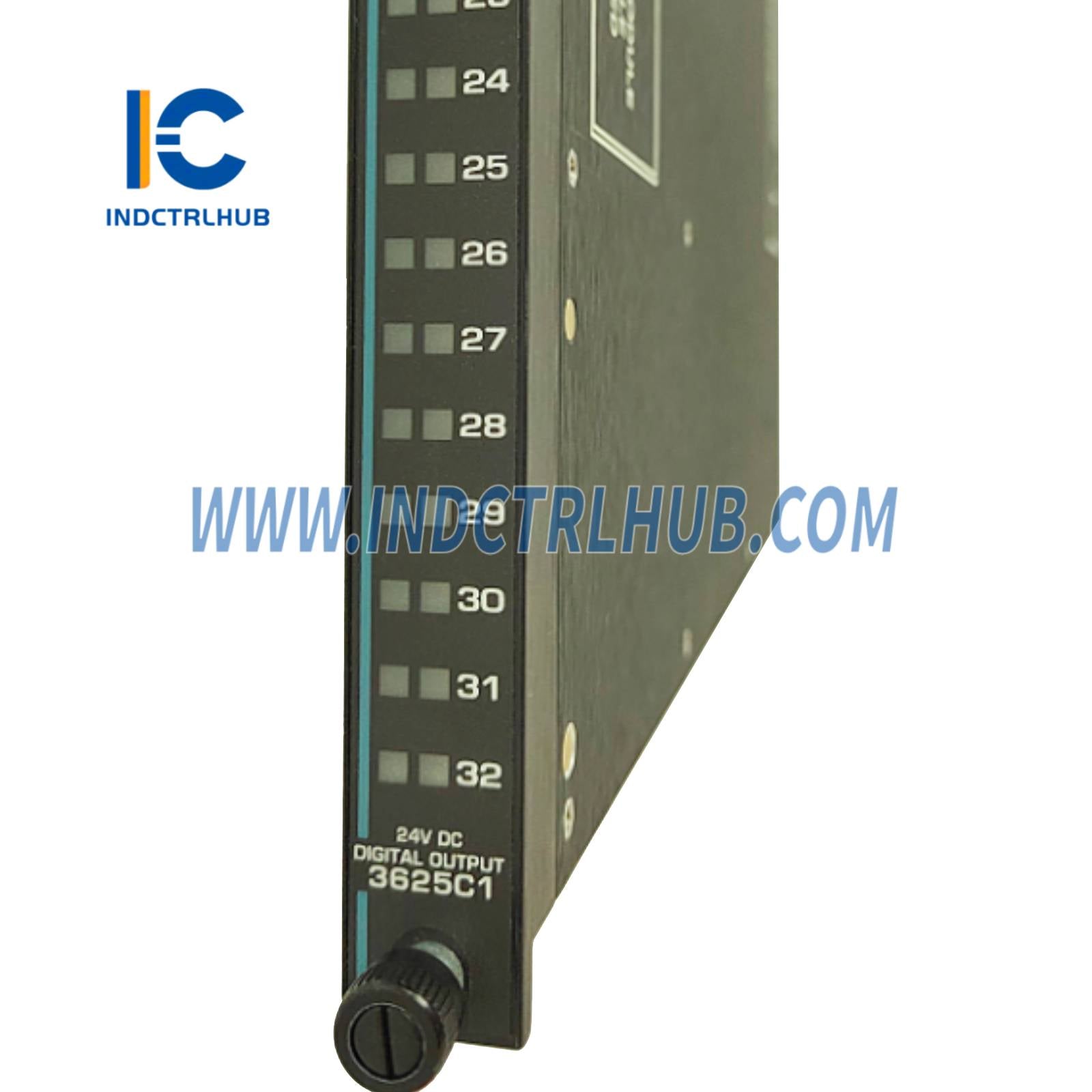

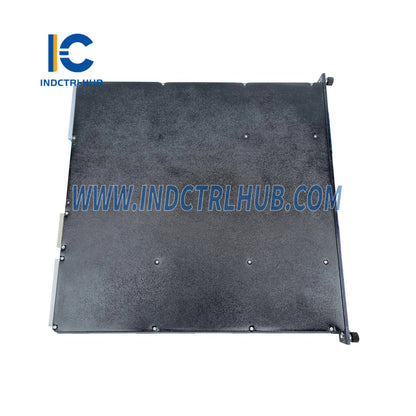

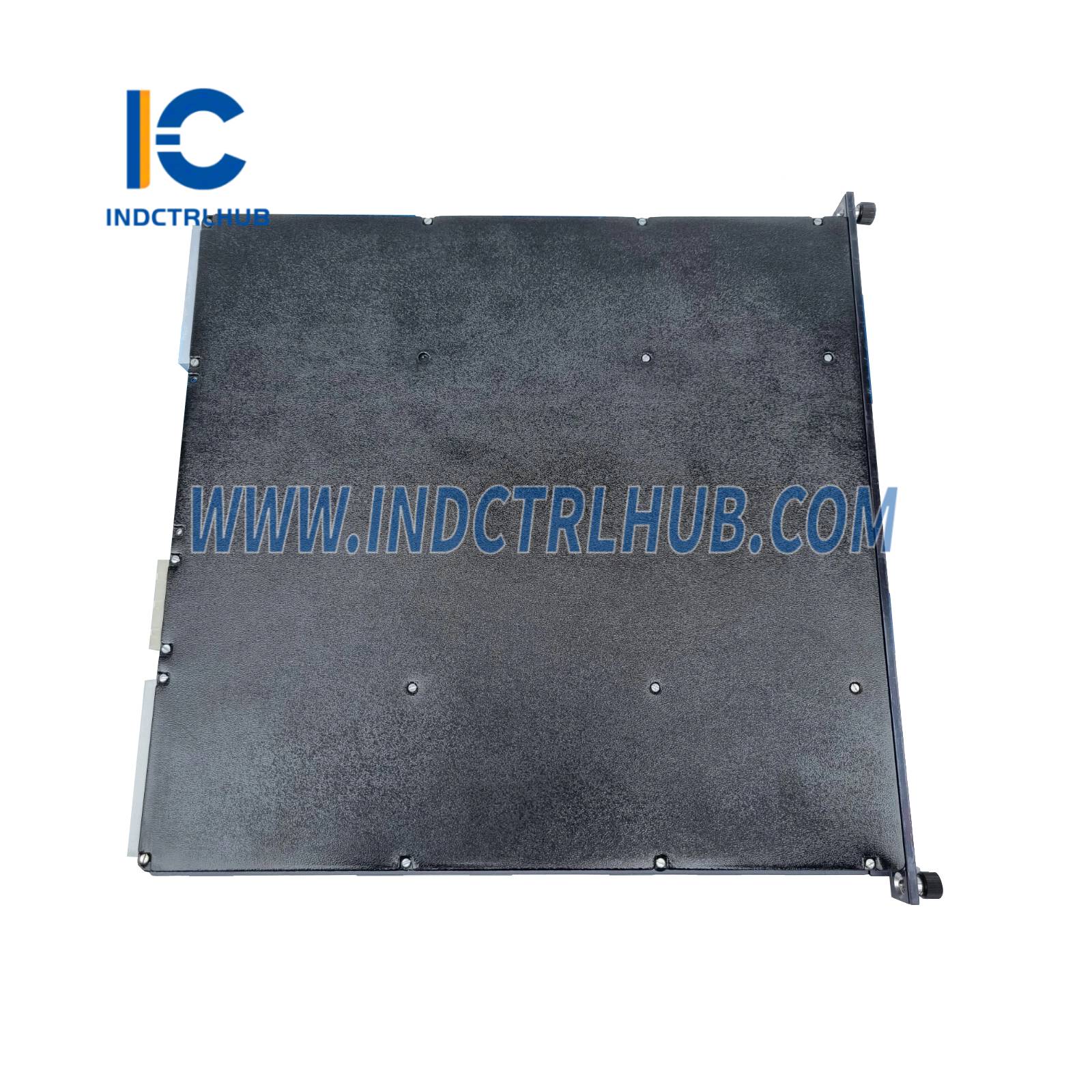

Triconex 3625C1 Digital Output Module
Product Overview
- The Triconex 3625C1 is a Digital Output Module designed for the Triconex Safety Instrumented System (SIS), part of Schneider Electric’s EcoStruxure Tricon platform. It provides supervised and non-supervised digital outputs for safety-critical applications, supporting the Triple Modular Redundant (TMR) architecture to ensure fault tolerance and high reliability. Used in industries such as oil and gas, chemical, and power generation, the 3625C1 meets Safety Integrity Level 3 (SIL3) requirements for applications like emergency shutdown (ESD), fire and gas systems, and process control. The “C1” designation typically indicates a specific revision or configuration of the 3625 series.
Technical Specifications
- The 3625C1 has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|
| Model/Part Number | 3625C1 |
| Manufacturer | Triconex (Schneider Electric) |
| Description | Digital Output Module, 24V DC, Supervised/Non-Supervised |
| Series | Tricon Safety System |
| Output Channels | 32 supervised or non-supervised outputs |
| Output Type | 24V DC |
| Voltage Range | 18-30V DC |
| Current Rating | 0.1 A per channel, 3.2 A total |
| Safety Integrity Level | SIL3 (TÜV certified) |
| Power Consumption | Approx. 10 W |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 5% to 95% non-condensing |
| Weight | Approx. 0.8 kg |
Additional Details
- The 3625C1 includes the following additional information based on its standard use and documentation:
- Function: Sends digital signals to control external devices like valves, pumps, and alarms in safety-critical systems. Supports both supervised (with line monitoring for open/short circuit detection) and non-supervised outputs, ensuring flexibility for applications such as ESD, fire and gas detection, and process control.
- Mounting: Installs in Tricon chassis (e.g., 8110, 8400) slots, interfacing with the system backplane; requires an external termination panel for field connections.
- Compatibility: Compatible with Tricon v9.6 and later systems; integrates with TriStation 1131 software for configuration and diagnostics. Works with other Tricon modules like 3008, 3503E, and 4119A.
- Configuration: Configurable via TriStation 1131 software; supports hot-swappable modules for maintenance without process interruption. Features fault-tolerant design to maintain system integrity during hardware failures.
- Certifications: TÜV Rheinland certified for SIL3 (IEC 61508); meets UL, CE, and Factory Mutual (FM) standards for Class I, Division 2 hazardous locations; complies with IEC 61131 environmental and EMC requirements.
