Product Description
Product Overview

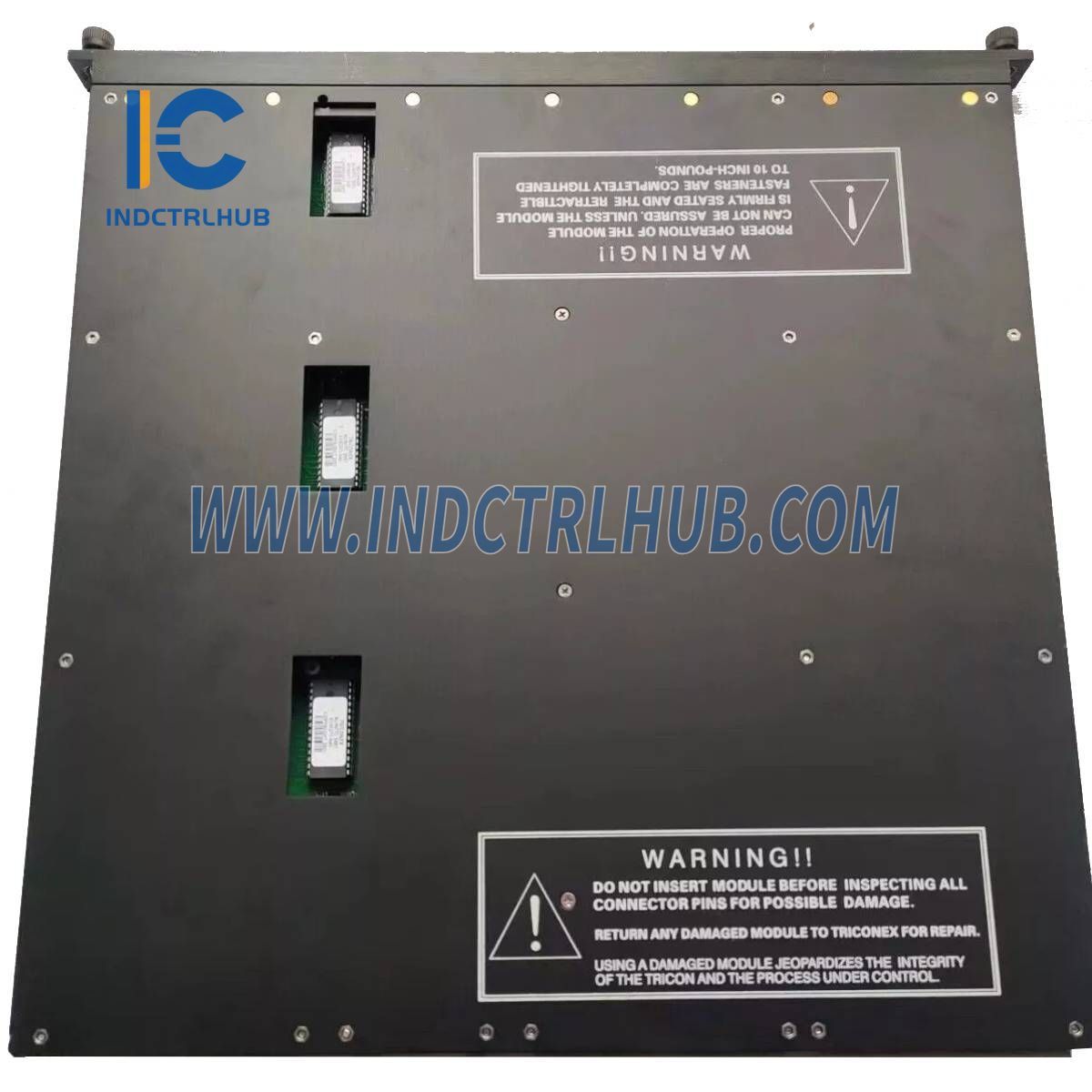

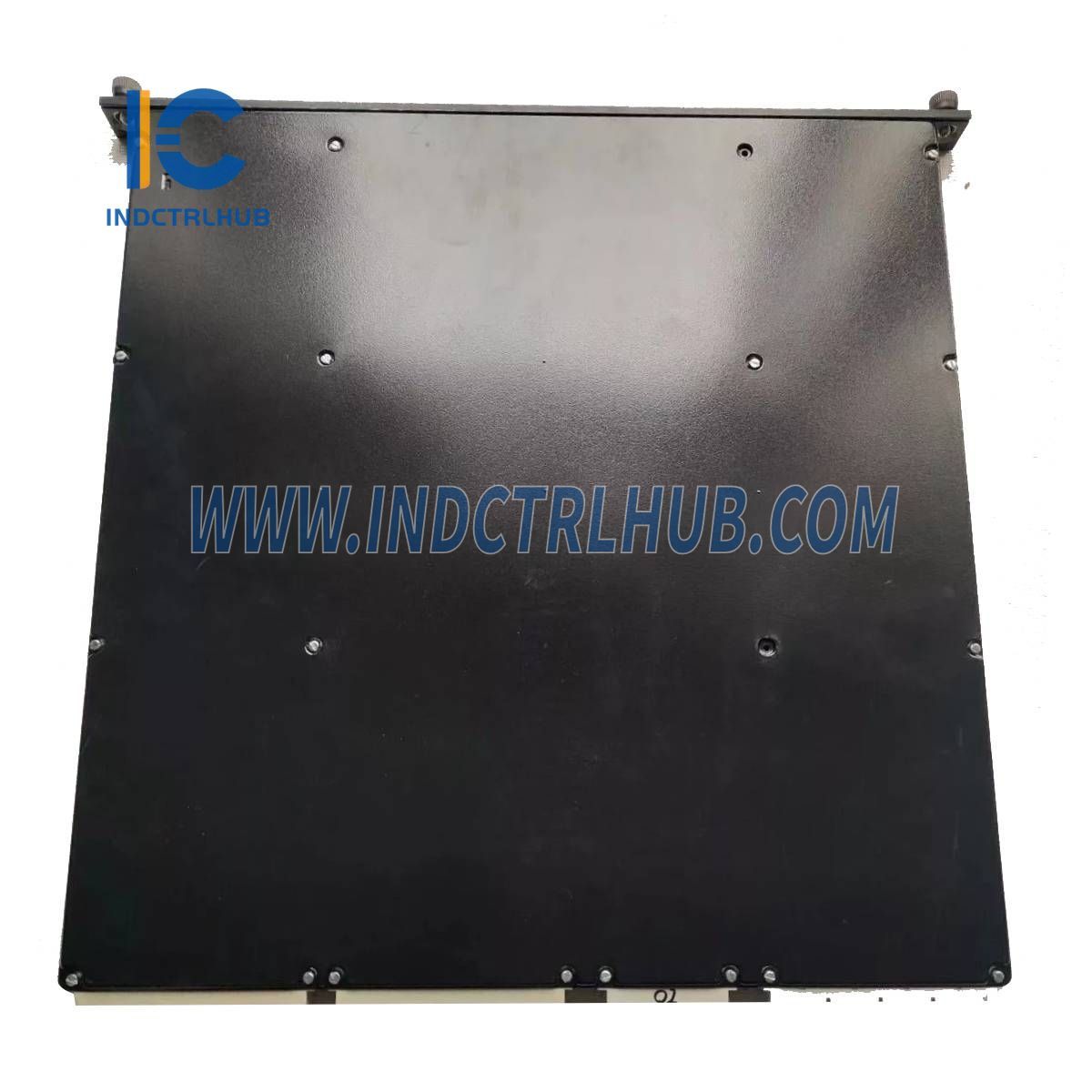

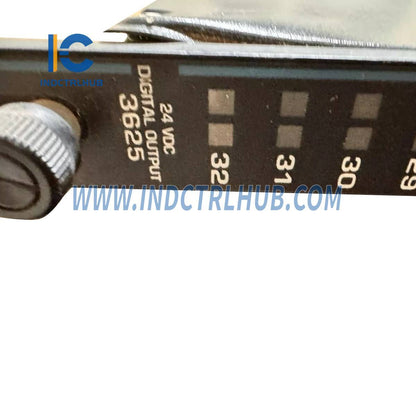

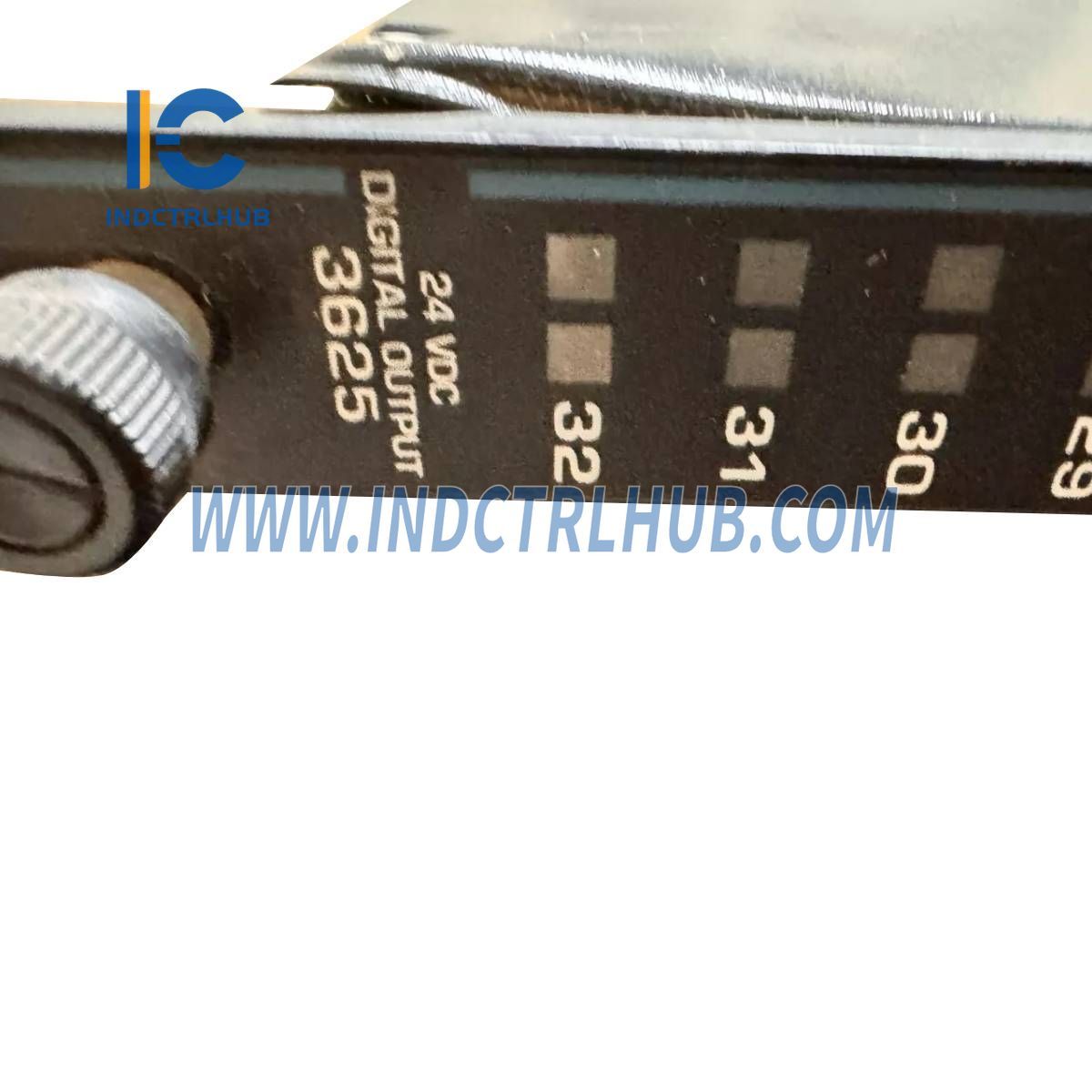

The Triconex 3625 is a Digital Output Module designed for use within the Tricon safety instrumented system (SIS) by Triconex, a brand under Schneider Electric (formerly Invensys). This module provides 32 supervised digital output channels to control field devices such as solenoids, relays, and actuators. It supports the Triple Modular Redundant (TMR) architecture, ensuring fault-tolerant operation with comprehensive diagnostics for safety-critical applications in industries like oil & gas, petrochemical, and power generation.
Technical Specifications
The 3625 has the following specifications based on standard characteristics for this model:
| Item | Specification |
|---|---|
| Model/Part Number | 3625 |
| Manufacturer | Triconex (Schneider Electric) |
| Description | Digital Output Module, 24 VDC, 32 Points, Supervised |
| Series | Tricon SIS |
| Output Channels | 32 digital outputs |
| Output Voltage | 24 VDC nominal |
| Voltage Range | 16-32 VDC |
| Current Rating | 1.5 A per point, 6 A surge (10 ms) |
| Power Supply | 24 VDC (via Tricon chassis backplane) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | 1.2 kg |
Additional Details
The 3625 includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Controls 32 digital output devices with supervision |
| Mounting | Installs in Tricon chassis (e.g., Model 8110 or 8111) |
| Compatibility | Tricon Main Processors (e.g., 3008), external termination panels (e.g., 4000093-310) |
| Features | TMR fault tolerance, loop-powered diagnostics, hot-swappable |
| Certifications | Meets IEC 61508 SIL 3, UL, and CE standards |
| Part Type | New, surplus, or refurbished |
