Product Description
General Information

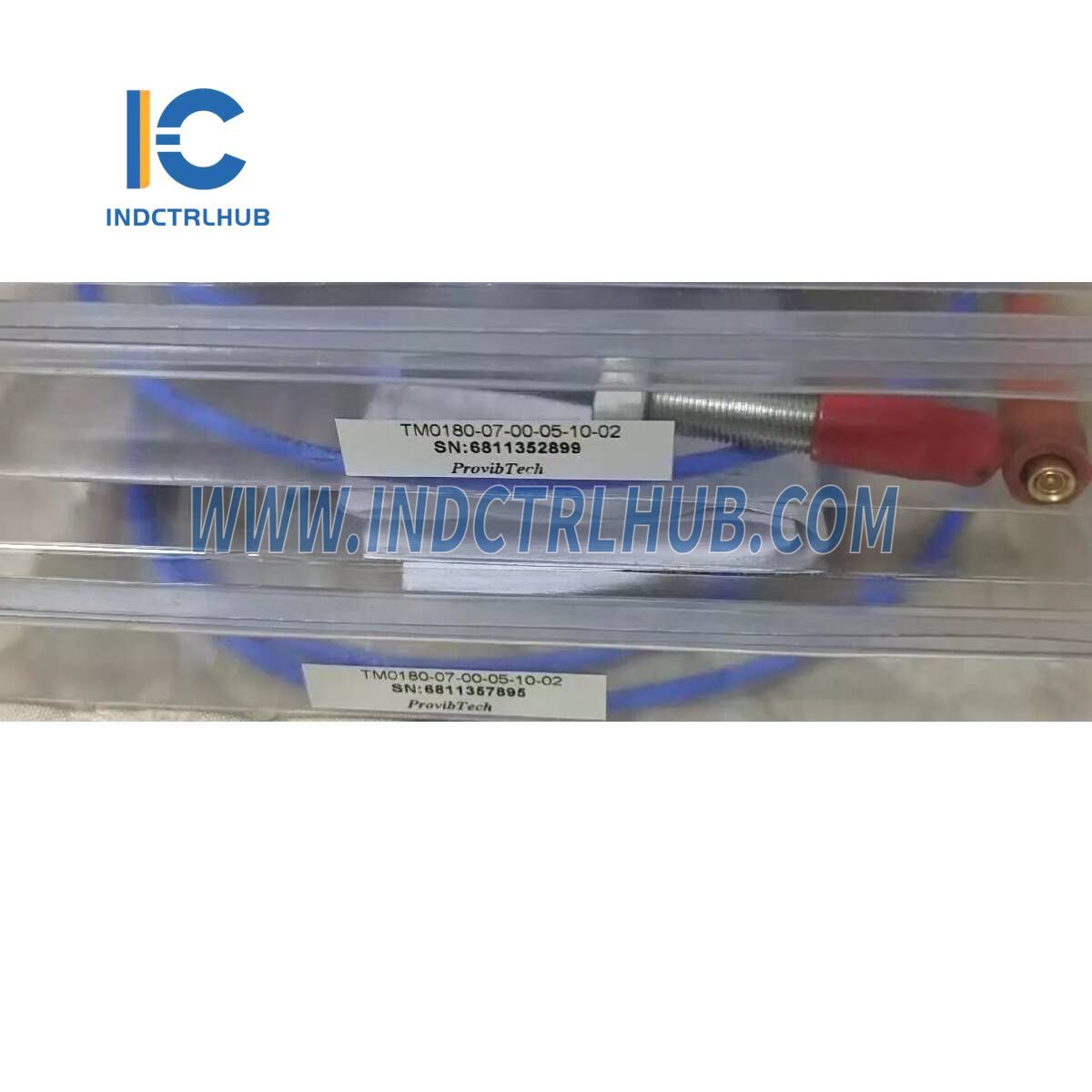

- Manufacturer: ABB
- Model/Part Number: TM0180-07-00-05-10-02
- Type: Standard 8mm Vibration Proximity Probe
Specifications
| Attribute | Value |
|---|---|
| Probe Diameter | 8 mm |
| Unthreaded Length | 50 mm |
| Case Length | 100 mm |
| Total Length | 1.0 m |
| Connector | Yes |
| Weight | 0.45 kg |
| Measurement Range | 0-2.0 mm (80 mil) peak-to-peak |
| Linearity | ±1% |
| Sensitivity | 8.0 mV/µm (200 mV/mil) nominal |
| Frequency Response | 0-10 kHz |
| Output Signal | 4-20 mA |
| Power Supply | 12-24 V DC |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +100°C |
| Humidity | 90% non-condensing |
