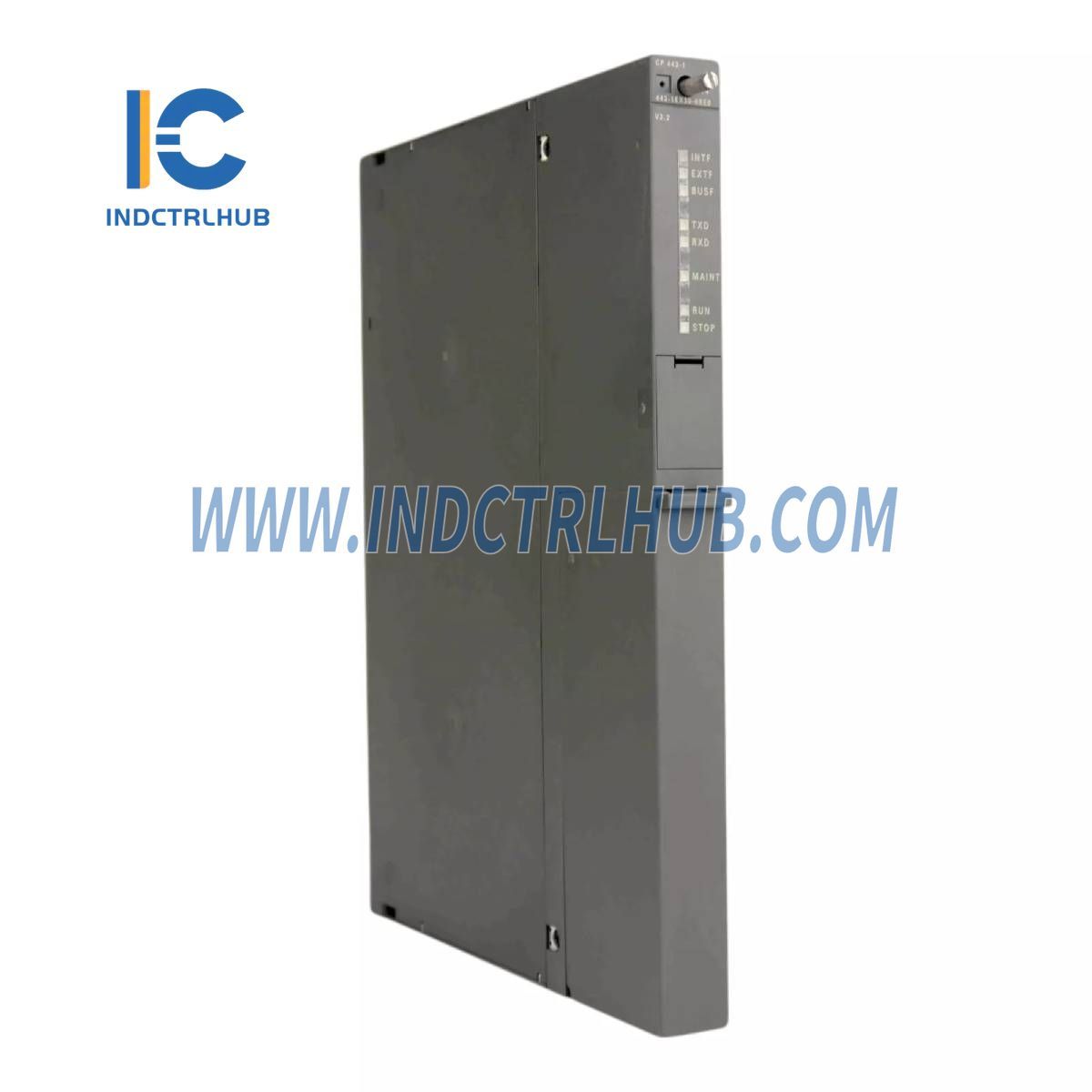

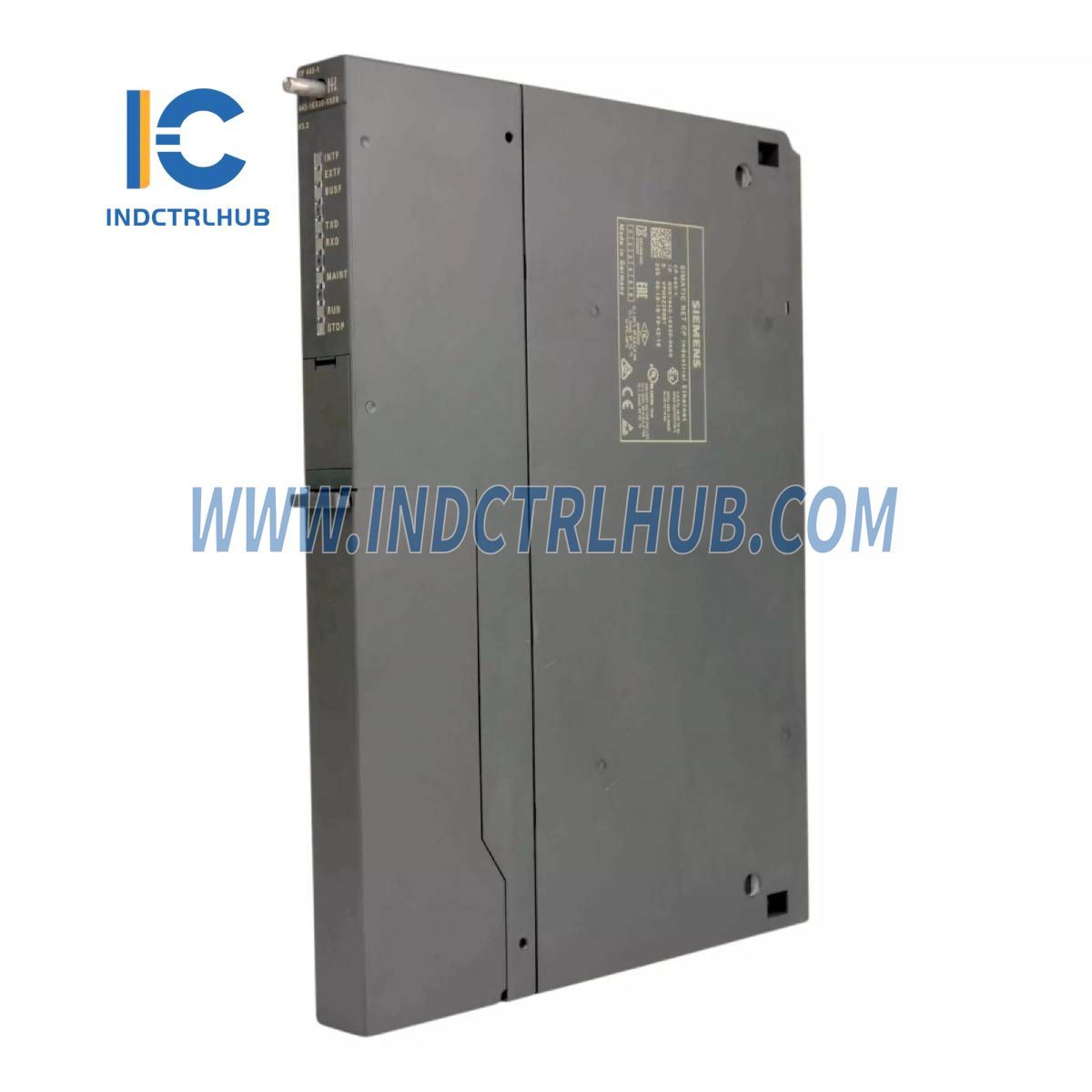

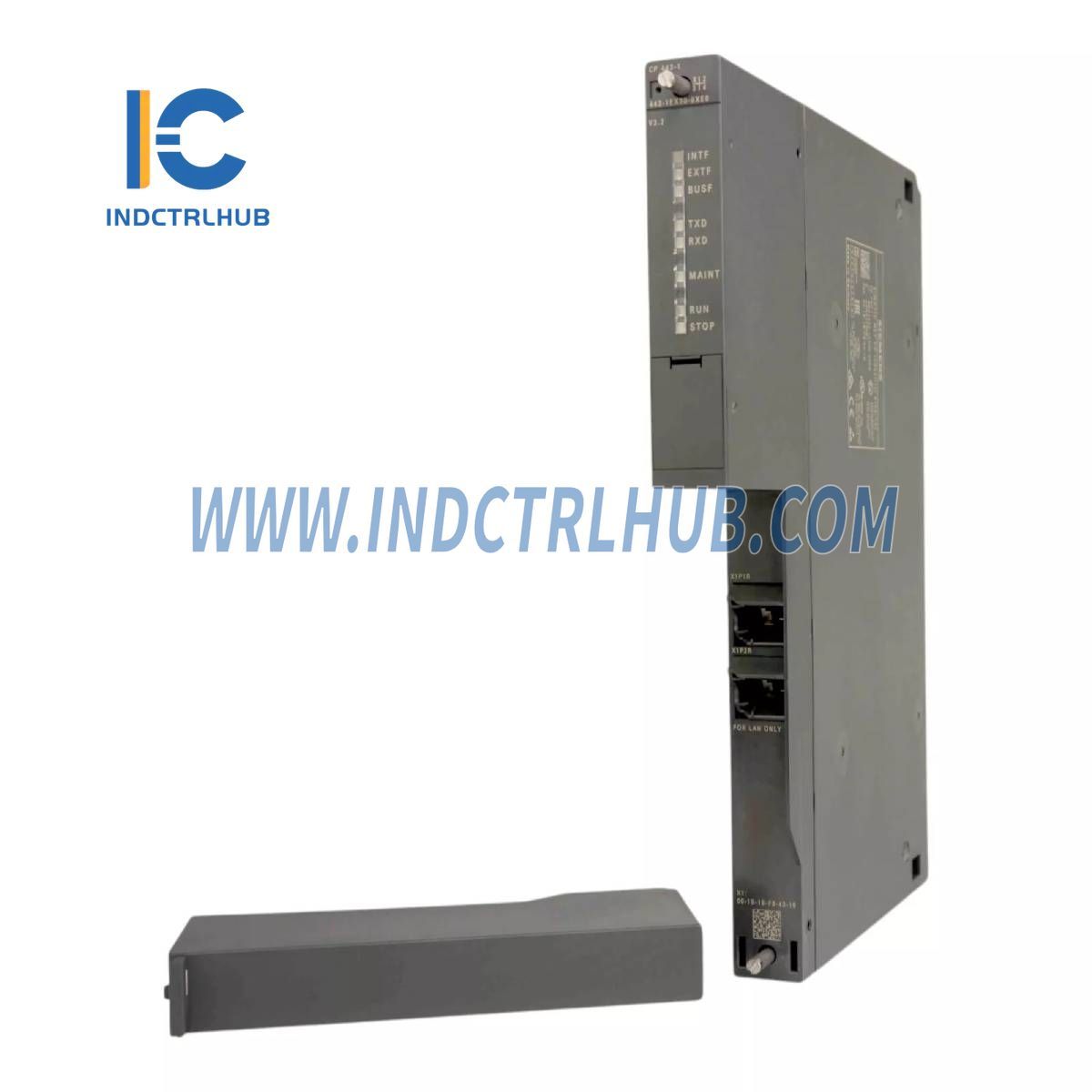

Siemens 6GK7443-1EX30-0XE0 Communications processor

Siemens 6GK7443-1EX30-0XE0 Communications processor

  • Manufacturer: Siemens

  • Product No.: 6GK7443-1EX30-0XE0

  • Condition:1000 in stock

  • Product Type: Communications processor

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 700g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

Manufacturer: SIEMENS
Model/Part Number: 6GK7443-1EX30-0XE0
Description: Communications processor

Transfer Rate:

  • At the first interface: 10 to 100 Mbit/s

Interfaces:

  • Number of interfaces according to Industrial Ethernet: 2

  • Number of electrical connections at the first interface according to Industrial Ethernet: 2

Type of Electrical Connection:

  • At the first interface according to Industrial Ethernet: RJ45 port

Design of the Removable Storage:

  • C-PLUG: No

Supply Voltage, Current Consumption, Power Loss:

  • Type of supply voltage: DC

  • Supply voltage 1 from backplane bus: 5 V

  • Relative symmetrical tolerance at DC 5 V: 5%

  • Typical consumed current from backplane bus at DC 5 V: 1.4 A

  • Power loss: 7.25 W

Ambient Conditions:

Feature Value
Ambient temperature during operation 0 to 60 °C
Ambient temperature during storage -40 to +70 °C
Ambient temperature during transport -40 to +70 °C
Relative humidity at 25 °C without condensation during operation (maximum) 95 %
Protection class IP IP20

Design, Dimensions and Weights:

Feature Value
Module format Compact module S7-400 single width
Width 25 mm
Height 290 mm
Depth 210 mm
Net weight 0.7 kg



View full details

Product Description

Product Details

Manufacturer: SIEMENS
Model/Part Number: 6GK7443-1EX30-0XE0
Description: Communications processor

Transfer Rate:

  • At the first interface: 10 to 100 Mbit/s

Interfaces:

  • Number of interfaces according to Industrial Ethernet: 2

  • Number of electrical connections at the first interface according to Industrial Ethernet: 2

Type of Electrical Connection:

  • At the first interface according to Industrial Ethernet: RJ45 port

Design of the Removable Storage:

  • C-PLUG: No

Supply Voltage, Current Consumption, Power Loss:

  • Type of supply voltage: DC

  • Supply voltage 1 from backplane bus: 5 V

  • Relative symmetrical tolerance at DC 5 V: 5%

  • Typical consumed current from backplane bus at DC 5 V: 1.4 A

  • Power loss: 7.25 W

Ambient Conditions:

Feature Value
Ambient temperature during operation 0 to 60 °C
Ambient temperature during storage -40 to +70 °C
Ambient temperature during transport -40 to +70 °C
Relative humidity at 25 °C without condensation during operation (maximum) 95 %
Protection class IP IP20

Design, Dimensions and Weights:

Feature Value
Module format Compact module S7-400 single width
Width 25 mm
Height 290 mm
Depth 210 mm
Net weight 0.7 kg
