Product Description
Product Details
Manufacturer: SIEMENS
Model/Part Number: 6GK7443-1EX11-0XE0

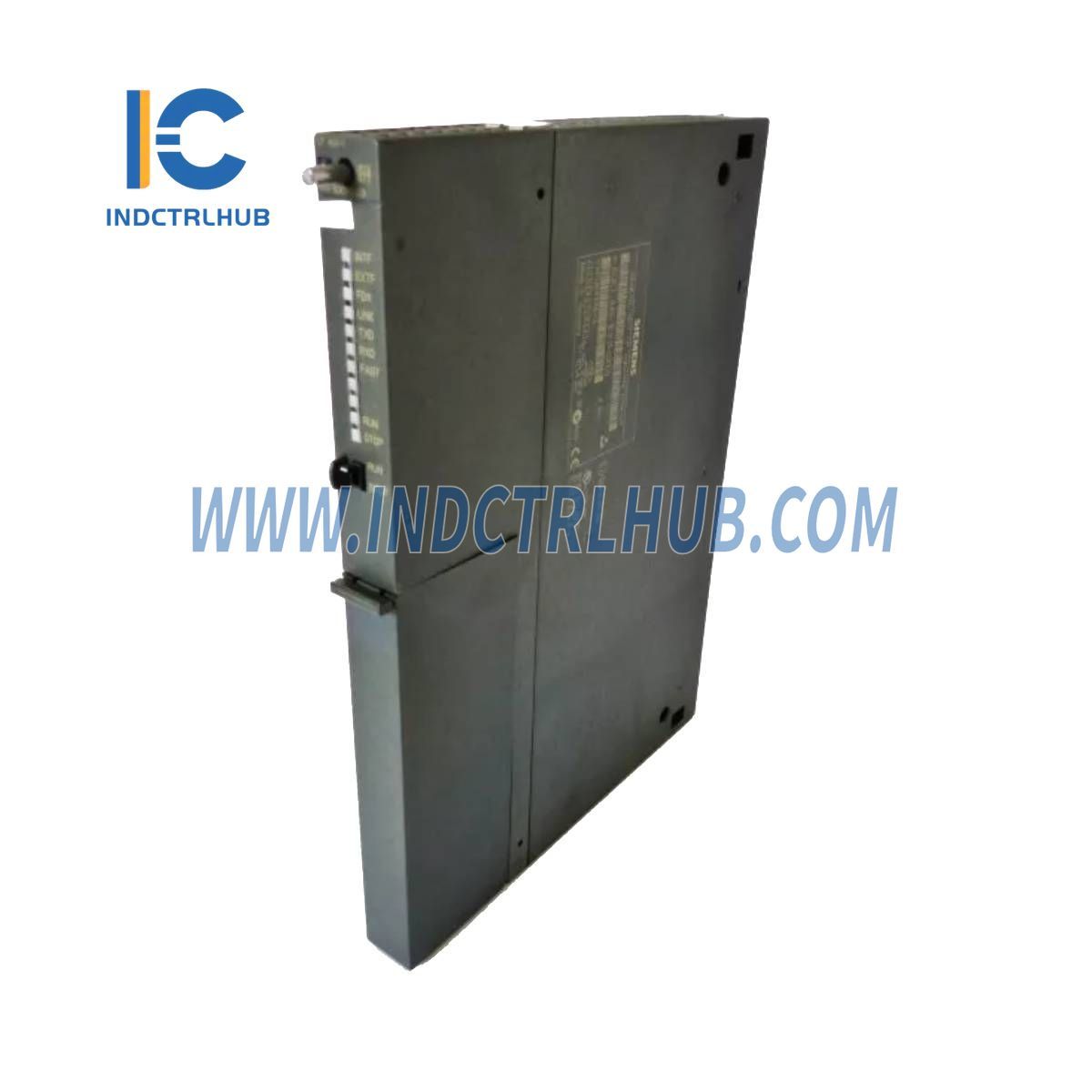

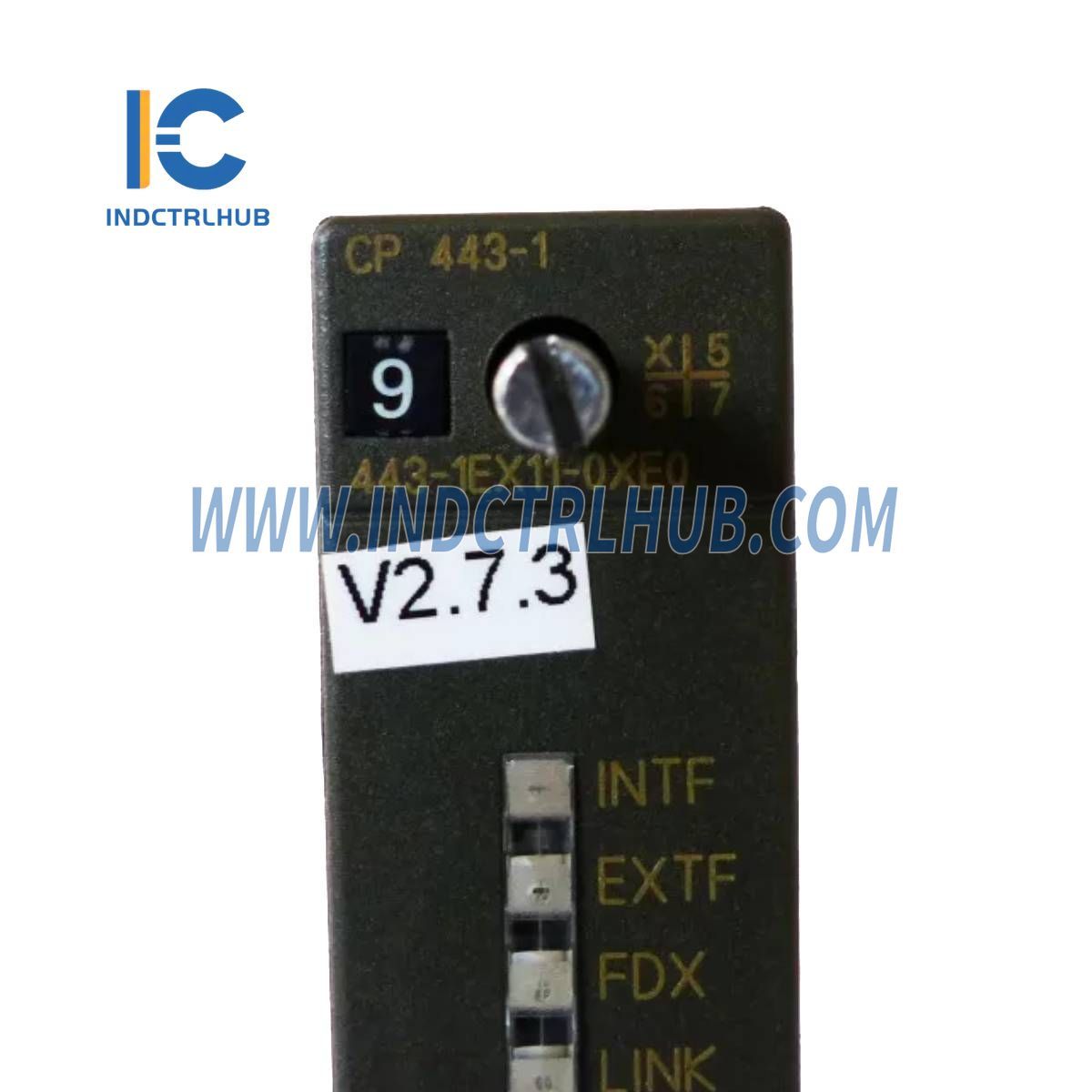

Description: Communications processor
Supply Voltage, Current Consumption, Power Loss:
-
Type of supply voltage: DC
-
Supply voltage 1 from backplane bus: 5 V
-
Supply voltage: 5 V
-
Relative symmetrical tolerance at DC 5 V: 5 %
-
Typical consumed current from backplane bus at DC 5 V: 1.4 A
-
Power loss: 8.6 W
Ambient Conditions:
| Feature | Value |
|---|---|
| Ambient temperature during operation | 0 to 60 °C |
| Ambient temperature during storage | -40 to +70 °C |
| Ambient temperature during transport | -40 to +70 °C |
| Relative humidity at 25 °C without condensation during operation (maximum) | 95 % |
| Protection class IP | IP20 |
Design, Dimensions and Weights:
| Feature | Value |
|---|---|
| Module format | Compact module S7-400 single width |
| Width | 25 mm |
| Height | 290 mm |
| Depth | 210 mm |
| Net weight | 0.7 kg |
