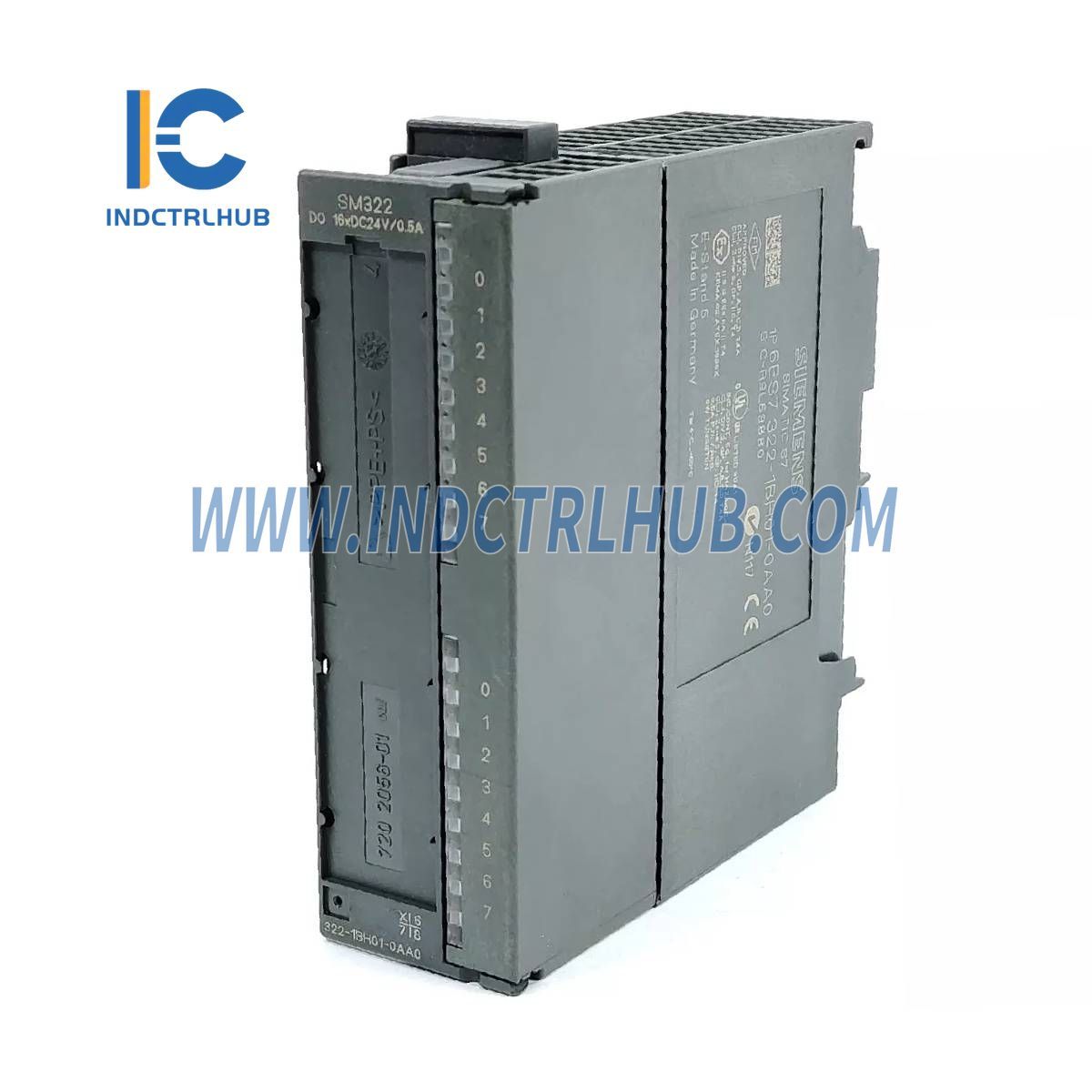

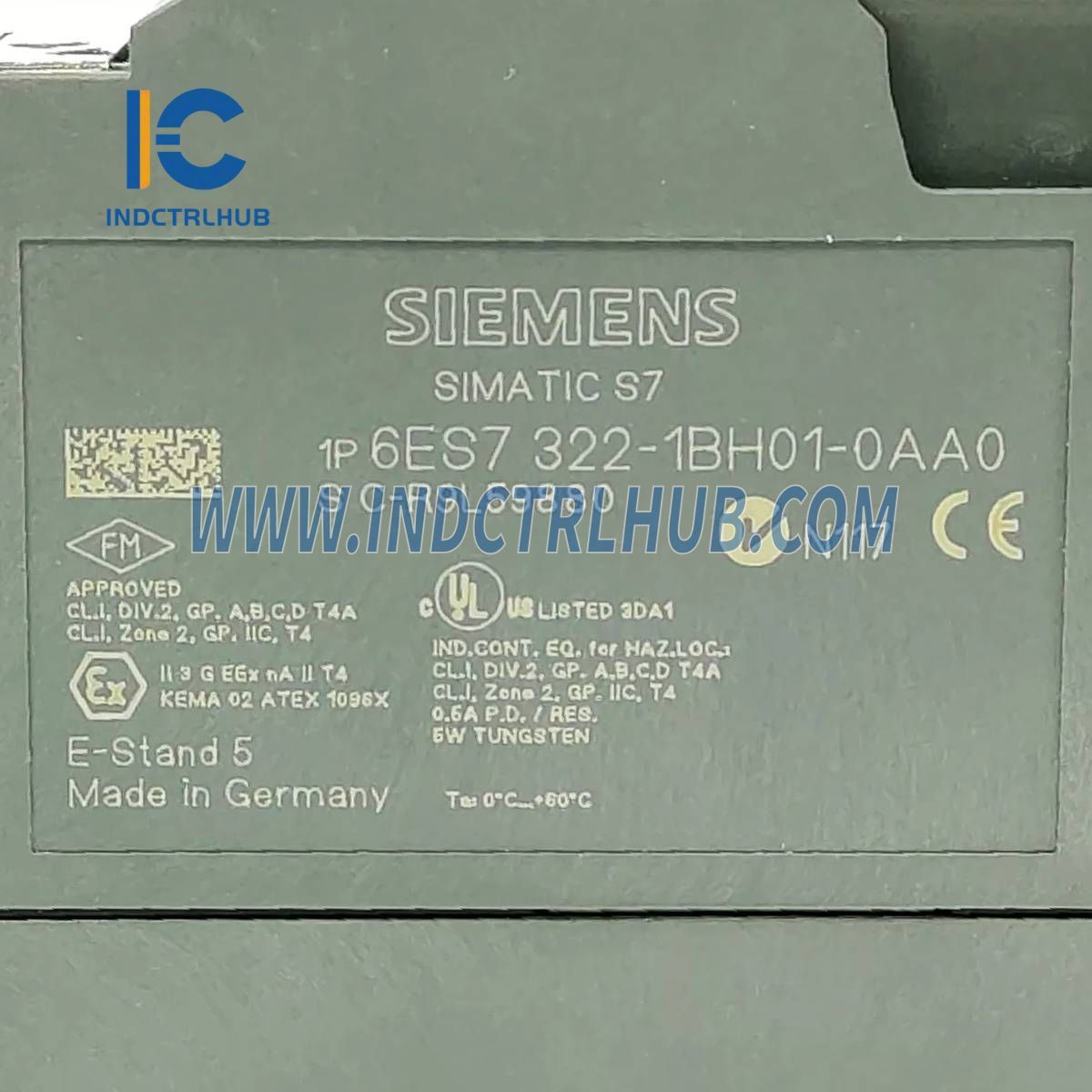

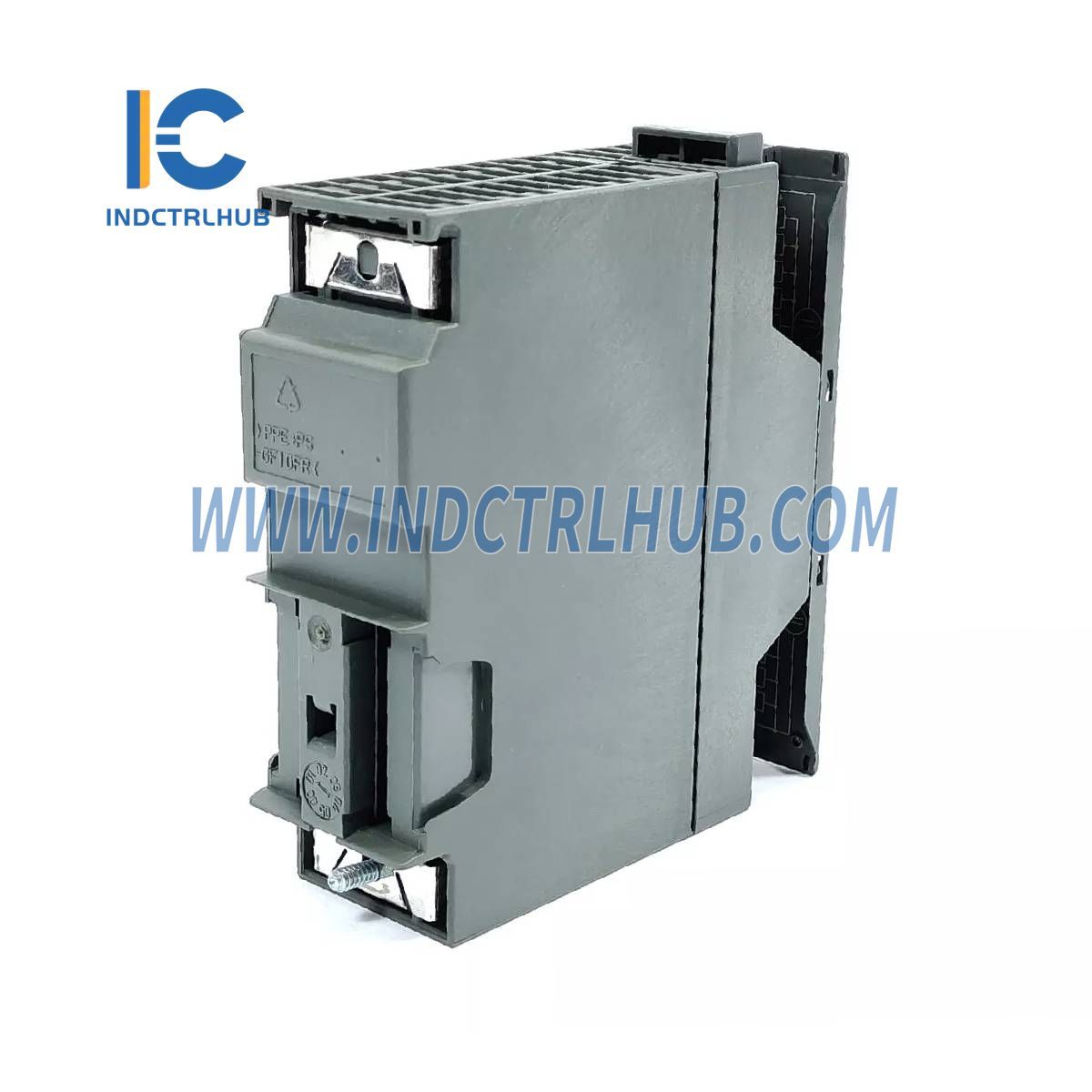

Siemens 6ES7322-1BH01-0AA0 Digital output SM 322

Siemens 6ES7322-1BH01-0AA0 Digital output SM 322

  • Manufacturer: Siemens

  • Product No.: 6ES7322-1BH01-0AA0

  • Condition:1000 in stock

  • Product Type: Digital output SM 322

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 190g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details

Manufacturer: SIEMENS

Model/Part Number: 6ES7322-1BH01-0AA0

Description: Digital output SM 322

Supply Voltage:

  • Load voltage L+ Rated value (DC): 24 V

  • Load voltage L+ Permissible range, lower limit (DC): 20.4 V

  • Load voltage L+ Permissible range, upper limit (DC): 28.8 V

Input Current:

  • From load voltage L+ (without load), max.: 80 mA

  • From backplane bus 5 V DC, max.: 80 mA

Power Loss:

  • Power loss, typical: 4.9 W

Digital Outputs:

  • Number of digital outputs: 16

  • Short-circuit protection: Yes; Electronic

    • Response threshold, typical: 1 A

  • Limitation of inductive shutdown voltage to L+: (-53 V)

  • Controlling a digital input: Yes

Dimensions and Weights:

Feature Value
Width 40 mm
Height 125 mm
Depth 120 mm
Weight Approx. 190 g



View full details

Product Description

Product Details

Manufacturer: SIEMENS

Model/Part Number: 6ES7322-1BH01-0AA0

Description: Digital output SM 322

Supply Voltage:

  • Load voltage L+ Rated value (DC): 24 V

  • Load voltage L+ Permissible range, lower limit (DC): 20.4 V

  • Load voltage L+ Permissible range, upper limit (DC): 28.8 V

Input Current:

  • From load voltage L+ (without load), max.: 80 mA

  • From backplane bus 5 V DC, max.: 80 mA

Power Loss:

  • Power loss, typical: 4.9 W

Digital Outputs:

  • Number of digital outputs: 16

  • Short-circuit protection: Yes; Electronic

    • Response threshold, typical: 1 A

  • Limitation of inductive shutdown voltage to L+: (-53 V)

  • Controlling a digital input: Yes

Dimensions and Weights:

Feature Value
Width 40 mm
Height 125 mm
Depth 120 mm
Weight Approx. 190 g
