Product Description

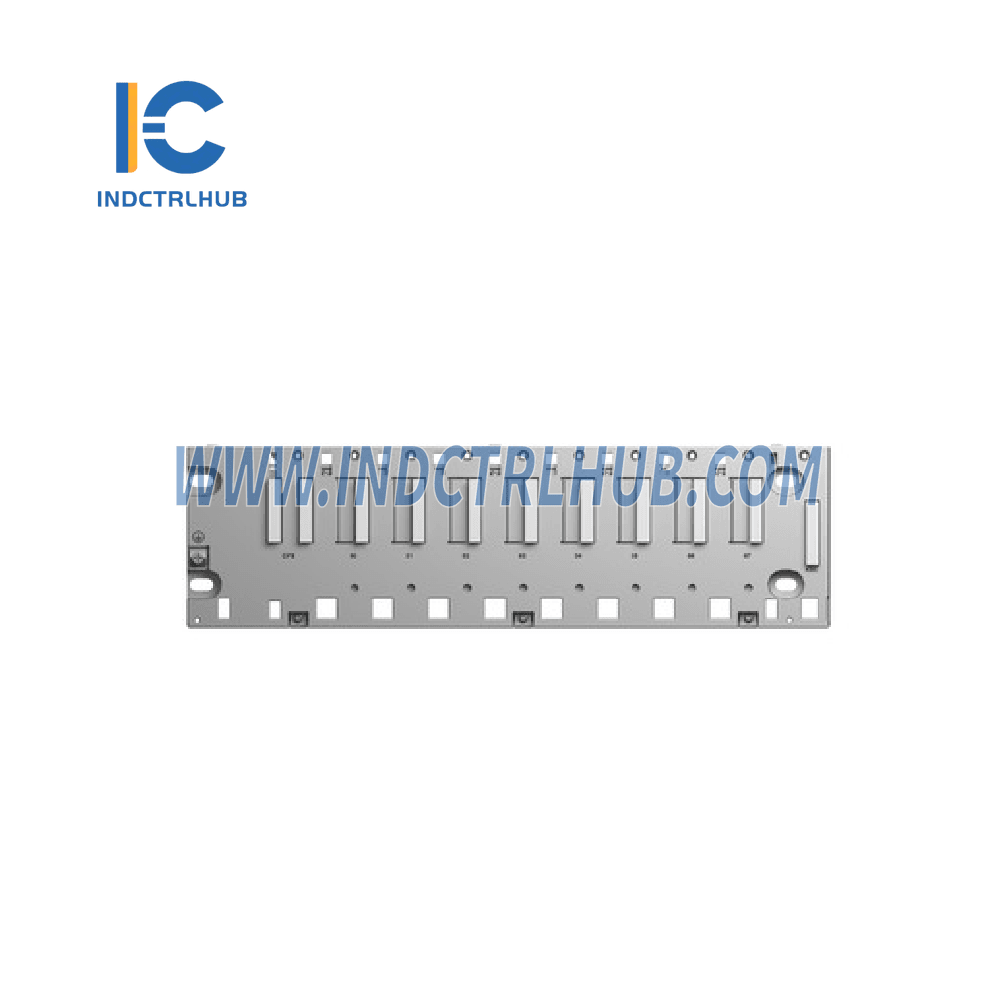

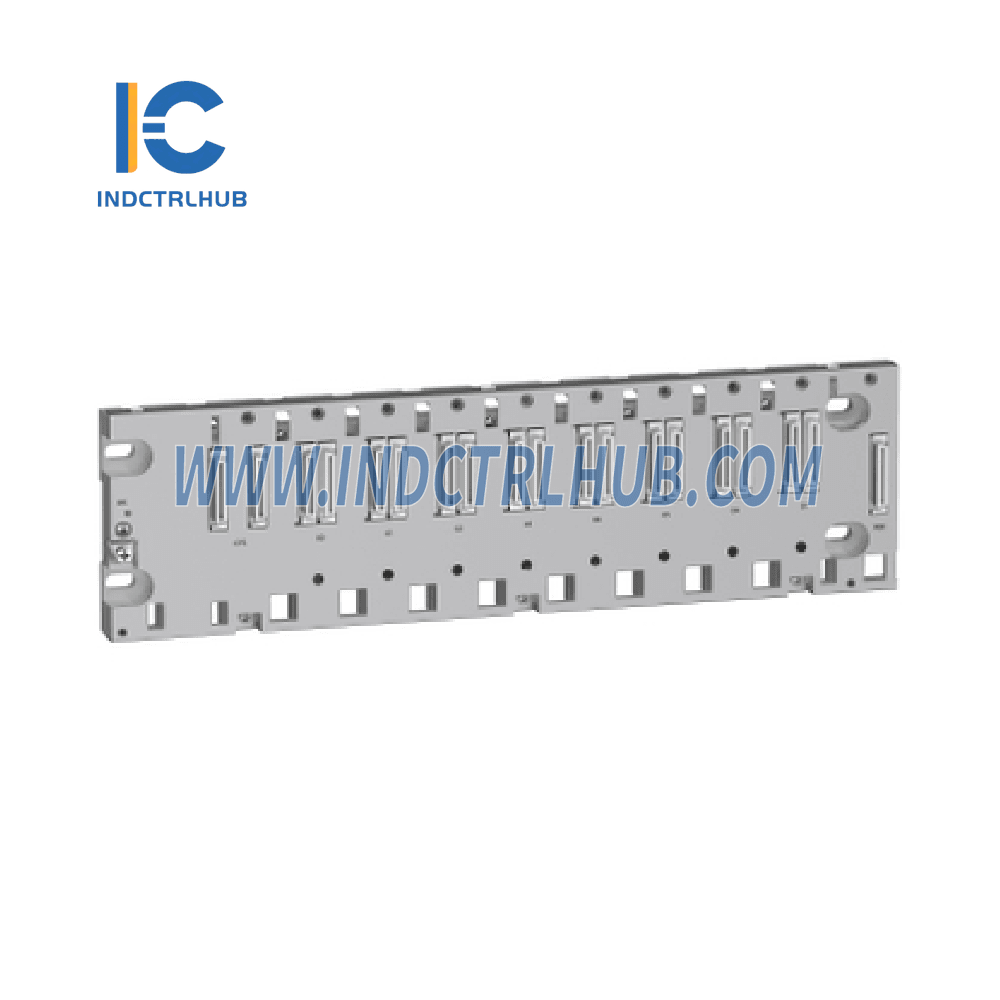

Product Information: Schneider Ethernet Backplane - BMEXBP0800
Manufacturer:
Model/Part Number:
-
BMEXBP0800 (Ethernet Backplane)
Description:
The BMEXBP0800 is an Ethernet backplane designed for integration with the Modicon X80 platform. It features 8 bus slots that support both Ethernet and traditional bus X, making it suitable for I/O modules, BMX processors, specific application modules, and BMXCPS power supplies. This backplane is designed to support advanced Ethernet communication, ensuring high-speed data transfer and connectivity within automation systems.
Specifications:
| Feature |
Specification |
| Range of Product |
Modicon X80 |
| Accessory Type |
Rack |
| Number of Slots |
8 bus X + Ethernet |
| Product Compatibility |
I/O modules, BMX processor, Specific application modules, BMXCPS power supply, BME processor |
| Power Consumption |
211 mW (3.3 V DC), 3.9 W (24 V DC) |
| Electrical Connection |
1 connector (XBE) for expansion module |
| Fixing Mode |
By 4 screws (diameter: 4.32…6.35 mm, mounting on panel), By 4 M6 screws (mounting on plate), By clips (mounting on 35 mm symmetrical DIN rail) |
| Current Consumption |
64 mA (3.3 V DC), 164 mA (24 V DC) |
| MTBF Reliability |
1,297,516 hours |
| Net Weight |
1.06 kg (2.34 lb) |
Environmental Specifications:
| Feature |
Specification |
| IP Protection Degree |
IP20 |
| Ambient Air Temperature (Operation) |
0…60 °C (32…140 °F) |
| Relative Humidity |
5…95 % (without condensation) |
Certifications and Standards:
| Feature |
Specification |
| Compliance Directives |
2014/35/EU (Low Voltage Directive), 2014/30/EU (Electromagnetic Compatibility) |
Key Features:
-
8 Bus Slots: Provides 8 slots for both Ethernet and bus X, enabling the integration of multiple modules for expanded system functionality.
-
High Reliability: With an MTBF (Mean Time Between Failures) of over 1.29 million hours, this backplane offers exceptional durability and reliability for long-term industrial operations.
-
Efficient Power Consumption: Low power usage at 211 mW for 3.3 V DC and 3.9 W for 24 V DC, making it energy-efficient for various industrial setups.
-
Flexible Mounting Options: The backplane can be mounted using 4 screws (with adjustable diameters), 4 M6 screws, or clips for installation on 35 mm DIN rails, providing versatile options for different configurations.
-
Compact and Lightweight: The backplane's 1.06 kg weight and compact form factor ensure easy integration into existing automation systems without taking up excessive space.
