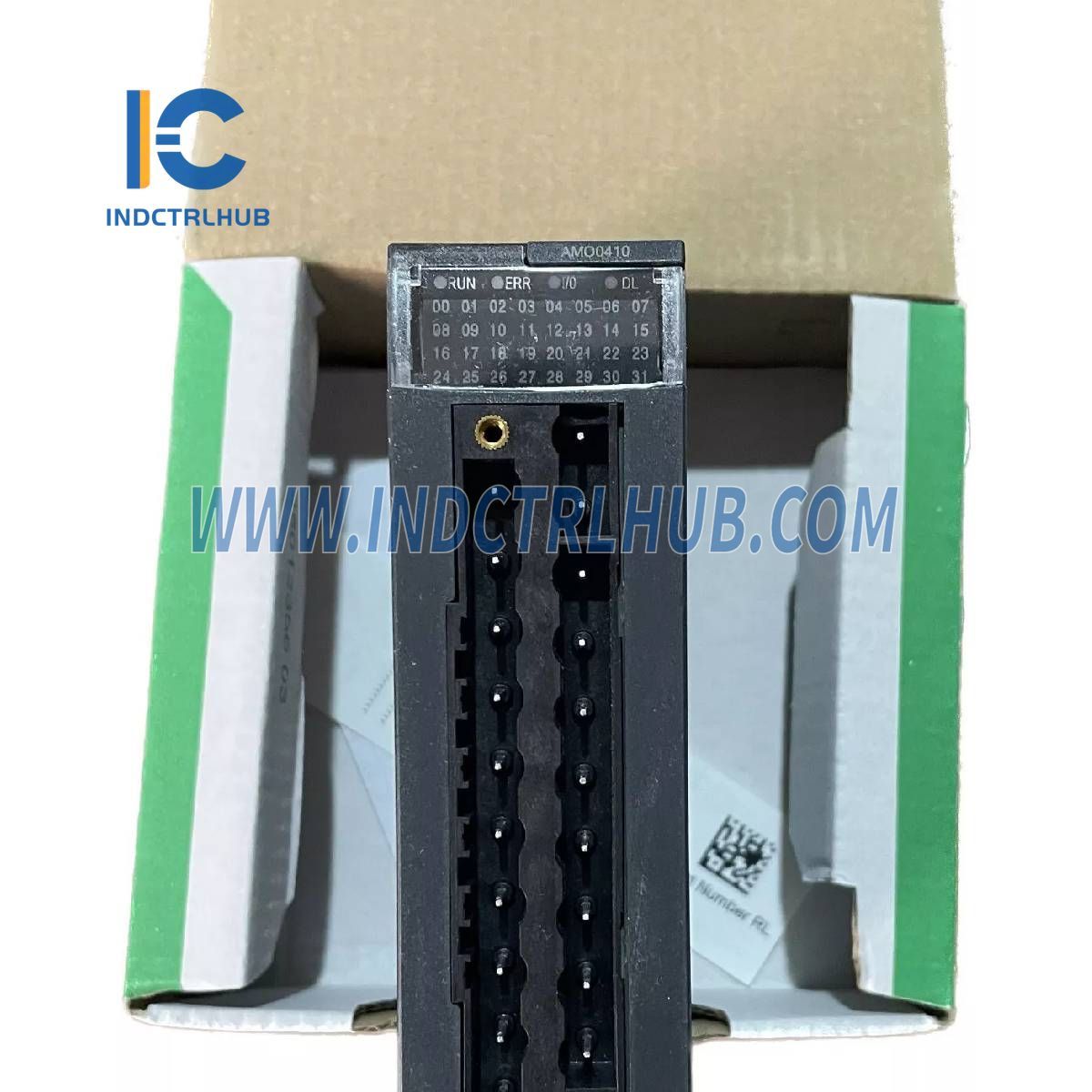

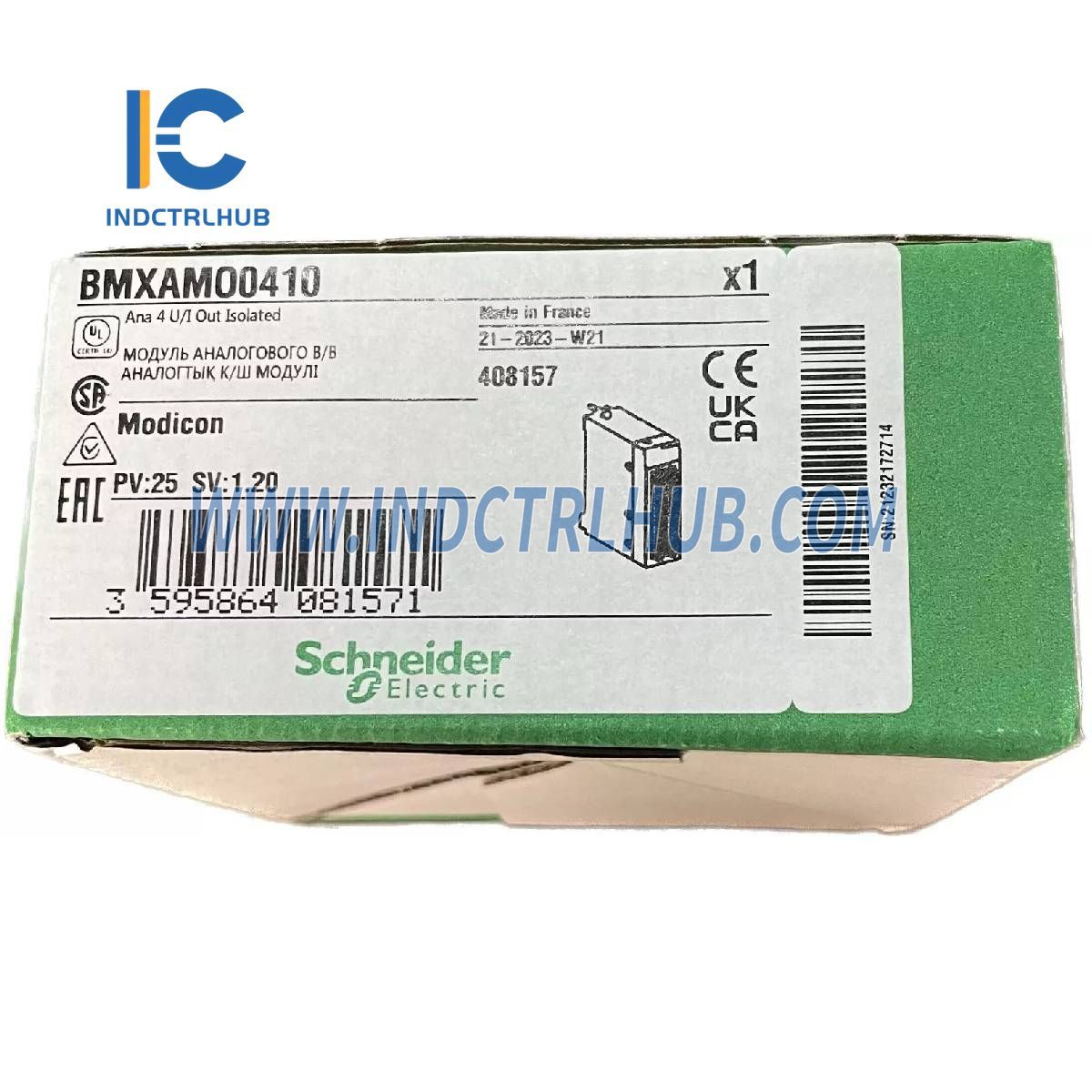

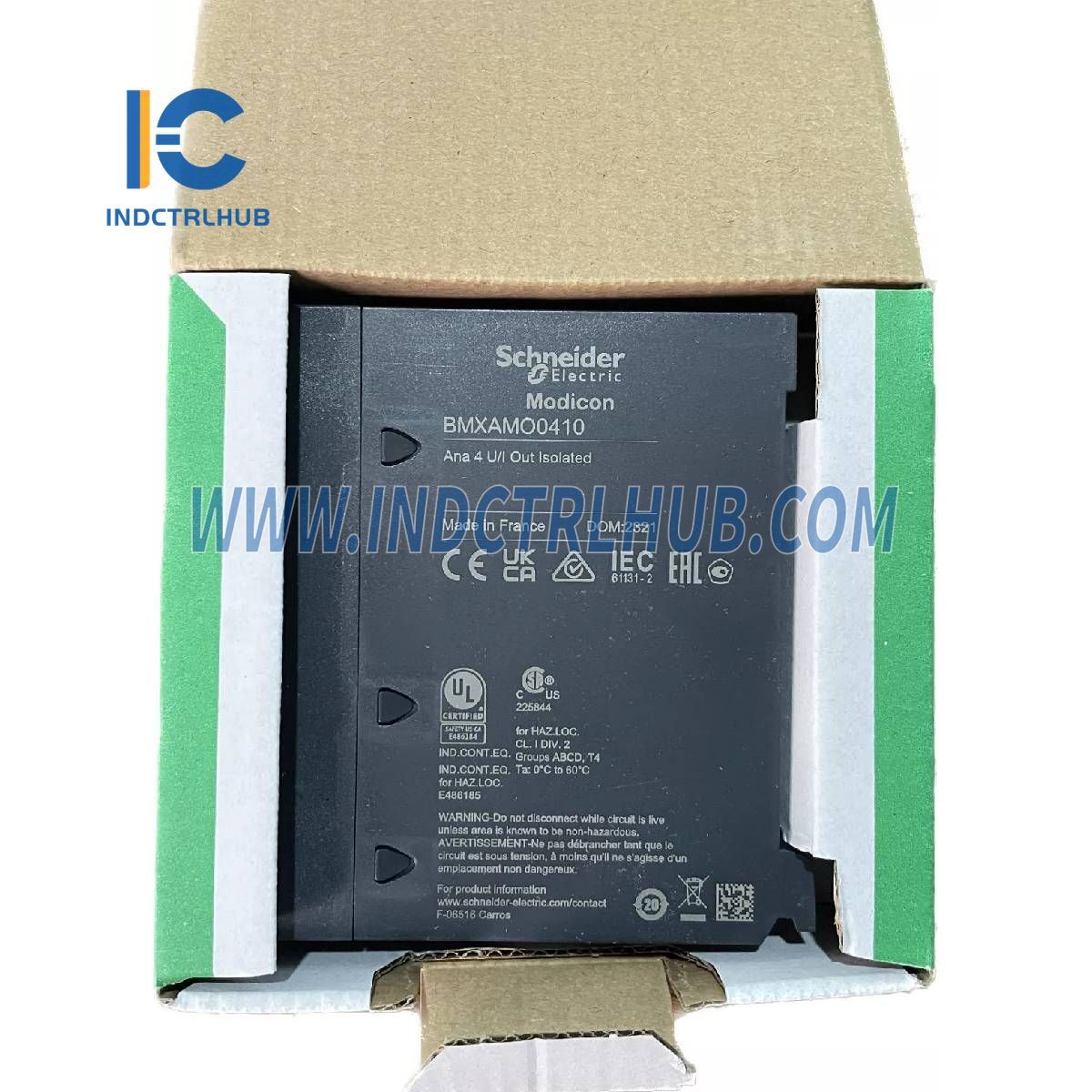

Product Description
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
BMXAMO0410 |
|
Description |
Analog Output Module |
Main Specifications
|
Specification |
Details |
|---|---|
|
Range of Product |
Modicon X80 |
|
Product or Component Type |
Analog Output Module |
|
Electrical Connection |
1 Connector (20-Way) |
|
Input/Output Isolation |
Isolated |
Complementary Specifications
|
Parameter |
Details |
|---|---|
|
Measurement Error |
≤ 0.25% of full scale (0…60 °C) 0.1% of full scale (25 °C) |
|
Temperature Drift |
45 ppm/°C (±10 V, 0…20 mA, 4…20 mA) |
|
Common Mode Between Channels |
≥ 80 dB |
|
Isolation Voltage |
1400 V DC (Between Channels and Ground) 1400 V DC (Between Channels and Bus) 750 V DC (Between Channels) |
|
Detection Type |
Open Circuit (0…20 mA, 4…20 mA) Short Circuit (±10 V) |
|
Load Impedance (Ohmic) |
≥ 1000 Ω (±10 V) ≤ 500 Ω (0…20 mA, 4…20 mA) |
|
Output Level |
High Level |
|
Analog Output Number |
4 |
|
Analog Output Type |
Current (0…20 mA, 4…20 mA) Voltage (±10 V) |
|
Analog Output Resolution |
15 Bits + Sign |
|
Supply |
Internal Power Supply via Rack |
|
Conversion Time |
≤ 1 ms |
|
Maximum Conversion Value |
±11.4 V (±10 V) 0…21 mA (0…20 mA, 4…20 mA) |
|
Fallback Mode |
Configurable, Predefined |
|
Status LEDs |
1 LED Green (RUN) 1 LED Per Channel Green (Channel Diagnostic) 1 LED Red (ERR) 1 LED Red (I/O) |
|
Product Weight |
0.15 kg (0.33 lb) |
|
Current Consumption |
150 mA (3.3 V DC) 84 mA (24 V DC) |
Environmental Specifications
|
Parameter |
Details |
|---|---|
|
Vibration Resistance |
3 gn |
|
Shock Resistance |
30 gn |
|
Ambient Air Temperature (Storage) |
-40…85 °C (-40…185 °F) |
|
Ambient Air Temperature (Operation) |
0…60 °C (32…140 °F) |
