Product Description
Product Information: Schneider RIO Drop Adaptor Module Modicon
Manufacturer:
Model/Part Number:
-

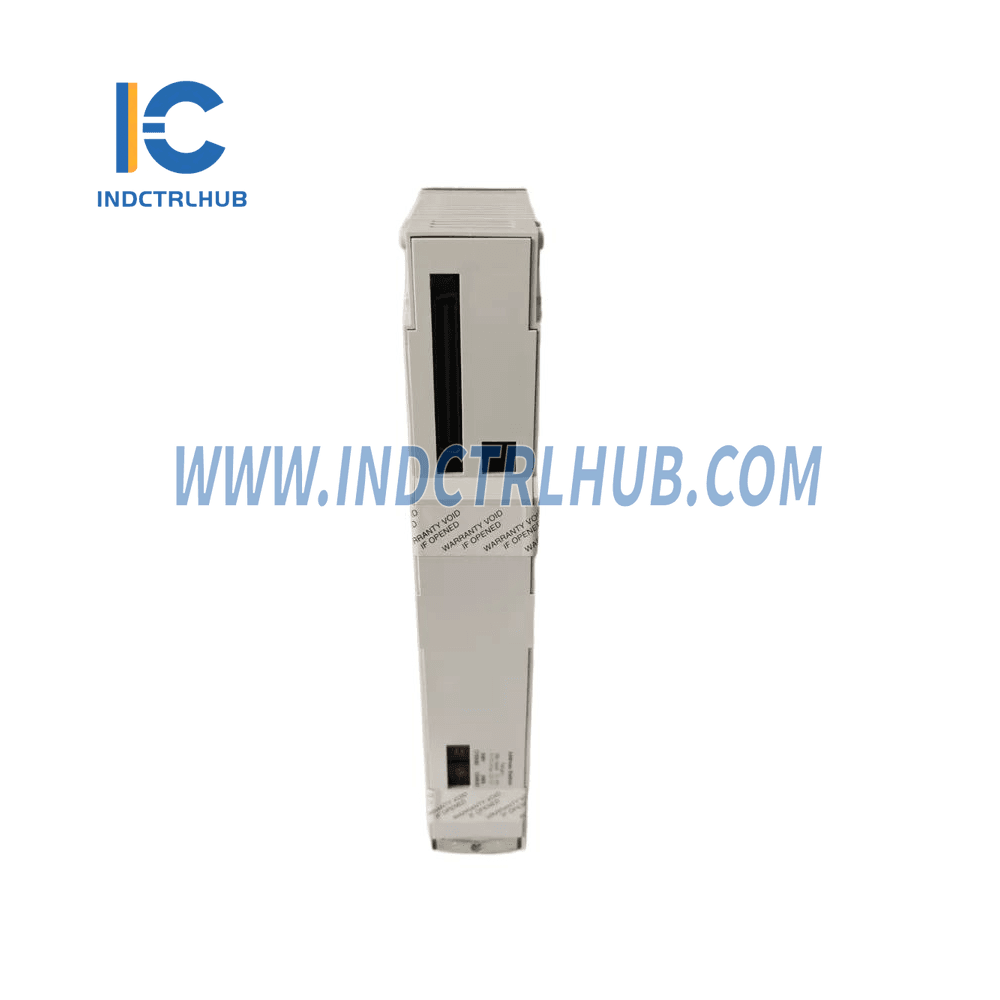

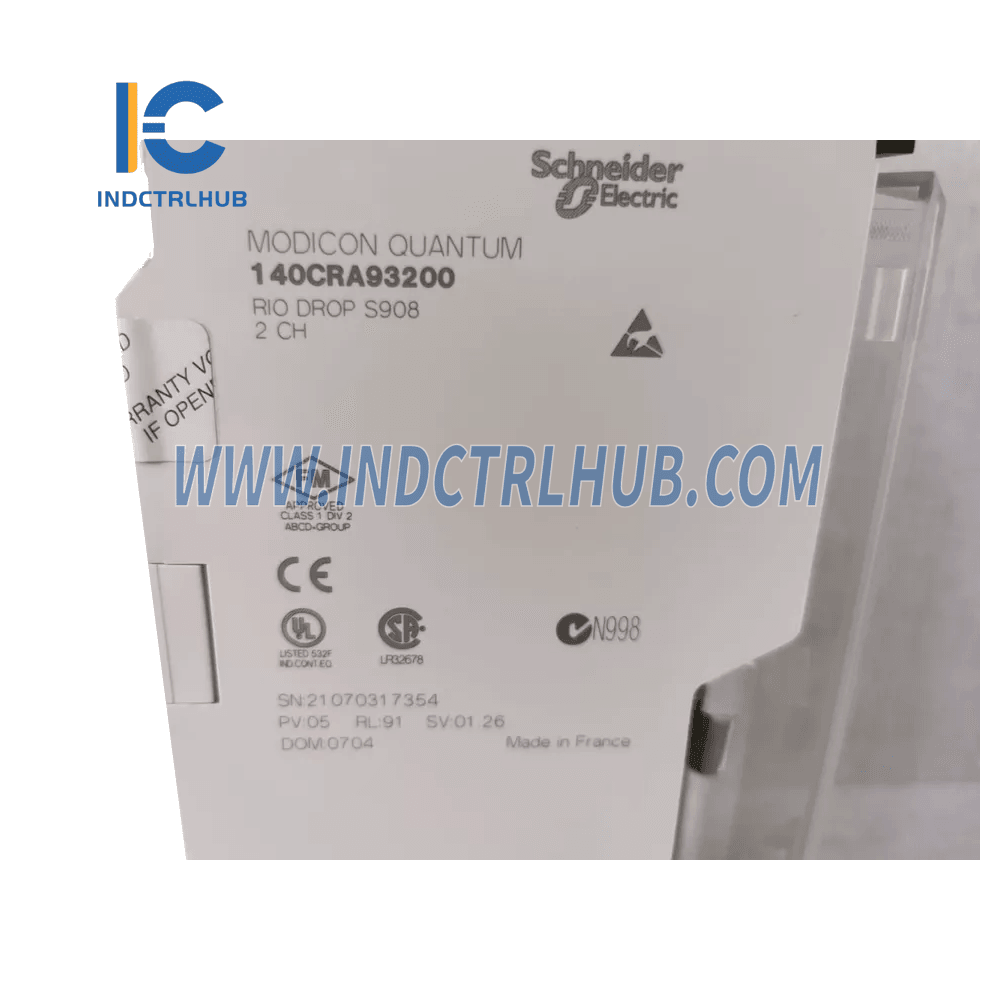

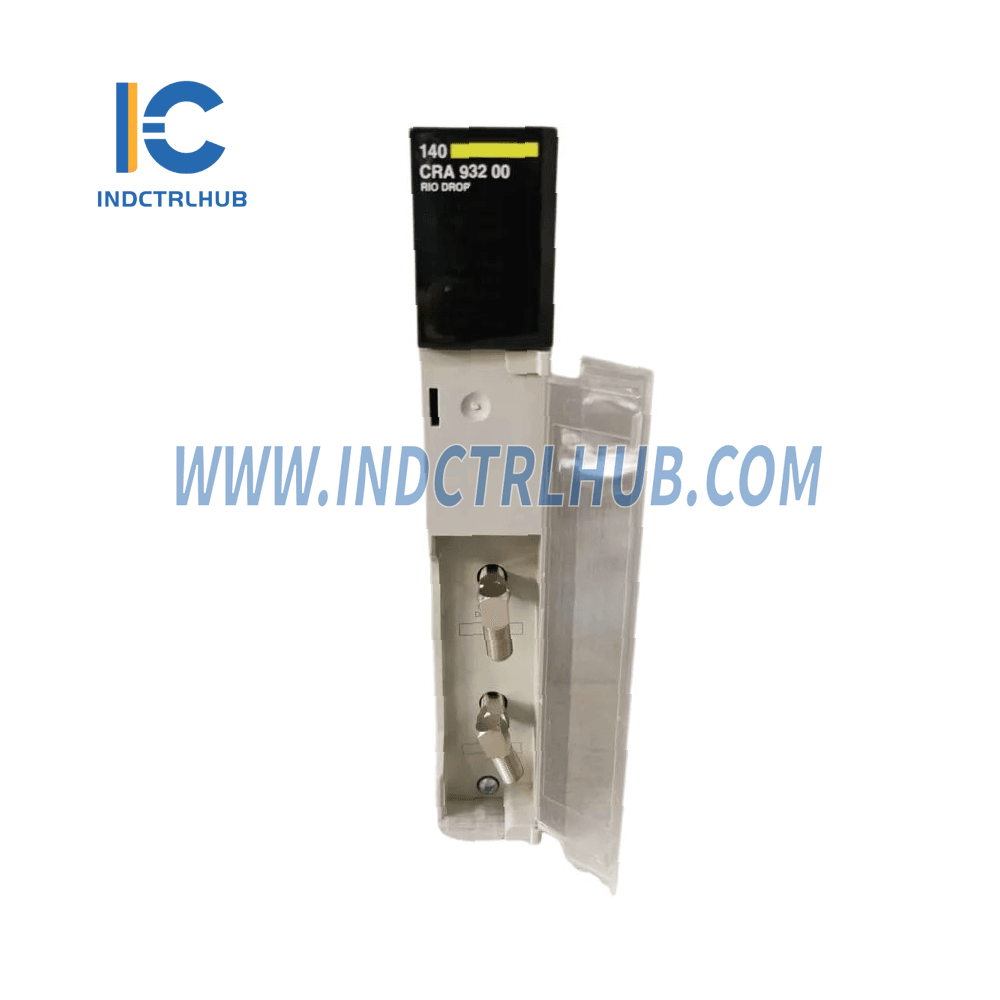

140CRA93200 (RIO Drop Adaptor Module)
Description:
The RIO Drop Adaptor Module is an essential component within the Modicon Quantum Automation Platform by Schneider Electric. This module facilitates the communication between a variety of I/O expansion modules and the Quantum system. It uses coaxial cable for connection and ensures high-speed data transmission with redundancy for increased reliability.
Specifications:
Feature |
Specification |
Range of Product |
Modicon Quantum automation platform |
Product Type |
RIO Drop Adaptor Module |
Product Compatibility |
Quantum |
Maximum Number of I/O Expansion Modules |
27 |
Type of Cable |
75 Ohm coaxial cable |
Transmission Rate |
1544 Mbit/s |
Dynamic Range |
35 dB |
Isolation Voltage |
500 V DC (coaxial center and ground) |
Electrical Connection |
2 female connectors F (elbowed with redundant cables) |
Diagnostics - Startup |
Power-up and runtime, RAM address/data, Executive checksum |
Power Dissipation |
3.8 W (2 channels) |
Bus Current Requirement |
750 mA (2 channels) |
Module Format |
Standard |
Environmental Specifications:
Feature |
Specification |
Standards |
UL 508, CUL, CSA C22.2 No 142 |
Resistance to Electrostatic Discharge |
4 kV contact, 8 kV air (IEC 801-2) |
Resistance to Electromagnetic Fields |
10 V/m (80–1000 MHz) (IEC 801-3) |
Ambient Air Temperature for Operation |
0…60 °C |
Ambient Air Temperature for Storage |
-40…85 °C |
Relative Humidity |
95% without condensation |
Operating Altitude |
<= 5000 m |
Packaging:
Feature |
Specification |
Unit Type of Package |
1 PCE |
Number of Units in Package |
1 |
Package Height |
5.0 cm |
Package Width |
16.5 cm |
Package Length |
31.5 cm |
Package Weight |
545 g |
Key Features:
-
Redundant Communication: This model features redundant electrical connections, ensuring enhanced reliability in critical systems.
-
High-Speed Transmission: With a 1544 Mbit/s transmission rate, it facilitates rapid and efficient data communication.
-
Advanced Diagnostics: Equipped with executive checksum and RAM diagnostics to ensure system health and identify any potential issues during startup and runtime.
-
Compatible with Quantum: Fully integrated with the Modicon Quantum platform, it can support up to 27 I/O expansion modules for complex automation setups.
