Product Information: Schneider Quantum RIO Drop Adaptor Module Modicon
Manufacturer:
Model/Part Number:
-

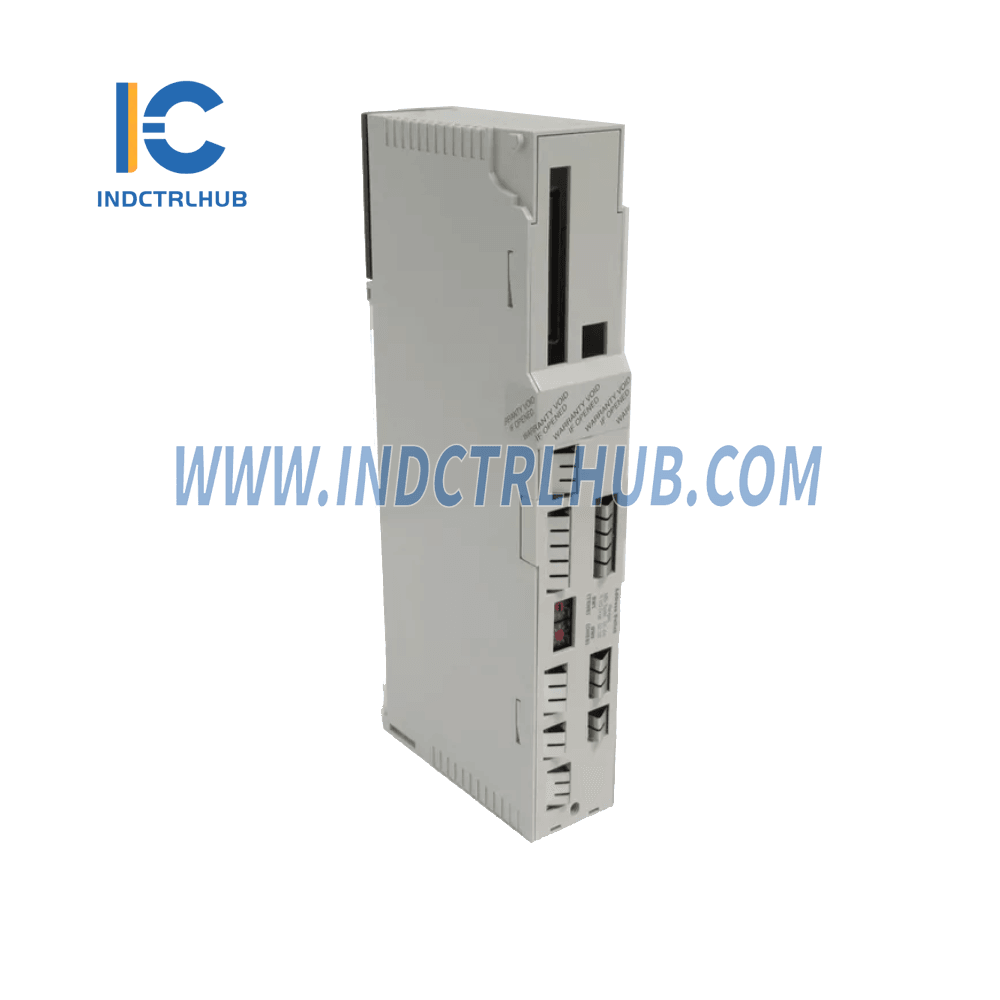

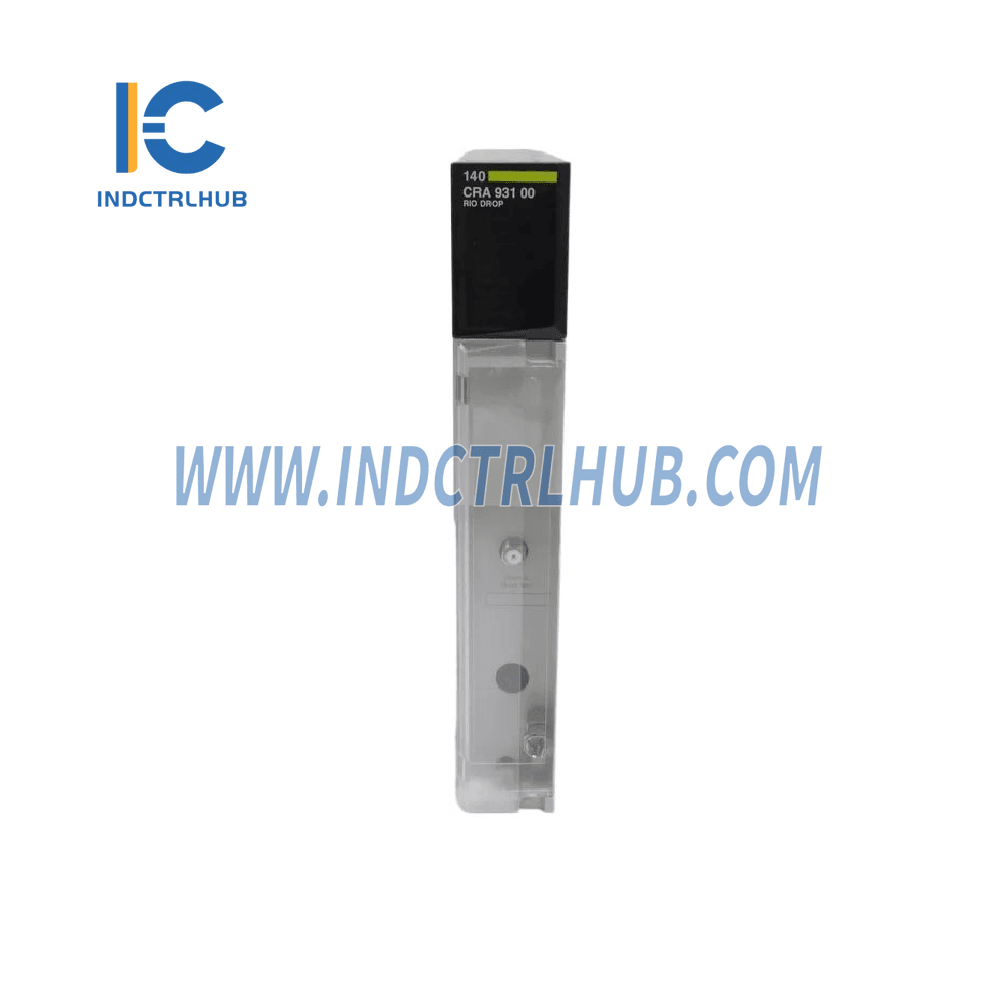

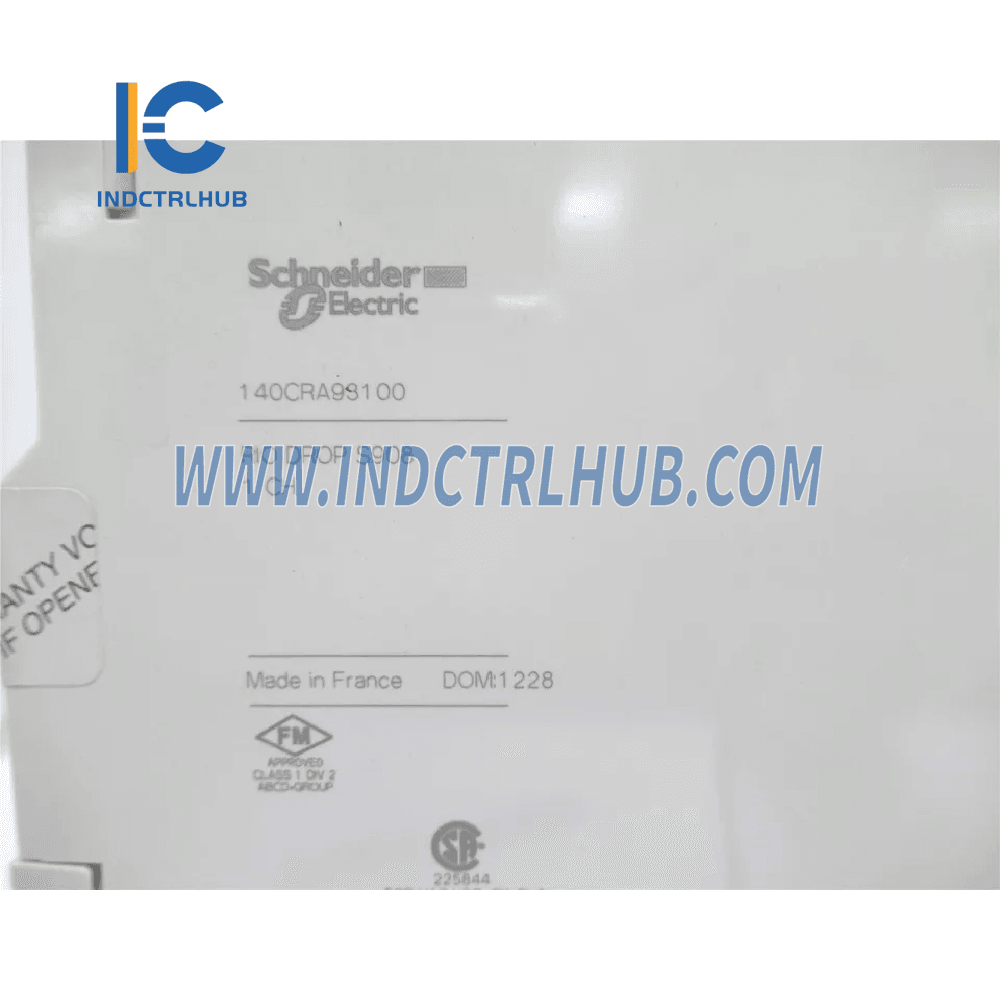

140CRA93100 (Quantum RIO Drop Adaptor Module)
Description:
The Quantum RIO Drop Adaptor Module is a key component in Schneider Electric's Modicon Quantum Automation Platform. It is designed for use in systems that require integration with Remote I/O (RIO) devices, providing the ability to interface with various I/O expansion modules. This module offers high-speed data transmission and ensures compatibility with the Quantum platform for efficient and reliable communication.
Specifications:
| Feature |
Specification |
| Range of Product |
Modicon Quantum automation platform |
| Product Type |
RIO Drop Adaptor Module |
| Product Compatibility |
Quantum |
| Maximum Number of I/O Expansion Modules |
27 |
| Type of Cable |
75 Ohm coaxial cable |
| Transmission Rate |
1544 Mbit/s |
| Dynamic Range |
35 dB |
| Isolation Voltage |
500 V DC (coaxial center and ground) |
| Electrical Connection |
1 female connector F (elbowed with single cable) |
| Diagnostics - Startup |
Executive checksum, RAM address/data |
| Power Dissipation |
3 W per channel |
| Bus Current Requirement |
600 mA per channel |
| Module Format |
Standard |
Environmental Specifications:
| Feature |
Specification |
| Resistance to Electrostatic Discharge |
4 kV contact, 8 kV air (IEC 801-2) |
| Resistance to Electromagnetic Fields |
10 V/m (80–1000 MHz) (IEC 801-3) |
| Ambient Air Temperature for Operation |
0…60 °C |
| Ambient Air Temperature for Storage |
-40…85 °C |
| Relative Humidity |
95% without condensation |
| Operating Altitude |
<= 5000 m |
| Protective Treatment |
TC (conforming to relevant standards) |
Packaging:
| Feature |
Specification |
| Unit Type of Package |
1 PCE |
| Number of Units in Package |
1 |
| Package Height |
4.7 cm |
| Package Width |
16.5 cm |
| Package Length |
31.0 cm |
| Package Weight |
509 g |
