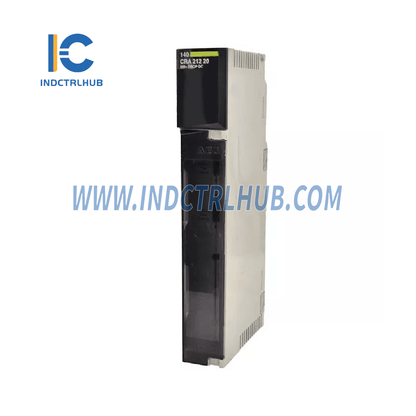

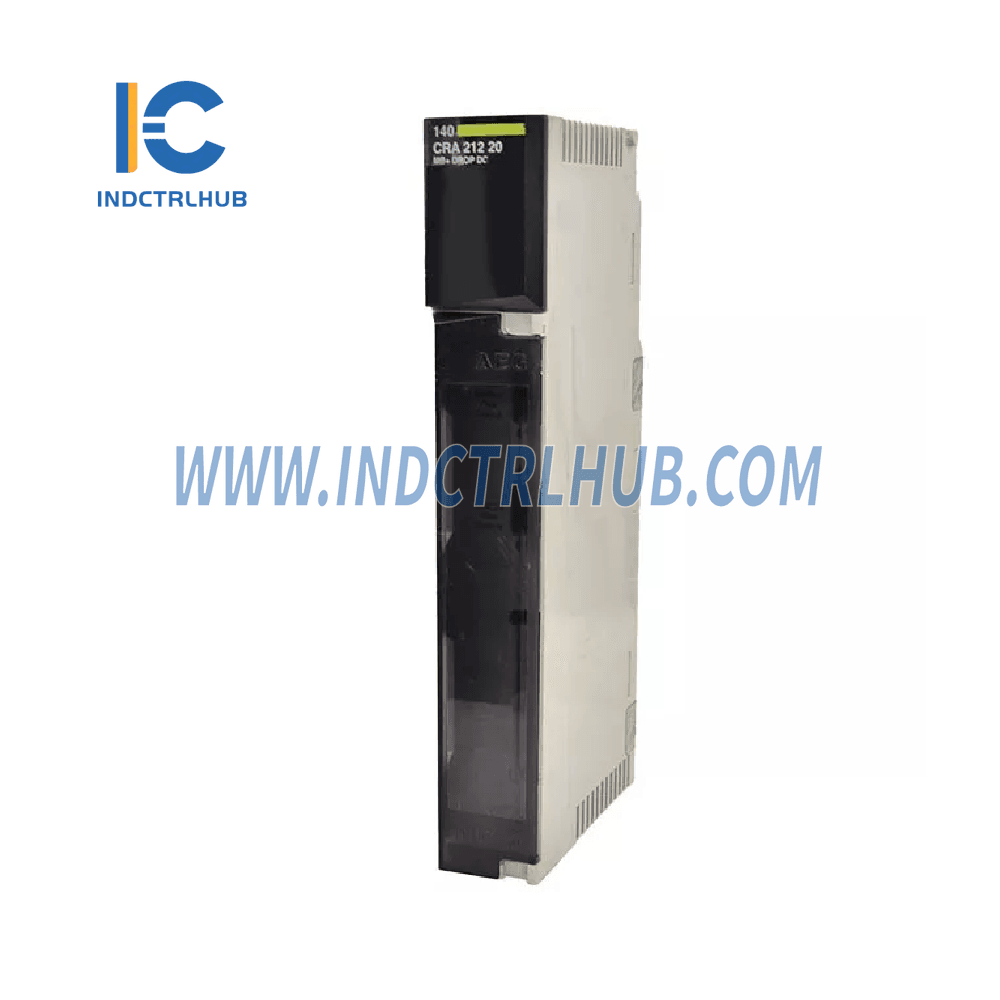

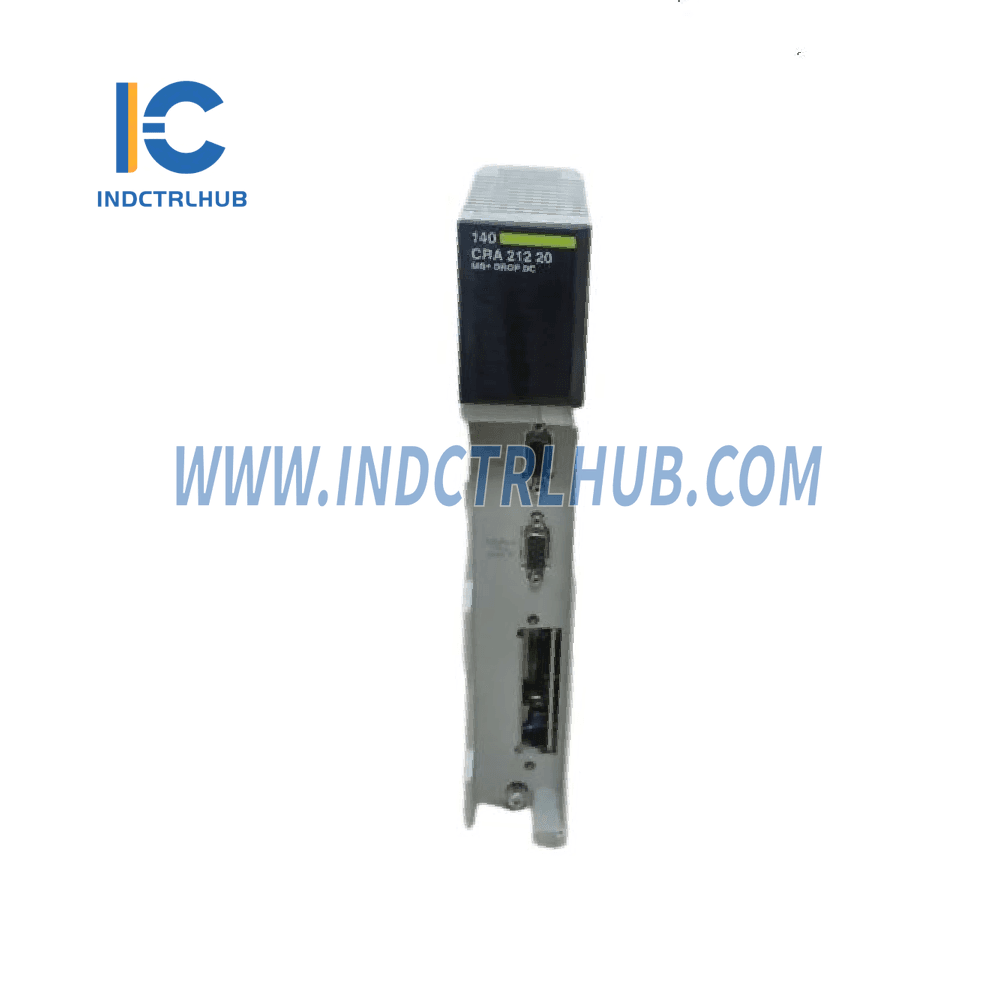

Product Information: Schneider Quantum DIO Drop Interface Modicon
Manufacturer:
Model/Part Number:
-
140CRA21220 (Quantum DIO Drop Interface Modicon)
Description:
The Quantum DIO Drop Interface Modicon is part of Schneider Electric's Modicon Quantum Automation Platform, designed for industrial control systems. It is a Digital Input/Output (DIO) module with redundancy, offering high reliability and performance in a range of automation applications.
This module includes two redundant ports, supports a 24 V DC supply voltage, and offers both short-circuit protection and output overvoltage protection. It is optimized for high-speed data processing with minimal buffer time and maximum reliability.
Specifications:
| Feature |
Specification |
| Range of Product |
Modicon Quantum automation platform |
| Product Type |
DIO Drop Interface |
| Number of Ports |
2 redundant ports |
| Rated Supply Voltage |
24 V DC |
| Supply Voltage Limits |
20–30 V |
| Maximum Supply Current |
1.6 A (24 V DC) |
| Inrush Current |
30 A (24 V DC) |
| Maximum Buffer Time |
1 ms |
| Associated Fuse Rating |
2.5 A |
| Output Voltage |
5.1 V |
| Nominal Output Current |
3 A |
| Minimum Load Current |
0 A |
| Short-circuit Protection |
Yes |
| Output Overvoltage Protection |
Yes |
| I/O Words |
30 I/32 O |
| Typical Backplanes |
10 positions, 2 positions, 6 positions, 3 positions, 4 positions, 16 positions |
| Diagnostics - Startup |
RAM address, checksum |
| Diagnostics - Runtime |
RAM address, checksum |
| Power Dissipation |
11 W |
| Connections |
Terminal block, 7 poles |
| Module Format |
Standard |
Environmental Specifications:
| Feature |
Specification |
| Resistance to Electrostatic Discharge |
4 kV contact, 8 kV air (IEC 801-2) |
| Resistance to Electromagnetic Fields |
10 V/m (80…2000 MHz) (IEC 801-3) |
| Ambient Air Temperature for Operation |
0…60 °C |
| Ambient Air Temperature for Storage |
-40…85 °C |
| Relative Humidity |
95% without condensation |
| Operating Altitude |
<= 5000 m |
| Protective Treatment |
TC (conforming to relevant standards) |
| Product Certifications |
UL, C-Tick, GOST, CSA Class 1 Division 2, DNV |
Packaging:
| Feature |
Specification |
| Unit Type of Package |
1 PCE |
| Number of Units in Package |
1 |
| Package Height |
5.0 cm |
| Package Width |
16.0 cm |
| Package Length |
31.5 cm |
| Package Weight |
726.0 g |
