Product Description

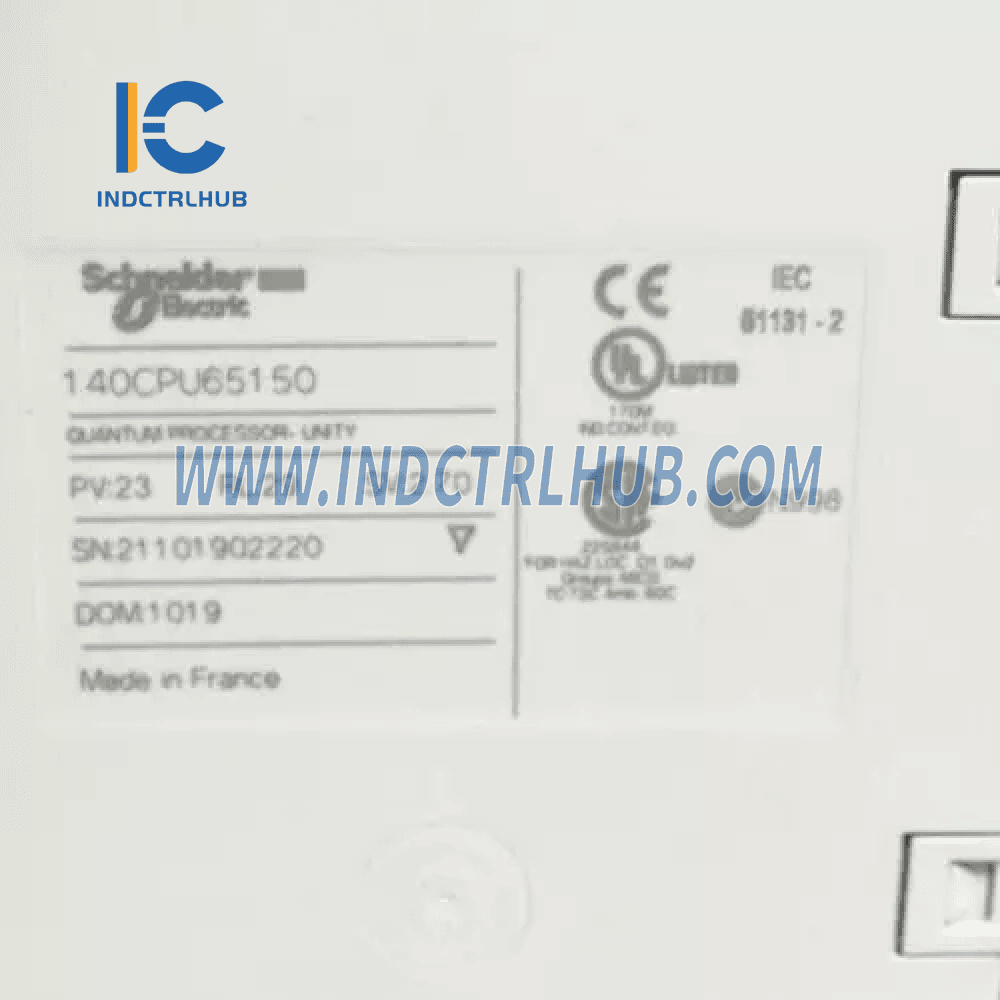

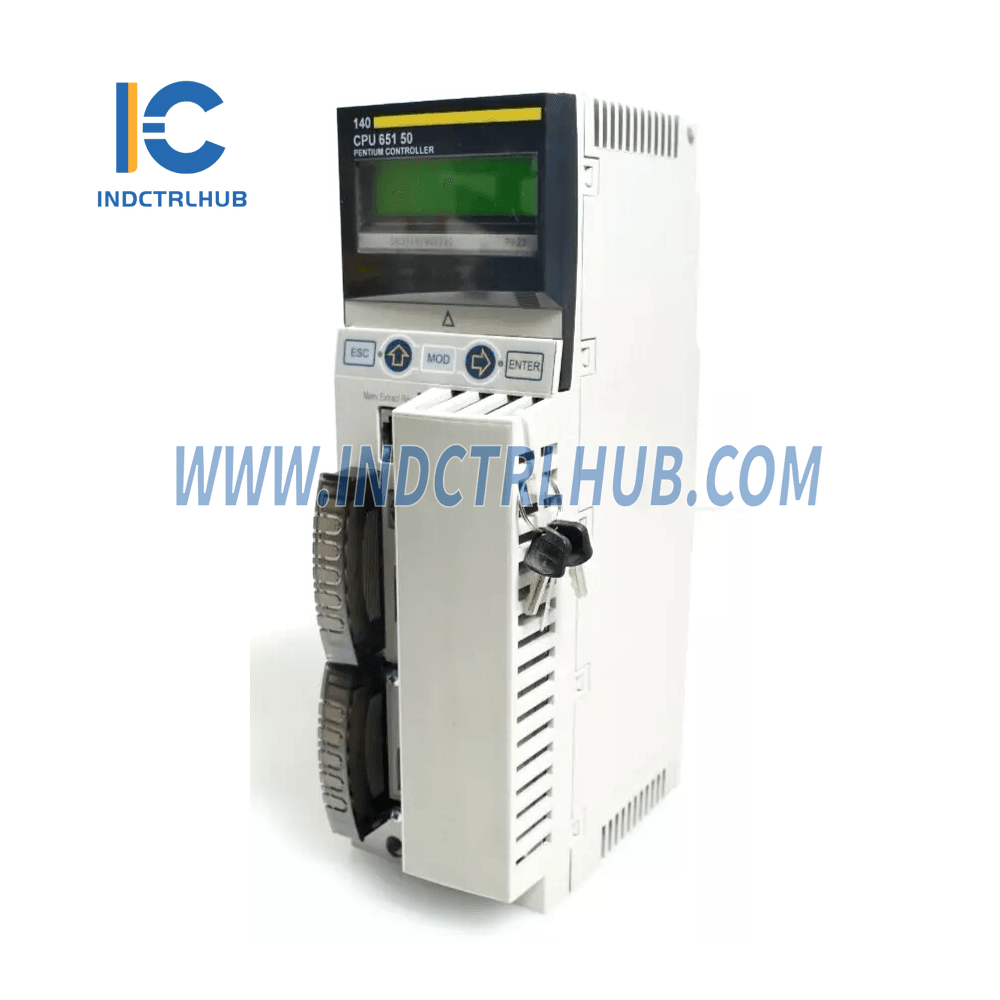

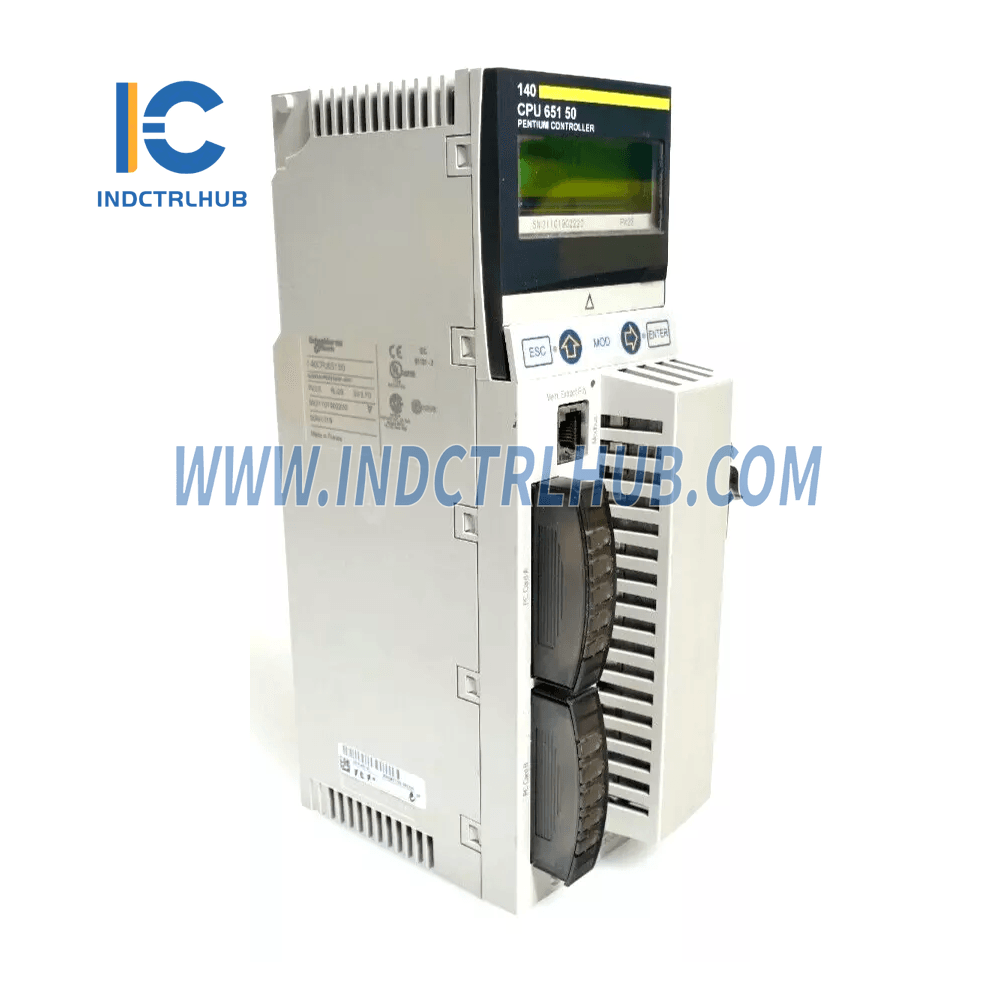

Schneider 140CPU65150 - PLC Module
The Schneider 140CPU65150 is a high-performance PLC module designed for complex industrial applications. It integrates advanced features like LCD display, key switch protection, and memory expansion options to enhance system control and reliability.
Technical Specifications:
| Feature | Specification |
|---|---|
| Clock Speed | 166 MHz |
| Internal RAM | 768 KB |
| Max Application Memory | 7168 KB |
| Communication Ports | Modbus, Modbus Plus, USB, Ethernet TCP/IP |
| PCMCIA Slots | 2 (Memory and Data Storage) |
| Fibre Optic Type | MT-RJ (multimode) or LC (single-mode) |
| Weight | 1.430 kg (3.153 lbs) |
| Ethernet | Yes, built-in Ethernet TCP/IP |
| Coprocessor | Built-in |
| Modbus and Modbus Plus | Yes |
Key Features:
-
Key Switch Protection:
- Unlocked Mode: All system operations are accessible, and parameters can be modified. The memory is not write-protected.
- Locked Mode: Prevents changes to parameters and protects memory, safeguarding the application program.
-
LCD Display:
A 2-line, 16-character LCD with brightness and contrast controls displays essential system information. -
Backup Battery Slot:
Includes a slot for the backup battery, ensuring memory retention during power loss. -
User Interface:
The module includes a 5-button keypad with ESC, ENTER, MOD, Z, C buttons and 2 LEDs for operation feedback. -
Multiple Communication Ports:
- RJ45 Connector for Modbus network.
- USB Type B for connecting to a programming PC terminal.
- 9-way female SUB-D connector for Modbus Plus.
-
PCMCIA Memory Expansion:
Two memory expansion slots are available:- Slot 0: For memory expansion (except models 140CPU65860 and 140CPU67861).
- Slot 1: For data storage (available in all models).
-
Status LEDs:
- COM LED (Green): Indicates network activity.
- ERR LED (Red): Indicates errors such as Ethernet frame collision or communication issues in Hot Standby mode.
-
Fibre Optic and Ethernet Connectivity:
- RJ45 connector for Ethernet (models 140CPU65150, 140CPU65160, 140CPU65260, and 140CPU65860).
- MT-RJ multimode fibre optic connector (models 140CPU67060, 140CPU67160, and 140CPU67260).
- LC single-mode fibre optic connector (models 140CPU67261 and 140CPU67861) for Hot Standby PLC interconnection.
