Product Description

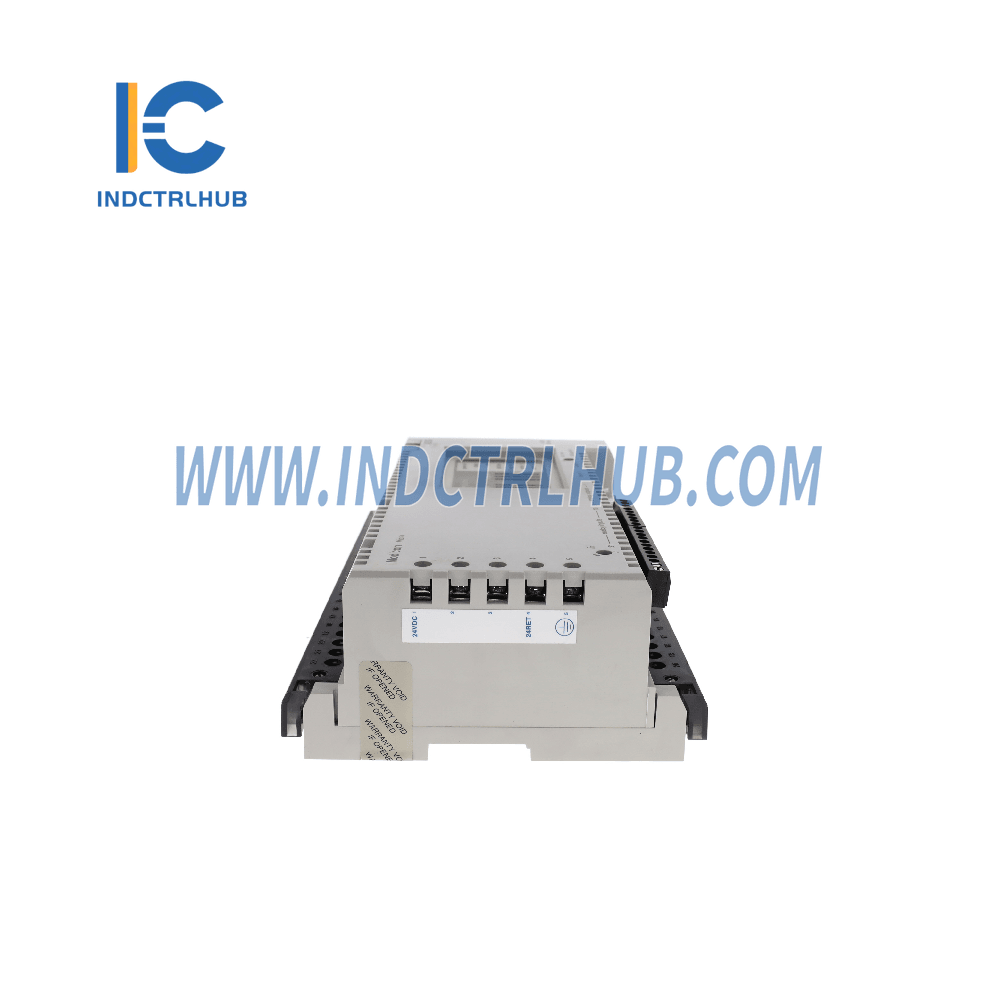

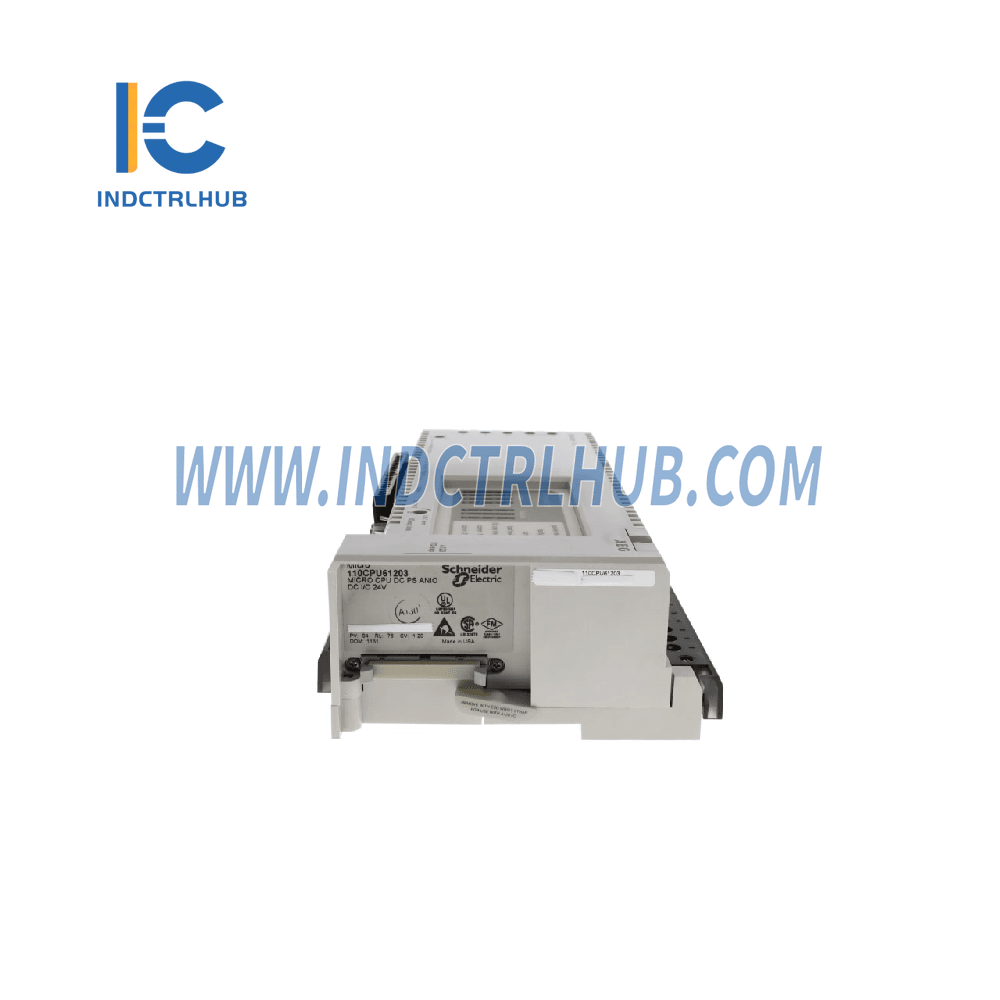

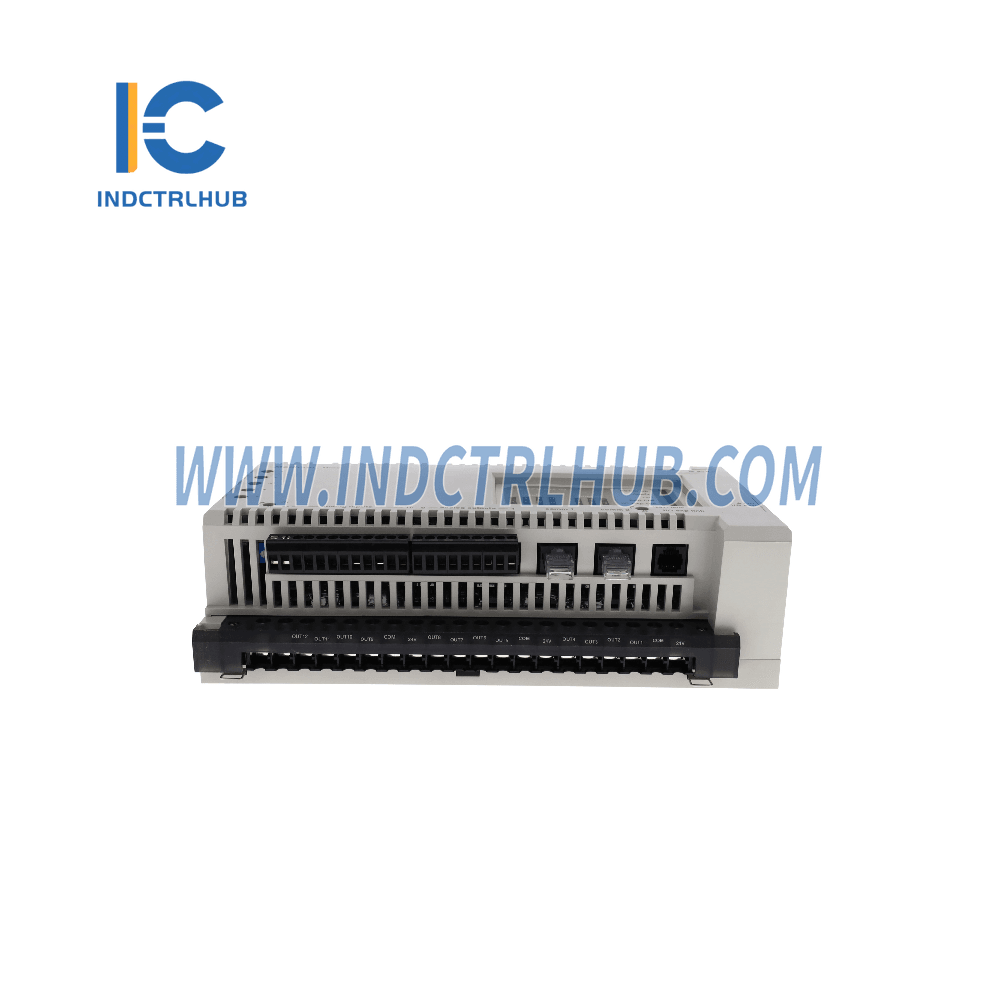

Product Information: Schneider Micro CPU DC PS ANIO DC IN REL
Manufacturer:
- Schneider Electric
Model/Part Number:
- 110CPU61203 (Micro CPU with DC Power Supply and Analog I/O)
Description:
The 110CPU61203 is a compact Micro CPU designed for use in industrial control systems. It features a DC power supply, analog I/O capabilities, and real-time processing with high-speed inputs. This model is equipped with a variety of communication ports (RS-232, RS-485), making it suitable for diverse applications, including control, monitoring, and automation tasks. Its rugged design and environmental resistance make it ideal for industrial environments.
Electrical:
| Feature | Specification |
|---|---|
| Input Voltages | 120 VAC (96–132 V RMS, 47–63 Hz) |
| 230 VAC (192–264 V RMS, 47–63 Hz) | |
| 24 VDC (19.2–30.0 VDC) | |
| Output Voltage | 24 VDC (20.5–29.0 VDC @ 0.15 A max) |
| Output Ripple and Noise | 2.5 V peak-to-peak @ 100/120 Hz max |
| Electrical Immunity | ESD IEC 801-2, level 3 |
| Radiated EMI IEC 801-3, level 3 | |
| Fast transient IEC 801-4, level 2 | |
| Surge transient IEC 801-5, level 3 | |
| Input Power Interrupt | AC < 0.5 ms with no effect |
| DC < 1 ms with no effect | |
| Isolation Voltages | AC in to system ground: 1780 V RMS, 1 min |
| AC in to chassis ground: 1780 V RMS, 1 min | |
| DC in to system ground: 500 V RMS, 1 min |
Environmental Specifications:
| Feature | Specification |
|---|---|
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to +85 °C |
| Relative Humidity | 95% non-condensing |
| Altitude | 3800 m (15,000 ft) |
| Shock Resistance | 30 g for 11 ms, 3 pulses/axis, up to 18 pulses |
| Vibration Resistance | 10-62 Hz @ 0.075 mm displacement, 62-500 Hz @ 1 g |
| Duration | 23 min at 2 sweeps/axis, 1 octave/min |
Dimensions and Weight:
| Feature | Specification |
|---|---|
| Height (including I/O terminal blocks) | 158.75 mm (6.25 in) |
| Width | 254 mm (10 in) |
| Depth | 76 mm (3 in) |
| Weight | 1.45 kg (3.2 lb) |
Agency Approvals:
- FM Class I, Div. 2 approved (except for model 61204, which is pending)
- UL 508 Listed for Industrial Control Equipment
- CSA 142 Certified for Process Control Equipment
- CE Compliance: To maintain compliance with the European EMC Directive (89/336/EEC), the Micro controller must be installed as per the installation instructions.
