Product Description
Product Overview

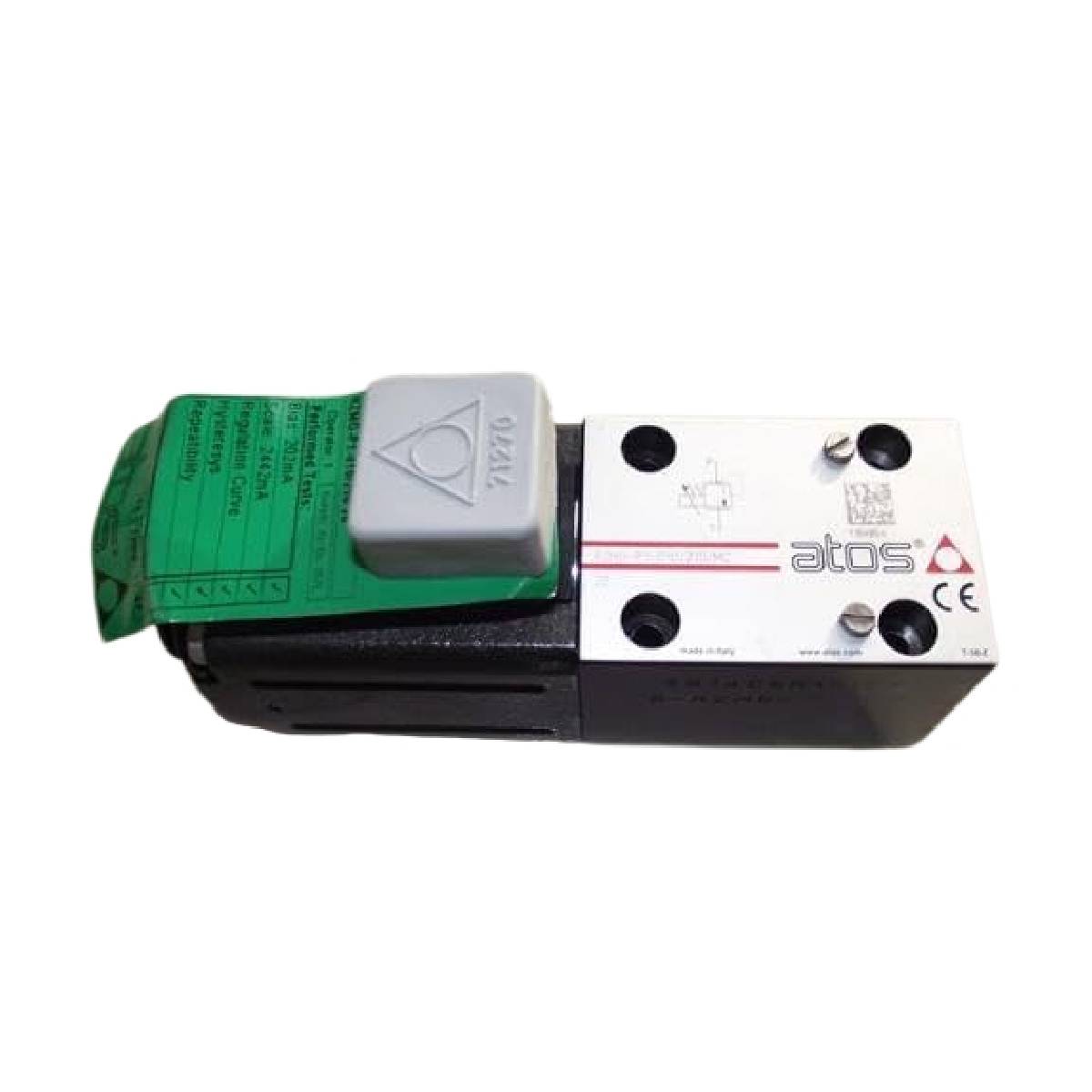

The ATOS RZMO-P1-04-A-010/100 20 is a Proportional Pressure Relief Valve designed for precise hydraulic pressure regulation in industrial applications. Manufactured by ATOS, an Italian leader in electrohydraulic components, this valve integrates into systems requiring controlled pressure relief, such as those in manufacturing, oil and gas, and machinery automation. It features a size 06 (ISO 6264 standard) subplate mounting and operates with a maximum pressure of 350 bar, delivering a flow rate up to 40 l/min. The valve is pilot-operated, offering a pressure range up to 100 bar, and is engineered for reliability in ambient temperatures from -20 °C to +70 °C, making it suitable for harsh industrial environments.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | ATOS |
| Series | RZMO |
| Model/Part Number | RZMO-P1-04-A-010/100 20 |
| Description | Proportional Pressure Relief Valve |
| Size | 06 (ISO 6264 standard) |
| Maximum Operating Pressure (Port P) | 350 bar |
| Maximum Operating Pressure (Port T) | 120 bar |
| Pressure Range | Up to 100 bar |
| Maximum Flow Rate | 40 l/min |
| Ambient Temperature Range | -20 °C to +70 °C (-4 °F to +158 °F) |
| Hydraulic Fluid Temperature Range | -20 °C to +60 °C (-4 °F to +140 °F) |
| Viscosity Range | 15 to 100 mm²/s |
| Power Consumption | 30 W |
| Connection | Subplate mounting |
| Weight | 1.8 kg (3.97 lb) |
