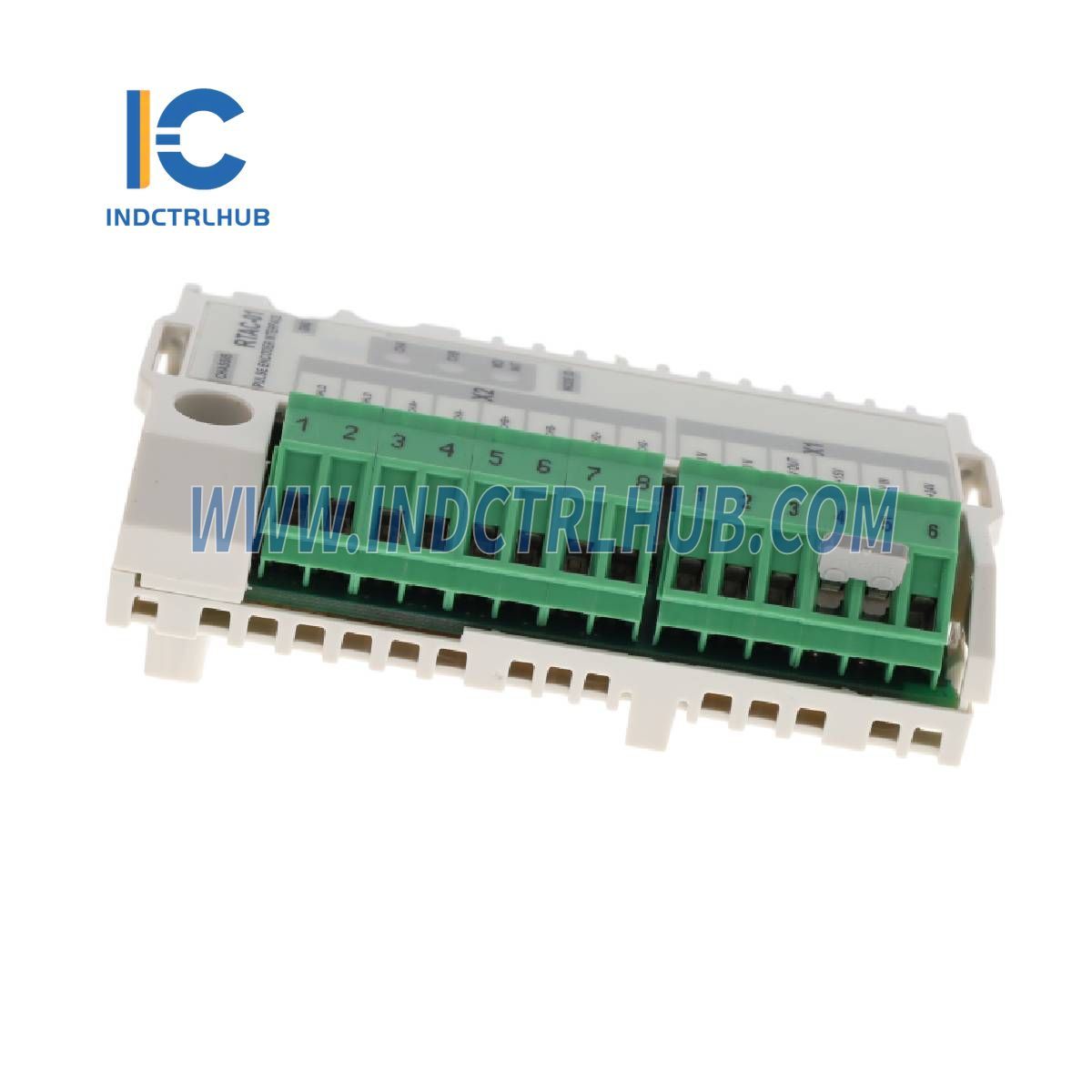

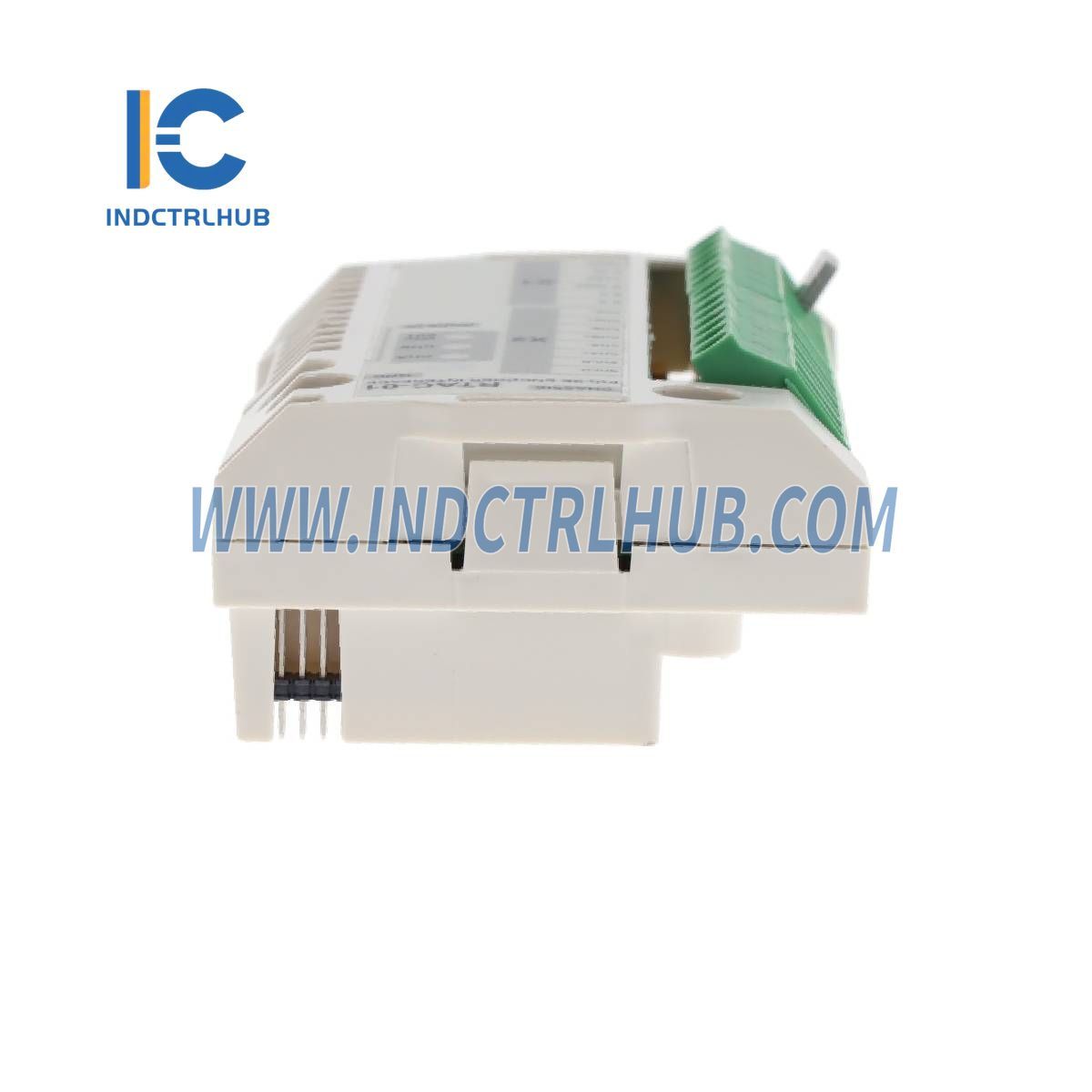

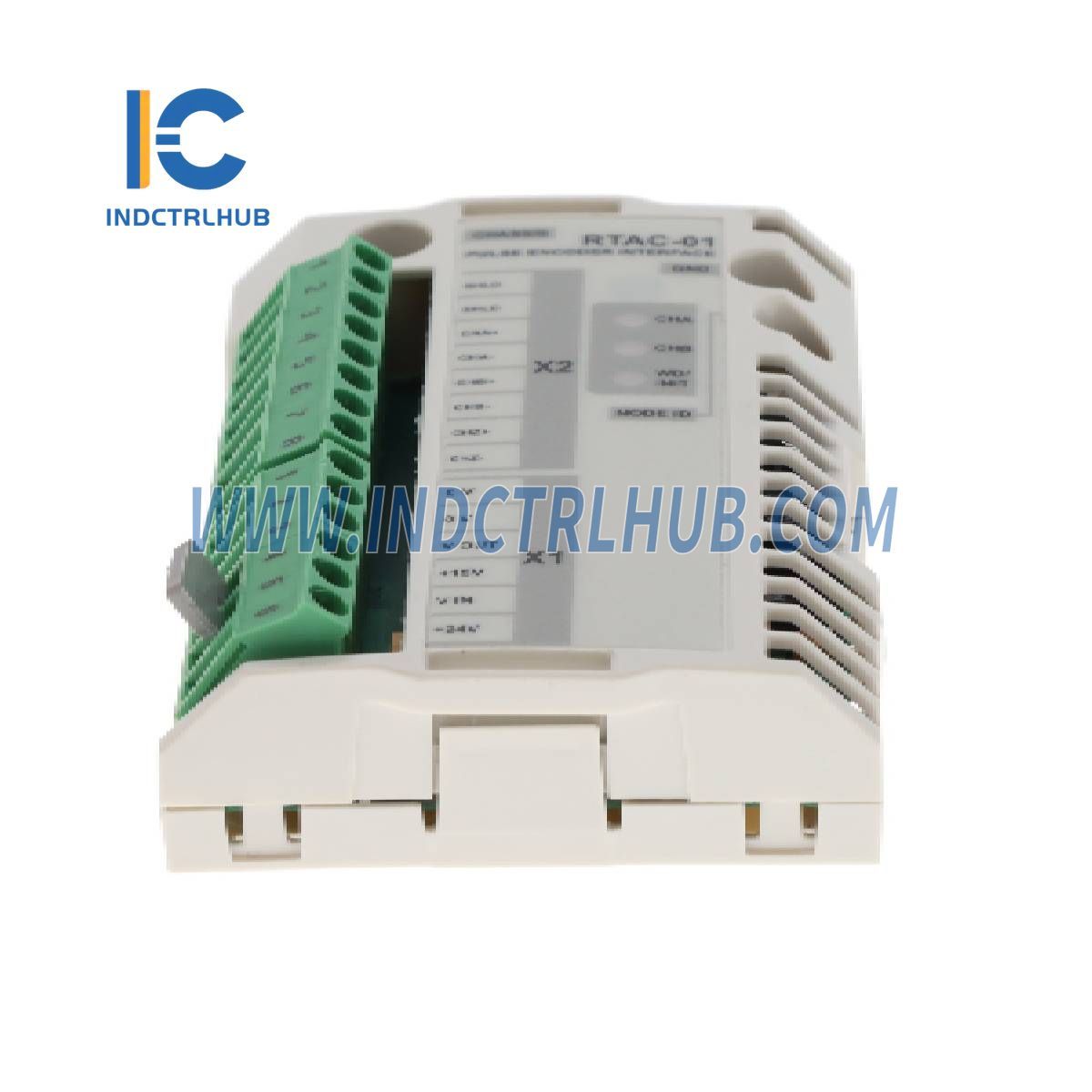

RTAC-01 | ABB Interface Module

RTAC-01 | ABB Interface Module

  • Manufacturer: ABB

  • Product No.: RTAC-01

  • Condition:1000 in stock

  • Product Type: Interface Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 150g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

  • Manufacturer: ABB
  • Model/Part Number: RTAC-01
  • Model Type: Interface Module
  • Description: The ABB RTAC-01 is a Pulse Encoder Interface Module designed to connect digital pulse encoders to ABB ACS800 series drives. It enables precise speed and position feedback from motor shafts, supporting both differential and single-ended encoder signals. The module is typically used in industrial automation applications requiring accurate motion control, such as in manufacturing, material handling, and process industries.

Technical Specifications

Specification Details
Type Pulse Encoder Interface Module
Compatibility Designed for ABB ACS800 series drives (Standard Application Program ASXR7000 or later)
Encoder Signal Support Differential or single-ended signals
Supply Voltage 15 V or 24 V DC (configurable via jumper)
Power Consumption Max 140 mA (5 V) + 55 mA (24 V) without external supply; can supply 5 W to encoder without external power
Maximum Frequency Up to 200 kHz
Connectors 38-pin parallel bus connector, two non-detachable screw-type terminal blocks (6-pole and 8-pole, max 2.5 mm² wire)
Isolation Input channels isolated from logic, power supply, and earth; withstand voltage 1.5 kV AC for 1 minute
Operating Temperature 0°C to +55°C
Dimensions Designed for SLOT 1 or SLOT 2 on ACS800 drives (specific dimensions vary by drive)
Weight Approximately 0.15 kg
Application Industrial automation requiring precise speed or position feedback (e.g., motor control in manufacturing, conveyors, robotics)
