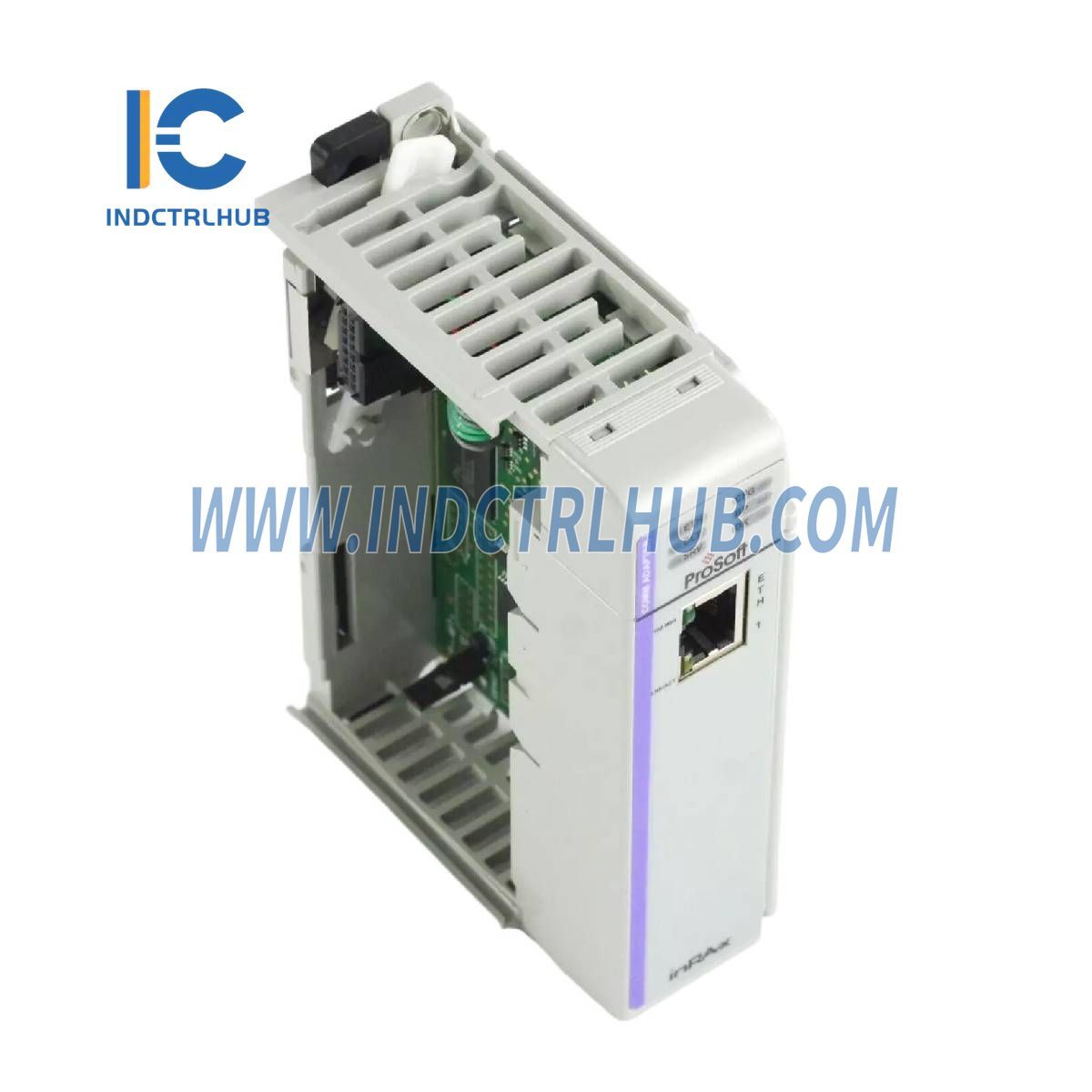

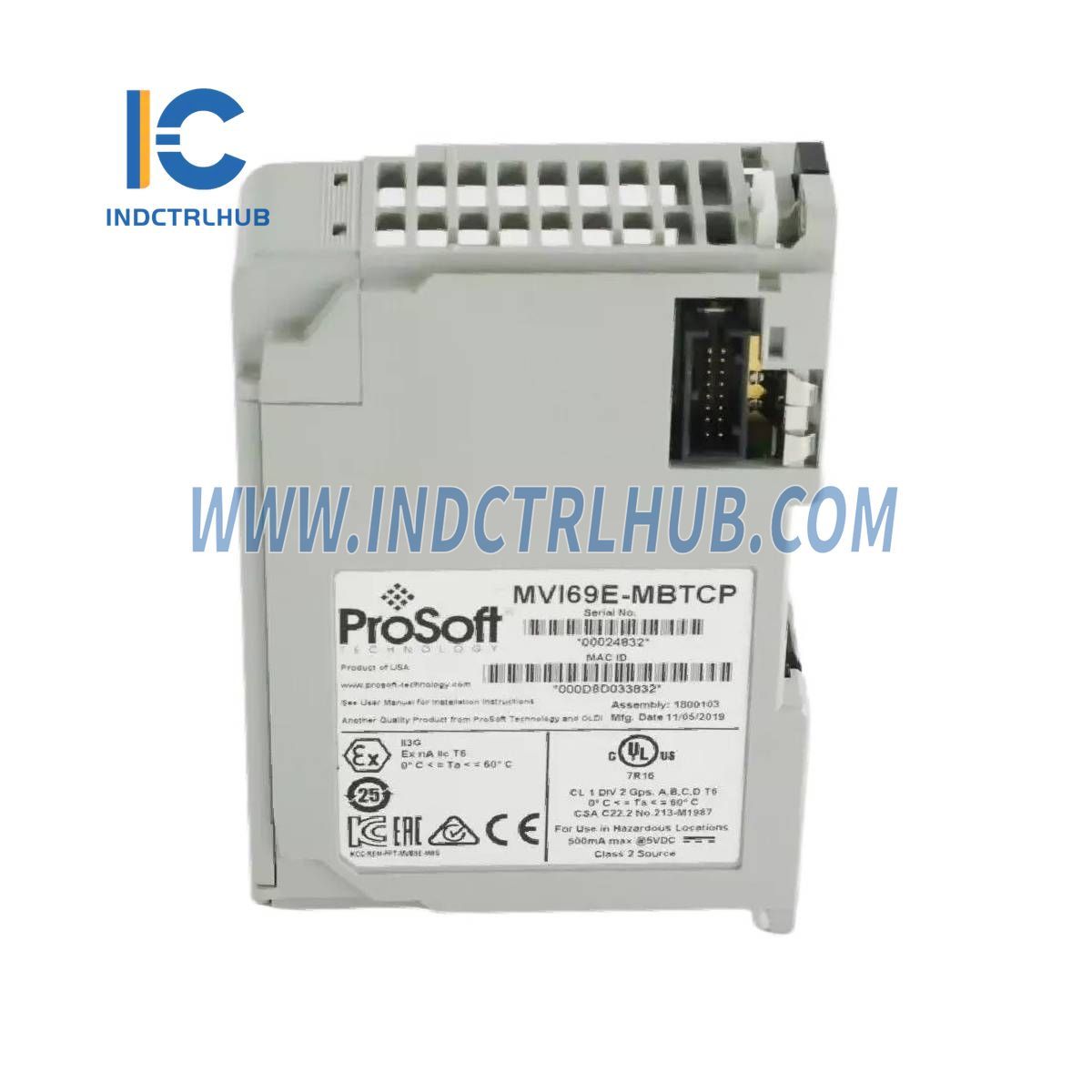

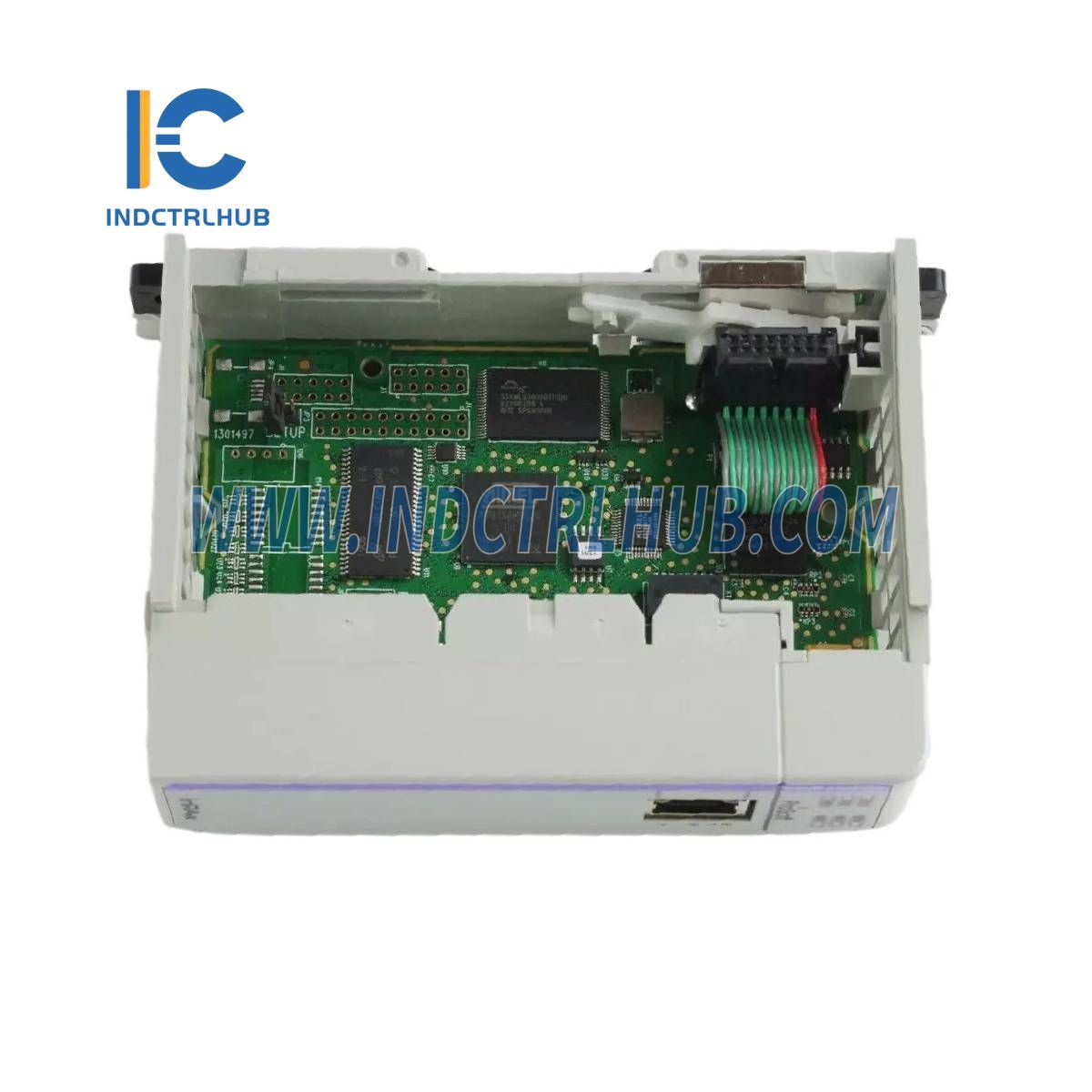

ProSoft MVI69E-MBTCP Modbus TCP/IP Enhanced Communication Module

Model/Part Number

MVI69E-MBTCP

Description

Modbus TCP/IP Enhanced Communication Module

Dimensions

Standard 1769 Single-slot module

Current Load

500 mA max @ 5 VDC

Power Supply Distance Rating

4 (L43 and L45 installations on first 2 slots of 1769 bus)

Operating Temperature

32°F to 140°F (0°C to 60°C)

Storage Temperature

-40°F to 185°F (-40°C to 85°C)

Relative Humidity

5% to 95% (with no condensation)

LED Indicators

Module OK Status, Backplane Activity, Ethernet Port Activity, Configuration Activity

Application/Diagnostics Port (ETH 1)

Diagnostics over Ethernet connection

Ethernet Port

RJ45 Port

Communication Parameters

Supports Modbus MBAP and encapsulated (Server) messaging

Ethernet Interface

10/100 Base-T Ethernet-compatible

Modbus Modes

- Client Driver: Supports up to 20 connections for active reading and writing of data with Modbus TCP/IP-compatible devices.  - Server Driver: Supports up to 5 Modbus TCP/IP clients using Service Port 502 with standard MBAP messaging, and up to 5 clients using Modbus RTU/ASCII on Service Port 2000 (and others).

Floating-Point Data

Floating-point data movement supported, including configurable support for Enron, Daniel®, and other implementations.

1

Read Coil Status

2

Read Input Status

3

Read Holding Registers

4

Read Input Registers

5

Force (Write) Single Coil

6

Preset (Write) Single Holding Register

8

Diagnostics (Server Only, Responds to Subfunction 00)

15

Force (Write) Multiple Coils

16

Preset (Write) Multiple Holding Registers

17

Report Slave ID (Server Only)

22

Mask Write Holding Register (Server Only)

23

Read/Write Holding Registers (Server Only)
