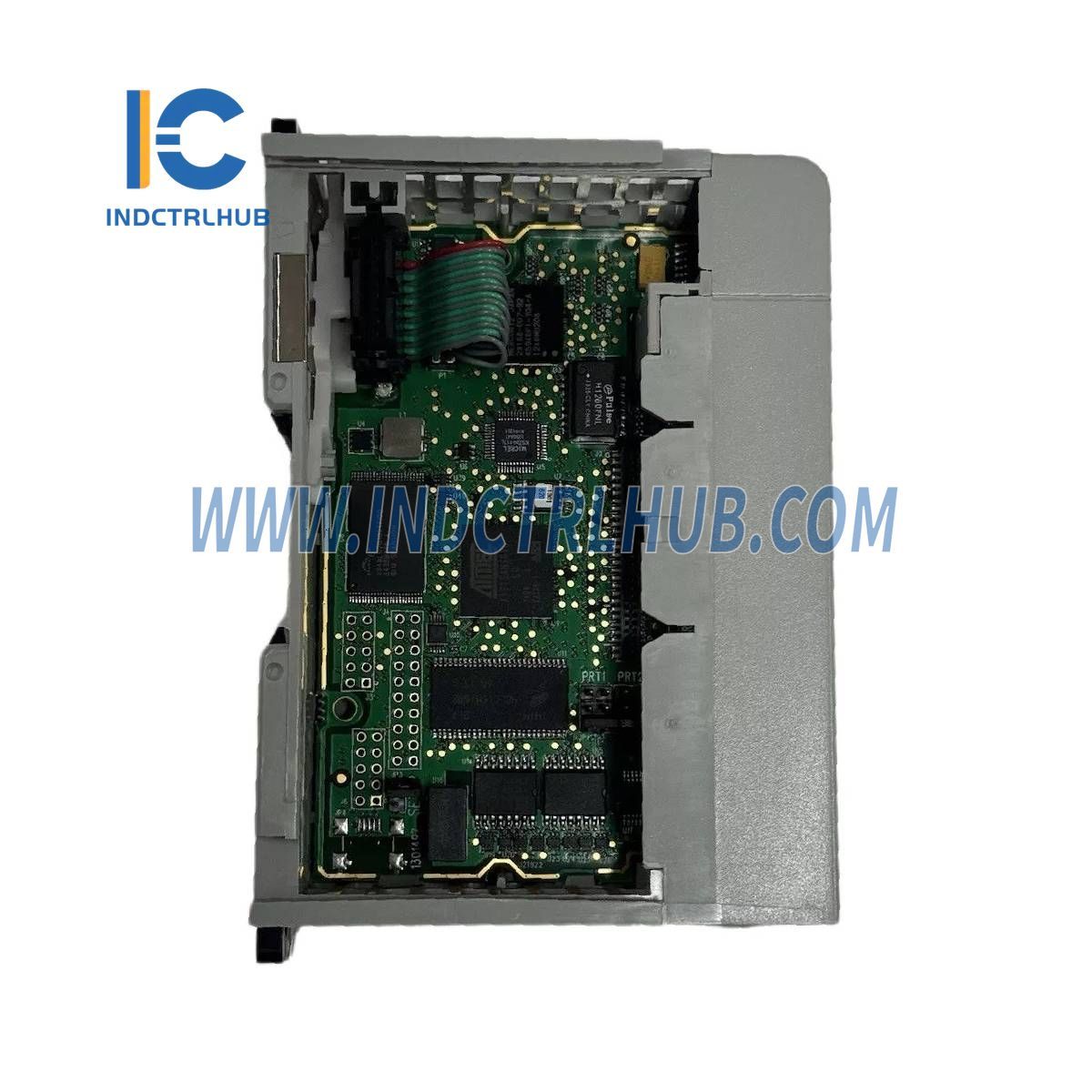

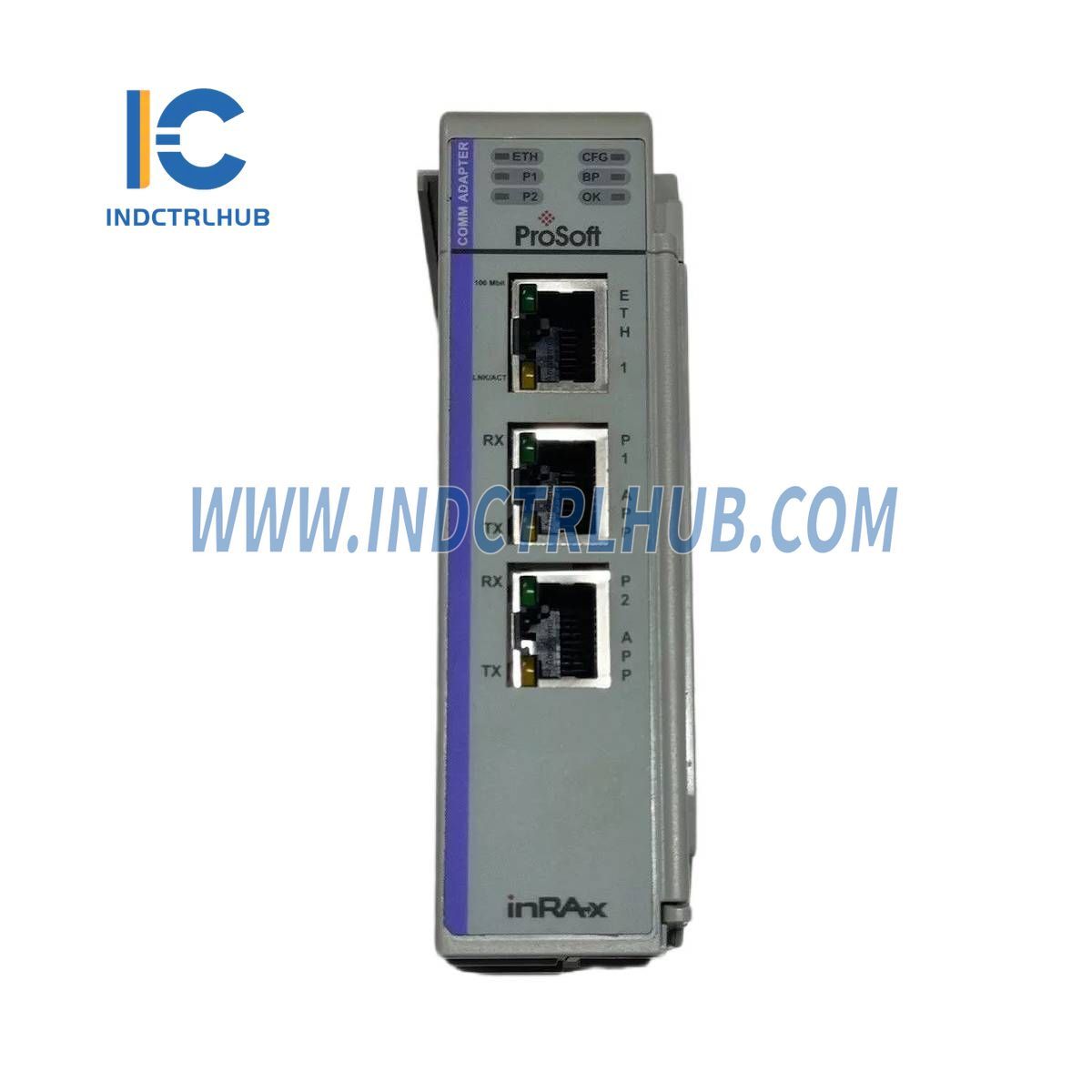

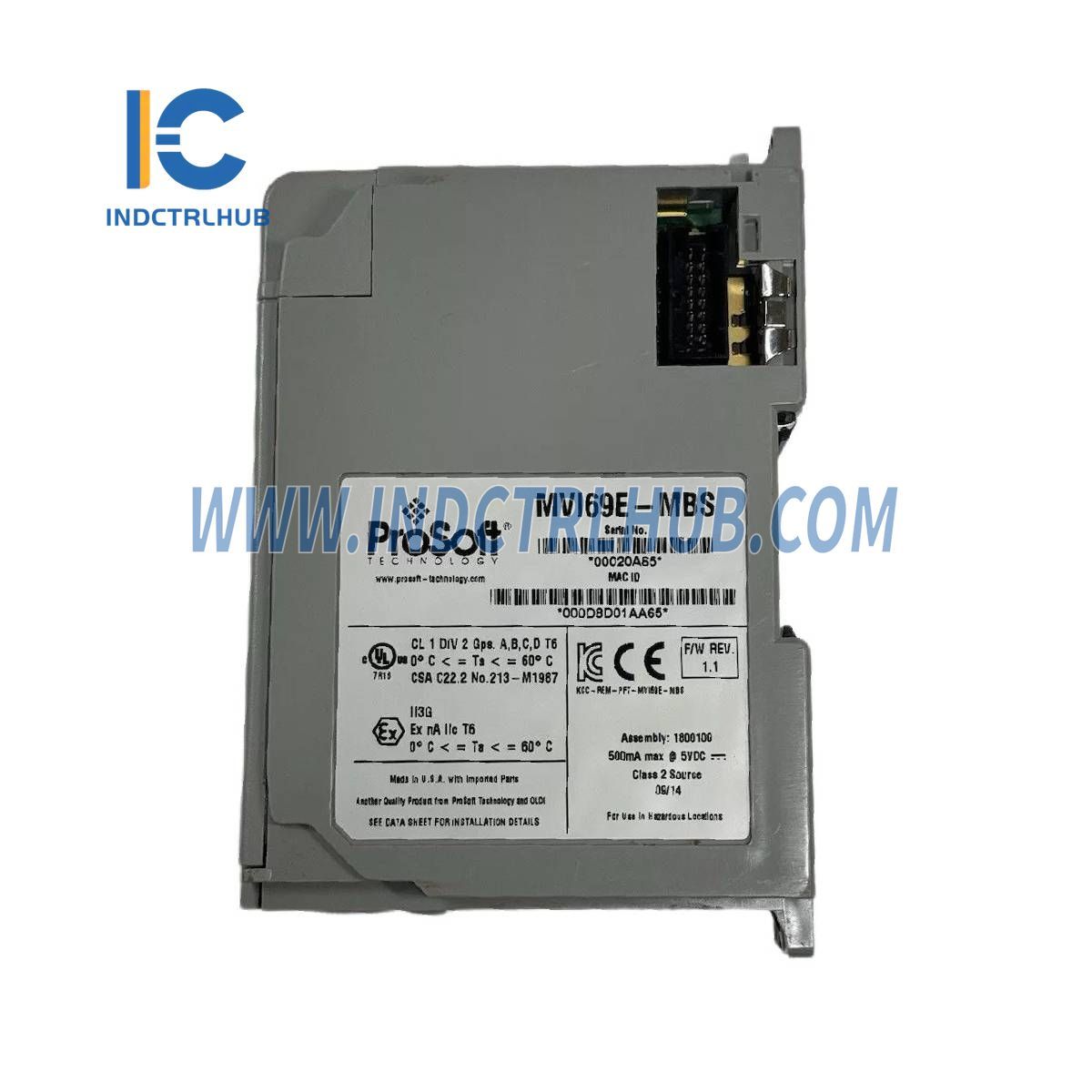

ProSoft MVI69E-MBS Modbus Serial Enhanced Communication Module

ProSoft MVI69E-MBS Modbus Serial Enhanced Communication Module

  • Manufacturer: ProSoft

  • Product No.: MVI69E-MBS

  • Condition:1000 in stock

  • Product Type: Modbus Serial Enhanced Communication Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

Manufacturer

Prosoft

Model/Part Number

MVI69E-MBS

Description

Modbus Serial Enhanced Communication Module

Product Specifications


The MVI69E-MBS module allows Rockwell Automation® CompactLogix or MicroLogix 1500-LRP® I/O compatible processors to interface easily with other Modbus protocol compatible devices.


Hardware Specifications

Specification

Description

Dimensions

Standard 1769 Single-slot module

Current Load

500 mA max @ 5 VDC

Power Supply Distance Rating

4 (L43 and L45 installations on first 4 slots of 1769 bus)

Operating Temperature

32°F to 140°F (0°C to 60°C)

Storage Temperature

-40°F to 185°F (-40°C to 85°C)

Relative Humidity

5% to 95% (with no condensation)

LED Indicators

Module OK Status, Backplane Activity, Ethernet Port Activity, Configuration Activity

CFG Port (ETH)

Diagnostics over Ethernet connection

Application Ports (P1, P2)

RS-232, RS-485, or RS-422 (jumper selectable)

RJ45 Port

DB-9F with supplied cable

Electrical Isolation

500V Optical isolation from backplane

Shipped with Unit

RJ45 to DB-9M cables for each application port

General Specifications - Modbus Master/Slave

Specification

Description

Baud Rate

110 to 115K baud

Stop Bits

1 or 2

Data Size

7 or 8 bits

Parity

None, Even, Odd

RTS Timing Delays

0 to 65535 milliseconds

Modbus Modes

RTU mode (binary) with CRC-16, ASCII mode with LRC error checking

Floating-Point Data

Floating-point data movement supported, including configurable support for Enron, Daniel®, and other implementations

Modbus Function Codes Supported

Function Code

Description

1

Read Coil Status

2

Read Input Status

3

Read Holding Registers

4

Read Input Registers

5

Force (Write) Single Coil

6

Preset (Write) Single Holding Register

8

Diagnostics (Slave Only, Responds to Subfunction 00)

15

Force (Write) Multiple Coils

16

Preset (Write) Multiple Holding Registers

17

Report Slave ID (Slave Only)

22

Mask Write Holding Register (Slave Only)

23

Read/Write Holding Registers (Slave Only)



View full details
