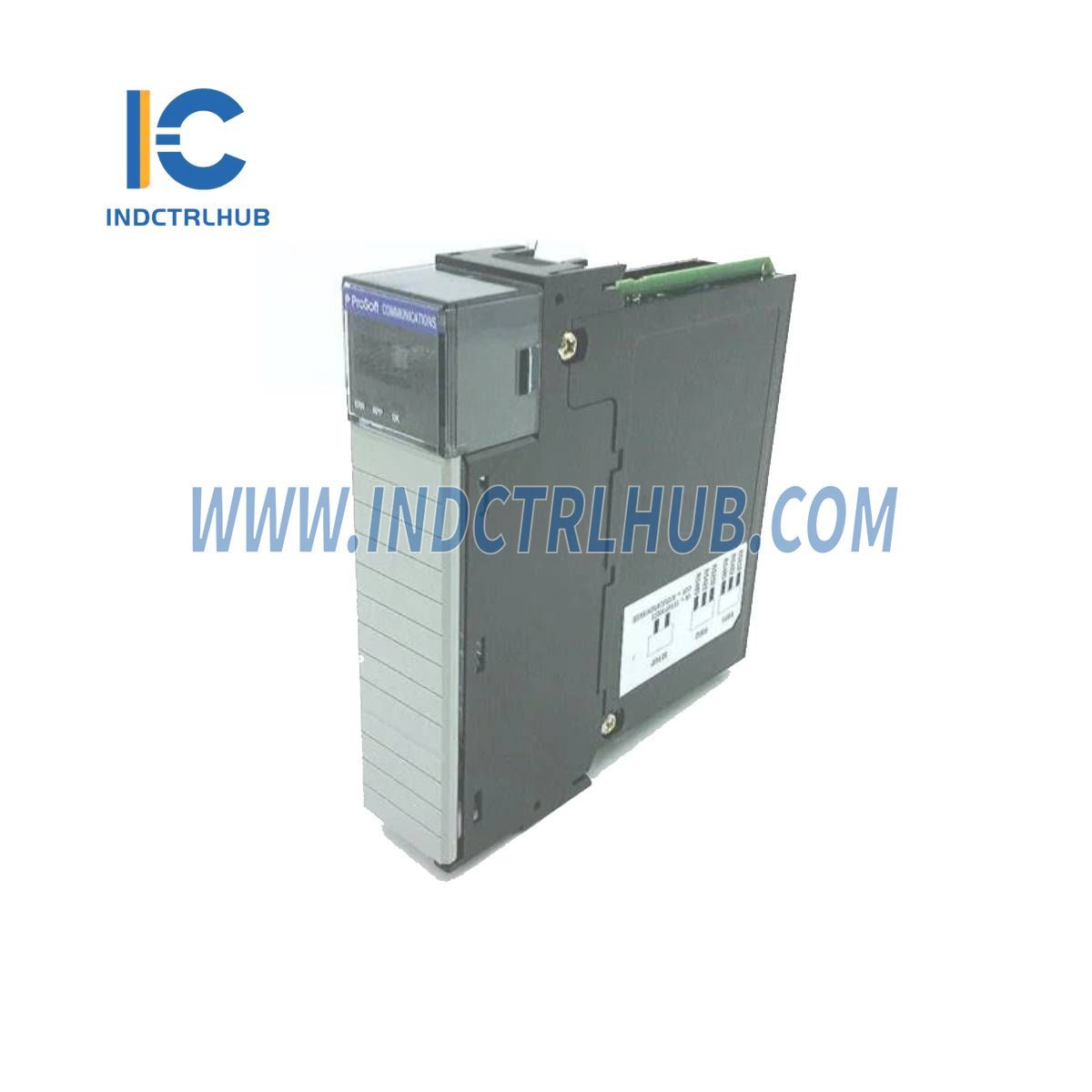

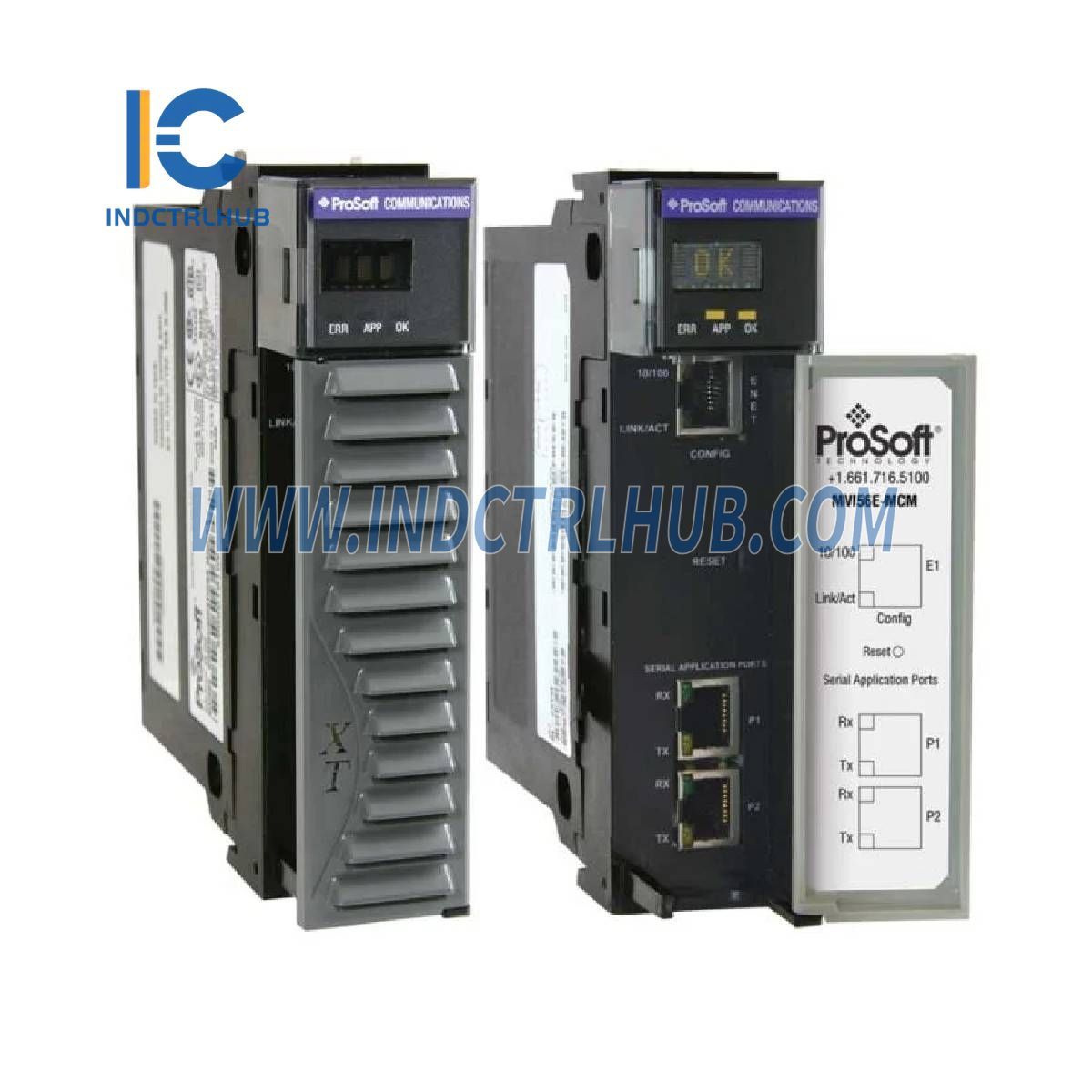

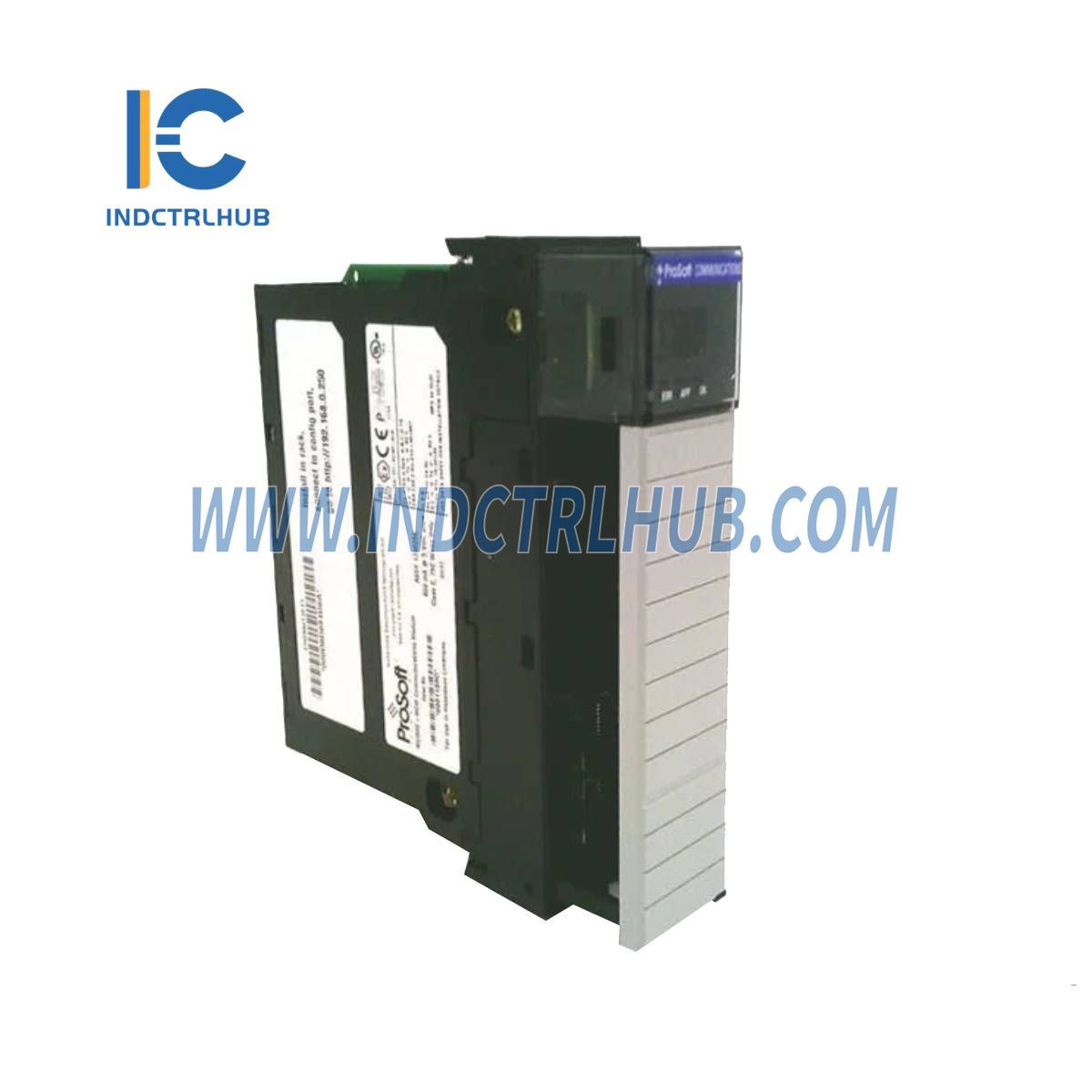

ProSoft MVI56E-MCM Modbus Communication Module

ProSoft MVI56E-MCM Modbus Communication Module

  • Manufacturer: ProSoft

  • Product No.: MVI56E-MCM

  • Condition:1000 in stock

  • Product Type: Modbus Communication Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Allen-Bradley ProSoft MVI56E-MCM Modbus Communication Module

Product Overview

The Allen-Bradley ProSoft MVI56E-MCM is a Modbus Master/Slave Communication Module designed for ControlLogix® systems. It enables high-speed, reliable data exchange between ControlLogix processors and Modbus-compatible devices.


Technical Specifications

General Specifications

Attribute Specification
Backplane Compatibility Single-slot, 1756 ControlLogix backplane
Ethernet Port 10/100 Mbps, RJ45, Auto Crossover Detection
Data Memory Mapping Up to 10,000 16-bit registers
Network Diagnostics CIPconnect®-enabled
Configuration & Monitoring EtherNet/IP pass-thru communication
Programming Support Sample Ladder Logic / Add-On Instruction (AOI)

Modbus Communication Specifications

Attribute Specification
Baud Rate 110 to 115K baud
Data Bits 7 or 8
Parity None, Even, Odd
Stop Bits 1 or 2
RTS Timing Delays 0 to 65535 ms
Supported Modbus Modes RTU (Binary with CRC-16), ASCII (with LRC error checking)
Floating-Point Data Support Enron, Daniel®, and other implementations




Hardware Specifications

Attribute Specification
Backplane Power Consumption 800 mA @ 5V DC, 3 mA @ 24V DC
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Shock Resistance 30g (Operational), 50g (Non-Operational)
Vibration Resistance 5g from 10–150 Hz
Relative Humidity 5% to 95% (Non-Condensing)
Conformal Coating Option Available with MVI56E-MCMXT


View full details

Product Description

Allen-Bradley ProSoft MVI56E-MCM Modbus Communication Module

Product Overview

The Allen-Bradley ProSoft MVI56E-MCM is a Modbus Master/Slave Communication Module designed for ControlLogix® systems. It enables high-speed, reliable data exchange between ControlLogix processors and Modbus-compatible devices.


Technical Specifications

General Specifications

Attribute Specification
Backplane Compatibility Single-slot, 1756 ControlLogix backplane
Ethernet Port 10/100 Mbps, RJ45, Auto Crossover Detection
Data Memory Mapping Up to 10,000 16-bit registers
Network Diagnostics CIPconnect®-enabled
Configuration & Monitoring EtherNet/IP pass-thru communication
Programming Support Sample Ladder Logic / Add-On Instruction (AOI)

Modbus Communication Specifications

Attribute Specification
Baud Rate 110 to 115K baud
Data Bits 7 or 8
Parity None, Even, Odd
Stop Bits 1 or 2
RTS Timing Delays 0 to 65535 ms
Supported Modbus Modes RTU (Binary with CRC-16), ASCII (with LRC error checking)
Floating-Point Data Support Enron, Daniel®, and other implementations




Hardware Specifications

Attribute Specification
Backplane Power Consumption 800 mA @ 5V DC, 3 mA @ 24V DC
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Shock Resistance 30g (Operational), 50g (Non-Operational)
Vibration Resistance 5g from 10–150 Hz
Relative Humidity 5% to 95% (Non-Condensing)
Conformal Coating Option Available with MVI56E-MCMXT
