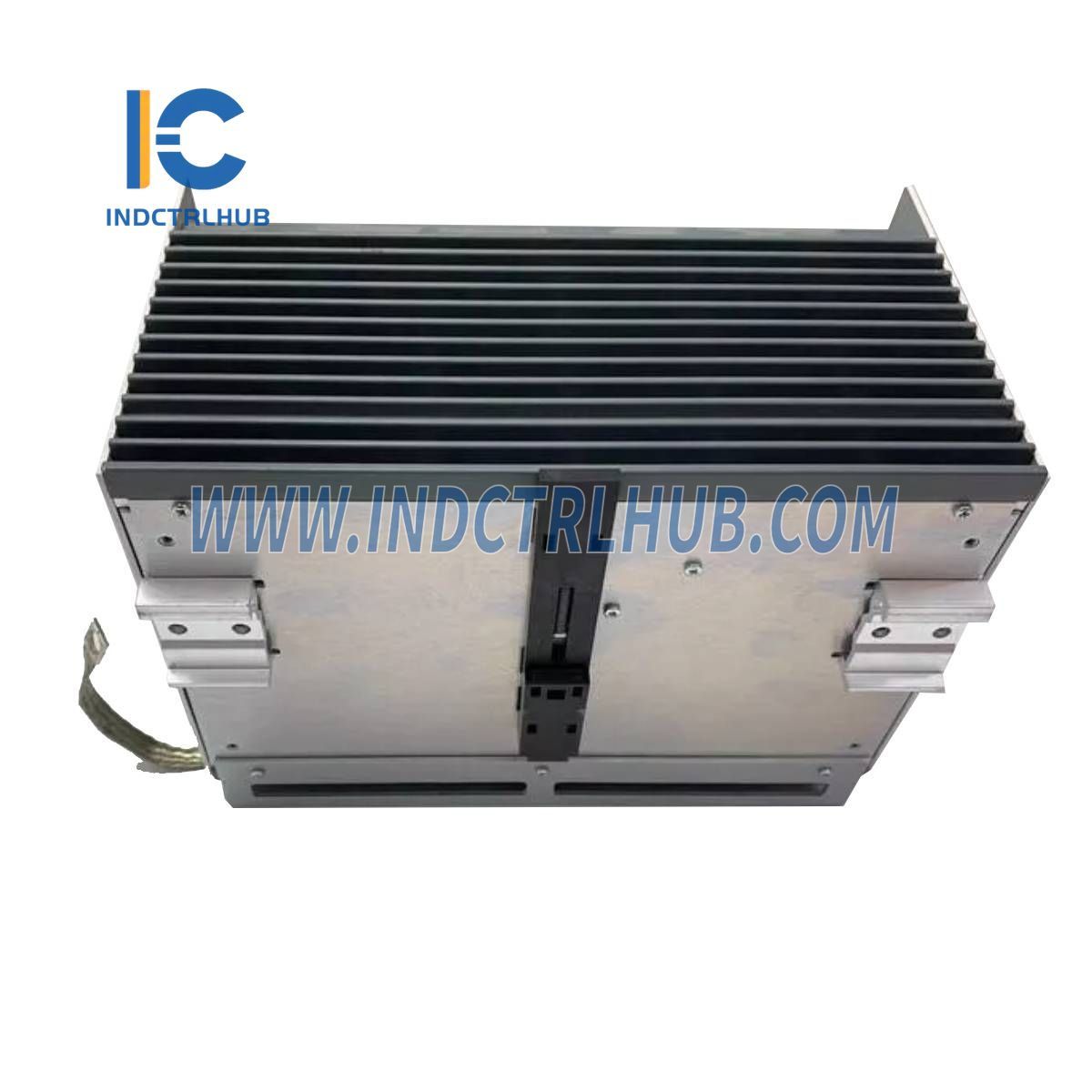

PM 803F | ABB Controller Module

PM 803F | ABB Controller Module

  • Manufacturer: ABB

  • Product No.: PM 803F

  • Condition:1000 in stock

  • Product Type: Controller Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

  • Manufacturer: ABB
  • Model/Part Number: PM 803F
  • Model Type: Controller Module
  • Description: The ABB PM 803F is a controller module from ABB’s Freelance distributed control system (DCS) family, specifically designed for use with the AC 800F series. It serves as the central processing unit for the Freelance system, managing control logic, process data, and communication with field devices and other system components. The PM 803F supports a wide range of applications in industrial automation, offering high performance and flexibility for small to medium-sized process control systems.

Technical Specifications

Specification Details
Type Controller Module
Series AC 800F (Freelance DCS)
Processing Capacity High-performance processor for real-time control and data handling
Memory Typically equipped with 16 MB RAM for program and data storage
Communication Interfaces 2 Ethernet ports, 2 serial ports (RS-232/RS-485), supports PROFIBUS and other fieldbus modules via expansion
Supported Protocols Modbus, PROFIBUS DP, Ethernet-based protocols
Power Supply 24 V DC
Operating Temperature 0°C to +55°C
Redundancy Supports redundancy with a second PM 803F for high availability
Dimensions Approximately 12.5 cm (H) x 15.5 cm (W) x 2.8 cm (D)
Weight Approximately 0.3 kg
Application Industrial process control, small to medium-sized automation systems
