Product Description
Product Details
Manufacturer: BACHMANN
Model/Part Numbers: PCC201/32, PCC201/64, A-PCC200
Description:

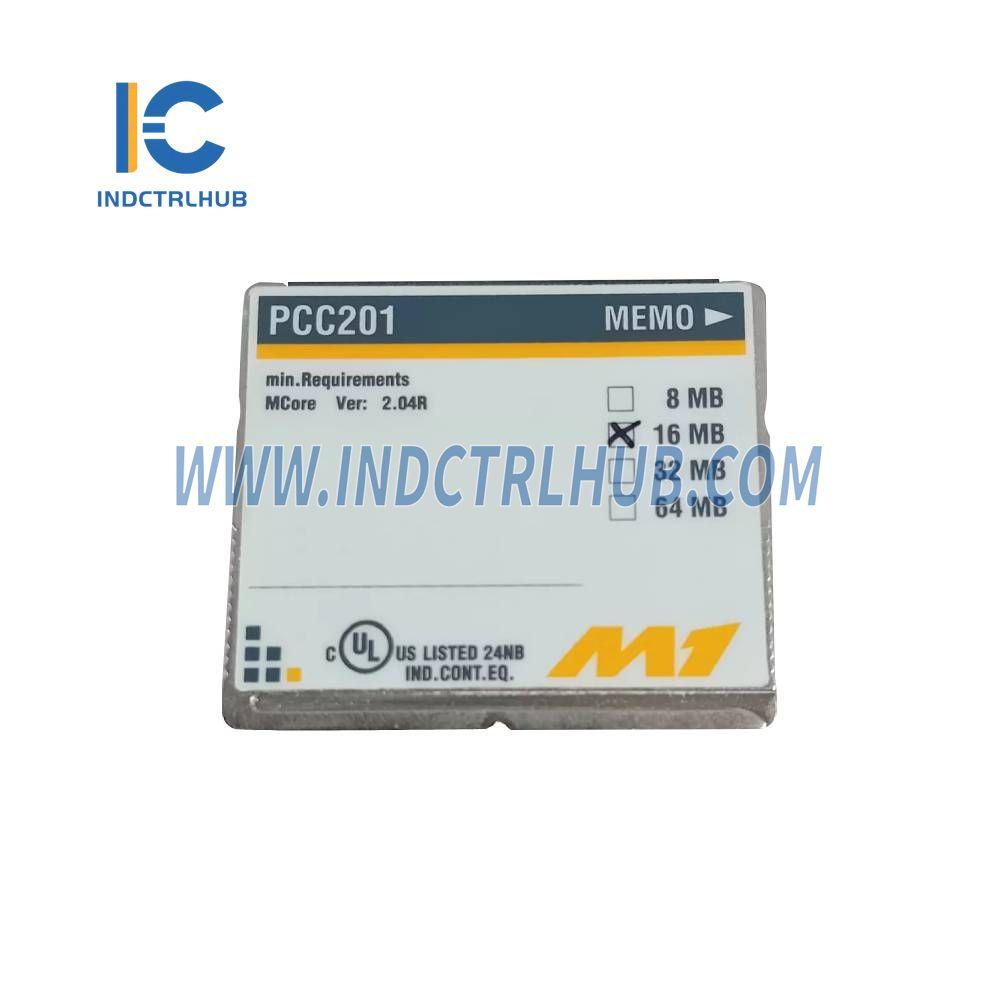

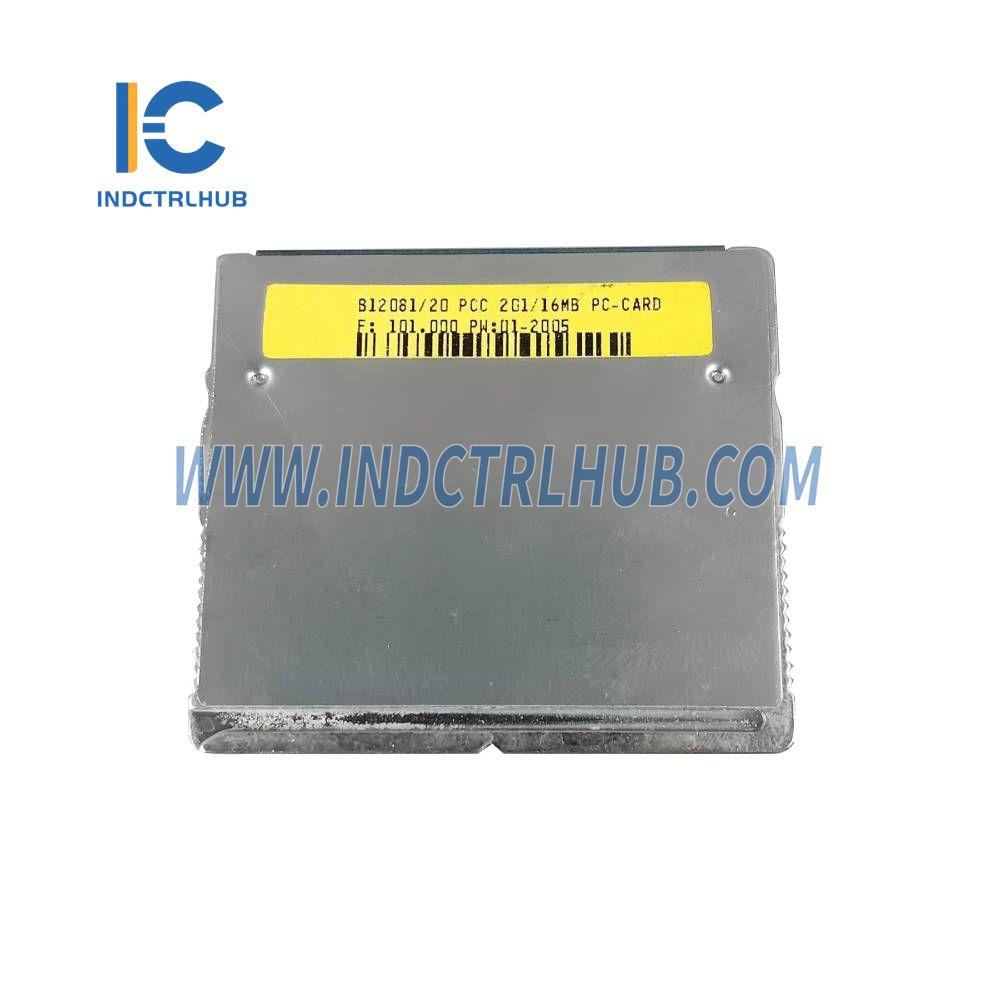

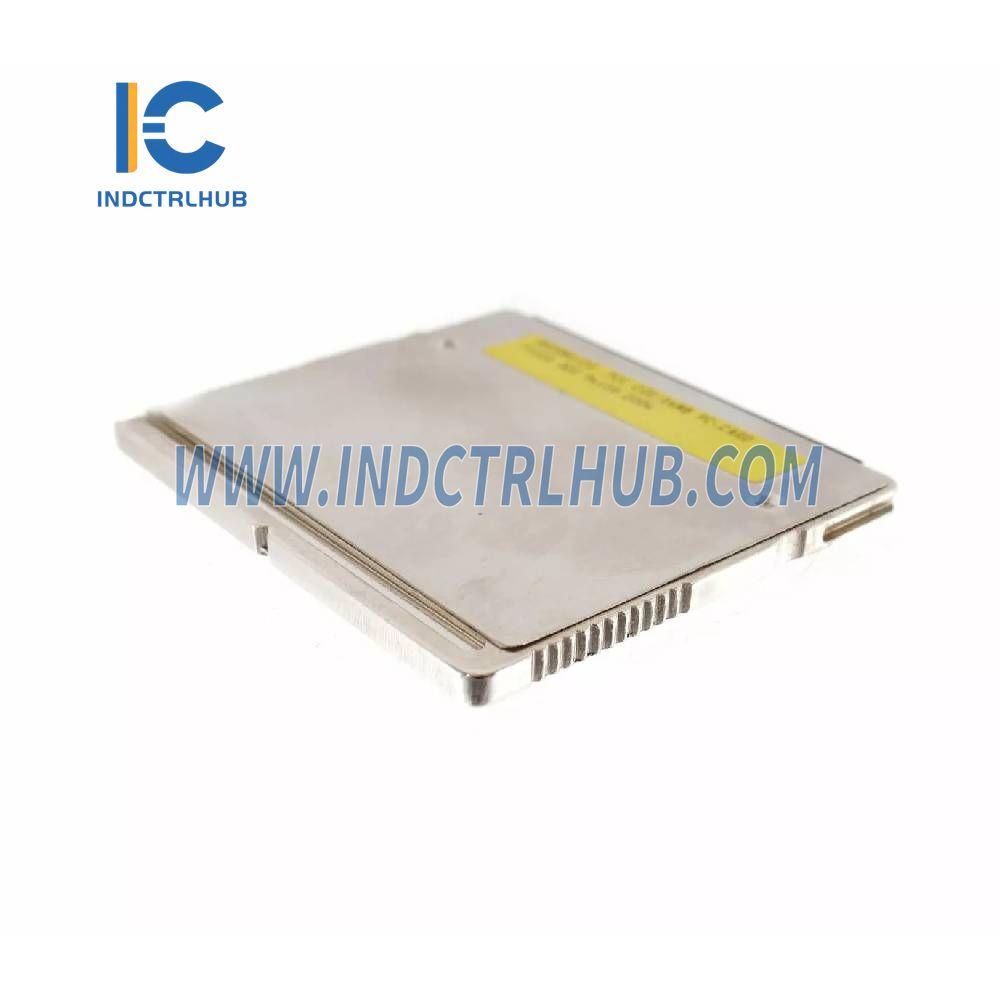

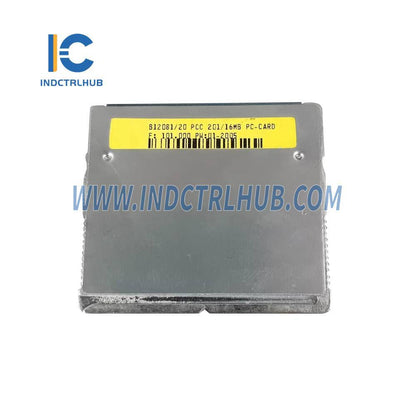

The PCC201/xx PC cards are designed as storage media for the M1 controller. Depending on the memory capacity, the cards can store the operating system, drivers, application software, source code, and documentation.
- Can be written to and formatted directly in all M1 controller processor modules
- Compatible with PCs and notebooks via the A-PCC200 adapter for PCMCIA slots
- Entirely in-house production ensures long-term supply
- Memory capacity options: 32 MB / 64 MB
-
Features:
- Access width: 16 bits
- Designed as a 5 V card
- Program voltage: 12 Vss
- Write protection via operating software
Item Numbers:
| Model | Item Number |
|---|---|
| PCC201/32 | 00012081-30 |
| PCC201/64 | 00012081-40 |
| A-PCC200 | 00009540-00 |
Basic Data:
| Parameter | Specification |
|---|---|
| Register No | CMR (Component Management Register) |
| Powerdown mode | Not possible |
| Information | All data stored in CIS (Card Information Structure) |
Operating Voltages:
| Parameter | Specification |
|---|---|
| Operating voltage | 5 V (minimum 3 V for FLASH memory) |
| Program voltage | 12 V |
Ambient Conditions:
| Condition | Specification |
|---|---|
| Operating temperature | 0°C to +60°C |
| Rel. humidity (operation) | 5% to 95% (non-condensing) |
| Storage temperature | -40°C to +85°C |
| Rel. humidity (storage) | 5% to 95% (non-condensing) |
Execution Variants:
| Model | Description |
|---|---|
| PCC201/32 | PC Card with 32 MB memory |
| PCC201/64 | PC Card with 64 MB memory |
| A-PCC200 | Adapter for PCC cards |
