Product Description
Manufacturer: BACHMANN
Model/Part Number: PATI216

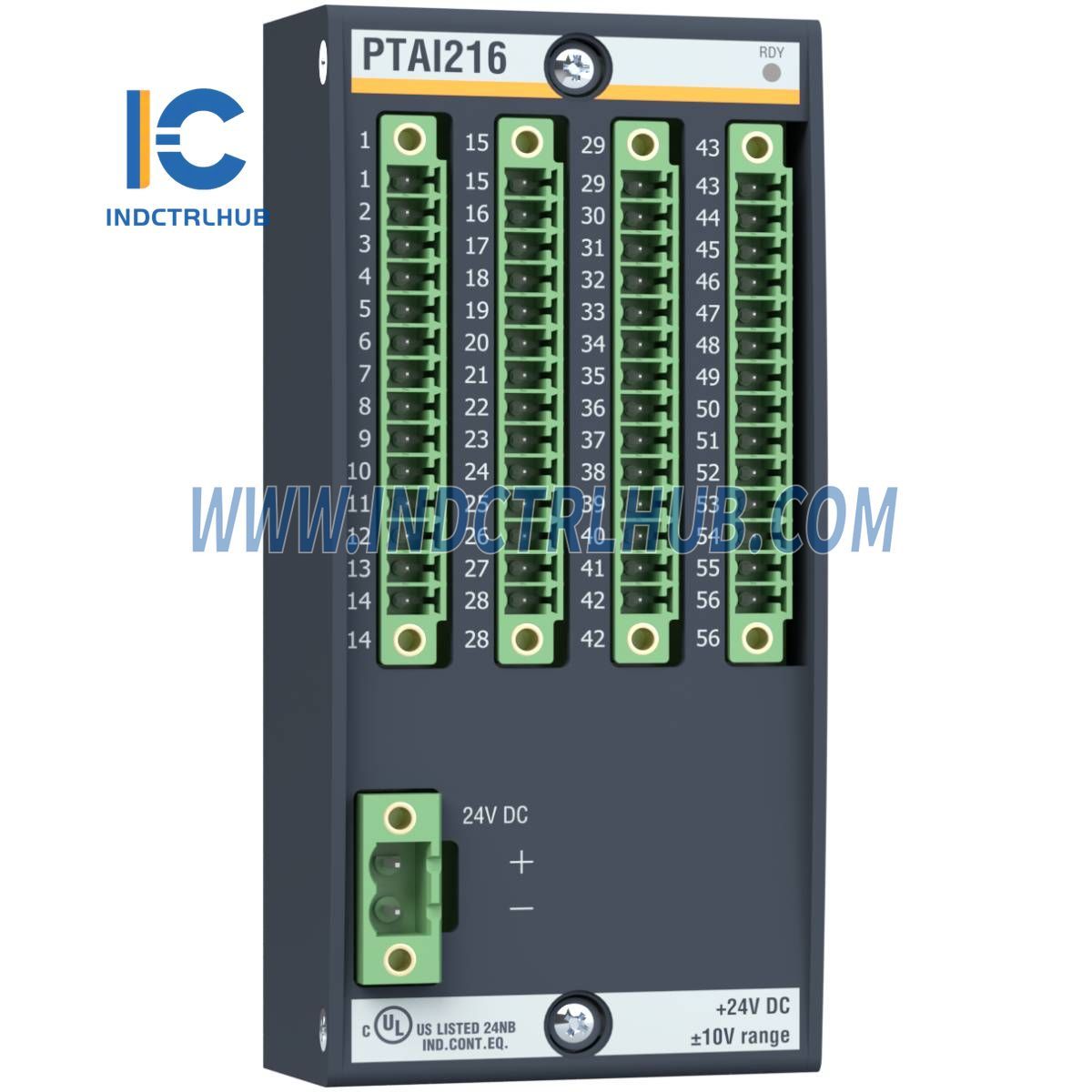

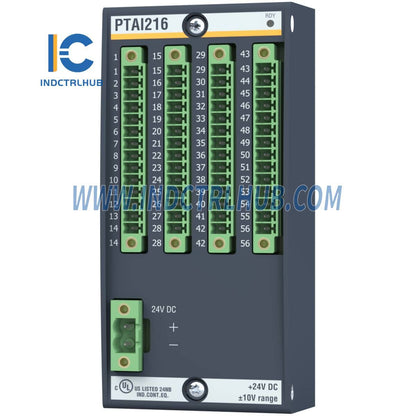

Description: Temperature Recording Module
Part Numbers:
-
PTAI216: 00010708-00
-
PTAI216 CC: 00017456-00
Voltage Inputs:
| Parameter |
Value |
| Quantity |
Max. 4 |
| Connection Type |
Single-ended or differential |
| Input Voltage |
±1 V or ±10 V |
| Input Impedance |
> 33 kΩ |
| Input Filter |
170 Hz (low-pass filter 1st order) |
| Digital Resolution |
14 bit |
| Permitted Common Mode Voltage |
Max. ±1 V |
| Error at Operating Temperature |
±1 V: 25 °C → ±0.5% |
|
±1 V: 0 °C to +60 °C → ±0.5% |
|
±1 V: -30 °C to +60 °C → ±0.5% |
|
±10 V: 25 °C → ±0.1% |
|
±10 V: 0 °C to +60 °C → ±0.15% |
|
±10 V: -30 °C to +60 °C → ±0.3% |
| Common-mode Rejection |
> 60 dB |
| Sample Time |
2.5 ms |
Current Inputs:
| Parameter |
Value |
| Quantity |
Max. 4 |
| Input Current |
0 mA to 20 mA |
| Input Impedance |
243 Ω |
| Digital Resolution |
14 bit |
| Maximum Input Current |
35 mA (destruction limit) |
| Error at Operating Temperature |
0 mA to 20 mA: 25 °C → ±0.2% |
|
0 mA to 20 mA: 0 °C to +60 °C → ±0.2% |
|
0 mA to 20 mA: -30 °C to +60 °C → ±0.3% |
| Sample Time |
2.5 ms |
Pt100/Pt1000 Inputs:
| Parameter |
Value |
| Quantity |
12 |
| Connection Type |
2-wire technology |
| Temperature Range |
-100 °C to +300 °C |
| Constant Current Through Sensor |
Pt100: 3 mA, Pt1000: 0.3 mA |
| Digital Resolution |
12 bit |
| LSB Value |
0.1 K |
| Averaging |
Over 16 values per 480 ms |
External Power Supply:
| Parameter |
Value |
| Galvanic Isolation |
500 V |
| Voltage Range |
18 V DC to 34 V DC |
| Current Consumption |
Typ. 70 mA at 24 V DC |
Approvals / Certificates:
| Category |
Certificates |
| General |
CE, UKCA, cULus |
| Marine |
ABS, BV, DNV, KR, LR, NK, RINA |
Environmental Conditions:
| Parameter |
Value |
| Operating Temperature |
-30 °C to +60 °C |
| Relative Humidity (Operation) |
5 % to 95 % (non-condensing), 5 % to 95 % (with condensation) |
| Storage Temperature |
-40 °C to +85 °C |
| Relative Humidity (Storage) |
5 % to 95 % (with condensation) |
| Pollution Degree |
2 (non-condensing) |
Order Data:
| Part Type Designation |
Part Number |
Description |
| PTAI216 |
00010708-00 |
Temp. recording module; 12x Pt100/1000; 4x In ±10 V, ±1 V, 20 mA; 14 bit; 0.25%; isolated |
| PTAI216 CC |
00017456-00 |
Like PTAI216 ColdClimate (❄) |
Accessories:
| Part Type Designation |
Part Number |
Description |
| KS-PTAI216 B+C |
00012599-50 |
Terminal set cage clamp small (1x KZ 51/02; 4x KS 35/14) with labeling strip and coding elements (not for new developments) |
| KZ-PTAI216 B+C |
00026126-00 |
Terminal set Phoenix cage clamp (1x KZ 51/02; 4x KZ 35/14) with labeling strips and coding elements |
| SS-PTAI216 B+C |
00012010-50 |
Terminal set Phoenix screw side (1x KZ 51/02; 4x SS 35/14) with labeling strips and coding elements |
| SV-PTAI216 B+C |
00010870-50 |
Terminal set Phoenix screw frontside (1x SV 51/02; 4x SS 35/14) with labeling strips and coding elements |
