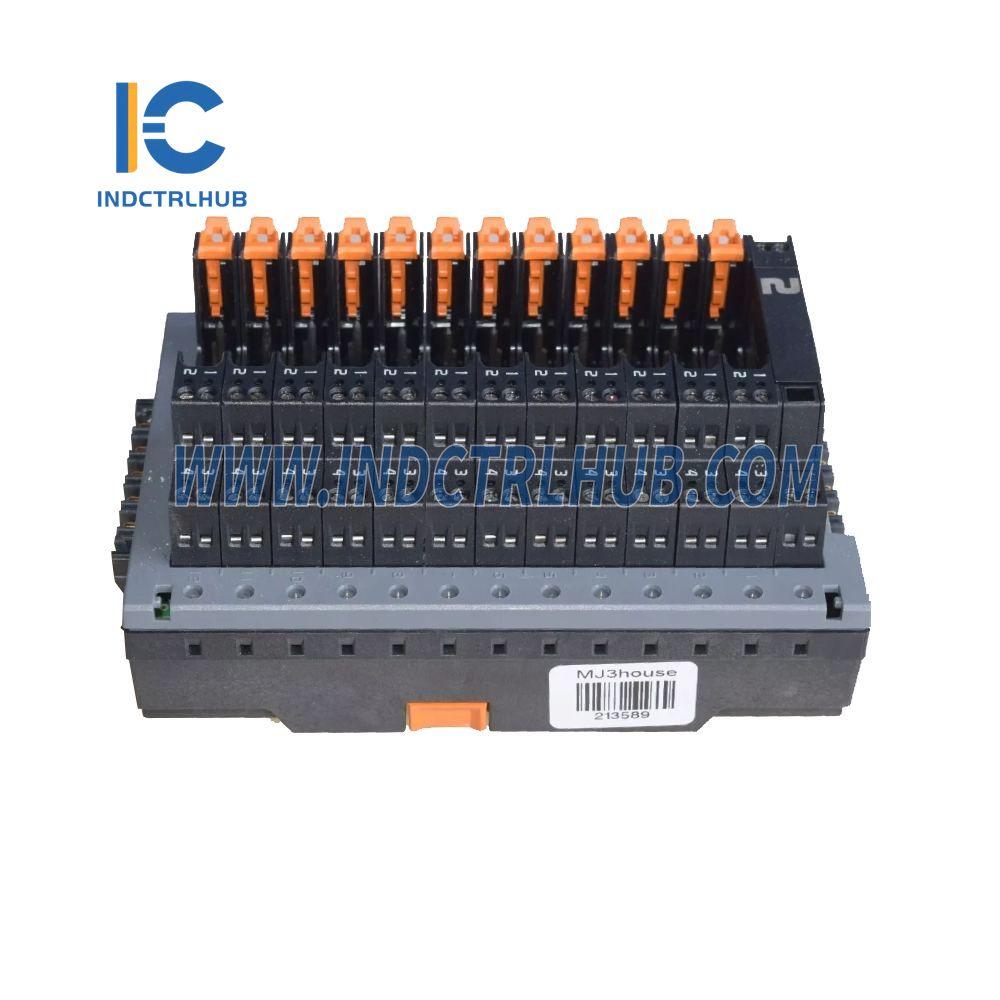

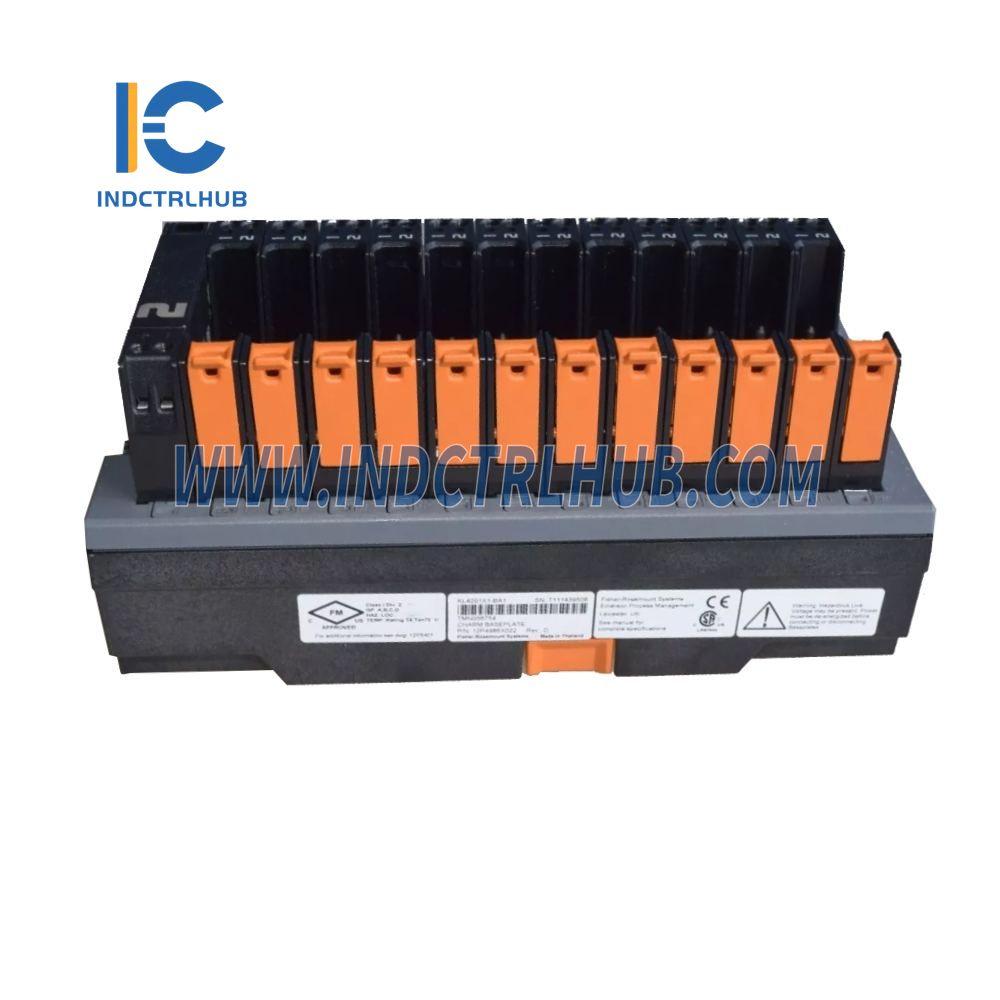

KL4201X1-BA1 Emerson I.S. CHARM Baseplate

KL4201X1-BA1 Emerson I.S. CHARM Baseplate

  • Manufacturer: EMERSON

  • Product No.: KL4201X1-BA1

  • Condition:1000 in stock

  • Product Type: Baseplate

  • Product Origin: United States

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Details:

  • Manufacturer: Emerson
  • Model/Part Number: KL4201X1-BA1
  • Description: I.S. CHARM Baseplate
Feature Details
Power Specifications - CHARM Bus Power Rating: +6.3 VDC at 7.6 A
- Field Circuit Power Rating: +24 VDC at 8.4 A
Environmental Specifications - Ambient Temperature: -40°C to +70°C
- Shock: 10g ½ sinewave for 11 msec
- Vibration: 1mm Peak to Peak (2–13.2Hz); 0.7g (13.2–150Hz)
- Airborne Contaminants: ISA-S71.04 –1985 Airborne Contaminants Class G3
- Relative Humidity: 5% to 95% non-condensing

Removal and Insertion:
This unit cannot be removed or inserted with system power energized.

Maintenance and Adjustment:
This unit contains no user-serviceable parts and should not be disassembled for any reason. Calibration is not required.

View full details

Product Description

Product Details:

  • Manufacturer: Emerson
  • Model/Part Number: KL4201X1-BA1
  • Description: I.S. CHARM Baseplate
Feature Details
Power Specifications - CHARM Bus Power Rating: +6.3 VDC at 7.6 A
- Field Circuit Power Rating: +24 VDC at 8.4 A
Environmental Specifications - Ambient Temperature: -40°C to +70°C
- Shock: 10g ½ sinewave for 11 msec
- Vibration: 1mm Peak to Peak (2–13.2Hz); 0.7g (13.2–150Hz)
- Airborne Contaminants: ISA-S71.04 –1985 Airborne Contaminants Class G3
- Relative Humidity: 5% to 95% non-condensing

Removal and Insertion:
This unit cannot be removed or inserted with system power energized.

Maintenance and Adjustment:
This unit contains no user-serviceable parts and should not be disassembled for any reason. Calibration is not required.
