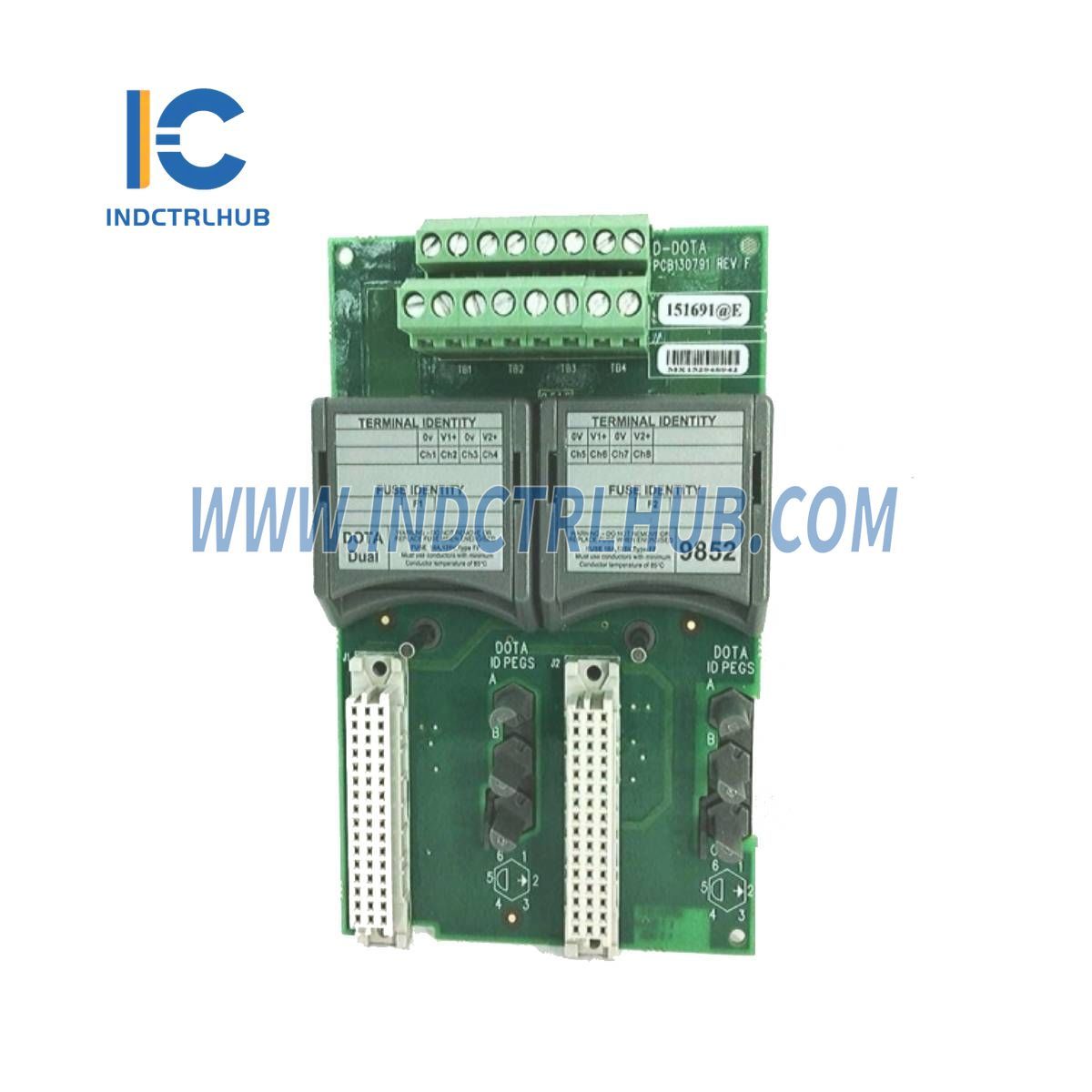

ICS Triplex T9852 Trusted TMR Digital Output Termination Assembly

ICS Triplex T9852 Trusted TMR Digital Output Termination Assembly

  • Manufacturer: ICS TRIPLEX

  • Product No.: T9852

  • Condition:1000 in stock

  • Product Type: Trusted TMR Digital Output Termination Assembly

  • Product Origin: UK

  • Payment: T/T, Western Union

  • Weight: 260g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Overview

The ICS Triplex T9852 is a Trusted TMR Digital Output Termination Assembly (FTA) designed for use within the Trusted Triple Modular Redundant (TMR) system by ICS Triplex, a Rockwell Automation brand. This module serves as a field termination assembly, providing dual redundant 8-channel digital outputs (totaling 16 outputs) to interface with field devices such as solenoids, relays, and actuators in safety-critical applications. It is engineered for fault tolerance and high reliability, supporting industries like oil & gas, petrochemical, and power generation where SIL 3 compliance is essential.

Technical Specifications

The T9852 has the following specifications based on standard characteristics for this model:

Item Specification
Model/Part Number T9852
Manufacturer ICS Triplex (Rockwell Automation)
Description Trusted TMR Digital Output Termination Assembly
Series Trusted TMR System
Output Channels 16 digital outputs (dual 8-channel configuration)
Output Voltage 24 VDC nominal
Output Range 18-32 VDC
Power Supply 24 VDC (via external field power, dual redundant sources)
Operating Temperature 0°C to 60°C (32°F to 140°F)
Weight 0.26 kg (10 oz)

Additional Details

The T9852 includes the following additional information based on its standard use and documentation:

Category Details
Function Interfaces field devices to Trusted TMR digital output modules
Mounting DIN rail mounting, external to Trusted Controller Chassis
Compatibility Trusted TMR Digital Output Modules (e.g., T8451), SmartSlot configurations
Features Dual redundant channels, two 10 A replaceable fuses, vent and bleed connections
Certifications Meets IEC 61508 SIL 3, UL, and CE standards
Part Type New, surplus, or refurbished (depending on supplier)



View full details

Product Description

Product Overview

The ICS Triplex T9852 is a Trusted TMR Digital Output Termination Assembly (FTA) designed for use within the Trusted Triple Modular Redundant (TMR) system by ICS Triplex, a Rockwell Automation brand. This module serves as a field termination assembly, providing dual redundant 8-channel digital outputs (totaling 16 outputs) to interface with field devices such as solenoids, relays, and actuators in safety-critical applications. It is engineered for fault tolerance and high reliability, supporting industries like oil & gas, petrochemical, and power generation where SIL 3 compliance is essential.

Technical Specifications

The T9852 has the following specifications based on standard characteristics for this model:

Item Specification
Model/Part Number T9852
Manufacturer ICS Triplex (Rockwell Automation)
Description Trusted TMR Digital Output Termination Assembly
Series Trusted TMR System
Output Channels 16 digital outputs (dual 8-channel configuration)
Output Voltage 24 VDC nominal
Output Range 18-32 VDC
Power Supply 24 VDC (via external field power, dual redundant sources)
Operating Temperature 0°C to 60°C (32°F to 140°F)
Weight 0.26 kg (10 oz)

Additional Details

The T9852 includes the following additional information based on its standard use and documentation:

Category Details
Function Interfaces field devices to Trusted TMR digital output modules
Mounting DIN rail mounting, external to Trusted Controller Chassis
Compatibility Trusted TMR Digital Output Modules (e.g., T8451), SmartSlot configurations
Features Dual redundant channels, two 10 A replaceable fuses, vent and bleed connections
Certifications Meets IEC 61508 SIL 3, UL, and CE standards
Part Type New, surplus, or refurbished (depending on supplier)
