Product Description
Product Overview

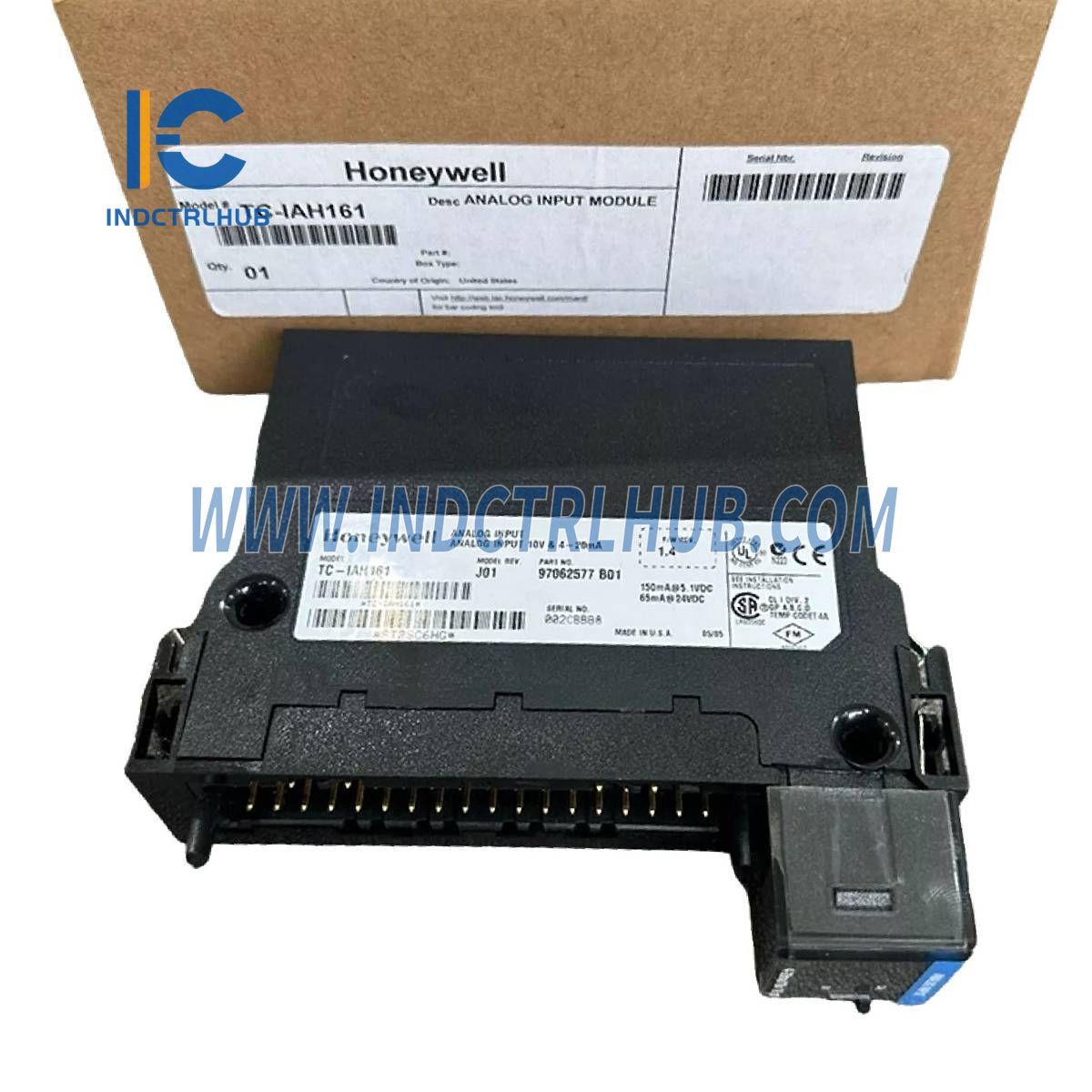

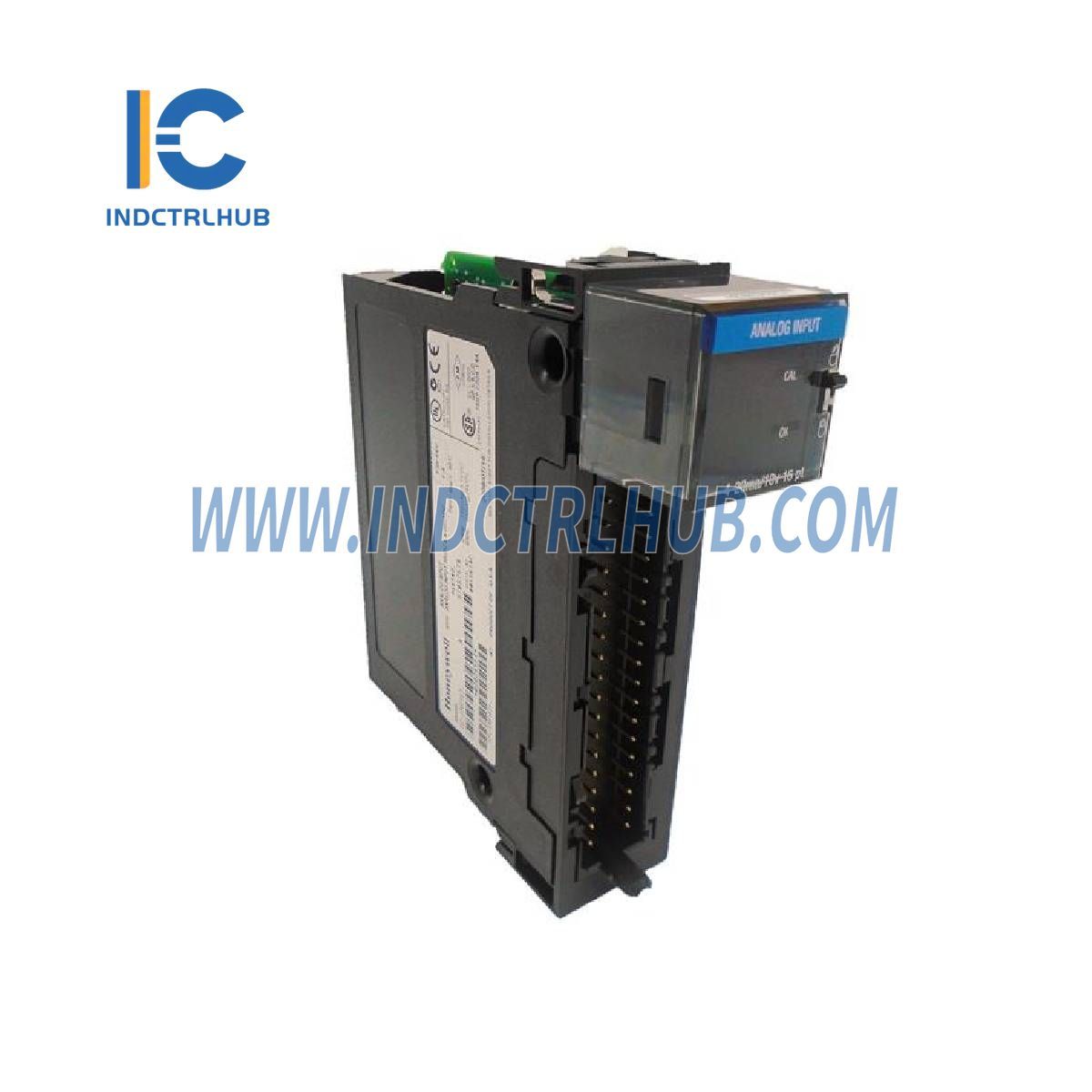

The Honeywell TC-IAH161 is a High-Level Analog Input Module designed for use within Honeywell’s Experion Process Knowledge System (PKS) and related control systems, such as the Process Manager (PM), Advanced Process Manager (APM), or High Performance Process Manager (HPM). Manufactured by Honeywell, a leader in automation solutions, this module features 16 channels for processing high-level analog signals, supporting both voltage (up to 10 V) and current (4-20 mA) inputs. It is suited for industrial applications in oil and gas, chemical processing, and power generation, offering precise data acquisition with a 16-bit resolution and a robust design for integration into Series A Chassis I/O Modules (CIOM-A). The TC-IAH161 ensures reliable monitoring of field devices like sensors and transmitters in distributed control system (DCS) environments.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | Honeywell |
| Series | Experion PKS / PM / APM / HPM |

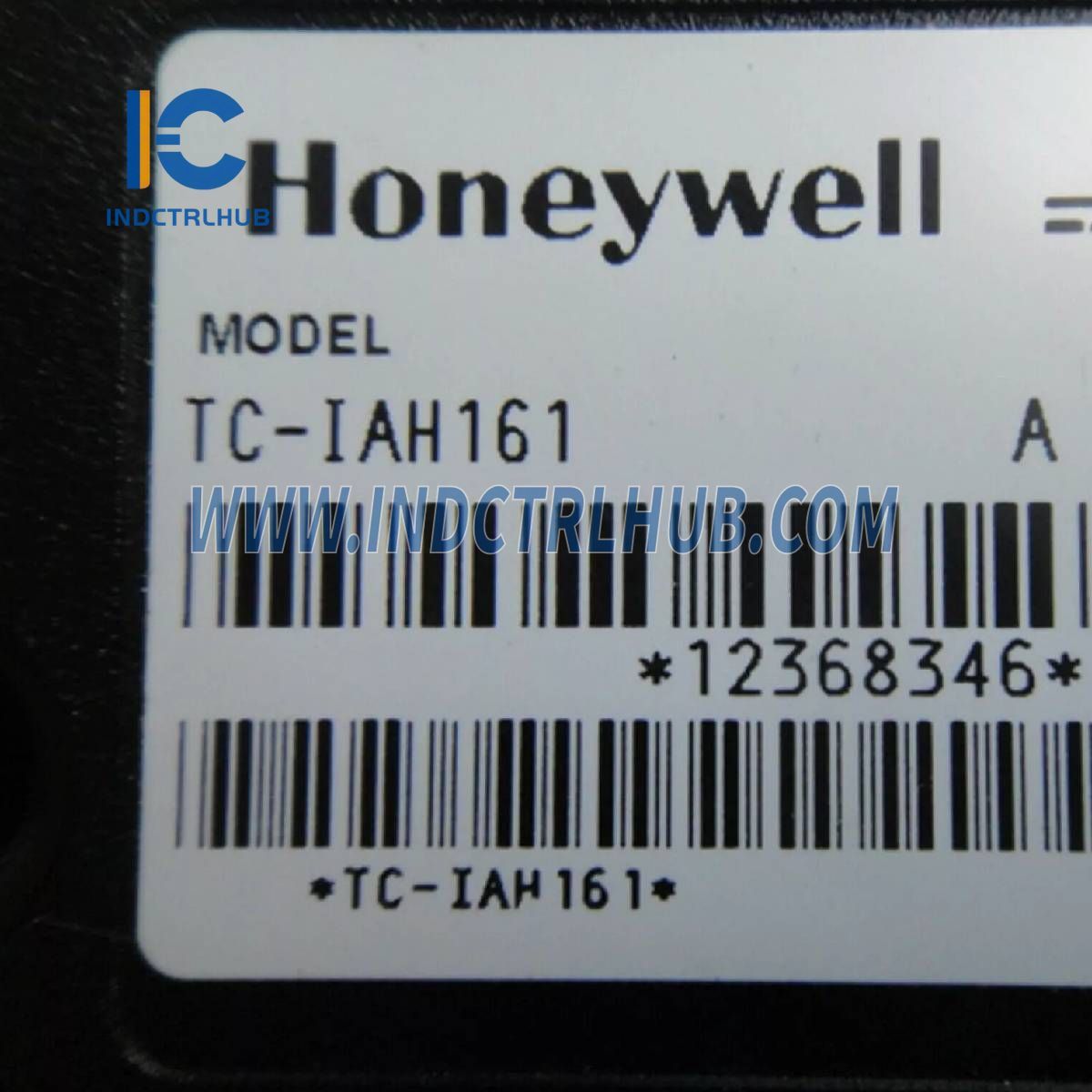

| Model/Part Number | TC-IAH161 |
| Description | High-Level Analog Input Module, 16 Channels (Voltage and Current) |
| Number of Channels | 16 |
| Input Voltage Range | -10.5 V to +10.5 V, 0 V to +10.5 V, 0 V to +5.125 V |
| Input Current Range | 0 mA to 20.5 mA (via internal 250 Ω resistor) |
| Resolution | 16 bits (320 μV for ±10.5 V range) |
| Module Publish Rate | 250 msec |
| Channel Bandwidth | 20 Hz (-3 dB) |
| Input Impedance | Voltage: >1 MΩ; Current: 249 Ω nominal |
| Power Dissipation | 4.1 W maximum |
| Operating Temperature | 0 °C to +60 °C (32 °F to +140 °F) |
| Weight | 0.27 kg (0.6 lb) |
