Product Description
Product Overview

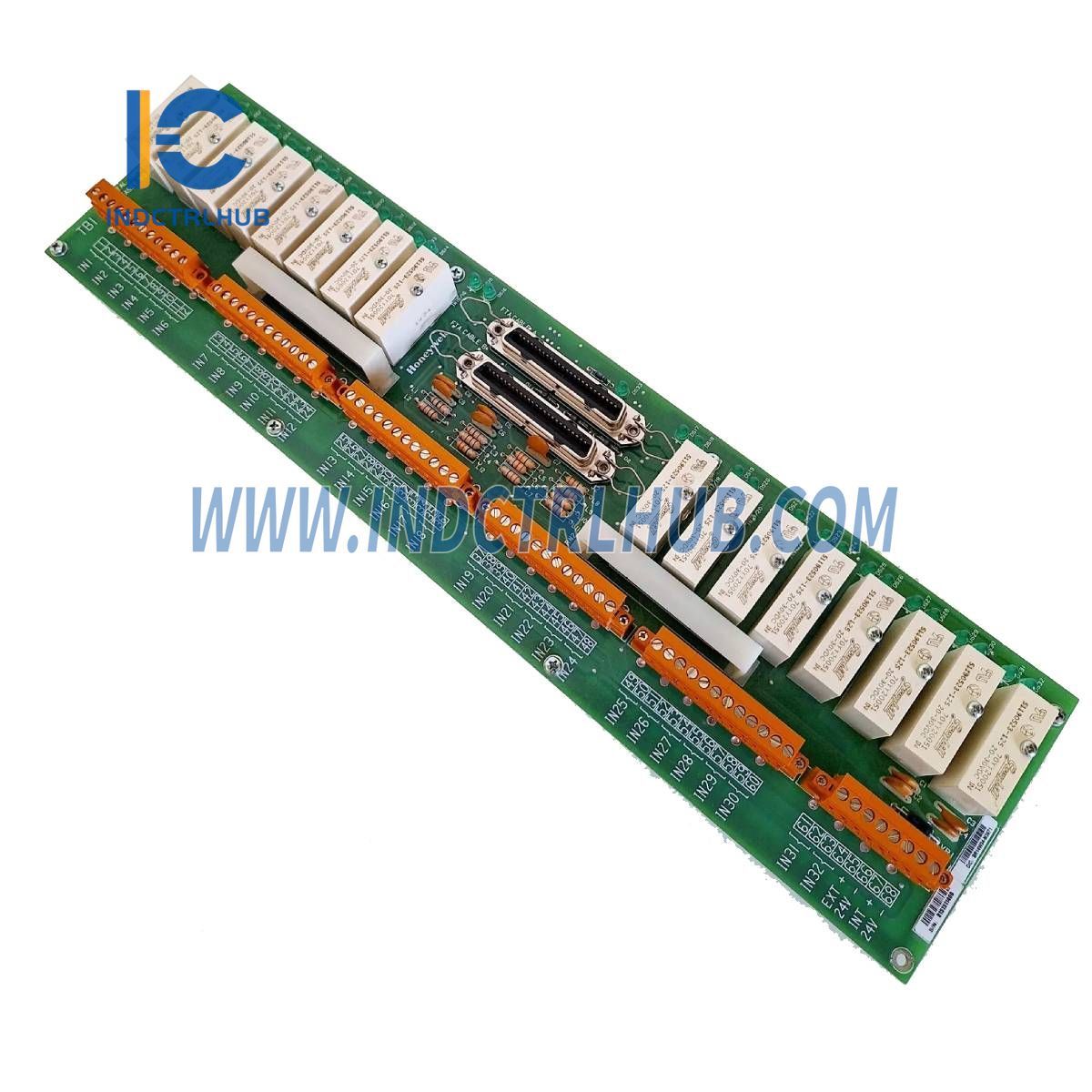

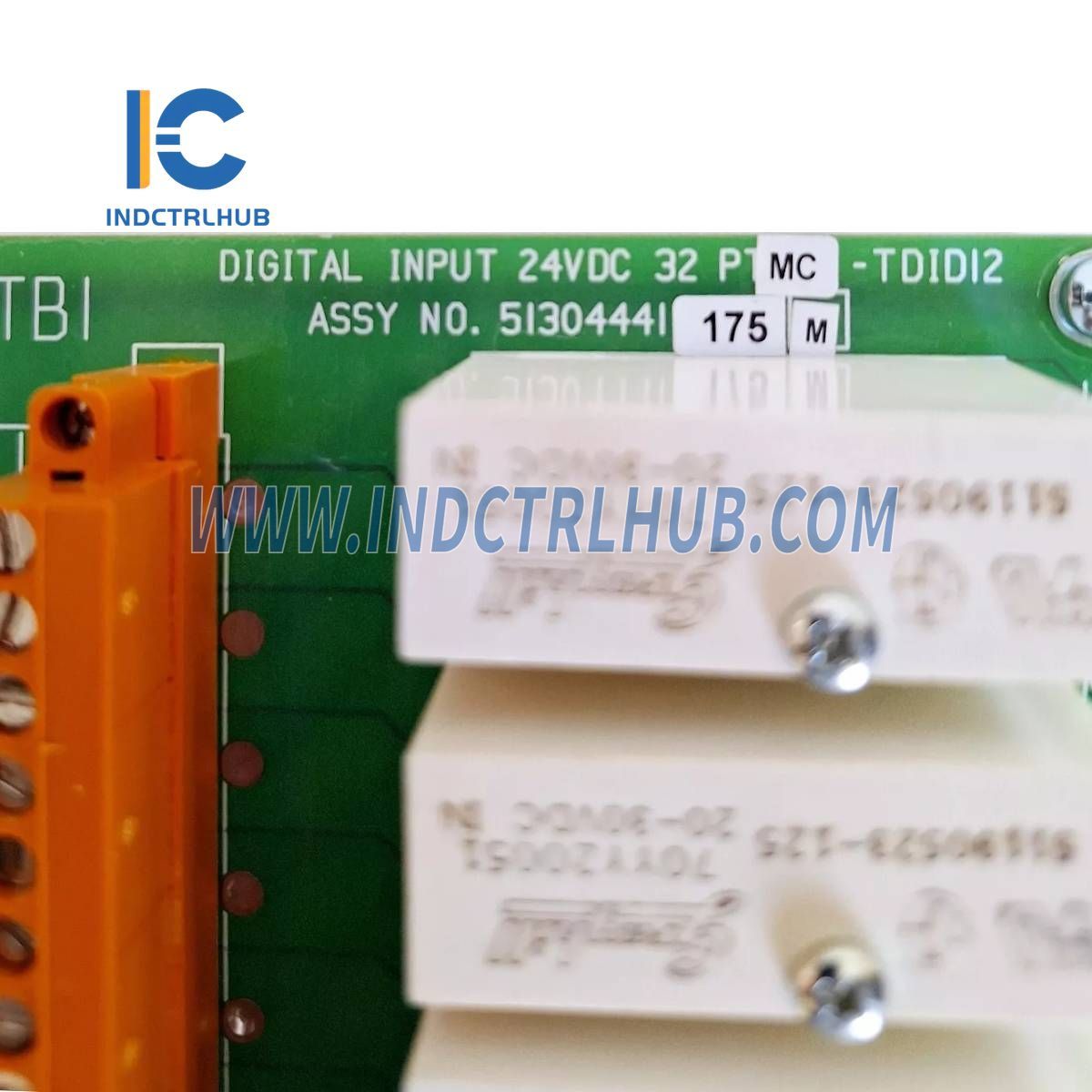

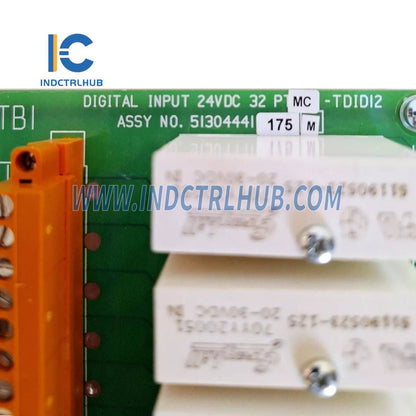

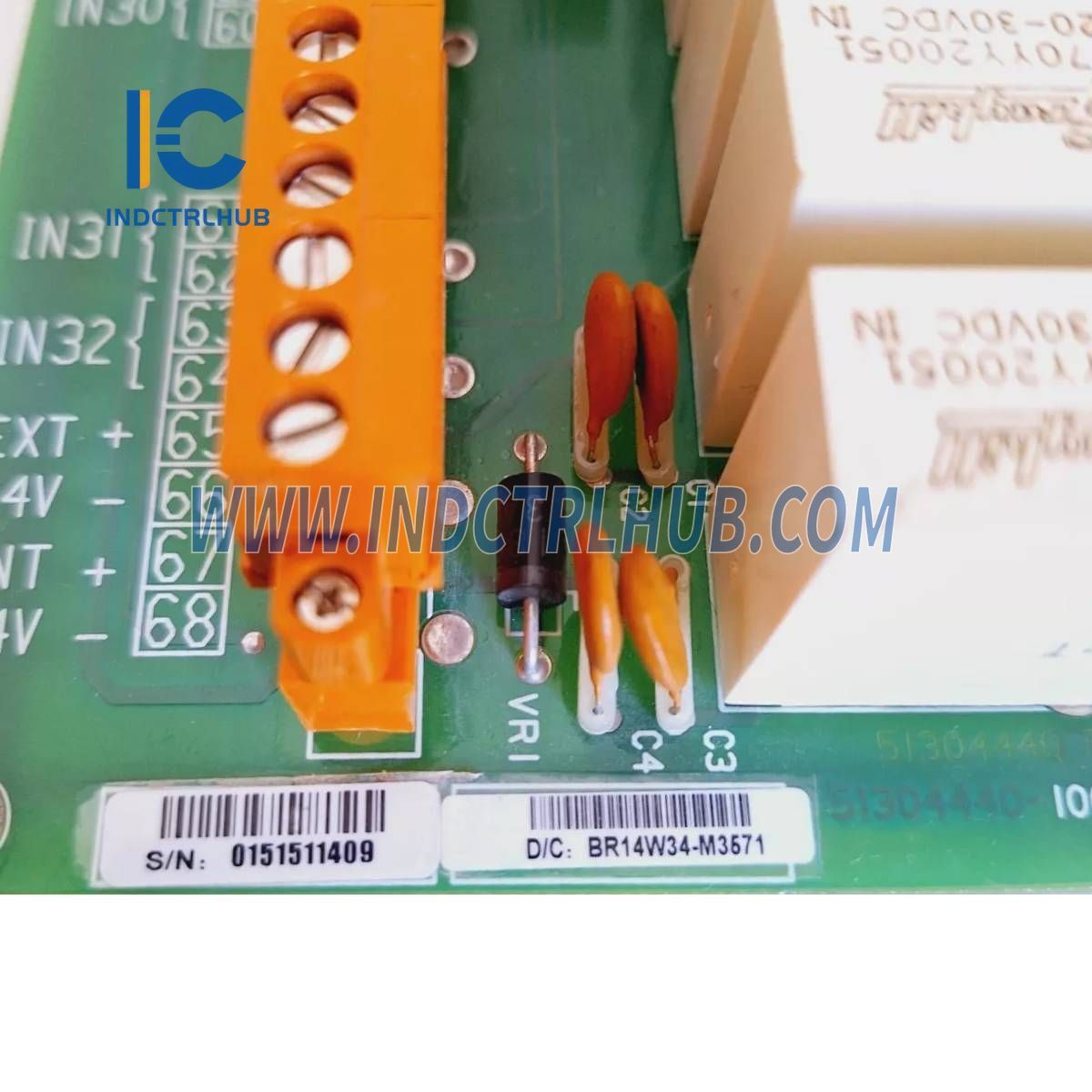

The Honeywell MC-TDID12 51304441-175 is a Digital Input Field Termination Assembly (FTA) designed for use within Honeywell’s industrial control systems, such as the Process Manager (PM), Advanced Process Manager (APM), or High Performance Process Manager (HPM). Manufactured by Honeywell, a leader in automation solutions, this module features 32 digital input channels operating at 24 V DC, equipped with compression-type terminals for secure field wiring. It interfaces field devices (e.g., sensors, switches) with I/O processors, supporting applications in oil and gas, chemical processing, and power generation. The FTA connects to I/O processors via cables up to 50 meters, providing reliable signal acquisition in distributed control system (DCS) environments, with options for redundancy in certain configurations.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | Honeywell |
| Series | PM / APM / HPM |
| Model/Part Number | MC-TDID12 51304441-175 |
| Description | 24 Vdc Digital Input FTA with Compression Terminals |
| Input Channels | 32 |
| Input Voltage | 24 V DC |
| Termination Type | Compression (accepts up to 14 AWG or ~1.6 mm wire) |
| Cable Length | Up to 50 meters (164 ft) to I/O processors |
| Size | Size C - 18 inches (462 mm) length |
| Operating Temperature | 0 °C to +60 °C (32 °F to +140 °F) |
| Weight | 0.4 kg (0.88 lb) |
