Product Description
Product Overview

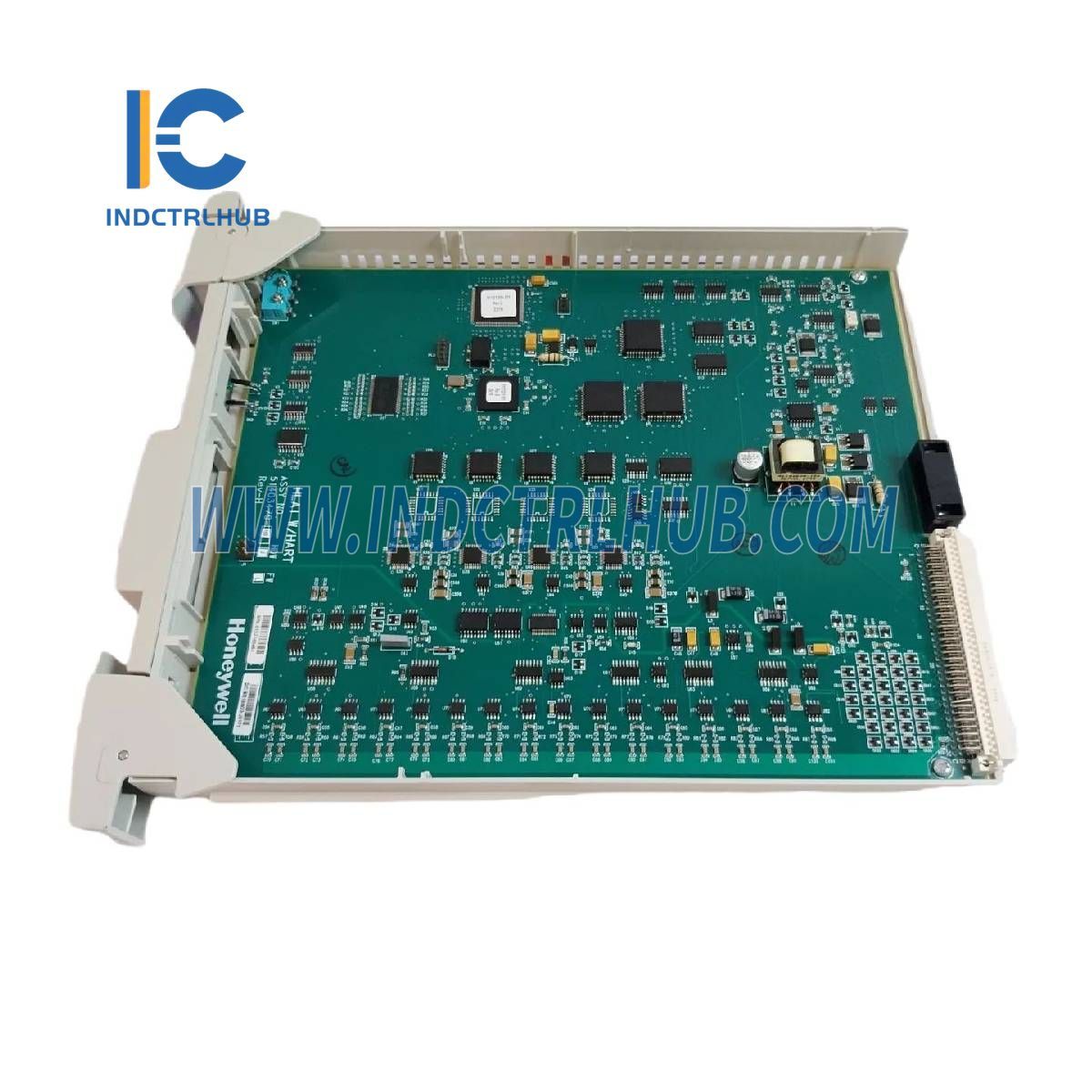

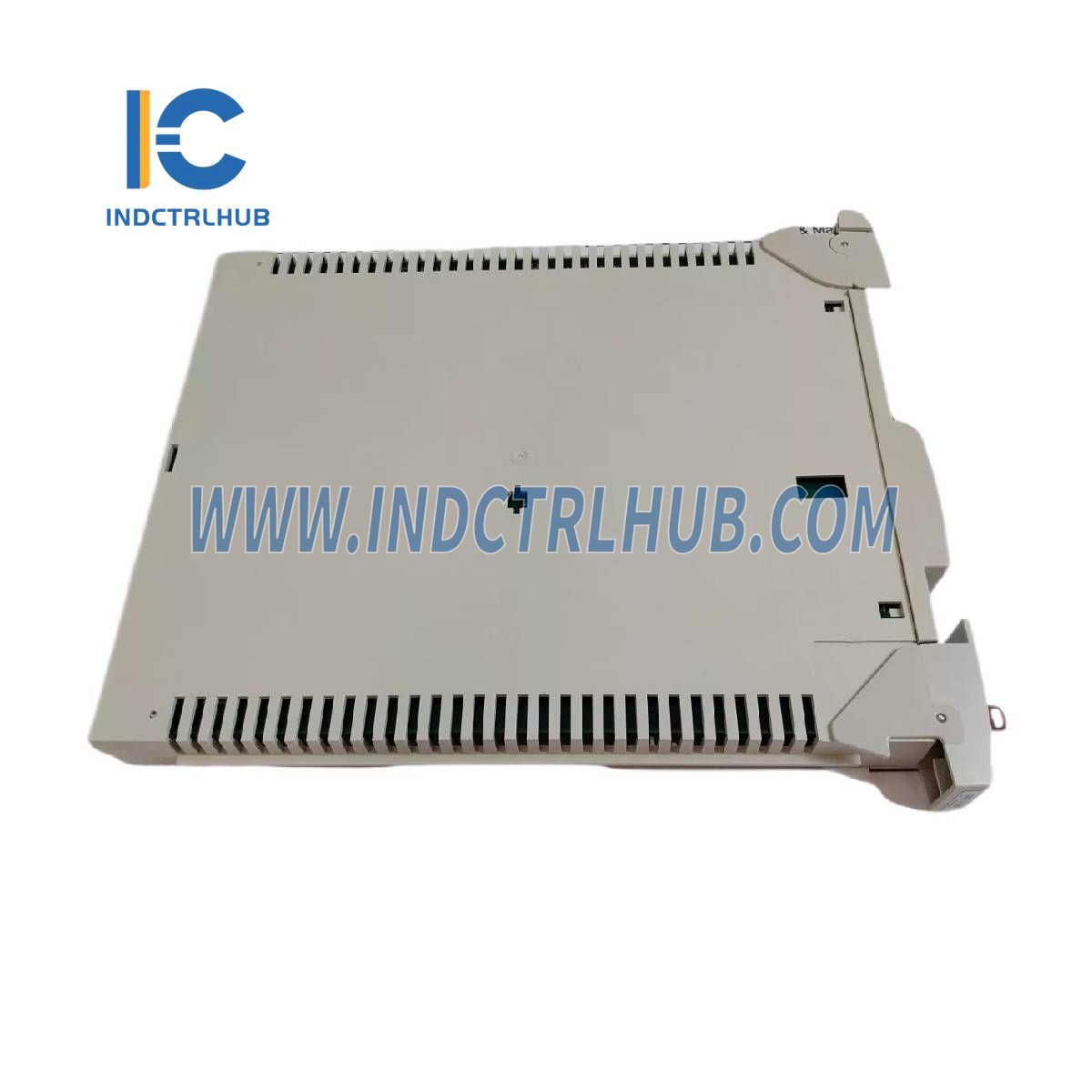

The Honeywell MC-PHAI01 51403479-150 is a High-Level Analog Input Module designed for the TDC 3000 High-Performance Process Manager (HPM) system within Honeywell’s distributed control system (DCS) family. It provides 16 channels for processing high-level analog signals, such as 4-20 mA and 1-5 VDC, from field devices like pressure transmitters, flow meters, and level sensors. This module is engineered for high accuracy and seamless integration with the TDC 3000 HPM architecture, supporting industrial process control applications.
Technical Specifications
The MC-PHAI01 51403479-150 has the following specifications based on standard characteristics for this model:
| Item | Specification |
|---|---|
| Model/Part Number | MC-PHAI01 51403479-150 |
| Manufacturer | Honeywell |
| Description | High-Level Analog Input Module |
| Series | TDC 3000 High-Performance Process Manager (HPM) |
| Input Channels | 16 single-ended inputs |
| Input Types | 4-20 mA, 1-5 VDC |
| Resolution | 12 bits |
| Power Supply | 5 VDC (from HPM backplane) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | 0.45 kg |
Additional Details
The MC-PHAI01 51403479-150 includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Processes high-level analog signals from process transmitters |
| Mounting | Installs in TDC 3000 HPM I/O rack |
| Compatibility | TDC 3000 HPM controllers and Field Termination Assemblies (FTAs) |
| Features | Open circuit detection, configurable input ranges |
| Certifications | Meets UL, CE, and CSA standards for industrial use |
| Part Type | New, surplus, or refurbished (depending on supplier) |
