Product Description
Product Overview

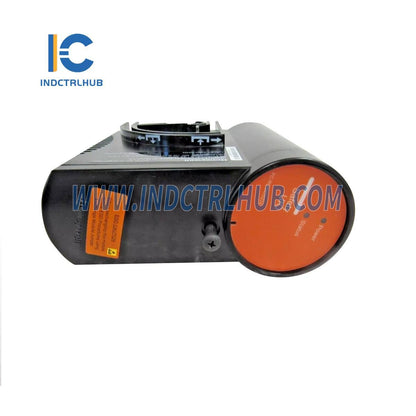

The Honeywell IOTA-R24 FC-RUSIO-3224 Redundant IO Termination Assembly (IOTA) is a critical component designed to support a redundant pair of RUSIO-3224 or RUSLS-3224 I/O modules within Honeywell’s industrial control systems, such as Safety Manager or Experion platforms. This assembly ensures reliable signal termination and power distribution for redundant I/O configurations, featuring robust environmental tolerances, multiple connection types, and certifications from CE, UL, and TUV. Physical and schematic details are referenced in Figures 1 and 2 of the original documentation.
General Description
- The IOTA-R24 assembly enables the use of a redundant set of RUSIO-3224 or RUSLS-3224 modules.
- For physical and schematic representations, see Figure 1 and Figure 2.
Technical Information
| Parameter | Specifications |
|---|---|
| Manufacturer | Honeywell |
| Model/Part Number | IOTA-R24 FC-RUSIO-3224 |
| Description | Redundant IO Termination Assembly |
| General Type Number | FC-IOTA-R24 |
| Environmental | |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | 10% to 95% (non-condensing) |
| Pollution | Pollution degree 2 or better |
| Approvals | CE, UL, TUV |
| Power | |
| Supply Voltage | 24 V DC (-15% to +30%, 20.4 V to 31.2 V) |
| Supply Load | Max. 10 A |
| Reverse Polarity Protection | Parallel diode (blows the fuse) |
| V+ Pins (CN3) | Max. current: 1 A (total of four CN3 pins) Max. voltage drop: < 1.5 V (at 0.7 A) Max. reverse voltage: 36 V |
| Fuse | |
| Fuse Rating | 15 A |
| Fuse Dimensions | Blade 5 x 19 mm |
| Voltage Rating AC | - |
| Voltage Rating DC | 32 V |
| Manufacturer | Littelfuse |
| Manufacturer PN | 0287015.PXS |
| Connections | |
| 24V Supply | 2 x M4 (to power rail of the carrier) |
| Ground | 10 x M3.5 (to metal of the carrier) |
| Ethernet | RJ-45 |
| IO (CN1 and CN2) | Weidmuller: BLZ 5.08/16/90F SN SW |
| V+ (CN3) | Weidmuller: BLZ 5.08/4/90F SN SW |
| Screw Terminals (CN1, CN2, CN3) | Max. wire size: 0.50-2.50 mm² Strip length: 7 mm Tightening torque: 0.5 Nm (0.37 ft-lb) |
| Physical Data | |
| Dimensions (HxWxD) | 64 x 120.7 x 443.2 mm (2.52 x 4.75 x 17.45 in) |
| Weight | 0.57 kg (1.26 lb) |
Specific Configuration
- Model/Part Number: IOTA-R24 FC-RUSIO-3224
- Configuration Details:
- No additional suffix or option codes specified beyond model number, indicating a standard configuration
