Product Description
Product Overview
Manufacturer: Honeywell

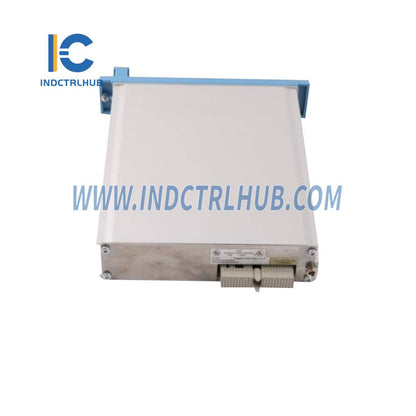

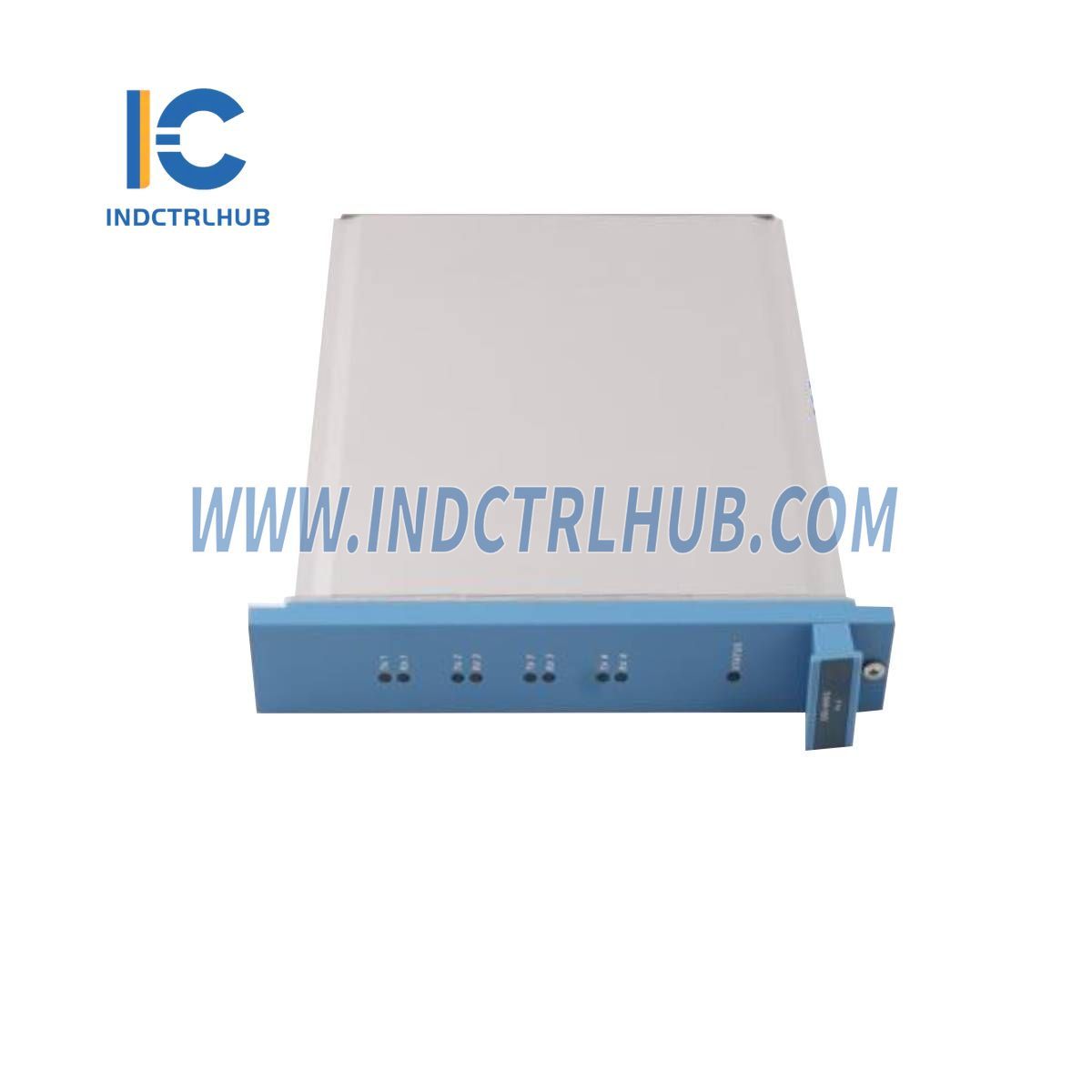

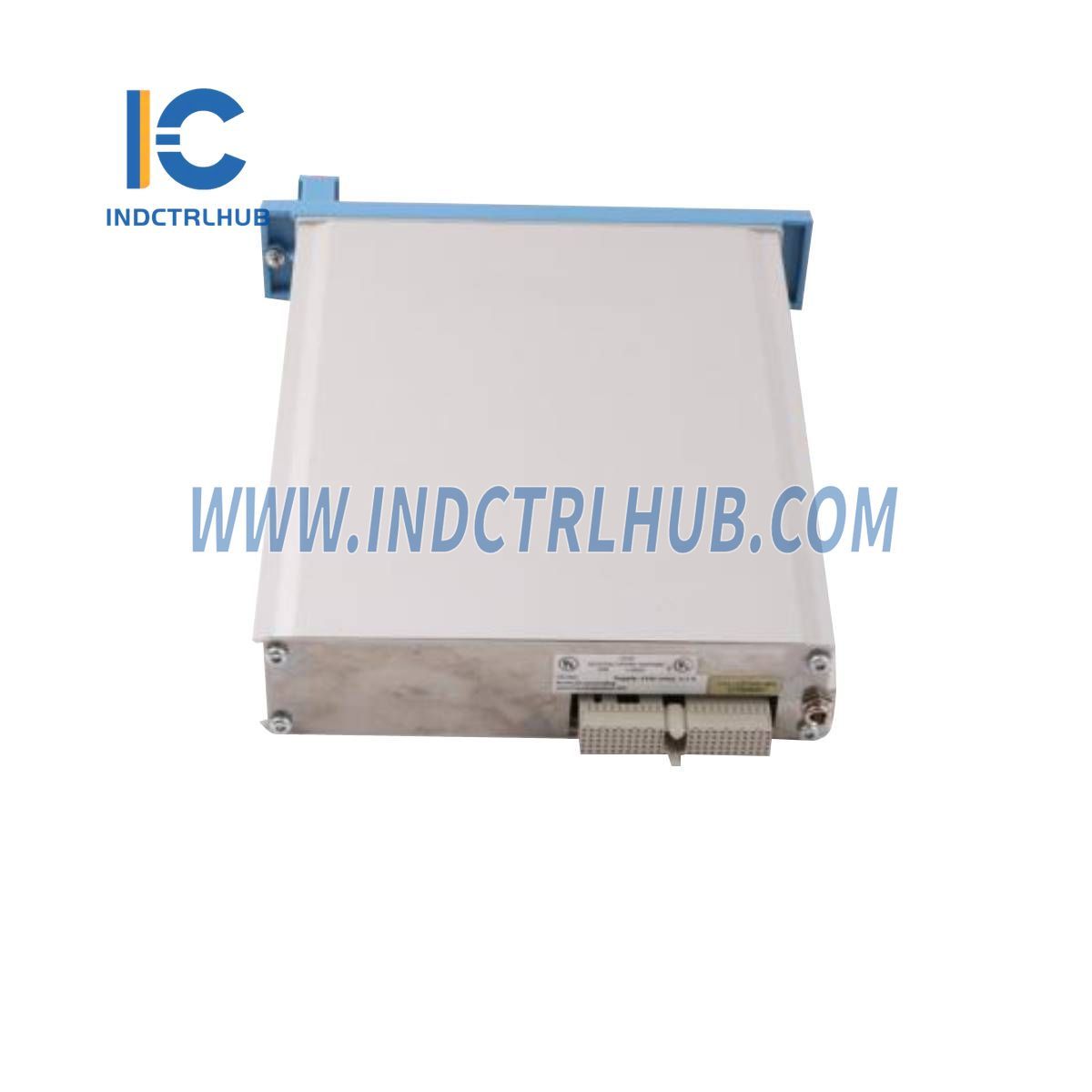

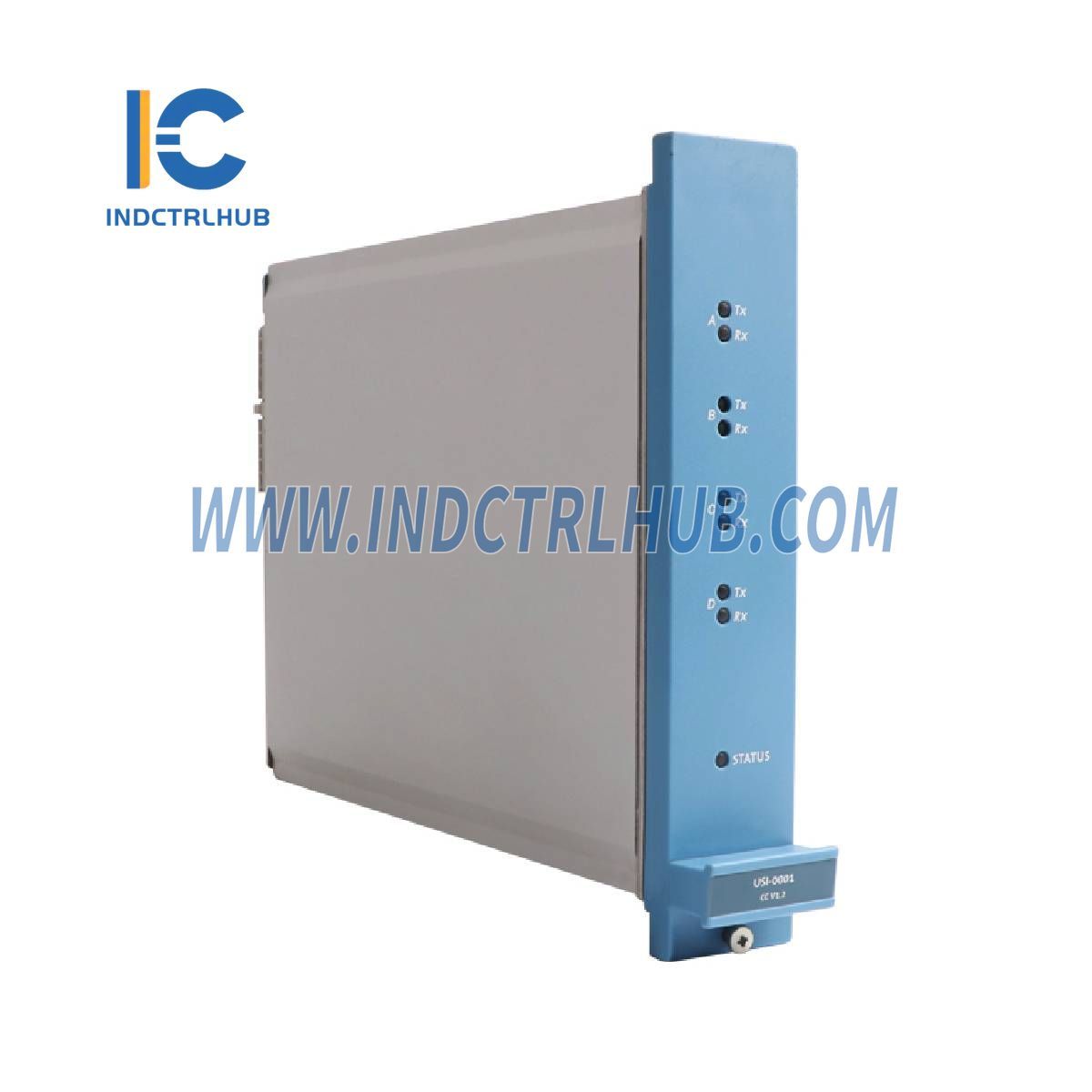

Model/Part Number: FS-USI-0001
Description: Control Processor Module
Description
The FS-USI-0001 communication module enables Ethernet and Serial communication with external devices such as Experion™ PKS and Safety Builder. It is installed in the Controller chassis and provides secure, isolated communication.
The module features galvanic isolation with the following specifications:
- ≥ 2.5 kVdc between the 5 Vdc and the Ethernet signal
- ≥ 1.5 kVdc between the Ethernet signal and the module casing
- ≥ 1.5 kVdc between the 5 Vdc and the module casing
Additionally, if a memory error occurs, the Quad Processor Pack will receive an interrupt signal. The module also performs power-up self-tests for hardware integrity, including:
- Processor address and data registers
- Local RAM
- Shared RAM
- Exception handling
- Software integrity
These self-tests help prevent the use of defective hardware or corrupted software.
Technical Data
General Specifications
-
Type Numbers:
- FS-USI-0001 V1.2 (Non-conformal coated)
- FC-USI-0001 CCV1.2 (Conformal coated)
- Operating Temperature: –5°C to +70°C (+23°F to +158°F)
- Storage Temperature: –40°C to +85°C (–40°F to +185°F)
- Relative Humidity: 10% to 95% (non-condensing)
- Approvals: CE, TUV, UL, CSA, FM
Power Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 5 Vdc ±5% |
| Supply Current | Max 1.2A |
Physical Specifications
- Dimensions (H × W × D): 176 × 35.2 × 212 mm (6.93 × 1.4 × 8.35 in)
- Weight: 0.7 kg
