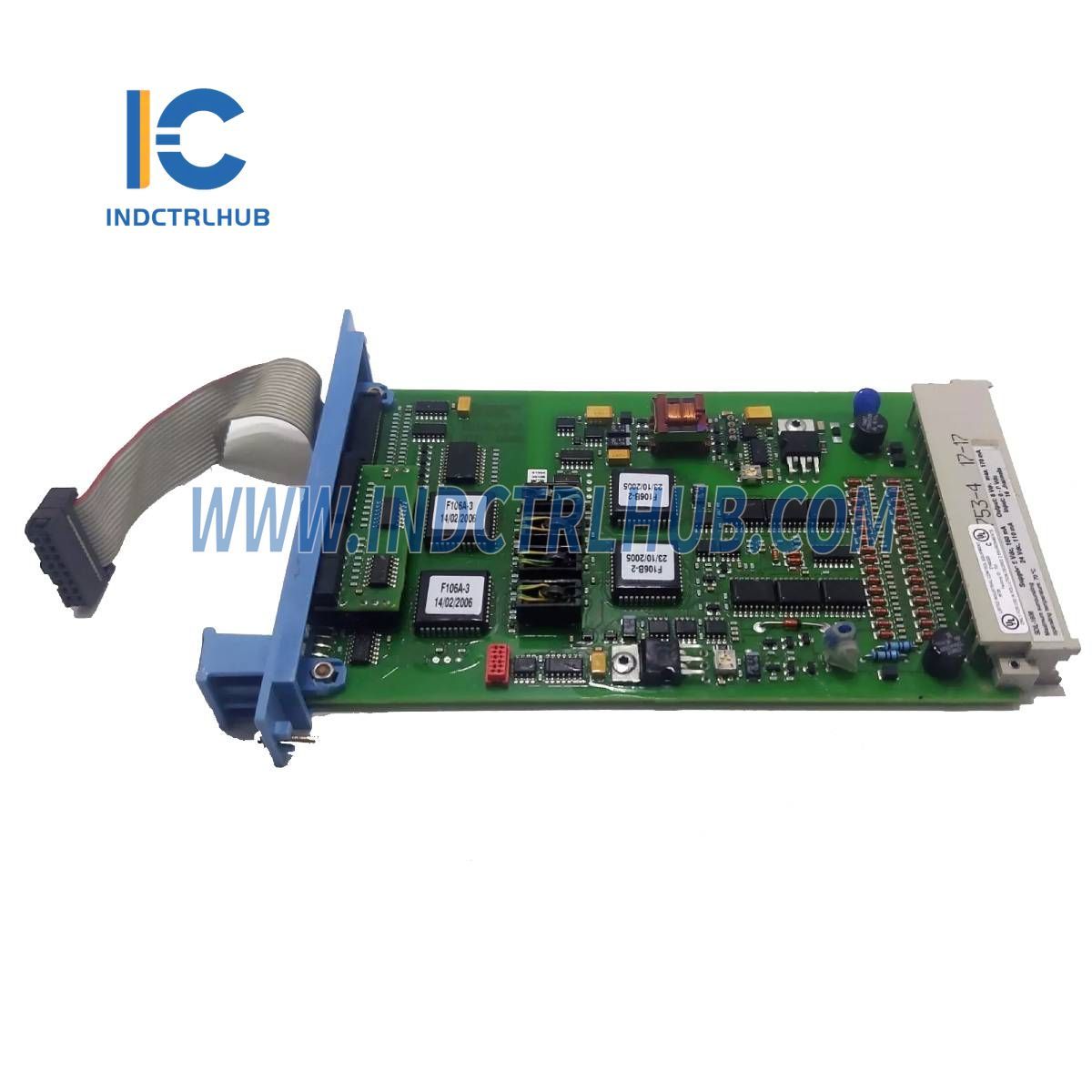

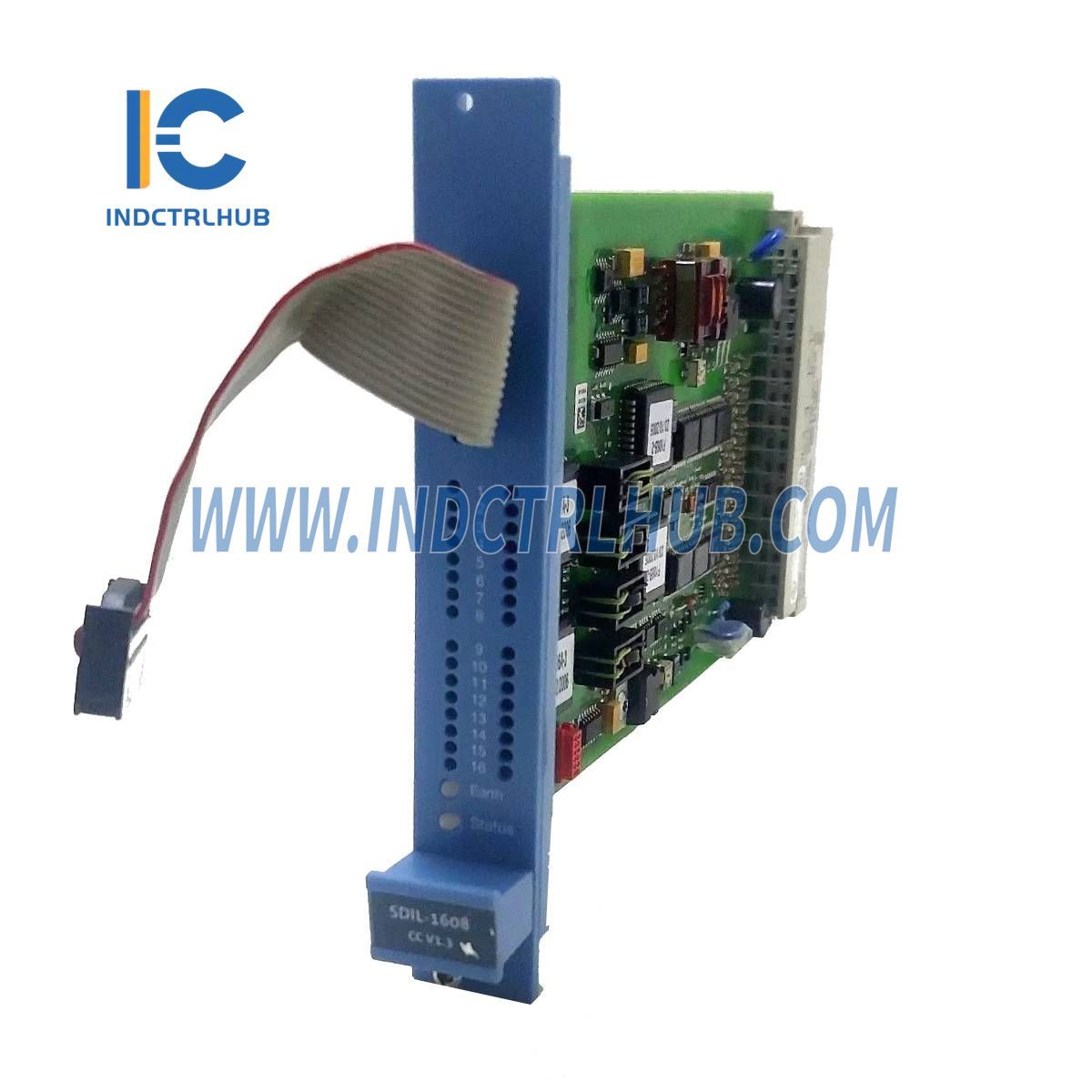

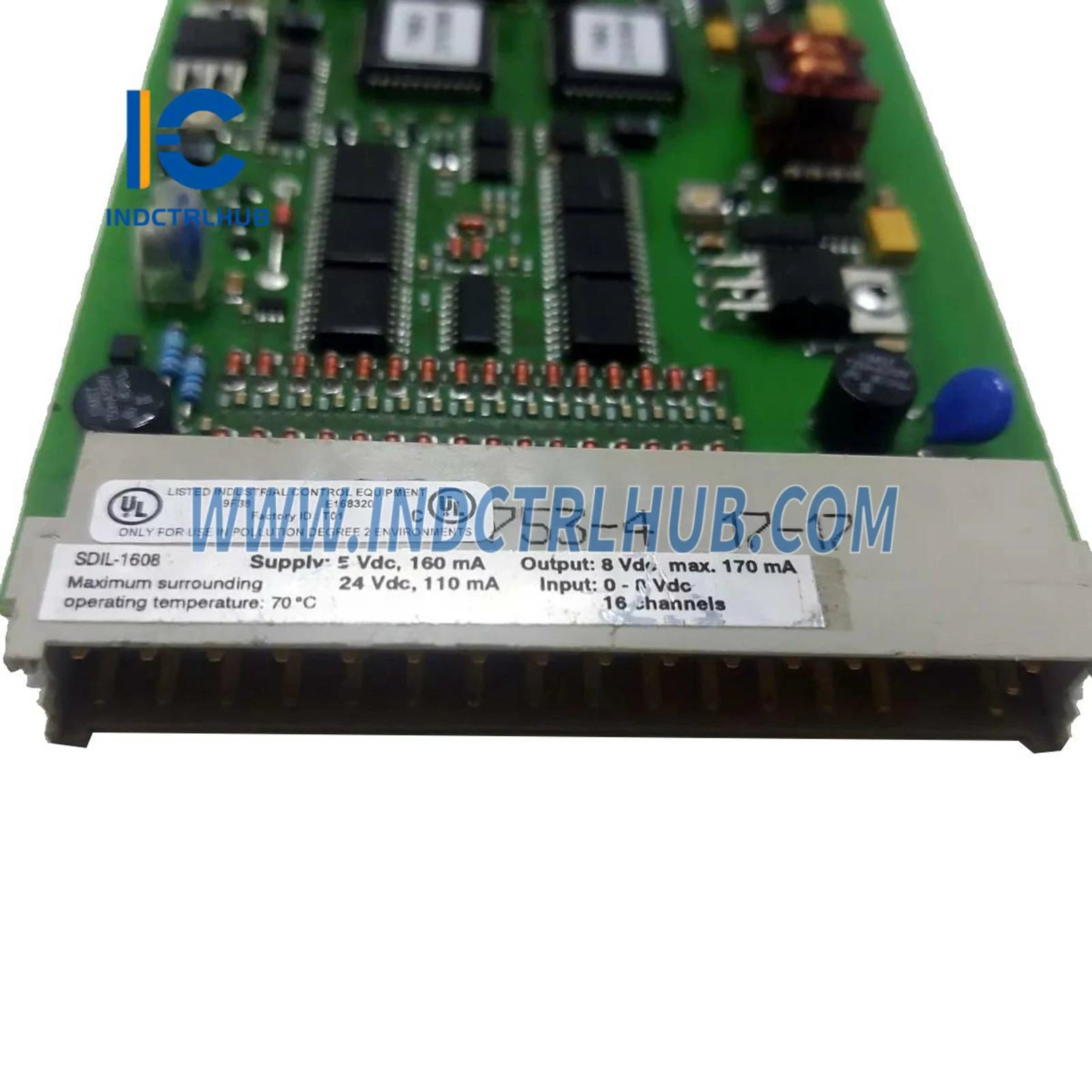

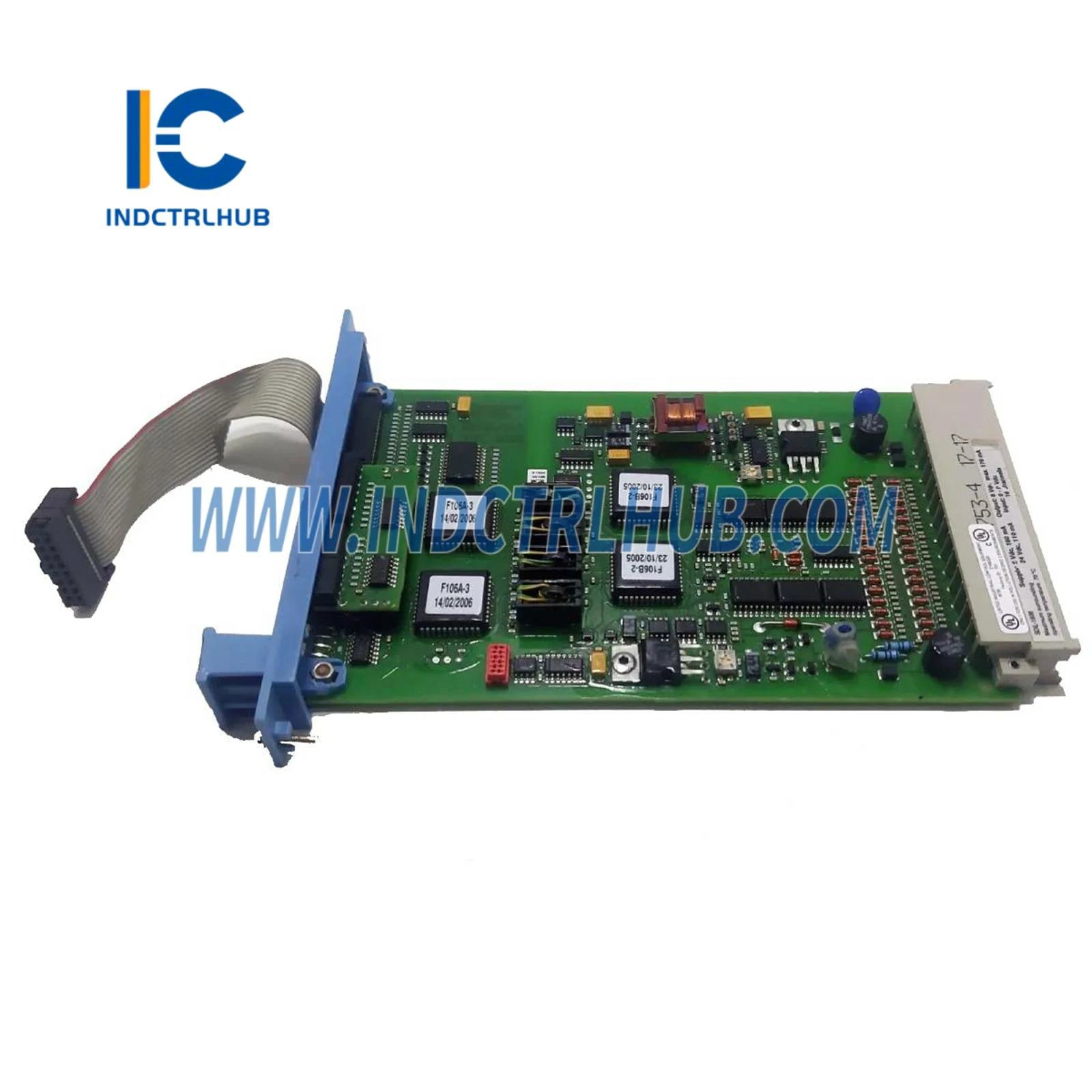

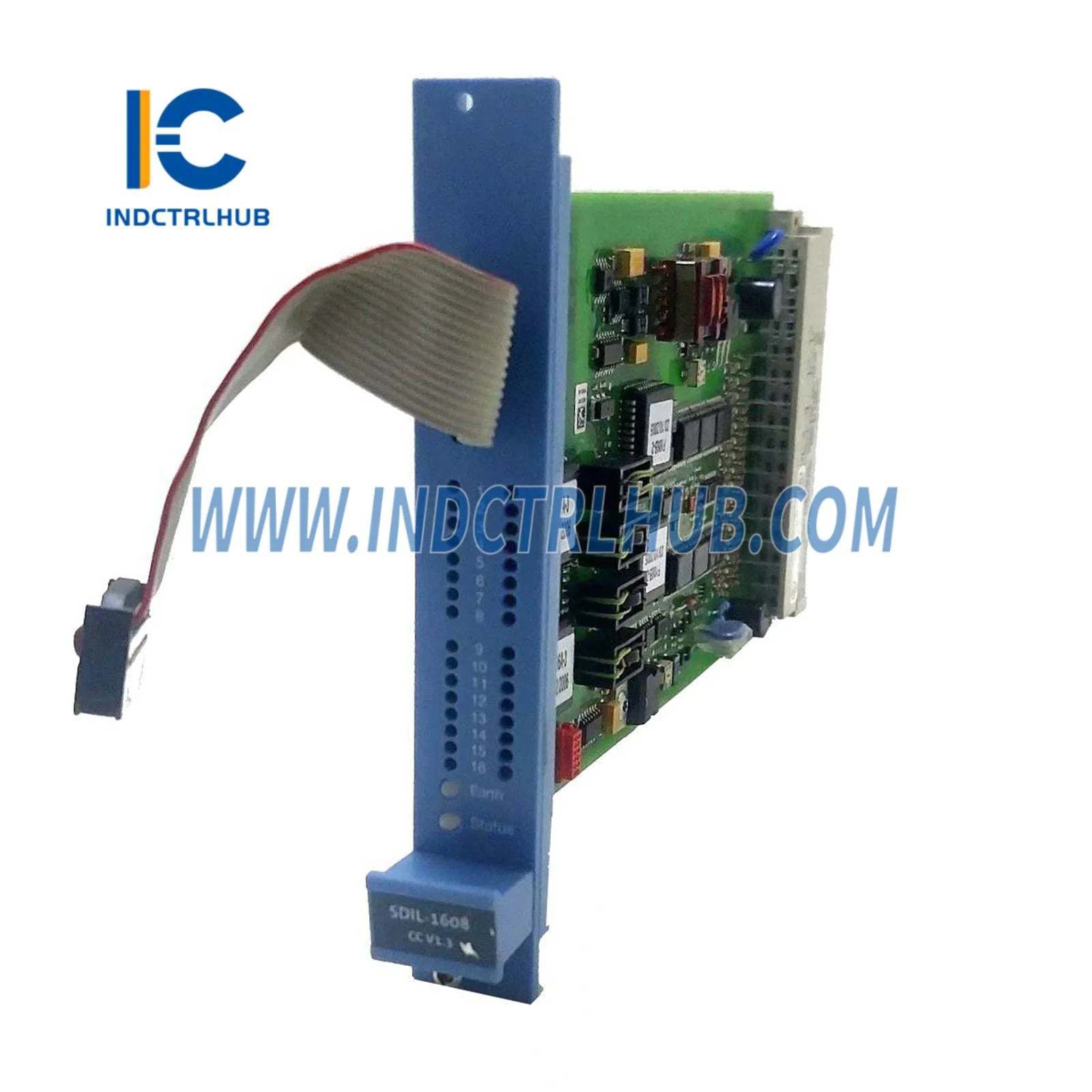

Product Description
General Information
|
Manufacturer |
Honeywell |
|---|---|
|
Model/Part Number |
FS-SDIL-1608 |
|
Alternative Type Numbers |
FC-SDIL-1608, FA-SDIL-1608 |
|
Description |
Input Module |
|
Approvals |
CE, TUV, UL, CSA, FM |
|
Space Requirements |
4 TE, 3 HE (= 4 HP, 3U) |
Power Requirements
|
Voltage |
Current Consumption |
|---|---|
|
5 V DC |
160 mA |
|
24 V DC |
110 mA |
Input Specifications
(All specifications in combination with BN-1608)
|
Parameter |
Specification |
|---|---|
|
Number of Input Channels |
16 |
|
Input Type |
According to DIN (= NAMUR) |
|
Switch Level |
1.4-1.9 mA |
|
Hysteresis |
0.2 mA ± 0.05 mA |
|
Input Filter |
First order, low pass 100 Hz |
|
Field Wire Resistance |
Max. 50 Ω |
|
8V Loop Supply |
Output Voltage: 7.9-8.7 V, Output Current: 170 mA (short-circuit proof) |
|
Maximum Load Capacitance |
100 nF |
Earth Connection Monitor
|
Parameter |
Specification |
|---|---|
|
Input Resistance |
Typically 0.5 MΩ (–40V < U < 40V) |
|
Test Current |
Typically 0.5 mA |
|
Output Voltage |
Typically 0.5 V DC |
|
Field Fault Voltage |
Max. 250 V AC |
Key Coding & Connectors
|
Module Connector Code |
Holes A5, C29 |
|---|---|
|
Chassis Connector Code |
Large pins A5, C29 |
