Product Description
Product Overview

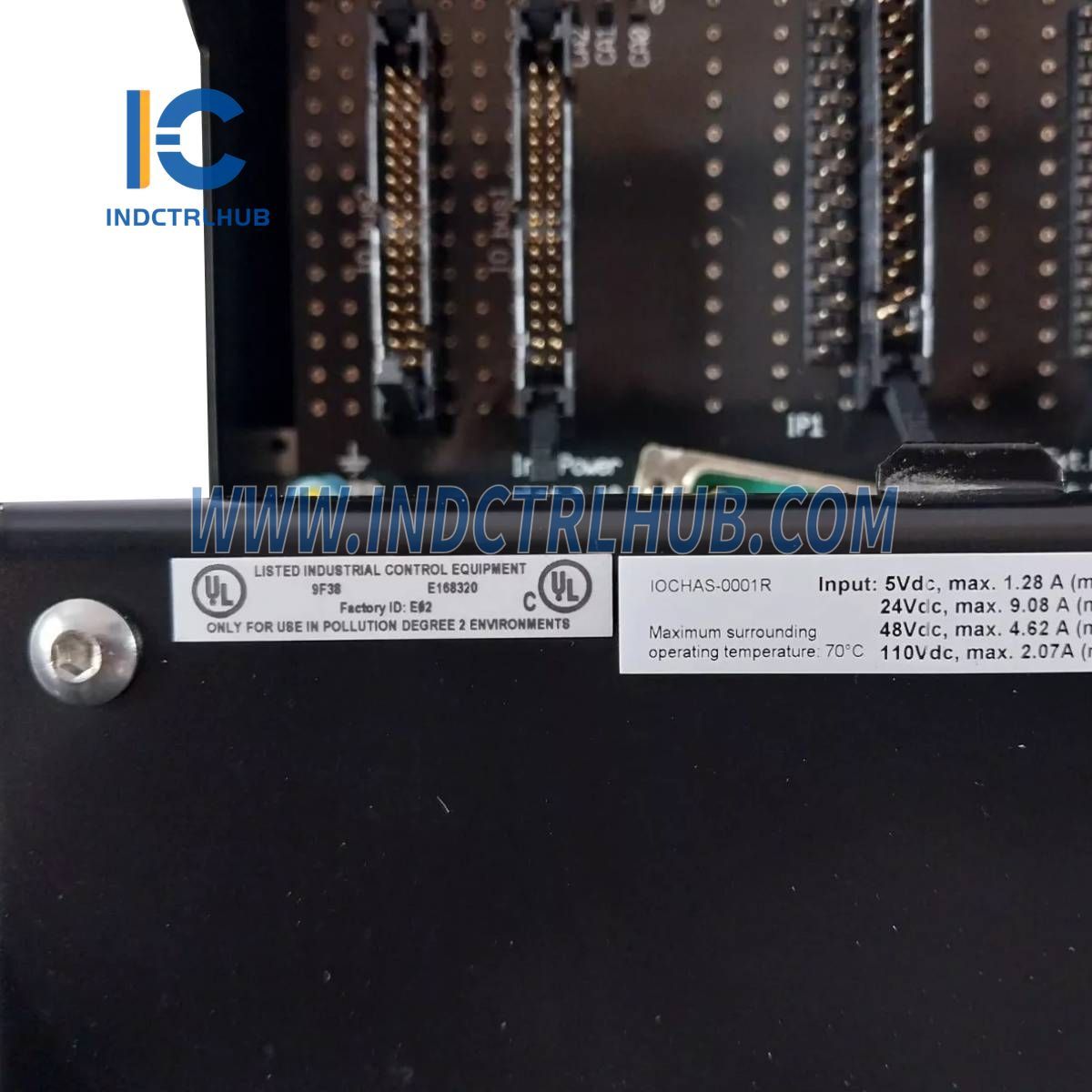

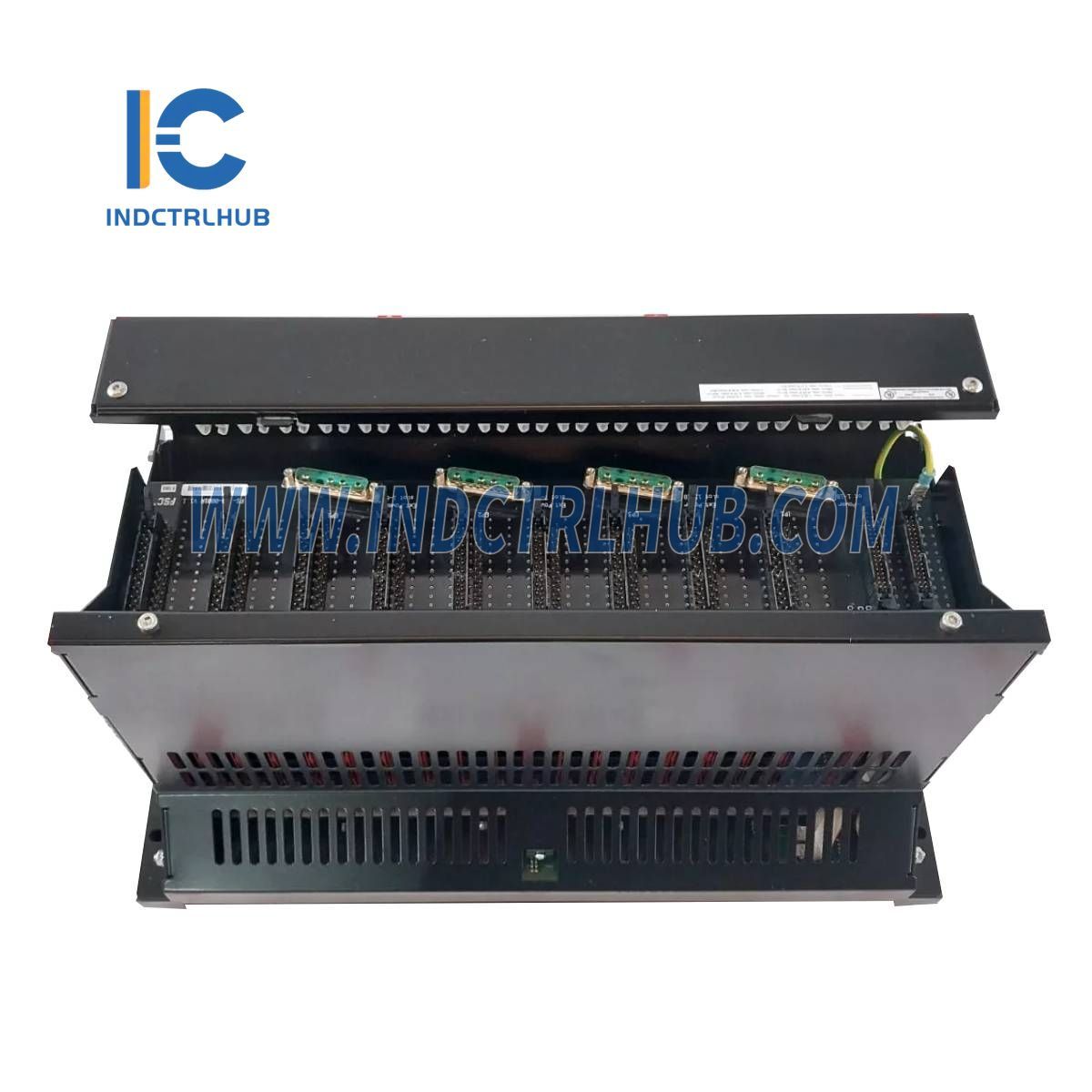

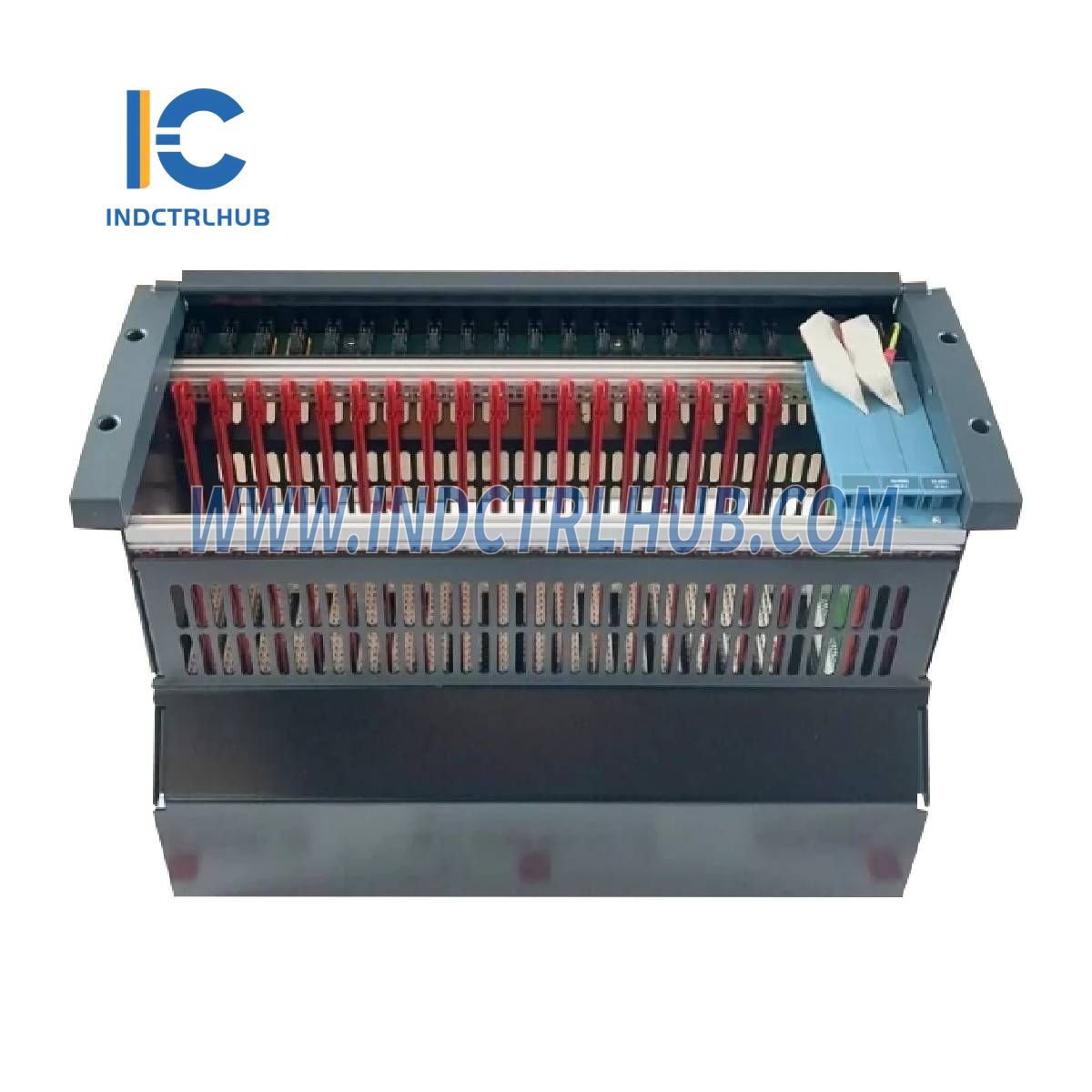

The Honeywell FS-IOCHAS-0001R IO Chassis for Redundant IO Modules is a robust and modular enclosure designed to house redundant input/output (I/O) modules within Honeywell’s industrial control systems, such as the Safety Manager or Experion platforms. Available under type numbers FS-IOCHAS-0001R and FC-IOCHAS-0001R, this chassis supports a scalable configuration with varying heights for the first and subsequent units, ensuring flexibility and reliability for critical automation applications. Certified by CE, UL, CSA, TUV, and FM, it is typically positioned below the Controller chassis in a cabinet setup.
Technical Information
| Parameter | Specifications |
|---|---|
| Manufacturer | Honeywell |
| Model/Part Number | FS-IOCHAS-0001R |
| Description | IO Chassis for Redundant IO Modules |
| General Type Numbers | FS-IOCHAS-0001R FC-IOCHAS-0001R |
| Approvals | CE, UL, CSA, TUV, FM |
| Power Consumption | 5V-1: 35 mA (IO-0001 slot 20) 5V-2: 35 mA (IO-0001 slot 21) |
| Dimensions |
First I/O Chassis: 1 + 3 + 1 HE (44.5 + 133.4 + 44.5 mm; 1.75 + 5.25 + 1.75 in) Subsequent I/O Chassis: 4 HE (177.8 mm, 7 in) Width: 482.6 mm (19 in) Depth: 280 mm (11 in) (See "Side view of the IOCHAS-0001R" on page 106) |
| Weight | 8.5 kg (18.74 lb) |
