Product Description

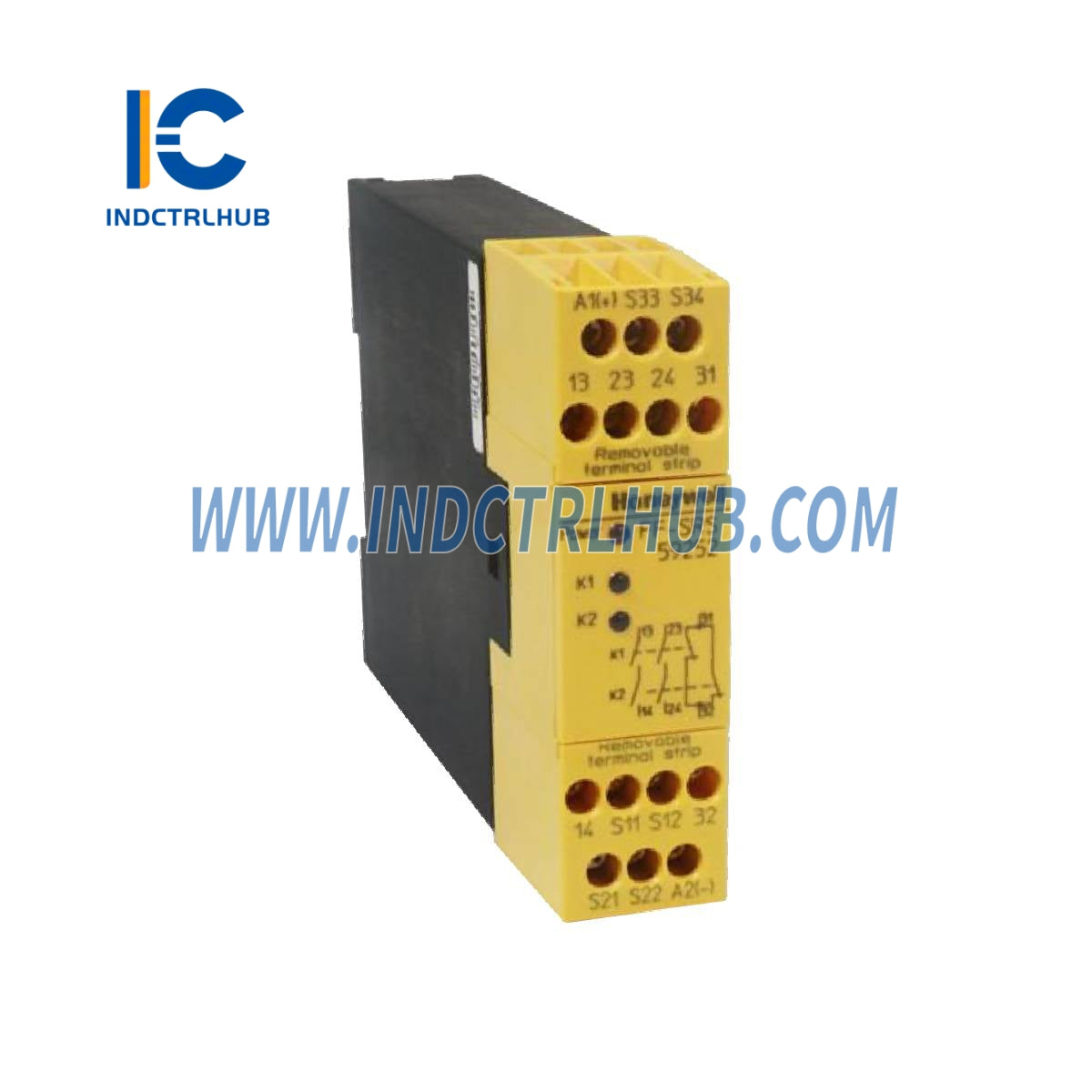

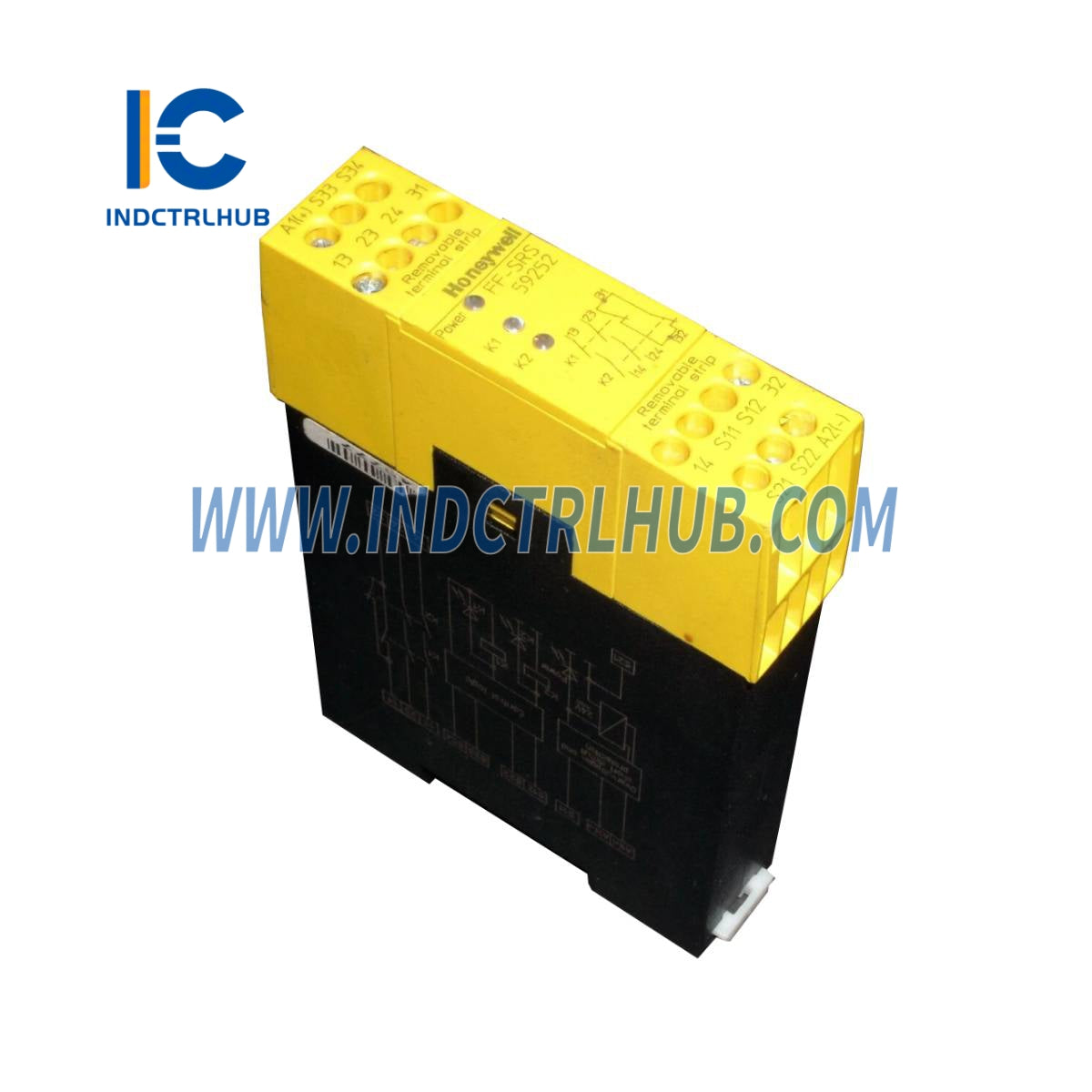

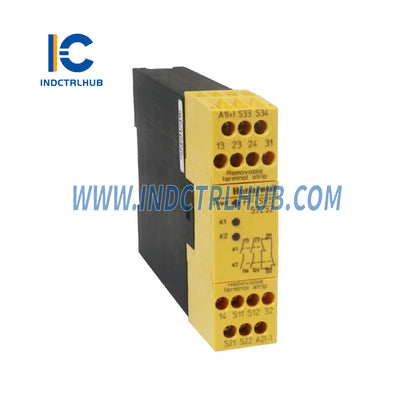

Honeywell FF-SRS59252 Safety Relay Module
Product Overview
- The Honeywell FF-SRS59252 is a dual-channel emergency stop safety relay module designed for integration into safety circuits where personnel or machinery risks are present. Part of the FF-SRS Series, it is used in industrial automation applications to ensure safe operation during emergency stop conditions. The module features two safety relays with positive-guided contacts for redundancy, making it suitable for industries such as manufacturing, material handling, and process control.
Technical Specifications
- The FF-SRS59252 has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|
| Model/Part Number | FF-SRS59252 |
| Manufacturer | Honeywell |
| Description | Dual-Channel Emergency Stop Safety Relay Module |
| Series | FF-SRS Series |
| Supply Voltage | 24 VDC |
| Input Channels | 2 channels (dual-channel input, supports Category 4 per EN 954-1) |
| Output Contacts | 2 Normally Open (NO) + 1 Normally Closed (NC) |
| Switching Current | 1 mA to 7 A (5 µm gold-plated contacts for low current) |
| Housing Width | 22.5 mm (0.89 in, slim design) |
| Operating Temperature | -15°C to +55°C (5°F to 131°F) |
| Weight | Approx. 0.56 kg |
Additional Details
- The FF-SRS59252 includes the following additional information based on its standard use and documentation:
- Function: Monitors emergency stop circuits, ensuring immediate cessation of operations in hazardous conditions; supports machine guarding, process control, and material handling safety applications.
- Mounting: DIN rail mounting for easy installation in control panels.
- Compatibility: Complies with EU Machinery Directives (98/37/EC, IEC 204, EN 60204, DIN VDE 0113); integrates with safety devices requiring dual-channel inputs.
- Configuration: Offers automatic and manual start modes; includes fault detection for line faults, stuck start buttons, and selectable cross faults in the emergency stop circuit.
- Certifications: CE, TÜV, UL508, CSA.
